A complete guide to write your first Ansible Playbook

What are Ansible Playbooks

  • Ansible playbooks are text files or configuration files that are written in particular format called YAML.
  • These are expressed in the YAML format and have a minimum of syntax, which is not to be a programming language or script, but rather a model of a configuration.
  • Each playbook includes one or more "plays" in a list.
  • The goal of a play is to map a group of hosts to some well-defined roles and tasks.
  • A task is nothing but a call or operation, which applies on group of hosts.



Example-1: Your first playbook to install single package

Let us write a simple playbook to install wget rpm on all our managed nodes.
So we will install wget on these 2 hosts. Below is our ansible playbook. I have added comments for better understanding:

[ansible@controller ~]$ cat install_wget.yml
# --- represents this file as a playbook
---
# Use [space]play[space] where play is combination of hosts+tasks
 - hosts: all
   # Become root user
   become: yes
   # List of tasks to be executed
   tasks:
   - yum:
       name=wget
       state=absent

Our playbook contains one play. Each play consists of the following two important parts:

  • What to configure: We need to configure a host or group of hosts to run the play against. Also, we need to include useful connection information, such as which user to connect as, whether to use sudo command, and so on.
  • What to run: This includes the specification of tasks to be run, including which system components to modify and which state they should be in, for example, installed, started, or latest. This could be represented with tasks and later on, by roles.



Creating a host inventory

Before we even start writing our playbook with Ansible, we need to define an inventory of all hosts that need to be configured, and make it available for Ansible to use. You can also choose to use dynamic inventory which we have already learned in earlier chapter. Here I will keep it simple and stick to static inventory.

We will use the default inventory file /etc/ansible/hosts to define our managed nodes under with following content

server1
server2
server3

Earlier I had deployed server3 without passphrase to understand how we can work with managed nodes with password. Now I will re-deploy the public key to server3 to have a password less communication between controller and server3

[ansible@controller ~]$ ssh server3
Activate the web console with: systemctl enable --now cockpit.socket

Last login: Mon Sep 21 09:49:33 2020 from 172.31.7.253
[ansible@server3 ~]$ logout
Connection to server3 closed.

Our password less communication is working with server3



Using hosts pattern

We have used - hosts: all in our playbook which means that the playbook will be executed for all the nodes found in the inventory. We can also define patterns instead of "all" to match a selective set of hosts or groups from the inventory file.

Pattern TypesExamples
Group Nameapp
Match allall
Rangeserver[000:999]
Hostname/Hostname globs*.example.com, host01.example.com
Exclusionsapp:!server3
Regular Expressions~(nn|zk).*\.example\.org

We have already discussed about these individual patterns in "Working with Inventory Files"



Tasks

Plays map hosts to tasks. Tasks are a sequence of actions performed against a group of hosts that match the pattern specified in a play. Each play typically contains multiple tasks that are run serially on each machine that matches the pattern.

For example, following snippet is from our playbook

   tasks:
   - yum:
       name=wget
       state=present

Under tasks we have defined the module which should be used to execute the task i.e. "yum". This module expects certain arguments to complete the task such as name of the package, state which defines the action present/latest/absent. We have defined these values under new line for better readability.

Additionally since installing new rpm requires root privilege hence we have also used become: yes in the playbook



Running the playbook

Ansible comes with the ansible-playbook command to launch a playbook with. Let us execute this playbook

[ansible@controller ~]$ ansible-playbook install_wget.yml

Here is what happens when you run the preceding command:

  • The ansible-playbook parameter is the command that takes the playbook as an argument (install_wget.yml) and runs the plays against the hosts
  • The install_wget parameter contains the single play that we created i.e. to install wget rpm
  • The hosts: all parameter is our host's inventory, which lets Ansible know which hosts, or groups of hosts, to call plays against

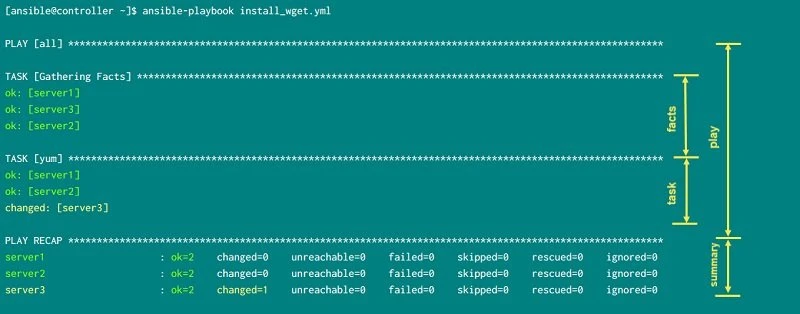

Launching the preceding command will start calling plays, orchestrating in the sequence that we described in the playbook. Here is the output of the preceding command:

A complete guide to write your first Ansible Playbook

  • Ansible reads the playbooks specified as an argument to the ansible-playbook command and starts executing plays in the serial order.
  • Since we have declared single play, it runs against the "all" hosts. The all keyword is a special pattern that will match all hosts. So, the tasks in the this play will be executed on all hosts in the inventory we passed as an argument.
  • Before running any of the tasks, Ansible will gather information about the systems that it is going to configure. This information is collected in the form of facts. If you recall I had mentioned this in "Ansible Facts" chapter. In the playbook we have not mentioned anything about gathering facts and yet "setup" module was called to collect the facts before executing the tasks
  • The next section is the output from tasks where yum module is used to install the packages. The output shows OK for server1 and server2 but for server3 it says changed. This would mean that on server1 and server2 the execution was successful but nothing was changed i.e. nothing was installed. It is possible that wget was already in installed state on these servers hence ansible skipped any changes. While on server3 we have the output as "changed" which means that wget was successfully installed
  • Finally, Ansible prints the summary of the playbook run in the "PLAY RECAP" section. It indicates how many modifications were made, if any of the hosts were unreachable, or execution failed on any of the systems.

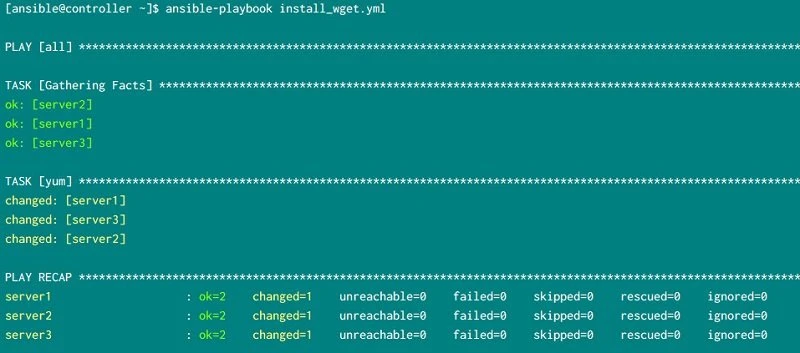

Let us use "state=absent" instead of "present" with yum module inside the playbook to remove the wget rpm from all our managed nodes:

A complete guide to write your first Ansible Playbook
Now we re-ran the playbook by use "state=absent" and we see that "changed=1" so this means the execution has successfully changed one data where wget was removed from the managed nodes.



Example-2: Install multiple packages on different managed nodes

Now let us take things forward and in this example we will install multiple packages using single playbook file. I have modified my inventory file

[ansible@controller ~]$ cat /etc/ansible/hosts
[web]
server1
server2

[app]
server3

So as you see now I have divided my managed nodes into two groups where server1 and server2 are part of web group while server3 is part of app group. We will install httpd rpm on the web group while on app group we will install wget and vim rpm.



Following is our second_playbook.yml

---
 - hosts: app
   become: yes
   tasks:
   - yum: name=wget state=latest
   - yum: name=vim state=latest

 - hosts: web
   become: yes
   tasks:
   - yum: name=httpd state=latest



I have removed the comments from this YAML file as now you should be familiar with the flow. We have created two play in a single playbook. Here in the first play we will install wget and vim on hosts part of "app" group. In the second play we will install httpd on the hosts part of "web" group.

Let us execute the playbook:

[ansible@controller ~]$ ansible-playbook second_playbook.yml

PLAY [app] **************************************************************************************************

TASK [Gathering Facts] **************************************************************************************
ok: [server3]

TASK [yum] **************************************************************************************************
changed: [server3]

TASK [yum] **************************************************************************************************
changed: [server3]

PLAY [web] **************************************************************************************************

TASK [Gathering Facts] **************************************************************************************
ok: [server2]
ok: [server1]

TASK [yum] **************************************************************************************************
changed: [server2]
changed: [server1]

PLAY RECAP **************************************************************************************************
server1                    : ok=2    changed=1    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0
server2                    : ok=2    changed=1    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0
server3                    : ok=3    changed=2    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0


The output should be pretty clear now:

  • The first play i.e "PLAY [app]" was executed as part of which the first step was to gather facts on all the servers part of "app" group. Then the tasks were expected on app group i.e. installing two rpms
  • In the second play i.e. "PLAY [web]" again setup module was called to gather all the facts from all the hosts part of "web" group. Next the tasks are executed i.e. installing wget and vim rpm on the respective managed nodes
  • PLAY_RECAP refers to the final result. On server3 we have changed=2 which means 2 rpms were installed while on server1 and server2 we have changed=1 because single httpd package was installed using this playbook.



Example-3: Disable gathering facts module

We know that by default ansible-playbook will execute setup module to gather facts from the respective managed nodes. We also have an option to disable this feature if we feel this is not required using "gather_facts: false"

Let us use this in our playbook, remove_gather_facts.yml with following content:

---
 - hosts: server1
   become: yes
   gather_facts: false
   tasks:
   - yum: name=wget state=absent

In this playbook we will remove wget rpm as root user and additionally we have also disabled "ansible facts".

Following the the output from the execution of this playbook. This time the output is must shorter because ansible didn't collected any facts from server3

A complete guide to write your first Ansible Playbook



Example-4: Assign custom name to the play and tasks

In all the examples above if you observe the output of ansible-playbook, the name of the play is based on the value of "hosts", similarly the name of the TASK is based on the module used. Now this may seem confusing when we have a single playbook with multiple plays so we would like to give a custom name to individual play and tasks by using name=<NAME>.

For example here we have a playbook where I have a single PLAY which will perform two tasks.

  1. Copy /tmp/demo.txt from the ansible engine to the hosts part of web group in my inventory
  2. Create an empty file again on the hosts part of web group in my inventory



Sample assign_custom_name.yml

---
 - name: Hello World
   hosts: web
   gather_facts: false
   tasks:
   - name: Copy file to web group
     copy: src=/tmp/demo.txt dest=~/
   - name: Create an empty file on web group
     file: path=/tmp/src_file.txt state=touch

Here since we have two tasks we have used hyphen twice. A "name=" is defined for the PLAY and both the tasks. So now let us execute this playbook:

A complete guide to write your first Ansible Playbook

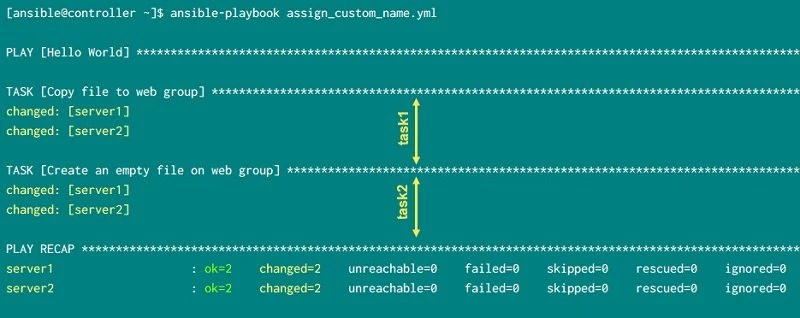

You can check the output and now we have proper name visible for PLAY and both the TASK.



Example-5: Execute playbook as shell scripts

We also have an option to call the playbook as we would call a shell script. To achieve this we must replace the first line with three dash "---" to the path of ansible-playbook binary "/usr/bin/ansible-playbook" with she-bang character as we would do for shell script.

You can get the path of ansible-playbook binary using which command:

~]$ which ansible-playbook
/usr/bin/ansible-playbook

We will use our last example script assign_custom_name.yml to replace the first line with this binary path in the playbook as shown below

#!/usr/bin/ansible-playbook
 - name: Hello World
   hosts: web
   gather_facts: false
   tasks:
   - name: Copy file to web group
     copy: src=/tmp/demo.txt dest=~/
   - name: Create an empty file on web group
     file: path=/tmp/src_file.txt state=touch

Provide executable permission to the playbook:

[ansible@controller ~]$ chmod u+x assign_custom_name.yml

Let's run our playbook as we would execute a shell script:

[ansible@controller ~]$ ./assign_custom_name.yml

PLAY [Hello World] ************************************************************************************************************************

TASK [Copy file to web group] *************************************************************************************************************
ok: [server1]
ok: [server2]

TASK [Create an empty file on web group] **************************************************************************************************
changed: [server1]
changed: [server2]

PLAY RECAP ********************************************************************************************************************************
server1                    : ok=2    changed=1    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0
server2                    : ok=2    changed=1    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0



Example-6: Print debug message with playbooks

In all the examples till now we are performing tasks but printing nothing on the console. We did changed the name of the play and tasks but those are different use case. In all other scripts and code we have an option to print text on the console while performing any tasks such as by using echo, print, printf etc. Similarly in ansible we have debug module which is nothing but Ansible’s version of a print statement.

You can use debug module within tasks section to print messages which can help you debug the playbook.

I have written a small playbook print-message.yml which just prints a message "Hello World" at the tasks section:

---
 - hosts: server2
   tasks:
   - debug: msg="Hello World"

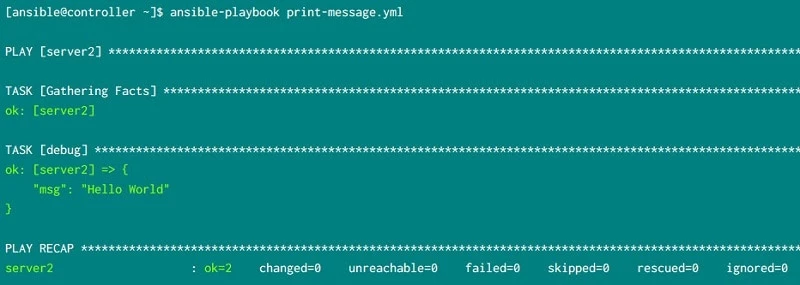

Let us execute this playbook:
A complete guide to write your first Ansible Playbook

So we have an output on the console as expected. If you have to print multi-line text then you have to place the msg in the next line:

---
 - hosts: server2
   tasks:
   - debug:
       msg:
        - "This is first line"
        - "This is second line"
        - "This is third line"

Observe the indentation. I have placed msg in the next line and added some extra whitespace. All the text messages are again added on individual lines starting with - (dash) with some additional whitespace.

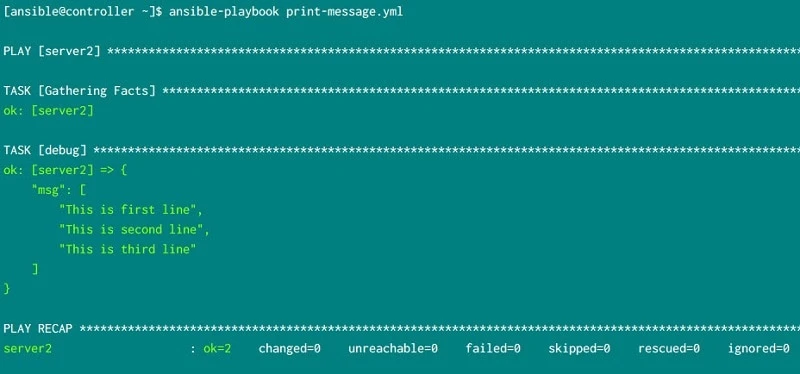

Let us check the output from the playbook when executed:

A complete guide to write your first Ansible Playbook



Example-7: Increase verbosity level of playbook

We can add debug message which is easy to debug individual tasks but to debug the entire playbook we also have an option to print verbose message and increase verbosity level to get more detailed output of activity performed in the backend.

In this sample yml "increase-verbosity.yml" file I have created two tasks where in the first task I will print a message without any verbosity while in the second task I am printing a message with increased verbosity.

---
 - hosts: server2
   tasks:
   - name: default verbose
     debug:
       msg:
        - This is a test message without verbosity
   - name: verbosity level 2
     debug:
       msg:
        - This is a test message with verbosity level 2
       verbosity: 2

Let us execute this playbook:

[ansible@controller ~]$ ansible-playbook increase-verbosity.yml

PLAY [server2] *******************************************************************************************************

TASK [Gathering Facts] ***********************************************************************************************
ok: [server2]

TASK [default verbose] ***********************************************************************************************
ok: [server2] => {
    "msg": [
        "This is a test message without verbosity"
    ]
}

TASK [verbosity level 2] *********************************************************************************************
skipping: [server2]

PLAY RECAP ***********************************************************************************************************
server2                    : ok=2    changed=0    unreachable=0    failed=0    skipped=1    rescued=0    ignored=0

From the output we see that our message with no verbosity was printed but the one with verbose level 2 was skipped.

The message with verbosity was skipped because in such case ansible expects the playbook to be executed with verbose input, so we will re-run the playbook with "-vv" argument:

[ansible@controller ~]$ ansible-playbook increase-verbosity.yml -vv
ansible-playbook 2.9.13
  config file = /etc/ansible/ansible.cfg
  configured module search path = ['/home/ansible/.ansible/plugins/modules', '/usr/share/ansible/plugins/modules']
  ansible python module location = /usr/lib/python3.6/site-packages/ansible
  executable location = /usr/bin/ansible-playbook
  python version = 3.6.8 (default, Apr 16 2020, 01:36:27) [GCC 8.3.1 20191121 (Red Hat 8.3.1-5)]
Using /etc/ansible/ansible.cfg as config file

PLAYBOOK: increase-verbosity.yml *************************************************************************************
1 plays in increase-verbosity.yml

PLAY [server2] *******************************************************************************************************

TASK [Gathering Facts] ***********************************************************************************************
task path: /home/ansible/increase-verbosity.yml:2
ok: [server2]
META: ran handlers

TASK [default verbose] ***********************************************************************************************
task path: /home/ansible/increase-verbosity.yml:4
ok: [server2] => {
    "msg": [
        "This is a test message without verbosity"
    ]
}

TASK [verbosity level 2] *********************************************************************************************
task path: /home/ansible/increase-verbosity.yml:8
ok: [server2] => {
    "msg": [
        "This is a test message with verbosity level 2"
    ]
}
META: ran handlers
META: ran handlers

PLAY RECAP ***********************************************************************************************************
server2                    : ok=3    changed=0    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0

Now we see a more detailed output on the console. You may increase the count of "-v" to get much more detail which can fill up your console.



Example-8: Perform syntax check

Defining whether a file has the right syntax or not is fairly easy for a machine, but might be more complex for humans. This does not mean that machines are able to fix the code for you, but they can quickly identify whether a problem is present or not.

When we execute a playbook, ansible will any how perform a syntax check but then they may break the functionality by partially performing the tasks. So before actually executing the playbook we can perform a syntax check

I have created a new yaml file syntax_check.yml and I have intentionally added extra whitespace at "- debug". Due to which both msg and - debug are starting at the same line. I should have also add some extra whitespace for line with "msg:"

---
 - hosts: all
   tasks:
      - debug:
       msg: "Hello World"



Let us execute the script using --syntax-check to check the syntax of the playbook:

[ansible@controller ~]$ ansible-playbook syntax_check.yml --syntax-check
ERROR! We were unable to read either as JSON nor YAML, these are the errors we got from each:
JSON: Expecting value: line 1 column 1 (char 0)

Syntax Error while loading YAML.
  did not find expected '-' indicator

The error appears to be in '/home/ansible/syntax_check.yml': line 5, column 8, but may
be elsewhere in the file depending on the exact syntax problem.

The offending line appears to be:

      - debug:
       msg: "Hello World"
       ^ here

Now I will fix the indentation and re-execute the --syntax-check:

[ansible@controller ~]$ ansible-playbook syntax_check.yml --syntax-check

playbook: syntax_check.yml

When the syntax check doesn't find any errors, the output will resemble the previous one, where it listed the files that were analysed without listing any errors.

Since Ansible knows all the supported options in all the supported modules, it can quickly read your code and validate whether the YAML you provided contains all the required fields and that it does not contain any unsupported fields.



Example-9: Perform dry run of playbooks

Although you might be confident in the code you have written, it still pays to test it before running it for real in a production environment. In such cases, it is a good idea to be able to run your code, but with a safety net in place. This is what check mode is for:

Let's create a playbook called check-mode.yml that contains the following content:

---
- hosts: server2
  tasks:
  - name: Install nano
    yum: name=nano  state=latest

This playbook is expected to install nano rpm on server2. You may have already realised what is wrong here? Installing an rpm requires root level privilege which is missing in this playbook.

But let us execute this playbook in dry mode using --check and verify the output:

[ansible@controller ~]$ ansible-playbook --check check-mode.yml

PLAY [server2] ****************************************************************************************************************************

TASK [Gathering Facts] ********************************************************************************************************************
ok: [server2]

TASK [Install nano] ***********************************************************************************************************************
fatal: [server2]: FAILED! => {"changed": false, "msg": "This command has to be run under the root user.", "results": []}

PLAY RECAP ********************************************************************************************************************************
server2                    : ok=1    changed=0    unreachable=0    failed=1    skipped=0    rescued=0    ignored=0

As expected the dry run has told us the problem i.e. missing root level privilege. The idea is that the run won't change the state of the machine and will only highlight the differences between the current status and the status declared in the playbook.

Not all modules support check mode, but all major modules do, and more and more modules are being added at every release. In particular, note that the command and shell modules do not support it because it is impossible for the module to tell what commands will result in a change, and what won't. Therefore, these modules will always return changed when they're run outside of check mode because they assume a change has been made

I personally also didn't had success with "file" module with dry mode but it is possible in future we will have better results but dry mode can help you with a bunch of other ansible modules so you should definitely use it before executing a playbook in production environment.



What's Next

Next in our Ansible Tutorial we will use Microsoft Visual Studio Code Editor to write playbooks using GUI



Leave a Comment

Please use shortcodes <pre class=comments>your code</pre> for syntax highlighting when adding code.
