Configure Azure Point To Site VPN Connection [Step-by-Step]

Overview on Azure Point to Site VPN

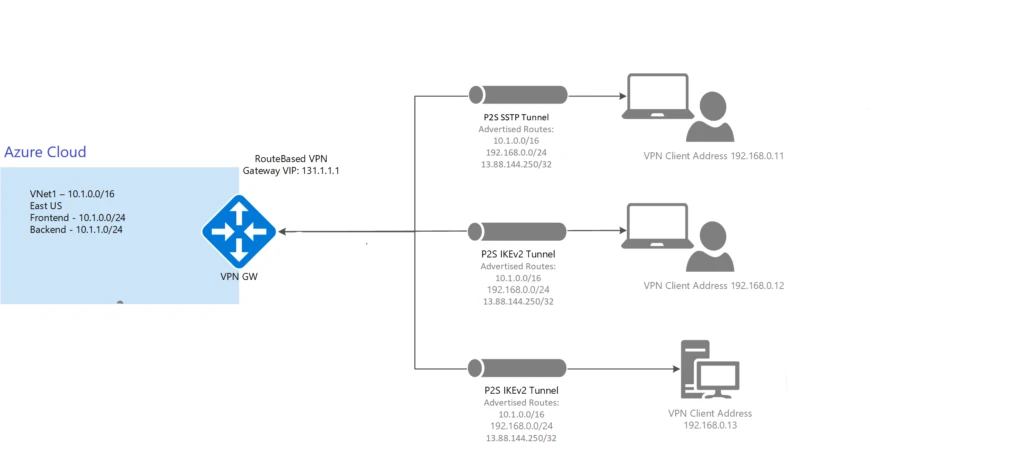

Azure Point-to-Site (P2S) VPN gateway connection lets you connect your individual client machine to Azure Network. A P2S connections established by starting it from client machine.

Configure Azure Point To Site VPN Connection [Step-by-Step]

This solution helps in such scenario where end users are not part of corporate network and want to connect to Azure resources. Also, this can be used in scenario where number of users are limited so it’s feasible to use rather than configuring Site to Site (S2S) VPN tunnel.

Advertisement



Prerequisite for P2S VPN

  • Azure Subscription
  • On-Prem IP Range (to avoid IP conflict issues)



Step-1: Create Virtual Network Gateway on Azure (VPN)

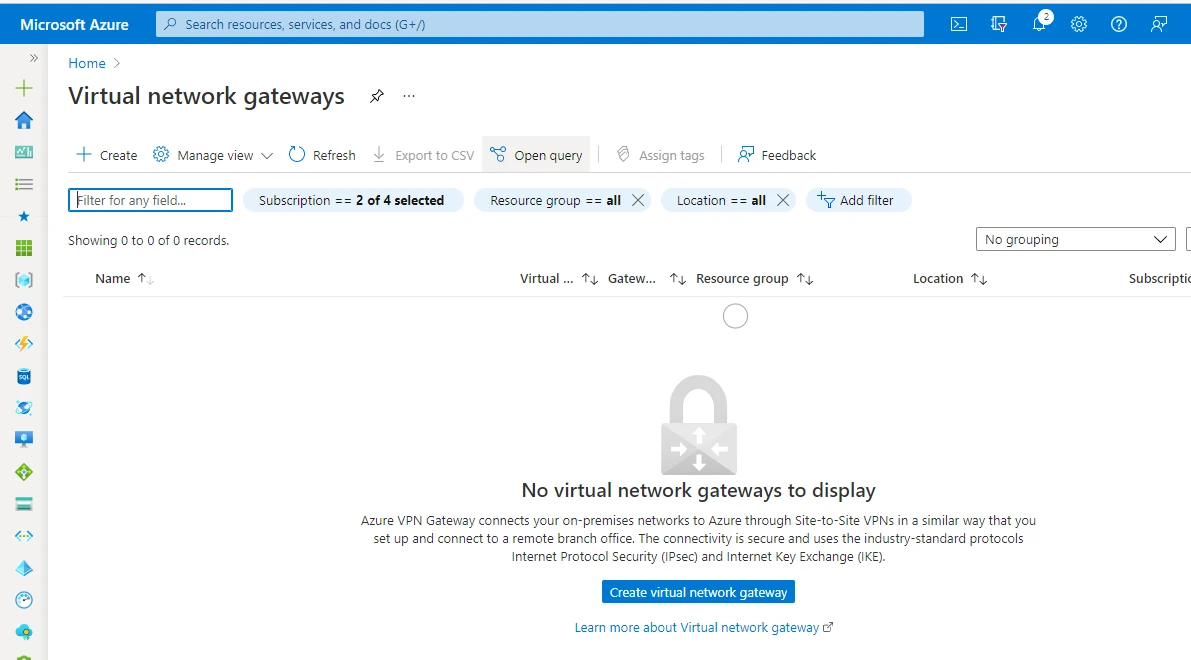

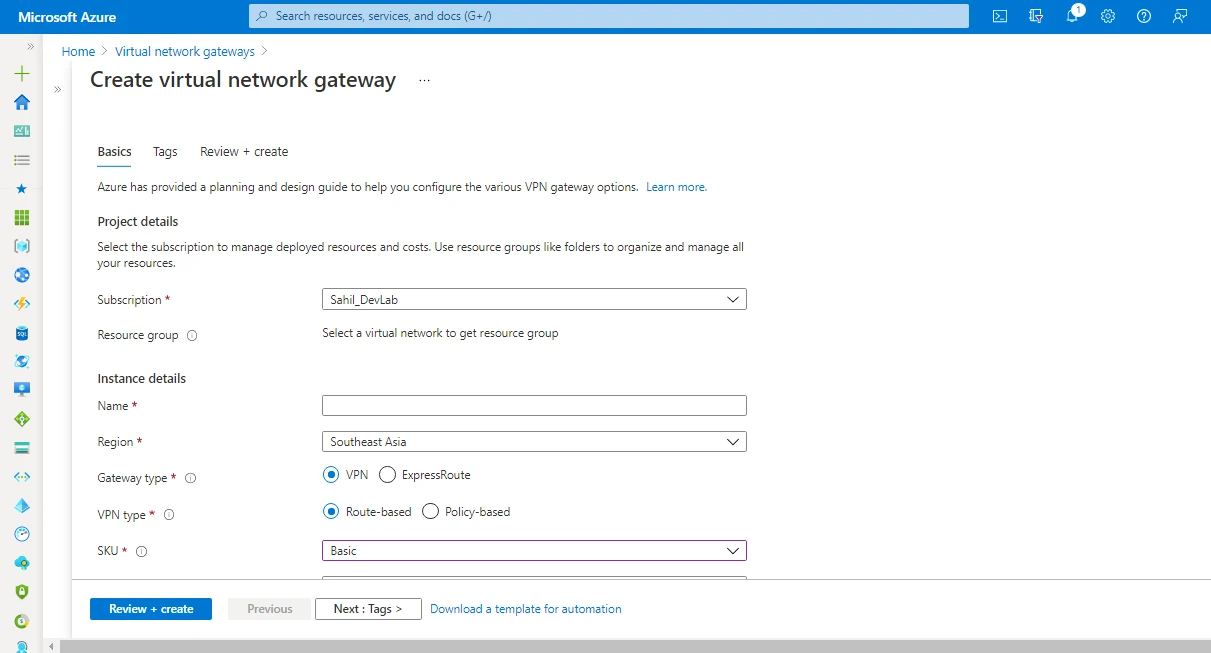

Login to Azure Portal and search for Virtual Network Gateway.

Configure Azure Point To Site VPN Connection [Step-by-Step]

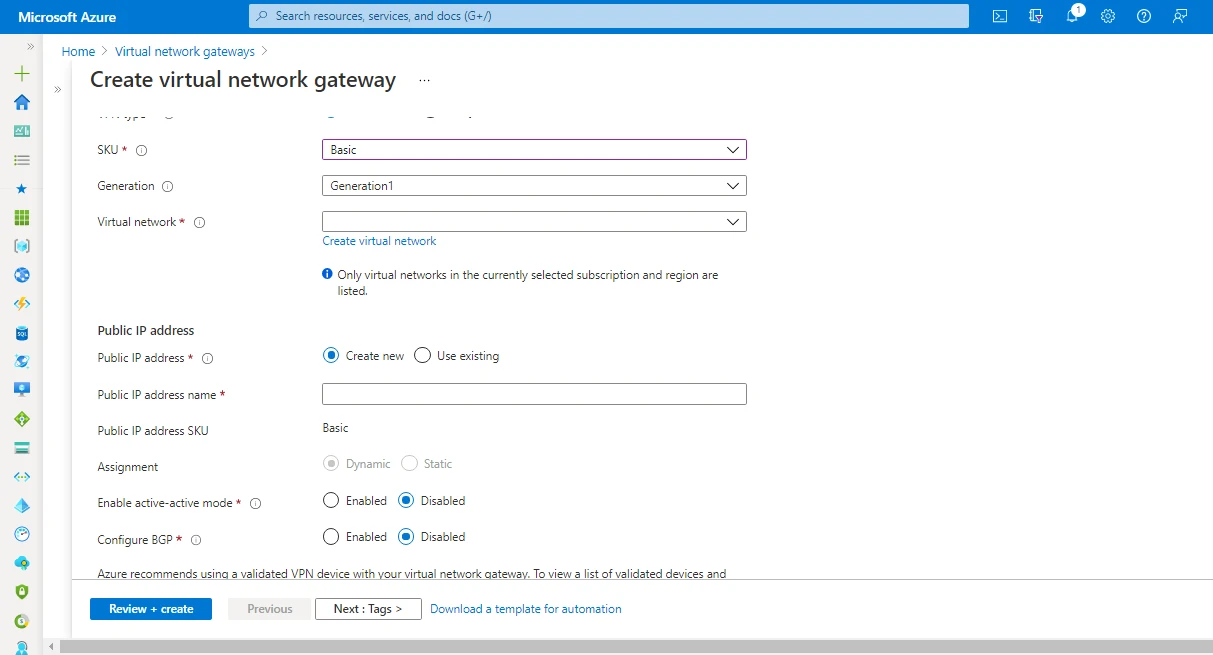

Click on create and follow the wizard.

  • Subscription: - Select your organization subscription (Subscription is logical ID assigned under your tenant)
  • Resource Group: - Select resource group where you want to deploy this service (Resource Group is logical grouping of your resources)
  • Name: - Name for your Virtual Network Gateway.
  • Region: - Its geographical location where your datacenter is located. For testing purpose, you can choose East US region as its cheapest than others.
  • Gateway Type: - VPN as we are using it for P2S.
  • VPN Type: - Choose Route Based VPN.
  • SKU: - For testing purpose select Basic SKU (Stock Keeping Unit). SKU will as per requirement Note: - Basic SKU only supports Windows Machines for P2S.
  • Generation: - Select generation 2 latest.
  • Virtual Network: - Azure Network which you want to talk with On-Prem Network.
  • Public IP address name: Its allows you to give name for your Public IP . In Basic SKU we are using BASIC Public IP Address.

Configure Azure Point To Site VPN Connection [Step-by-Step]

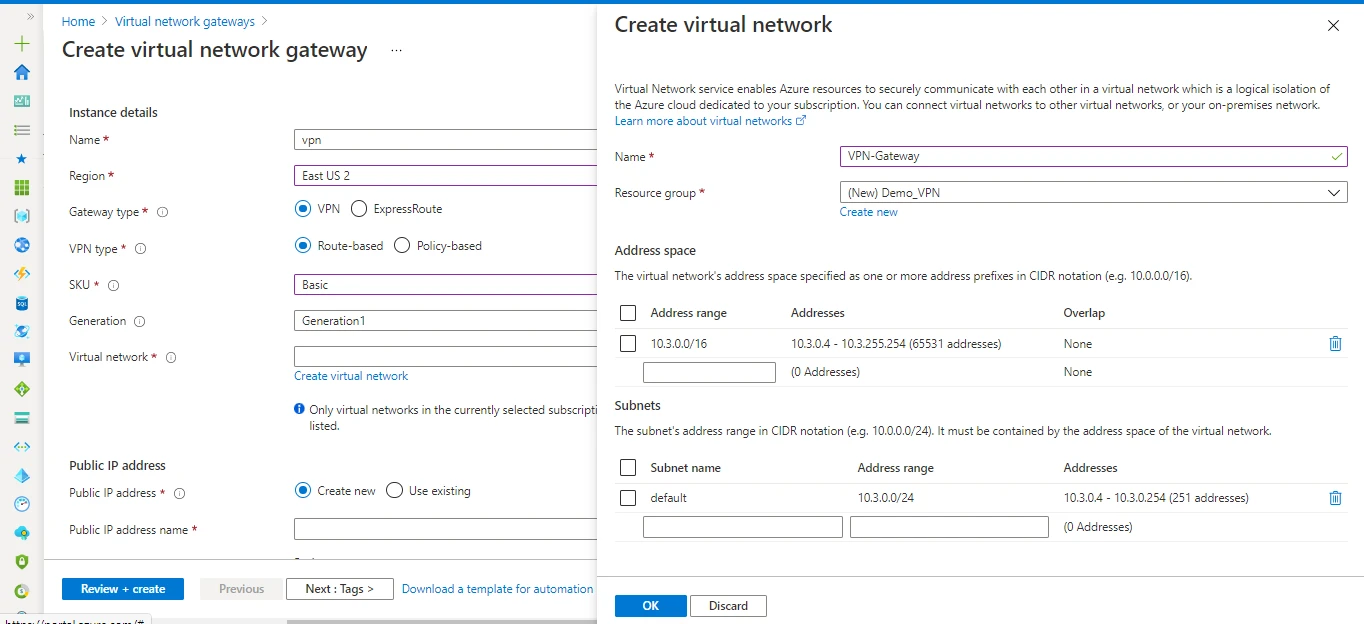

We can create Virtual Network while creating Virtual Network Gateway as per below image.

Configure Azure Point To Site VPN Connection [Step-by-Step]

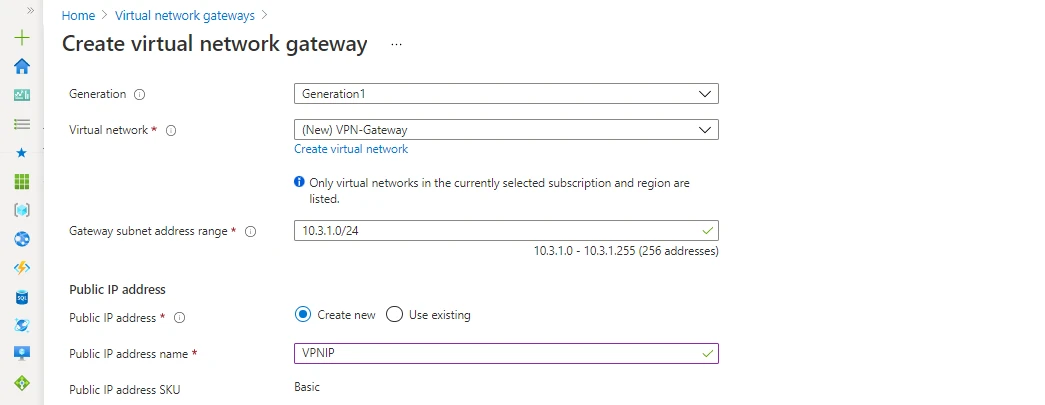

And after once you click on OK your gateway subnet would be automatically get create. or you can go to the Virtual Network resource and manually create Gateway Subnet as per the requirement.

Configure Azure Point To Site VPN Connection [Step-by-Step]



Next, click on next option Tag your resources and review configuration and hit on create button.

Configure Azure Point To Site VPN Connection [Step-by-Step]

It will take approximately 35 min to deploy your Virtual Network Gateway.

Advertisement



Step-2: Create Self-Signed certificate for P2S Connection

In this tutorial we are using Basic SKU for Virtual Network Gateway. Basic SKU supports only certificate-based authentication for P2S Connection. For that lets create Self-sign certificate on local system using PowerShell.

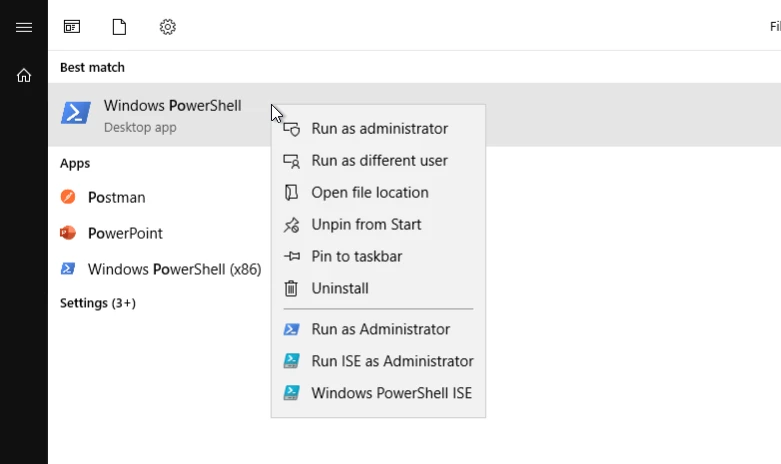

Open Windows PowerShell with administrative privileges as shown below:

Configure Azure Point To Site VPN Connection [Step-by-Step]



Execute the below command on the PowerShell:

This New-SelsignedCertificate module in windows PowerShell which help us to create Self-Signed certificates locally:

C:\Users\sahil> $cert = New-SelfSignedCertificate -Type Custom -KeySpec Signature
-Subject "CN=PS2RootCert" -KeyExportPolicy Exportable `
-HashAlgorithm sha256 -KeyLength 2048 `
-CertStoreLocation "Cert:\CurrentUser\My" -KeyUsageProperty Sign -KeyUsage CertSign

C:\Users\sahil> New-SelfSignedCertificate -Type Custom -DnsName P2SChildCert -KeySpec Signature `
-Subject "CN=PS2ChildCert" -KeyExportPolicy Exportable `
-HashAlgorithm sha256 -KeyLength 2048 `
-CertStoreLocation "Cert:\CurrentUser\My" `
-Signer $cert -TextExtension @("2.5.29.37={text}1.3.6.1.5.5.7.3.2")

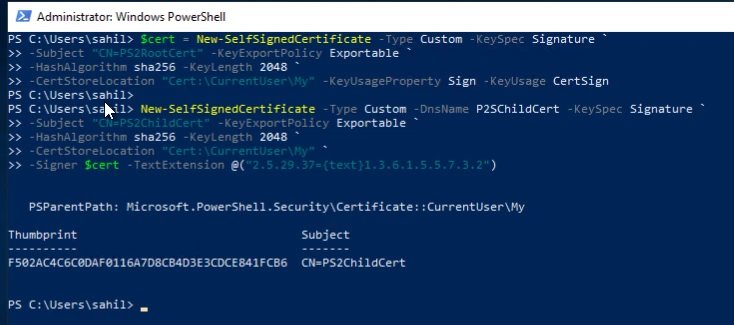

Sample Output:

Configure Azure Point To Site VPN Connection [Step-by-Step]`



Here we are using PS2RootCert Name for our Public Key and PS2ChildCert for our private key you can rename name of certificate as per requirement. Here we are creating Root and Child certificate which will act as Public and Private key. Will upload Public Key to P2S VPN configuration and child certificate will share with end users for installing on local system. So, they can connect securely to Azure VPN.

Now, Certificate has been created and stored that is automatically installed in “Certificates-CurrentUser\Personal\Certificates”.

Advertisement



Step-3: Export Root and Child certificates

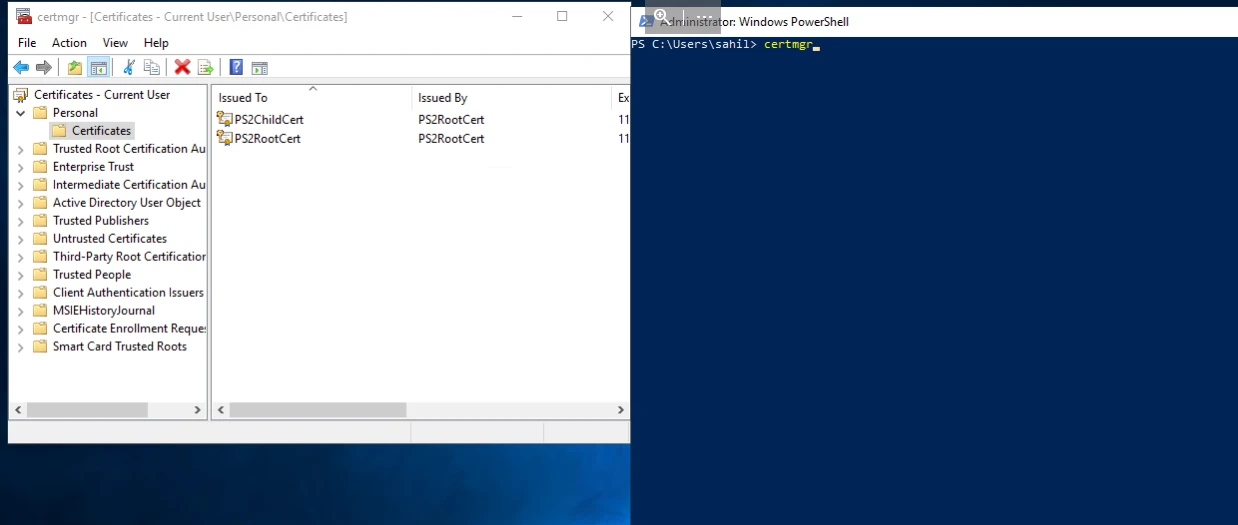

Now, Open Certificate manager to export Root and Child Certificates. Follow below step in PowerShell to open Certmanager.

Configure Azure Point To Site VPN Connection [Step-by-Step]

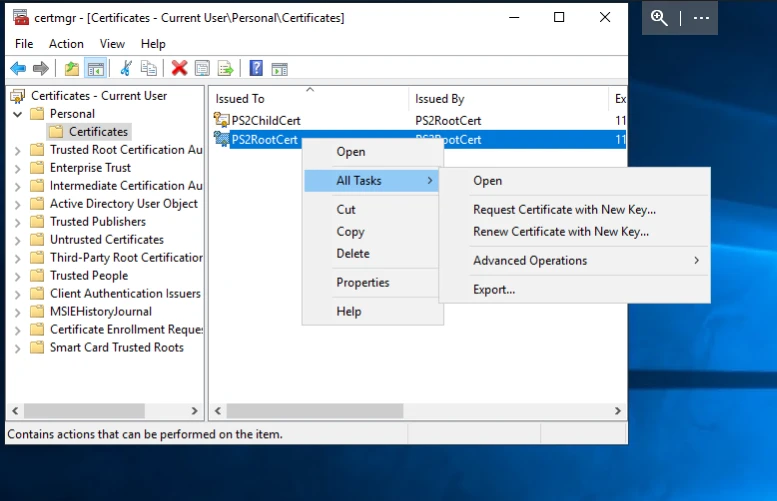

Once PS2RootCert has been created and is visible in certmgr right-click on it. Click All Tasks, and then click Export. This opens the Certificate Export Wizard.

Configure Azure Point To Site VPN Connection [Step-by-Step]

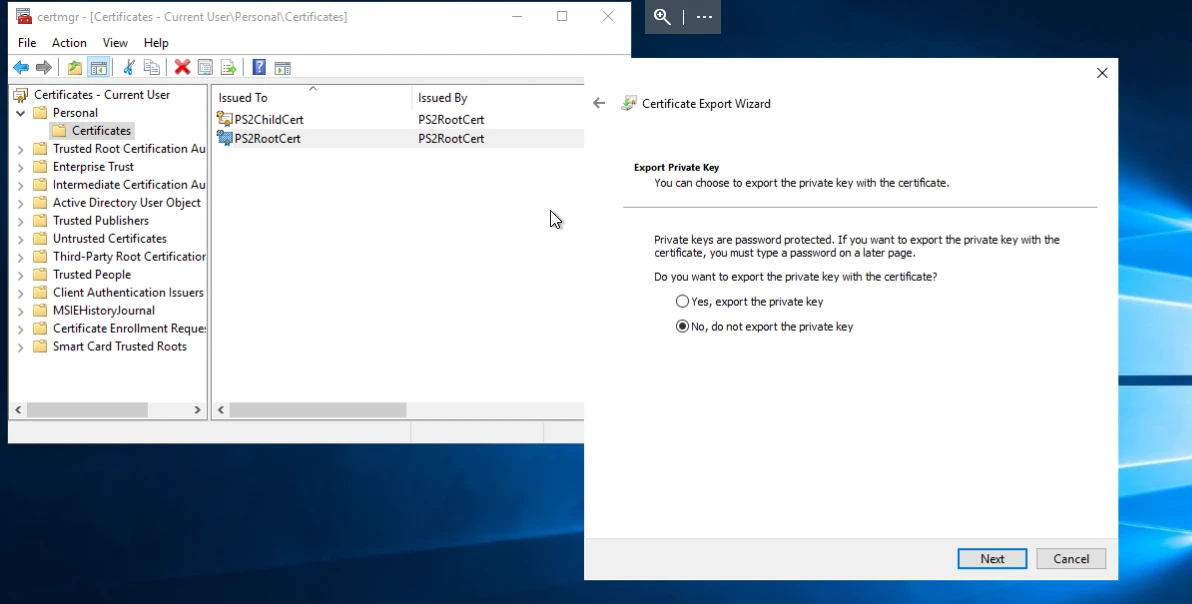

In the Wizard, click Next Select No, do not export the private key and then click Next On the Export File Format page, select Base-64 encoded X.509 (.CER)., and then click Next.

Configure Azure Point To Site VPN Connection [Step-by-Step]

Select Base-64 encoded X.509 (.CER)., and then click Next, for File to Export, browse to the location to which you want to export the certificate.

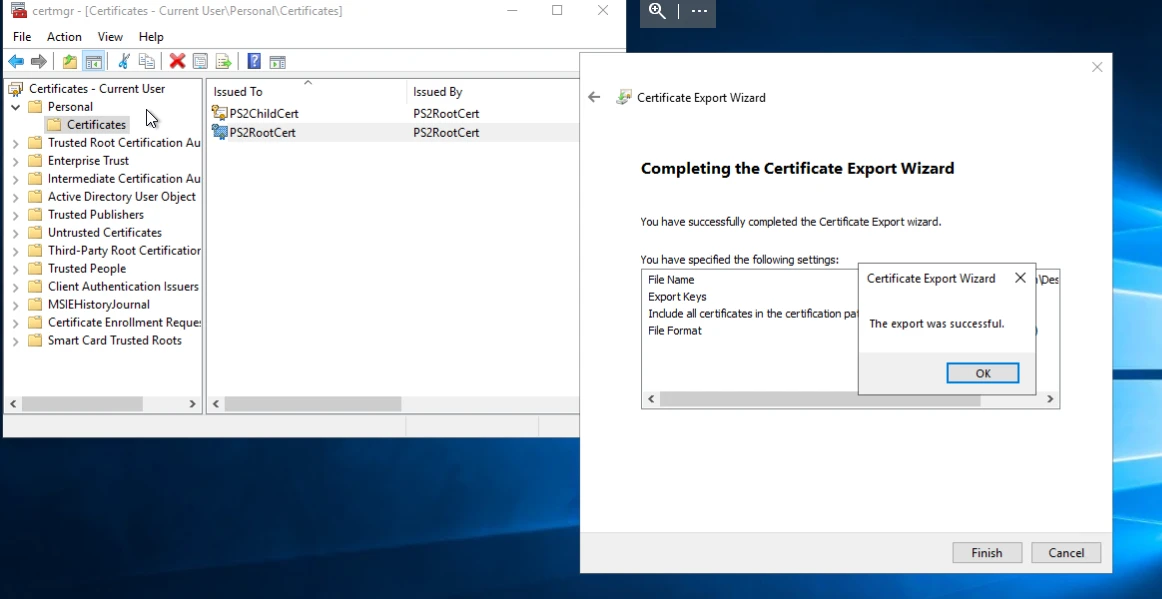

For File name, name the certificate file “PS2RootCert”. Then, click Next Click Finish to export the certificate.

Configure Azure Point To Site VPN Connection [Step-by-Step]



Now export the PS2ChildCert which has slightly different steps to follow than above.

Configure Azure Point To Site VPN Connection [Step-by-Step]

In certmgr right-click on PS2ChildCert. Click All Tasks, and then click Export. This opens the Certificate Export Wizard.

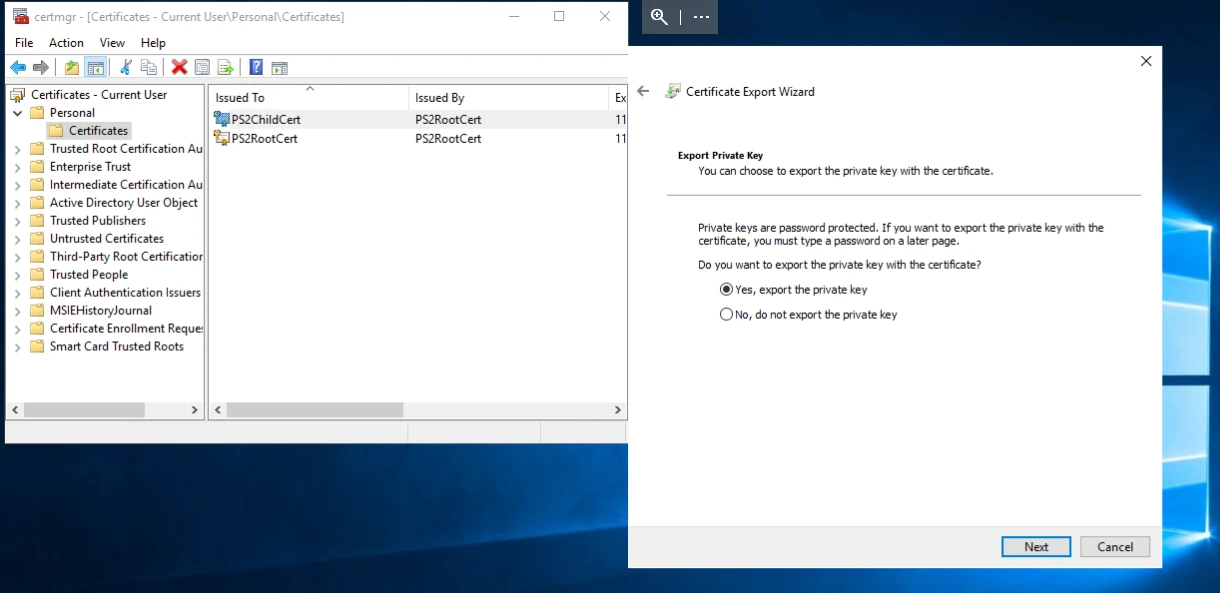

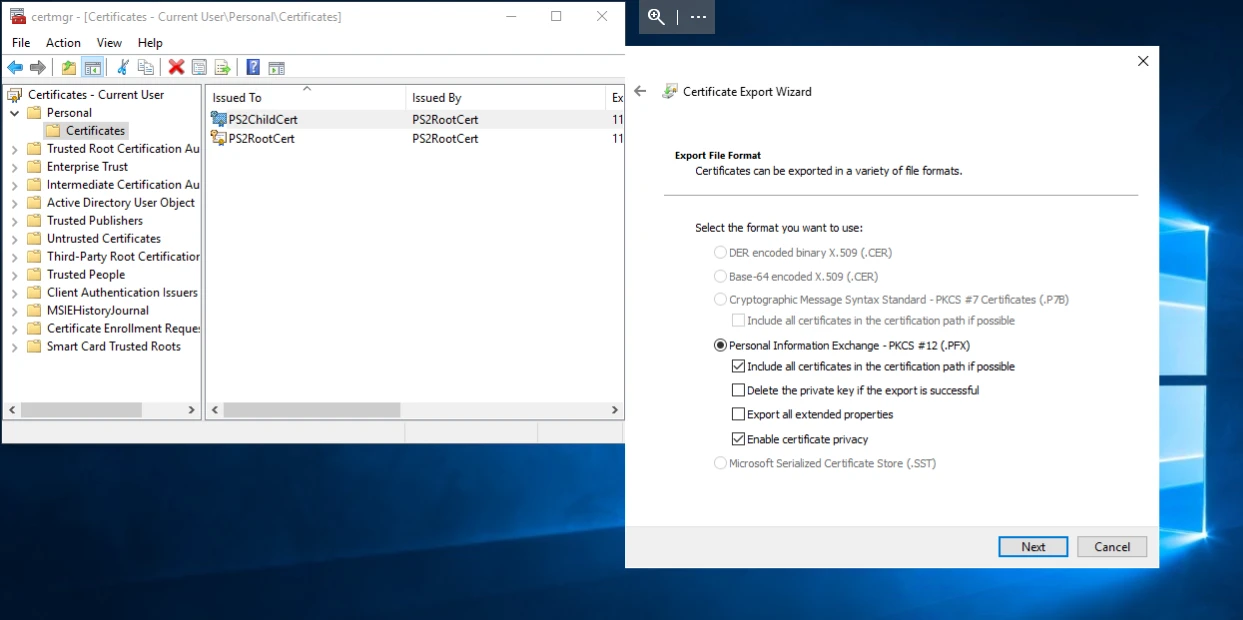

In the Certificate Export Wizard, click Next to continue Select Yes, export the private key, and then click Next On the Export File Format page, leave the defaults selected. Make sure that include all certificates in the certification path if possible is selected.

Configure Azure Point To Site VPN Connection [Step-by-Step]



This setting additionally exports the root certificate information that is required for successful client authentication. Without it, client authentication fails because the client doesn’t have the trusted root certificate.

Configure Azure Point To Site VPN Connection [Step-by-Step]

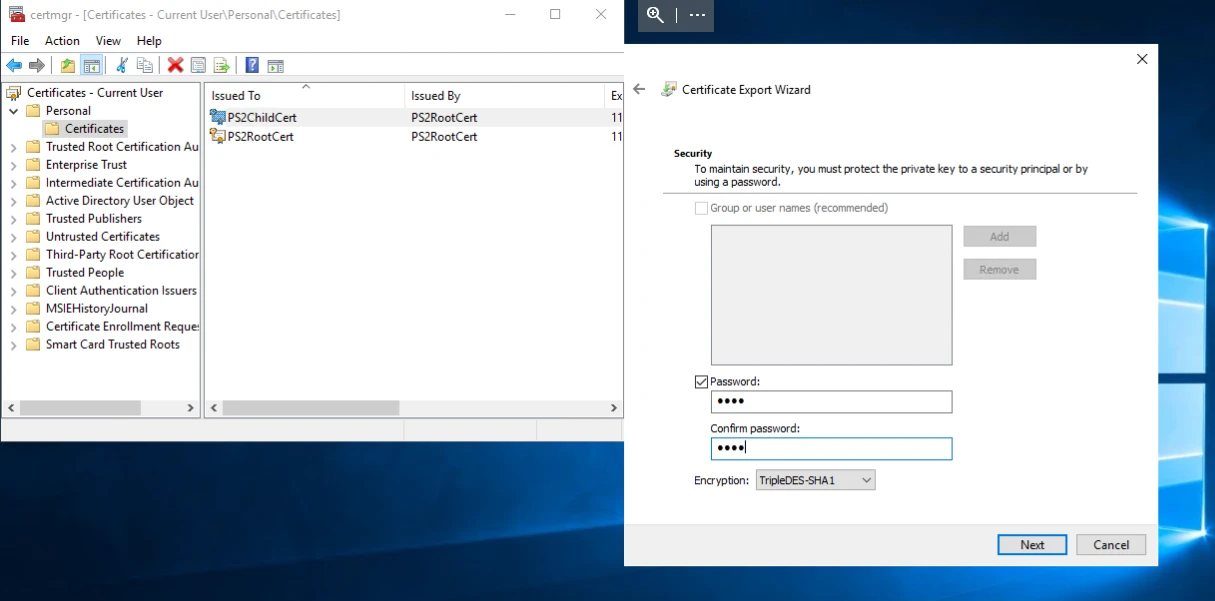

Then, click Next on the Security page, you must protect the private key. If you select to use a password, make sure to record or remember the password that you set for this certificate.

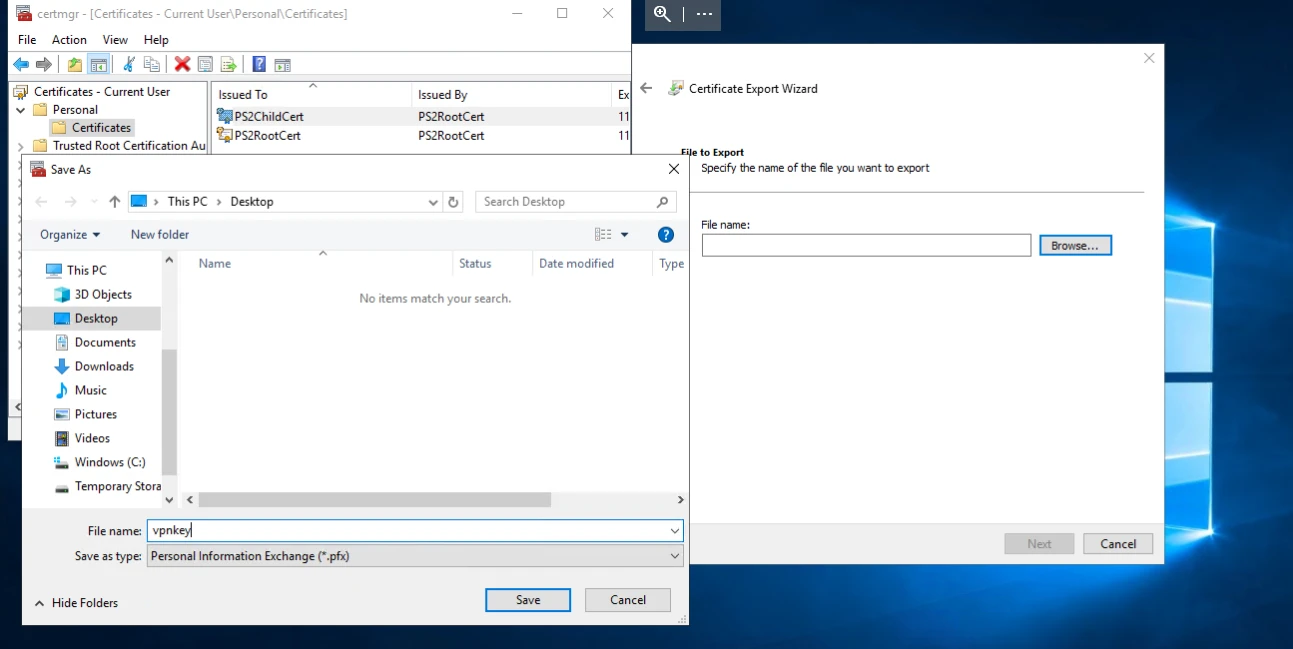

Then, click Next on the File to Export, browse to the location to which you want to export the certificate. For File name, name the certificate “PS2ChildCert”

Configure Azure Point To Site VPN Connection [Step-by-Step]

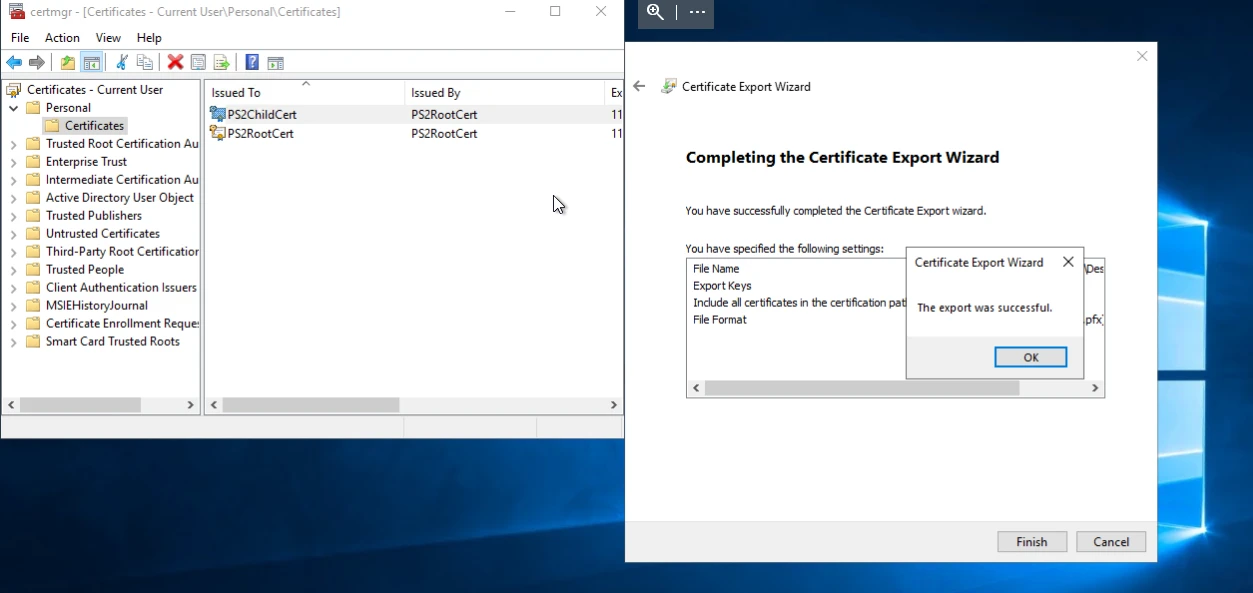

Click Next. Click Finish to export the certificate.

Configure Azure Point To Site VPN Connection [Step-by-Step]

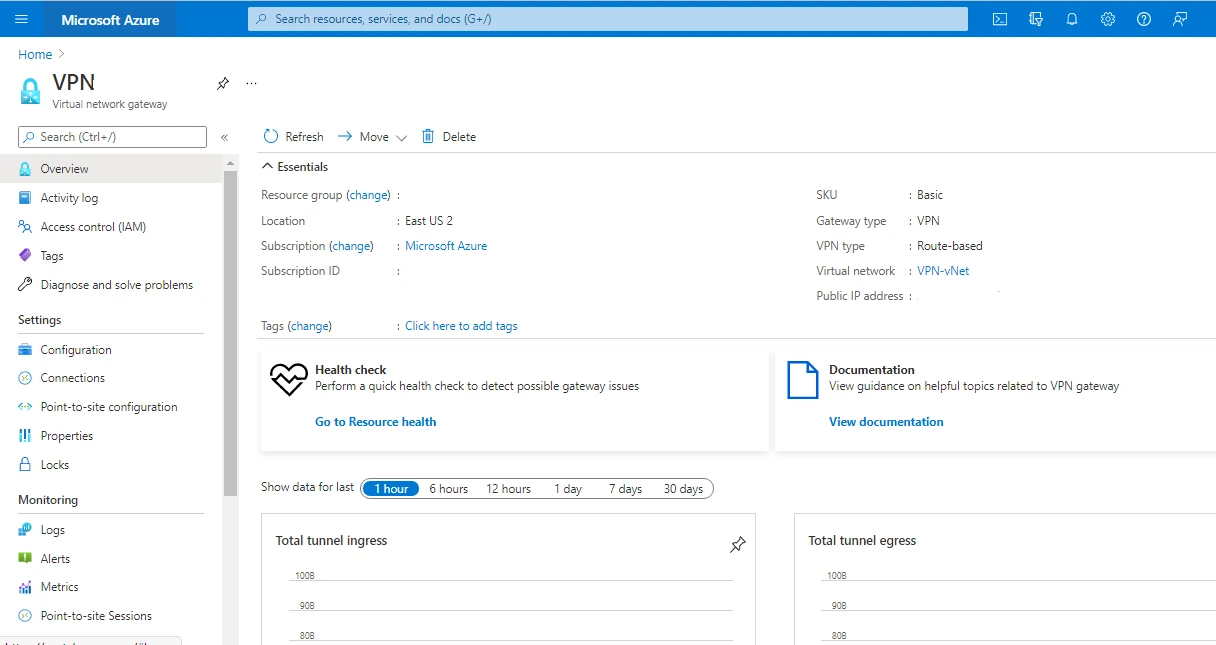

After deployment you will be able to see Virtual Network Gateway under your resource group. Now, we have successfully created Virtual Network gateway. Let’s configure P2S connection.

Configure Azure Point To Site VPN Connection [Step-by-Step]





Step-4: Configure Azure Point to Site VPN

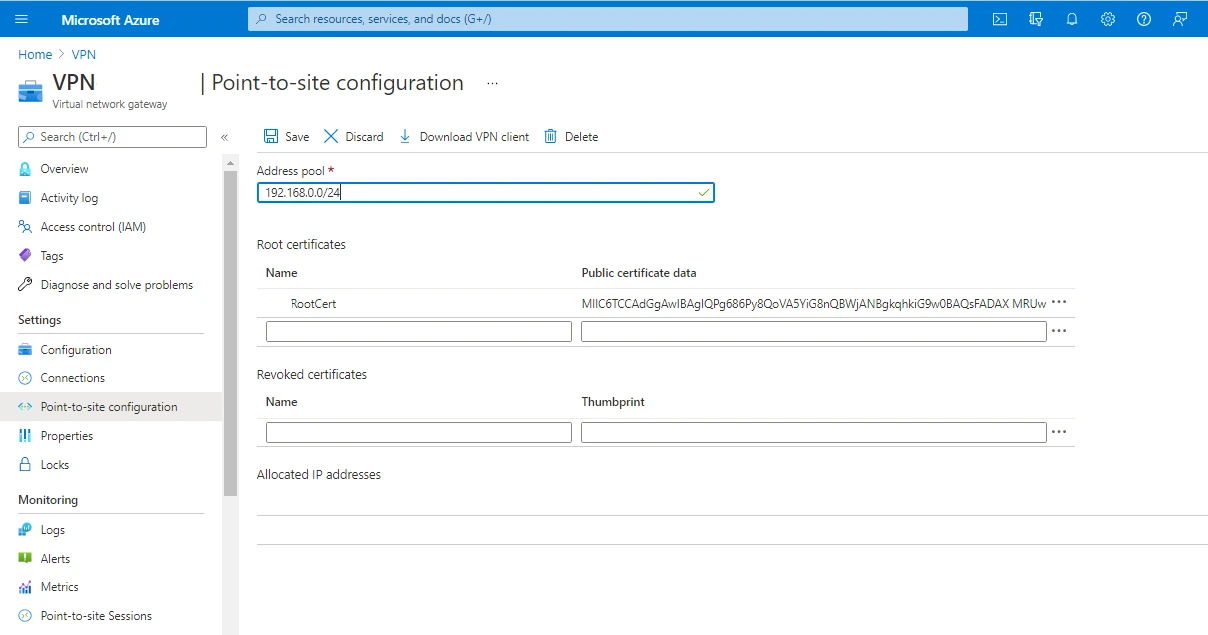

Let’s start configuring P2S VPN connections. Go to the Virtual Network Gateway and click on Point to Site configuration.

Configure Azure Point To Site VPN Connection [Step-by-Step]

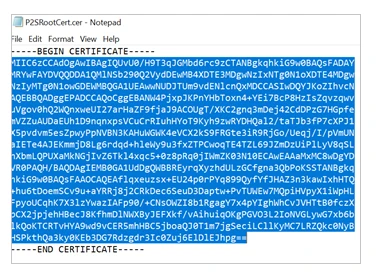

Here, we are getting option to upload our root certificate. Now let’s open the PSRootCert using notepad and copy only following section only.

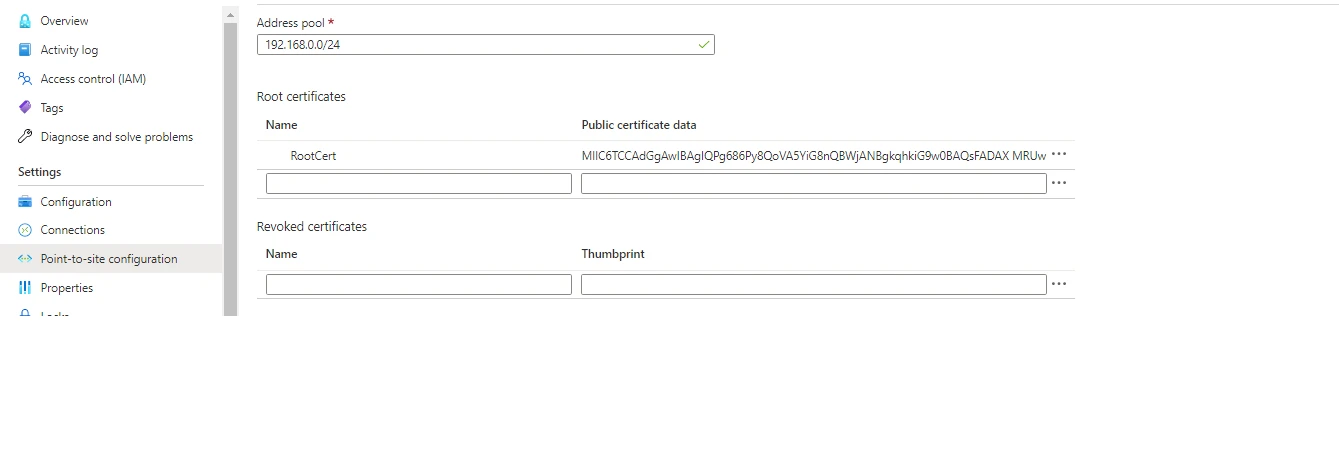

Configure Azure Point To Site VPN Connection [Step-by-Step]Paste the certificate data into the Public Certificate Data field. Name the certificate “PS2RootCert”, or  if  that name is already in use name the certificate “PS2RootCert_YourUserName”, and Save.

You  can add up to 20 trusted root certificates.

Configure Azure Point To Site VPN Connection [Step-by-Step]

Select Save at the top of the page to save all the configuration settings.

It will take few minutes to  save the configuration and once its saved. You will get option to Download VPN Client.

Configure Azure Point To Site VPN Connection [Step-by-Step]P2S Configuration is done from Azure Portal. Now, Let’s move to client machine to install VPN client and check  connectivity.



Step-5: P2S VPN Installation on Client Machine

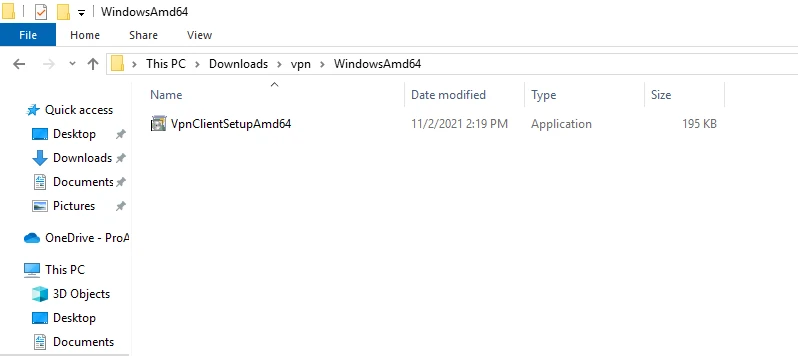

After saving P2S on azure. One zip would download on your system. Unzip that file and you may see these three options select folder as per your OS like if you’re using 32Bit OS User X86 or using 64bit use Amd64. And install exe file on your system.

Now, remember we had exported on child file. Double click on that file install it as a local user on your system.

Configure Azure Point To Site VPN Connection [Step-by-Step]



After installing that exe, you may see VPN option under Network Setting.



Configure Azure Point To Site VPN Connection [Step-by-Step]



You can connect using VPN Button. And now you can connect with your Azure Infrastructure.

Configure Azure Point To Site VPN Connection [Step-by-Step]

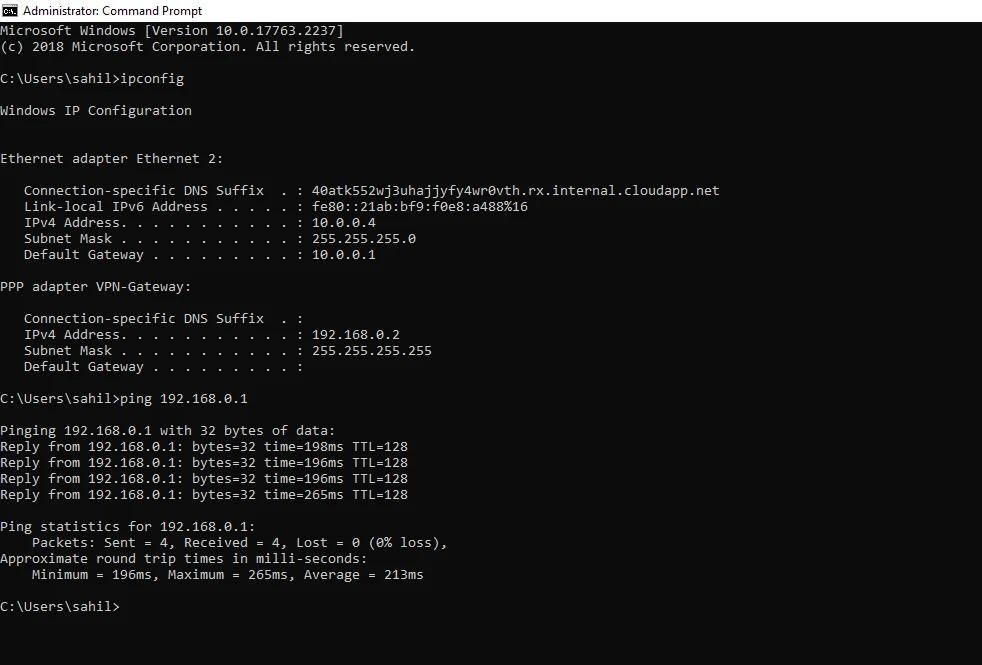

Now, you can connect to your Azure Network. for checking its working or not lets check we got IP form VPN Scope or not.

Configure Azure Point To Site VPN Connection [Step-by-Step]



Summary

In this Article, the overview of the Azure P2S VPN Connectivity. Although as discussed, this features we can use for remote employees who want to access cloud resources securely over the internet. We have multiple authentication methods in Azure VPN. We can use AD Based Authentication to make it more secure.
There are multiple practices to use Azure Virtual Private Network Gateway using P2S Connection or using S2S connection.



Reference documents

attaching Microsoft document links from that you can get better understanding on Azure Virtual Private network gateway configurations in deep level.

About Azure VPN Gateway | Microsoft Docs
Azure VPN Gateway configuration settings | Microsoft Docs
