Step-by-Step Tutorial: Configure LDAP client to authenticate with LDAP server

This is a multi-part article where I will cover different areas of configuration of OpenLDAP server in CentOS 7 Linux node. You can use below links to refer different parts of this tutorial

Basics LDAP Tutorial for Beginners – Understanding Terminologies & Usage
Step-by-Step Tutorial: Install and Configure OpenLDAP
Step-by-Step Tutorial: Configure OpenLDAP with TLS certificates
Step-by-Step Tutorial: Configure LDAP client to authenticate with LDAP server



Step-by-Step Tutorial: Configure LDAP client to authenticate with LDAP server
Install Openldap client packages

First let us install all the required openldap client and dependent packages

Since we plan to use authconfig to configure ldap client for our RHEL/CentOS 7 Linux node, we only install SSSD and authconfig packages. oddjob-mkhomedir is required to be able to create active directory user's home directory automatically.

NOTE:

On RHEL system you must have an active subscription to RHN or you can configure a local offline repository using which "yum" package manager can install the provided rpm and it's dependencies.
[root@ldap-client ~]# yum install authconfig authconfig-gtk openldap-clients sssd oddjob-mkhomedir.x86_64 -y



Configure LDAP client to authenticate with LDAP server

Before you start make sure you copy /etc/openldap/cacerts/ca.cert.pem from the ldap-server to ldap-client in the same location under /etc/openldap/cacerts/ca.cert.pem. This key will be referred by the authconfig tool

Method 1: Using authconfig-tui

Configuring a client system to use an LDAP directory for user authentication is as easy as pie on a Fedora or RHEL system. Fedora has command-line utilities as well as GUI tools (for example, system-config-authentication, authconfig-gtk) that make it easy.

One of the command-line tools is provided by the package authconfig. To launch the tool from the command line, type the following:

[root@ldap-client ~]# authconfig-tui

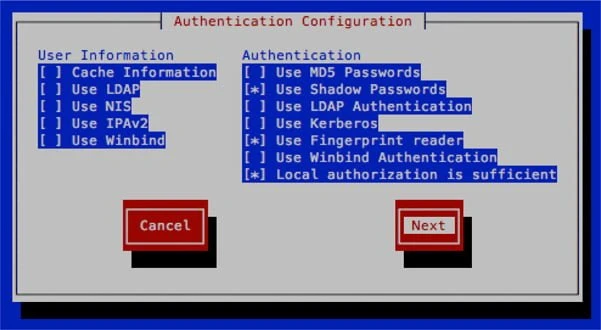

A screen similar to the one shown next will appear:
Step-by-Step Tutorial: Configure LDAP client to authenticate with LDAP server

  • In the Authentication Configuration screen, navigate to (using TAB on your keyboard) and then select (using SPACEBAR on your keyboard) the following:
    Use LDAP → Under the User Information section
    Use LDAP Authentication → Under the Authentication section
  • Navigate to the Next button and press ENTER to select it.

Step-by-Step Tutorial: Configure LDAP client to authenticate with LDAP server

  • Use the following information to complete the fields in the ensuing LDAP Settings screen:
    Server: ldap://10.0.2.20/
    Base DN: dc=example,dc=com



NOTE:

Here 10.0.2.20 is the IP address of my ldap-server, replace it with your server details
  • When we click OK, this will automatically change a series of files that otherwise would have to be changed by hand. For example, it will add the following lines to the /etc/openldap/ldap.conf file:
URI ldap://10.0.2.20/
BASE dc=example,dc=com
TLS_CACERTDIR /etc/openldap/cacerts
NOTE:

Here comment out TLS_CACERTDIR and add TLS_REQCERT never



Method 2: Using authconfig CLI

You can also configure ldap on the client using authconfig as shown below

[root@ldap-client ~]# authconfig --enableldap --enableldapauth --ldapserver=10.0.2.20 --ldapbasedn="dc=example,dc=com" --enableldaptls --update
NOTE:

If you have already configured your client using authconfig-tui, you can skip the configuration using authconfig.



Configure OpenLDAP

Next configure your openldap client to communicate with the ldap server and the communication method. Add the below content in /etc/openldap/ldap.conf

BASE   dc=example,dc=com
URI    ldap://10.0.2.20
TLS_CACERTDIR /etc/openldap/cacerts
NOTE:

If you get "Could not start TLS encryption. TLS: hostname does not match CN in peer certificate" error in /var/log/messages after restarting sssd then it means your client's hostname is not configured to use the CA certificate. In such case you must have a proper certificate generated for this client of use SAN certificate on the ldap server. Alternatively you can disable TLS check using TLS_REQCERT never in /etc/openldap/ldap.conf and also ldap_id_use_start_tls = False in /etc/sssd/sssd.conf. But this will disable the TLS communication hence making the system insecure.



Configure oddjob-mkhomedir to auto create home directories

We can use oddjob-mkhomedir to create home directories automatically for any ldap user which logs into the client node. This requires pam_mkhomedir.so provided by ddjob-mkhomedir which we had already installed earlier.

Modify the PAM configuration to use pam_oddjob_mkhomedir. For example, add this line at the bottom of /etc/pam.d/system-auth:

session required pam_oddjob_mkhomedir.so

Next enable and start oddjobd.service

[root@ldap-client ~]# systemctl enable oddjobd.service --now
NOTE:

In RHEL/CentOS 6/7, sshd pam configuration file (/etc/pam.d/sshd) uses /etc/pam.d/password-auth file instead of /etc/pam.d/system-auth. Hence, it also required to append the above line in /etc/pam.d/password-auth file, in order to create home directories while logging via ssh.

Instead of manual editing, the authconfig command can be used:

[root@ldap-client ~]# authconfig --enablemkhomedir --updateall

Also restart sssd.service

[root@ldap-client ~]# systemctl restart sssd.service



Create LDAP user (Optional)

You can ignore this step if you already a ldap user.

In order to authenticate as an LDAP user, when we create the user, we have to include a series of fields, such as shell, uid, gid, etc. As an example, let’s add the user testuser1. We begin by creating the testuser1.ldif file, with the following content:

[root@ldap-client ~]# cat testuser1.ldif
dn: uid=testuser1,ou=users,dc=example,dc=com
uid: testuser1
cn: testuser1
objectClass: shadowAccount
objectClass: top
objectClass: person
objectClass: inetOrgPerson
objectClass: posixAccount
userPassword: {SSHA}5rMM/3f8Ki13IyarGTtwzieoTu7KMgwc
shadowLastChange: 17016
shadowMin: 0
shadowMax: 99999
shadowWarning: 7
loginShell: /bin/bash
uidNumber: 1001
gidNumber: 1001
homeDirectory: /home/testuser1
sn: testuser1
mail: testuser1@example.com
NOTE:

Here I have already created an encrypted password for testuser1 using slappasswd on ldap-server node. My password for testuser1 is test



Create LDAP group (Optional)

You can ignore this step if you already a ldap group.

Also we will need a group for this testuser1 so I will add it to our existing OU "users"

[root@ldap-client ~]# cat groups.ldif
dn: cn=testuser1,ou=users,dc=example,dc=com
objectClass: posixGroup
objectClass: top
cn: testuser1
userPassword: {crypt}x
gidNumber: 1001



Add user and group to LDAP database (Optional)

Add the users and groups to the ldap directory using the below commands

[root@ldap-client ~]# ldapadd -f testuser1.ldif -x -D cn=admin,dc=example,dc=com -w redhat
adding new entry "uid=testuser1,ou=users,dc=example,dc=com"

[root@ldap-client ~]# ldapadd -x -D cn=admin,dc=example,dc=com -f groups.ldif -w redhat
adding new entry "cn=testuser1,ou=users,dc=example,dc=com"



Validate the new user and group (Optional)

Run the ldapsearch command again and verify users and groups are listed under the base DN to complete the configuration.

[root@ldap-client ~]# ldapsearch -x -D cn=admin,dc=example,dc=com -b dc=example,dc=com -w redhat
# extended LDIF
#
# LDAPv3
# base <dc=example,dc=com> with scope subtree
# filter: (objectclass=*)
# requesting: ALL
#

# example.com
dn: dc=example,dc=com
objectClass: dcObject
objectClass: organization
dc: example
o: example

# users, example.com
dn: ou=users,dc=example,dc=com
objectClass: organizationalUnit
ou: users

# scientists, users, example.com
dn: cn=scientists,ou=users,dc=example,dc=com
cn: scientists
objectClass: groupOfNames
member: cn=Archimedes of Syracuse,ou=users,dc=example,dc=com

# testuser1, users, example.com
dn: uid=testuser1,ou=users,dc=example,dc=com
uid: testuser1
cn: testuser1
objectClass: shadowAccount
objectClass: top
objectClass: person
objectClass: inetOrgPerson
objectClass: posixAccount
userPassword:: e1NTSEF9NXJNTS8zZjhLaTEzSXlhckdUdHd6aWVvVHU3S01nd2M=
shadowLastChange: 17016
shadowMin: 0
shadowMax: 99999
shadowWarning: 7
loginShell: /bin/bash
uidNumber: 1001
gidNumber: 1001
homeDirectory: /home/testuser1
sn: testuser1
mail: testuser1@example.com

# testuser1, users, example.com
dn: cn=testuser1,ou=users,dc=example,dc=com
objectClass: posixGroup
objectClass: top
cn: testuser1
userPassword:: e2NyeXB0fXg=
gidNumber: 1001

# search result
search: 2
result: 0 Success

# numResponses: 6
# numEntries: 5



Connect via LDAP User

Since we have installed oddjob, so we don't need to create ldap user's home directory manually and it will created during the first login of the user. Now we’ll be able to authenticate with an LDAP user

login as: testuser1
testuser1@10.0.2.13's password:
[testuser1@ldap-client ~]$



Conclusion

In this tutorial I shared the step by step instructions to configure LDAP client using RHEL/CentOS 7 Linux server. Additionally I have also shared the commands to create ldap user and group which you can use to verify your configuration. Since we are using oddjob, we don't have the dependency to create ldap user's home directory manually any more.

Lastly I hope the steps from the article to Configure LDAP client to authenticate with LDAP server on Linux was helpful. So, let me know your suggestions and feedback using the comment section.
