Create HTTPS Server with Node.js [Simple Steps]

This tutorial shows you how to create HTTPS Server with Node.js using a self-signed SSL certificate. You will generate an SSL certificate, then use it to create a simple express server that receives user details from a form.

Here are the steps:

Advertisement



Step~1: Create the project structure

$ mkdir httpsServer && cd httpsServer
$ touch index.js
$ mkdir public && cd public
$ touch index.html style.css
$ cd ..

We create the project directory called httpsServer; main script file called index.js; public folder to store static assets: index.html and style.css.

Create HTTPS Server with Node.js [Simple Steps]

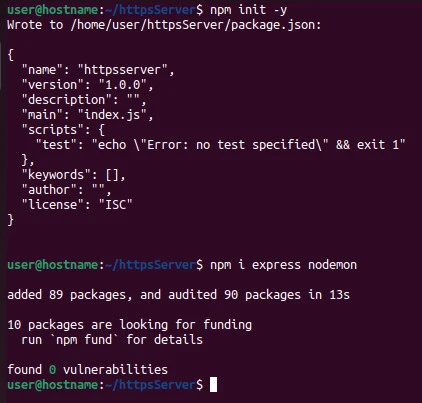

Step~2: Initialize an NPM package

$ npm init -y
$ npm i express nodemon

We initialize an NPM package and install express and nodemon modules. We will use the express module to create the server routes; nodemon to watch the server for changes during development, so we don't have to keep restarting the server manually.

Create HTTPS Server with Node.js [Simple Steps]

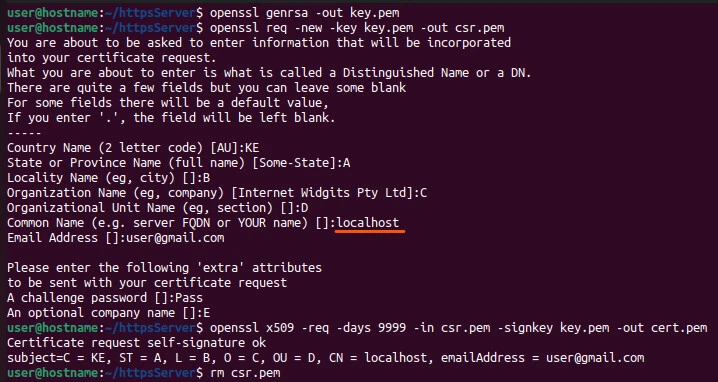

Step~3: Generate an SSL certificate

Run each of the lines. Then, answer prompts, filling the server FQDN to localhost because the certificate is self-signed on the local machine. You can check our extensive tutorial on openssl to learn more about working with certificates.

$ openssl genrsa -out key.pem
$ openssl req -new -key key.pem -out csr.pem
$ openssl x509 -req -days 9999 -in csr.pem -signkey key.pem -out cert.pem
$ rm csr.pem

Create HTTPS Server with Node.js [Simple Steps]

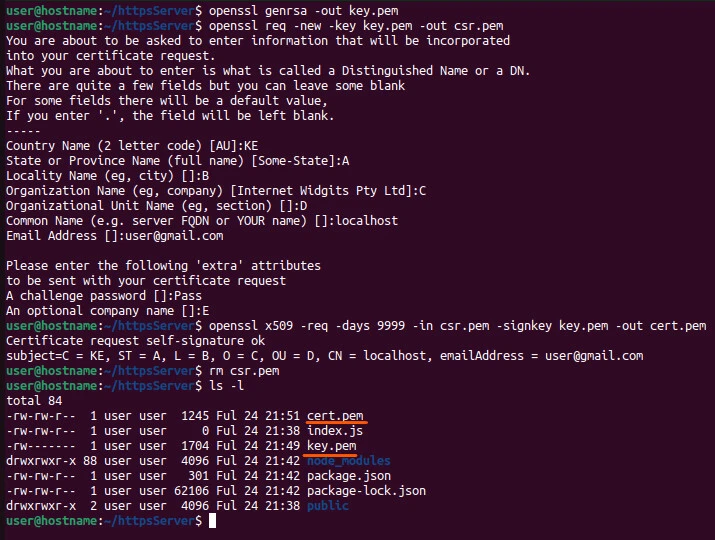

We get two files:

cert.pem: the certificate.

key.pem: the private key.

Advertisement

Create HTTPS Server with Node.js [Simple Steps]



Step~4: Create an HTTPS server

Open the project, modify the package.json file to accommodate ES modules and run nodemon.

Package.json

{
  "name": "httpsserver",
  "version": "1.0.0",
  "description": "",
  "main": "index.js",
  "type": "module",
  "scripts": {
    "dev": "nodemon index"
  },
  "keywords": [],
  "author": "",
  "license": "ISC",
  "dependencies": {
    "express": "^4.18.1",
    "nodemon": "^2.0.20"
  }
}

The line "type": "module" switches the syntax from require function

const https = require("https")

to ES 6's import keyword.

import https from "https"

The line "dev": "nodemon index" activates nodemon to watch the web server.

Create HTTPS Server with Node.js [Simple Steps]

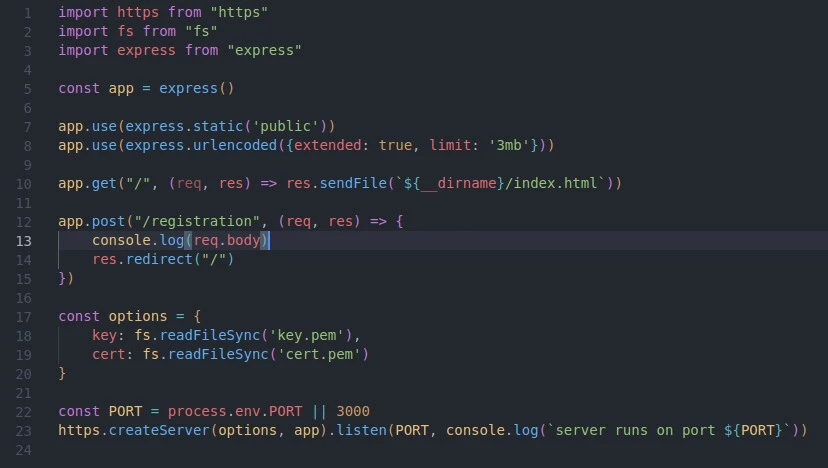

index.js

Advertisement
import https from "https"
import fs from "fs"
import express from "express"

const app = express()

app.use(express.static('public'))
app.use(express.urlencoded({extended: true, limit: '3mb'}))

app.get("/", (req, res) => res.sendFile(`${__dirname}/index.html`))

app.post("/registration", (req, res) => {
    console.log(req.body)
    res.redirect("/")
})

const options = {
    key: fs.readFileSync('key.pem'),
    cert: fs.readFileSync('cert.pem')
}

const PORT = process.env.PORT || 3000
https.createServer(options, app).listen(PORT, console.log(`server runs on port ${PORT}`))

How to create HTTPS Server with Node.js

We import the modules.

import https from "https"
import fs from "fs"
import express from "express"

https

The https module is an improved version of the http module. We use it to accommodate the SSL certificate through an options parameter.

fs

The file system (fs) module allows reading from and writing to the disk. It gives asynchronous and synchronous (ending in Sync) control of the code execution during the respective operations. For example, the` readFileSync()` method halts the execution of other code portions until the file reading process completes.

express

Advertisement

The express module is a pool of middleware. It has multiple methods that intercept requests and control the response. We mainly use the express function to create a web server and route requests to various destinations.

After importing the modules, we call the express() function.

const app = express()

app.use(express.static('public'))
app.use(express.urlencoded({extended: true, limit: '3mb'}))

app.get("/", (req, res) => res.sendFile(`${__dirname}/index.html`))

app.post("/registration", (req, res) => {
    console.log(req.body)
    res.redirect("/")
})

We store the returned value of the function in the app variable. Using express.static() method, we let express read our static files in the public directory. And receive form data from index.html using the urlencoded() method.

We then create a route for the landing page / and the registration /registration endpoint. Upon receiving the express form body, we console-log the details before redirecting the user to the landing page.

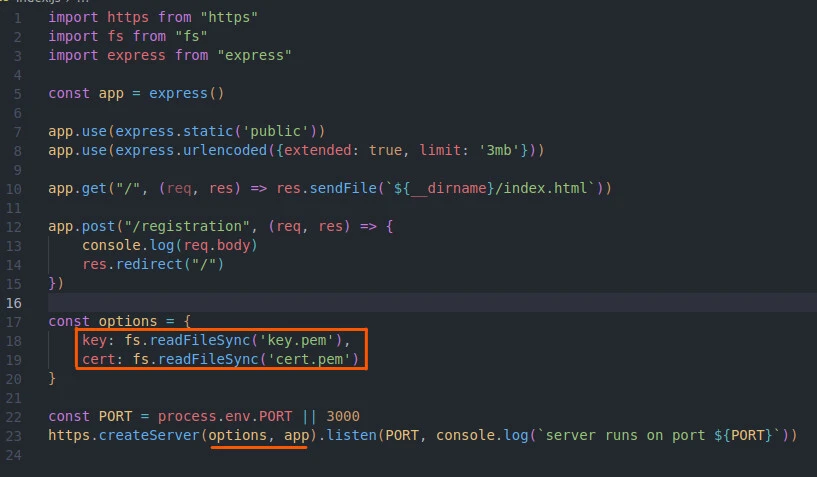

After we are done with routing, we implement the reading of the certificate information from the filesystem.

const options = {
    key: fs.readFileSync('key.pem'),
    cert: fs.readFileSync('cert.pem')
}

And use them in the HTTPS server.

Advertisement
const PORT = process.env.PORT || 3000
https.createServer(options, app).listen(PORT, console.log(`server runs on port ${PORT}`))

We pass the app and certificate details to the HTTPS server. That converts the express routes from running on the default HTTP server to the encrypted HTTPS server.

Create HTTPS Server with Node.js [Simple Steps]

That is all we need to create and run an HTTPS server with self-signed certificates. Now that you know how to create HTTPS Server with Node.js, let's implement the frontend to send the form data to the /registration endpoint.



Step~5: Send requests to the HTTPS server

index.html

Open the index.html file in the public directory and create two inputs: text for username and email for user email.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <link rel="stylesheet" href="style.css">
    <title>HTTPS Server</title>
</head>
<body>

<main>

    <h2>Register</h2>

    <form action="/registration" method="POST">
        <div>
            <input type="text" name="username" placeholder="Username" required>
        </div>
        <div>
            <input type="email" name="email" placeholder="Email" required>
        </div>
        <button>Send</button>
    </form>

</main>

</body>
</html>

style.css

* {
    margin: 0;
    padding: 0;
    box-sizing: border-box;
}
body {
    background: #f7f8fc;
    color:rgb(51, 22, 51);
}
h2 {
    text-align: center;
    margin-top: 3rem;
}
main {
    text-align: center;
}
form {
    width: 50%;
    margin: 3rem auto;
}
input, button {
    height: 3rem;
    width: 80%;
    padding: 0.5rem;
    margin: .5rem 0;
    border-radius: 3px;
    border: 1px solid #ccc;
}
button {
    background:rgb(51, 22, 51);
    color: #ccc;
    cursor: pointer;
}

With the frontend out of the way, we can start sending requests on the HTTPS server.

Advertisement

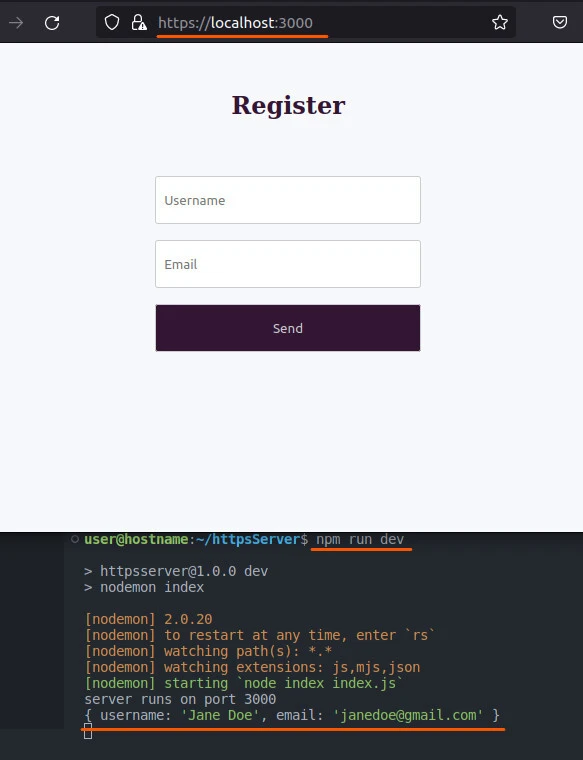

Start the server.

npm run dev

Open the browser through the https://localhost:3000 URL.

Note: The default localhost:3000 that uses HTTP won't work because our server runs on HTTPS instead.

Create HTTPS Server with Node.js [Simple Steps]

Although we use the encrypted channel, most browsers may warn that the site is unsafe because the SSL certificate is self-signed, not signed by a Certificate Authority (CA) like Let's Encrypt. That calls for using a CA-signed certificate in production, often sold by the domain provider.



Conclusion

This tutorial showed you how to create HTTPS Server with Node.js in 5 straightforward steps. You generated a self-signed SSL certificate and used it in an HTTPS server built with the https, fs , and express modules.
