Steps to generate sosreport in Linux Rescue Mode

I have written another article with the steps to boot into rescue mode in Linux using RHEL/CentOS 7 DVD.

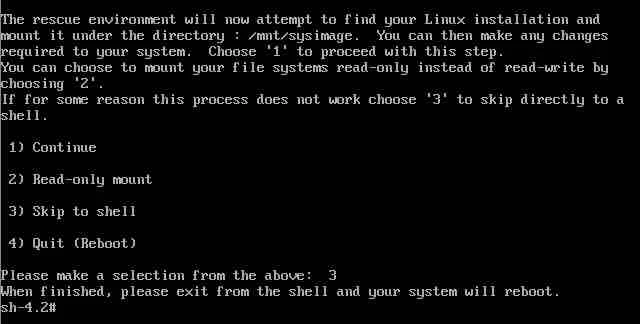

Now at the below screen instead of selecting "Continue", we will manually mount the file system and generate sosreport in RedHat. So select "3" to "Skip to shell".

Activate Software RAID

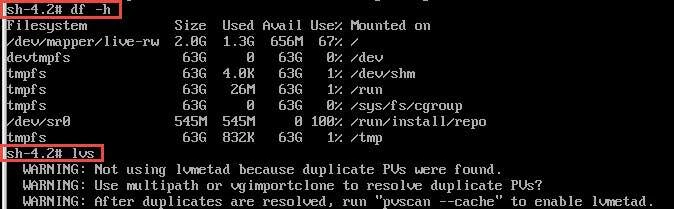

At the "sh-4.2" prompt check df command output to see if the dev, sys, proc filesystems are mounted under the existing installation environment /mnt/sysimage or not. If these directories are not by default mounted, then we must activate our RAID partitions to activate the filesystem.

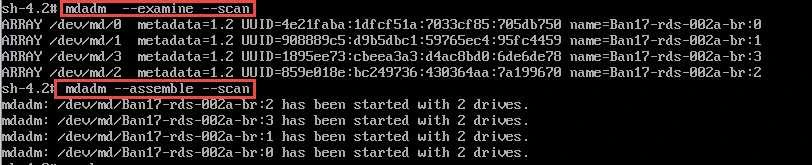

Scan the available raid devices and execute the below commands

# mdadm --examine --scan
# mdadm --assemble --scan

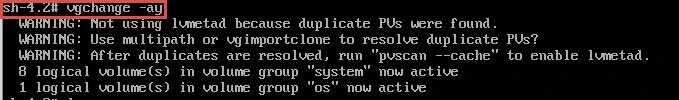

Activate the logical volume

# vgchange -ay

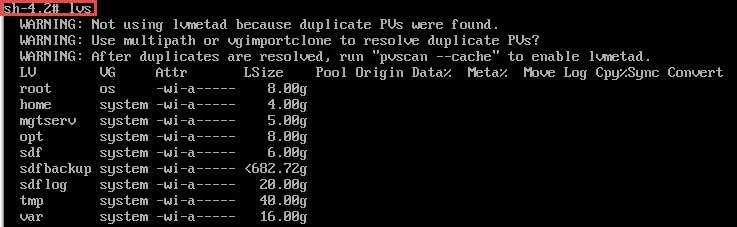

Next verify the available logical volume. Now we can see all our logical volumes which are part of my node.

Mount the FileSystem on sysimage

Since the dev, sys, proc file systems are not mounted, we will try to mount it manually as shown below:

IMPORTANT NOTE:

It is important to mount the root file system as the first step.

# mount /dev/mapper/os-root /mnt/sysimage
mount -o bind /dev /mnt/sysimage/dev
mount -o bind /usr /mnt/sysimage/usr
mount -o bind /sys /mnt/sysimage/sys
mount -t proc /proc /mnt/sysimage/proc
mount -o bind /dev/shm /mnt/sysimage/dev/shm

ALSO READ

How to cleanup Failed Actions from pcs status of cluster

We can also mount other logical volumes which we had observed with lvs command as those will also be required to generate sosreport.

NOTE:

These logical volume names will differ based on your environment. Here /dev/md124 raid device is my boot partition.

mount /dev/md124 /mnt/sysimage/boot
mount /dev/mapper/system-var /mnt/sysimage/var
mount /dev/mapper/system-home /mnt/sysimage/home
mount /dev/mapper/system-opt /mnt/sysimage/opt
mount /dev/mapper/system-tmp /mnt/sysimage/tmp

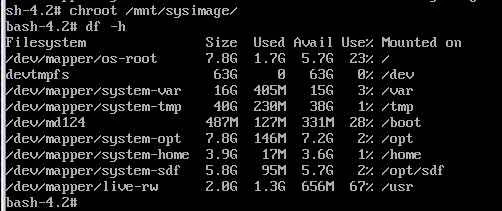

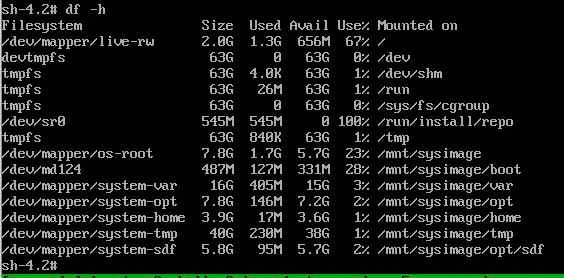

Now verify the mounted partitions using df command:

So all our required partitions are mounted on /mnt/sysimage. Change root to the already installed root fs:

# chroot /mnt/sysimage

Now as you see my file system is properly mounted under / (root)

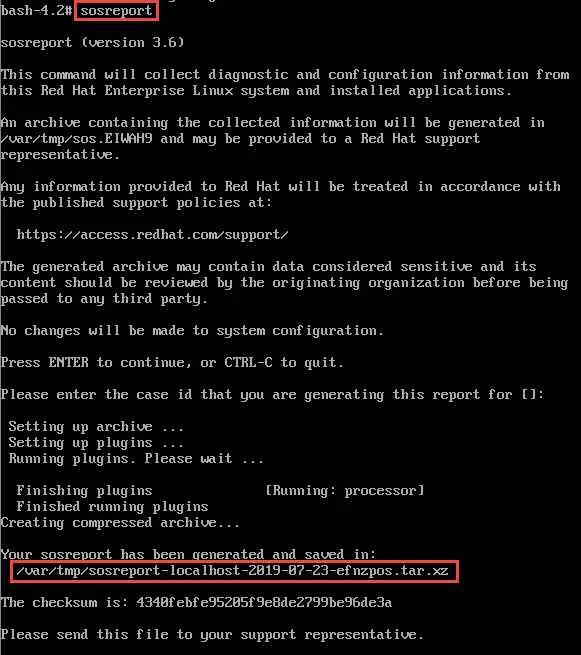

Collect sosreport RedHat/CentOS

We are all set up to collect sosreport in rescue mode in RedHat/CentOS.

Fix sosreport command not found in rescue mode

It is possible that you may observe this error "sosreport command not found" in Linux rescue mode. In the Linux rescue mode these binary are loaded from the DVD which is used to boot into the rescue mode.

So if you have used the Red Hat Enterprise Linux X.X Boot ISO then these image do not contain the sosreport binary hence you won't be able to collect sosreport. Hence it is recommended that in such case you use Red Hat Enterprise Linux X.X Binary DVD or the original DVD to boot into rescue mode.
