How to transfer files over SSH with SSHFS in Linux & Windows


SSH

There are various tools available to copy files and directories between Linux server. In this article we will use SSHFS to transfer files over SSH from local to remote and remote to local server.

You can also use below tools to copy files between Linux servers:



Overview on SSHFS

  • SSHFS (Secure SHell FileSystem) is a file system for Linux (and other operating systems with a FUSE implementation, such as Mac OS X or FreeBSD) capable of operating on files on a remote computer using just a secure shell login on the remote computer.
  • The sshfs command is a client tool for using SSHFS to mount a remote file system from another server locally on your machine.
  • SSHFS allows you to mount a remote directory from remote server on your local machine using a mount point, and have it treated just like any other directory.



Advantage of using SSHFS

  • Compared to other shared filesystem such as NFS and Samba we do not need any server or client side configuration
  • SSHFS is a simple client tool which does not requires any additional configuration
  • You can also use SSHFS to transfer files over SSH between Linux and Windows Server
  • The files are transferred in completely encrypted channel so it is very secure



Drawbacks of using SSHFS

  • You mount the remote directory on local server similar as NFS server but with transfer over SSH using SSHFS both encryption and decryption is involved which can cause performance impacts
  • You should also save your data on the mount point as if there is a network connection problem then you may loose your data



Transfer File over SSH between two Linux servers

Install SSHFS on Linux

SSHFS is an opensource project and is not available in most default repositories of distributions

To install SSHFS on RHEL/CentOS 7, we must first install EPEL repository

# yum -y install epel-release

Next install sshfs on your client node

[root@server1 ~]# yum -y install sshfs

To install sshfs on Ubuntu and Debian

$ sudo apt install sshfs



Mount Remote File System

To transfer files over SSH using SSHFS, we must execute SSHFS using below syntax:

sshfs [user@]host:[dir] mountpoint [options]

Check sshfs -h to get the complete list of supported options

In this example I have installed SSHFS on server1 and we will mount

Remote directory (/shared) from server2

[root@server2 ~]# ls -l /shared/
total 0
-rw-r--r-- 1 root root 0 May 17 19:21 file1
-rw-r--r-- 1 root root 0 May 17 19:21 file2
-rw-r--r-- 1 root root 0 May 17 19:21 file3

to my local Linux node on server1 at (/mount_point)

[root@server1 ~]# ls -l /mount_point/
total 0

So we must execute sshfs on server1, we are using root user to transfer files over SSH. You can use any normal user, but make sure this user has enough permission to access the remote directory on server2

[root@server1 ~]# sshfs root@192.168.43.10:/shared /mount_point
root@192.168.43.10's password:

There was no error reported so the mount was successful. Verify the mount point on server1

[root@server1 ~]# mount | grep shared
root@192.168.43.10:/shared on /mount_point type fuse.sshfs (rw,nosuid,nodev,relatime,user_id=0,group_id=0)

You can now access the content of remote directory (/shared) from server2 on /mount_point directory on local Linux node at server1

[root@server1 ~]# ls -l /mount_point/
total 0
-rw-r--r--. 1 root root 0 May 17 19:21 file1
-rw-r--r--. 1 root root 0 May 17 19:21 file2
-rw-r--r--. 1 root root 0 May 17 19:21 file3

Now we can add and modify content under /mount_point at server1 and the changes will be reflected runtime on server2 at /shared

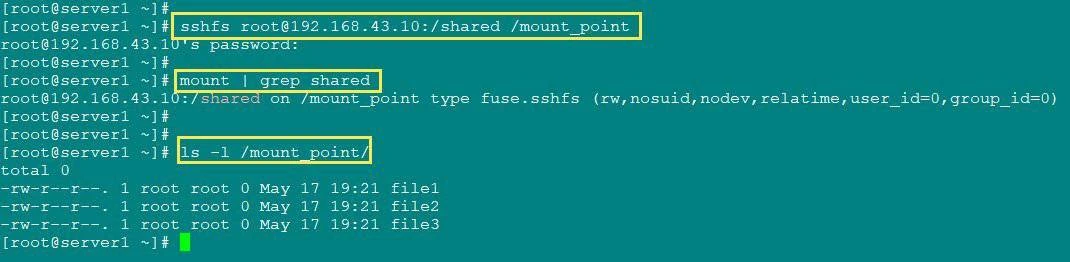

Snippet from my terminal

How to transfer files over SSH with SSHFS in Linux & Windows
Transfer files over SSH in Linux



To permanently mount this remote directory use /etc/fstab using below syntax:

user@host:/remote/path  /local/mount_point  fuse.sshfs  defaults  0  0

In this example we will add below content in our /etc/fstab

root@192.168.43.10:/shared     /mount_point    fuse.sshfs    defaults   0  0



Un-mount Remote File System

Once you have transferred your files, you can also un-mount the remote file system using umount. Execute umount on server1:

[root@server1 ~]# umount /mount_point/

Verify and make sure there are no mount paths using /shared directory from remote server i.e. server2

[root@server1 ~]# mount | grep shared



Transfer File over SSH between Windows and Linux servers

  • You can also use SSHFS to transfer files over SSH between Windows and Linux server.
  • This can also be achieved using Samba but let us concentrate on SSHFS for the sake of this article

Install SSHFS on Windows

  • To transfer files over SSH between Windows and Linux, you must install SSHFS on the WIndows server.
  • You can get the files required to installed from the official Github page
  • Download WinFsp and follow the onscreen instructions to install WinFsp on your Windows server
    Download SSHFS-Win and follow the onscreen instructions to install SSHFS-Win on your Windows server
  • At the time of writing this article I have installed winfsp-1.6.20027.msi and sshfs-win-3.5.20024-x64.msi



Mount Remote File System

Once you have installed WinFsp and SSHFS-Win on your windows server, next we must map the network location from remote server to a local mount point

I am using WIndows 10 so I will share the instructions based on my environment.

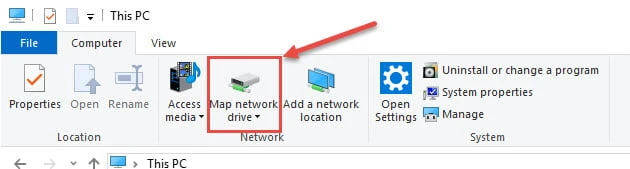

In Windows Explorer select This PCMap Network Drive

How to transfer files over SSH with SSHFS in Linux & Windows
Map network Drive

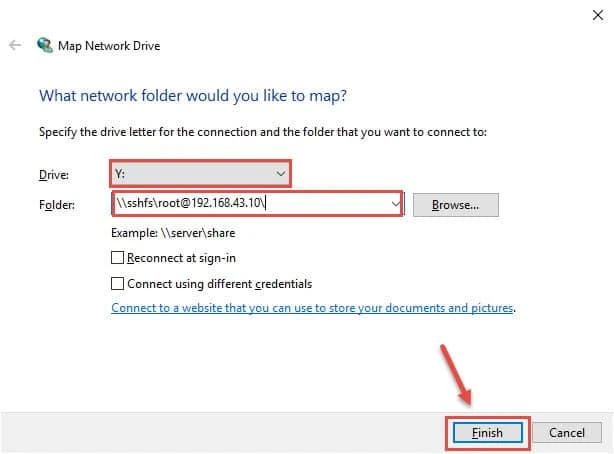

Provide the path of your remote server and remote directory using the below syntax

\\sshfs\REMUSER@HOST[\PATH]
NOTE:
Here we cannot directly give our mount point as /shared from our remote Linux server. We must use (/) to navigate around the Linux server. In this example we will connect to the home folder of our root user using
\\sshfs\root@192.168.43.10\
How to transfer files over SSH with SSHFS in Linux & Windows
Mount remote file system

Provide the login credentials for root user from the remote server i.e. server2

How to transfer files over SSH with SSHFS in Linux & Windows
login credential

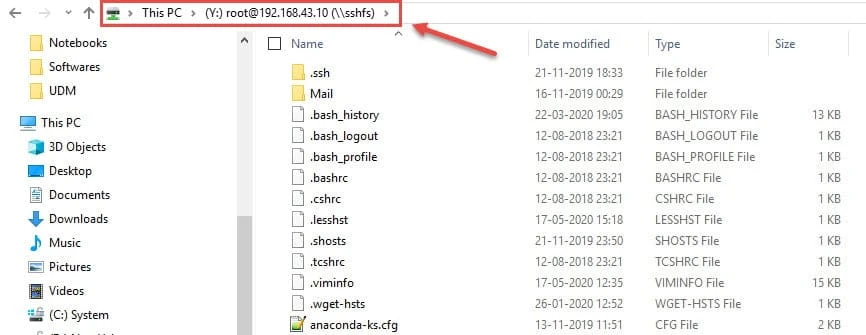

If all is good, you will be connected to your remote Linux server using Windows server. You can verify the path in the Navigation Pane. By default we are connected to home folder of root user

How to transfer files over SSH with SSHFS in Linux & Windows
Transfer files over SSH between Windows and Linux



How to connect to different folder using SSHFS in Windows?

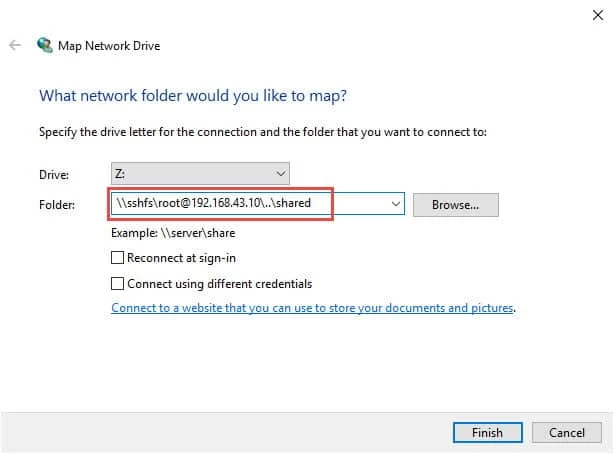

In Windows SSHFS we are by default connected to user's home directory so we must provide the absolute path using navigation symbols i.e. to go to /shared directory our path to transfer files over SSH on Windows would be //sshfs/root@192.168.43.10/../shared

If you NOTICE, I have first changed my current directory using ../ followed by the path of /shared directory. I hope you understand the point.

How to transfer files over SSH with SSHFS in Linux & Windows
Provide different remote directory path

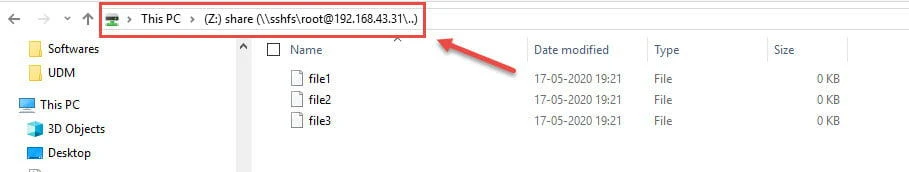

Now we are connected to /shared directory where we had created three dummy files on server2

How to transfer files over SSH with SSHFS in Linux & Windows
Transfer files over SSH between Linux and Windows



For list of Advanced Usage with Windows SSHFS, check the official Github page for instructions



Disconnect Remote File System

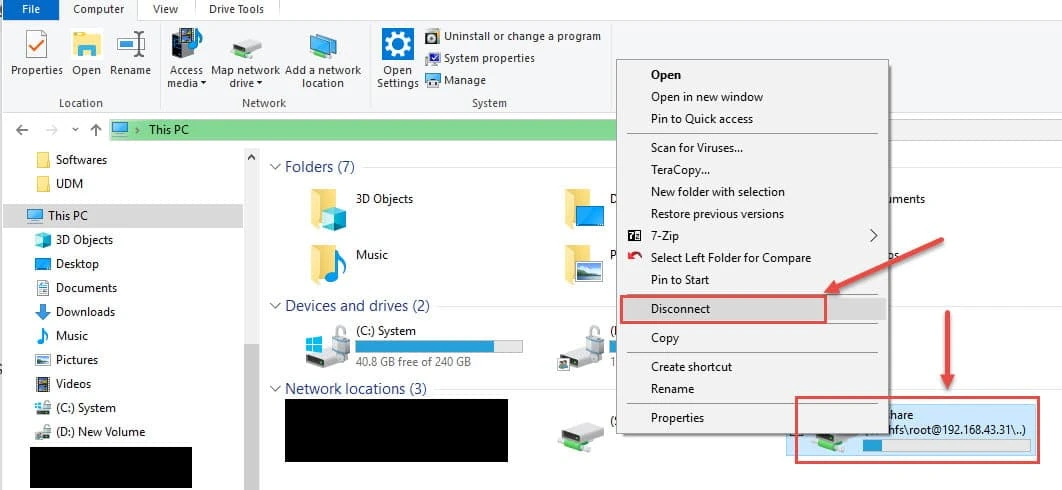

Once you are done, to disconnect the network drive, in Windows Explorer select This PC. Look out for your mapped drive and Right Click on the drive to get a list of options. Select Disconnect to remove the mapped drive from your Windows server.

How to transfer files over SSH with SSHFS in Linux & Windows
Disconnect mapped drive from Windows



Conclusion

Lastly I hope the steps from the article to configure NIC teaming on Linux was helpful. In this tutorial we learned about SSHFS and how we can use SSHFS to transfer files over SSH between two Linux servers or between Linux and Windows server. So, let me know your suggestions and feedback using the comment section.



References

I have used below external references for this tutorial guide
man page for sshfs
Windows SSHFS Github page
