Kubernetes Privileged Pod Practical Examples

Kubernetes Privileged Pod - Overview

  • You can configure a container inside a Kubernetes Pod to run in privileged mode using security context.
  • Running the container in privileged mode, giving it full access to the node’s kernel.
  • You can also fine grain the list of privileges assigned to any container inside the Kubernetes Pod by dropping specific capabilities
  • Additionally you can define a number of other security related features such as runAsUser, runAsNonRoot etc

In this tutorial we will concentrate only on Kubernetes Privileged and NON-Privileged Pod Examples. You can check following articles if you want to learn more about Principle of Least Privilege in Kubernetes:
Kubernetes SecurityContext Explained with Examples
Kubernetes SecurityContext Capabilities Explained [Examples]
Create Pod Security Policy Kubernetes [Step-by-Step]



Setup Kubernetes Cluster (Pre-requisite)

This article assumes that you already have a Kubernetes Cluster. I will be using my Install multi-node Kubernetes cluster running with Calico Network Plugin and Docker as Container Runtime. You can also use minikube cluster as it is easier to bring up and good for learning Kubernetes.

Advertisement



Example-1: Create Kubernetes Privileged Pod (With all Capabilities)

In this example we will create a simple pod using centos image with all the privilege and Linux Capabilities. To create a privileged pod we can just add privileged: true inside the securityContext section as shown below:

[root@centos8-1 ~]# cat privileged-pod-1.yaml

Sample Output:

apiVersion: v1
kind: Pod
metadata:
  name: test-pod-1
  namespace: default
spec:
  containers:
  - name: centos
    image: centos
    command: ['sh', '-c', 'sleep 999']
    securityContext:
       privileged: true

Let's create this pod:

~]# kubectl create -f privileged-pod-1.yaml
pod/test-pod-1 created

Check if the pod is successfully created and running:

[root@centos8-1 ~]# kubectl get pods
NAME         READY   STATUS              RESTARTS   AGE
test-pod-1   1/1     Running             0          5s

Connect to the pod and verify if all the Linux Capabilities are enabled:

[root@centos8-1 ~]# kubectl exec -it test-pod-1 -- bash

Use capsh command to check the list of capabilities allowed to the pod:

Advertisement
[root@test-pod-1 /]# capsh --print
Current: = cap_chown,cap_dac_override,cap_dac_read_search,cap_fowner,cap_fsetid,cap_kill,cap_setgid,cap_setuid,cap_setpcap,cap_linux_immutable,cap_net_bind_service,cap_net_broadcast,cap_net_admin,cap_net_raw,cap_ipc_lock,cap_ipc_owner,cap_sys_module,cap_sys_rawio,cap_sys_chroot,cap_sys_ptrace,cap_sys_pacct,cap_sys_admin,cap_sys_boot,cap_sys_nice,cap_sys_resource,cap_sys_time,cap_sys_tty_config,cap_mknod,cap_lease,cap_audit_write,cap_audit_control,cap_setfcap,cap_mac_override,cap_mac_admin,cap_syslog,cap_wake_alarm,cap_block_suspend,cap_audit_read+eip
Bounding set =cap_chown,cap_dac_override,cap_dac_read_search,cap_fowner,cap_fsetid,cap_kill,cap_setgid,cap_setuid,cap_setpcap,cap_linux_immutable,cap_net_bind_service,cap_net_broadcast,cap_net_admin,cap_net_raw,cap_ipc_lock,cap_ipc_owner,cap_sys_module,cap_sys_rawio,cap_sys_chroot,cap_sys_ptrace,cap_sys_pacct,cap_sys_admin,cap_sys_boot,cap_sys_nice,cap_sys_resource,cap_sys_time,cap_sys_tty_config,cap_mknod,cap_lease,cap_audit_write,cap_audit_control,cap_setfcap,cap_mac_override,cap_mac_admin,cap_syslog,cap_wake_alarm,cap_block_suspend,cap_audit_read
Ambient set =
Securebits: 00/0x0/1'b0
 secure-noroot: no (unlocked)
 secure-no-suid-fixup: no (unlocked)
 secure-keep-caps: no (unlocked)
 secure-no-ambient-raise: no (unlocked)
uid=0(root)
gid=0(root)
groups=

As you can see, almost all the capabilities are allowed to this pod. Additionally this pod is running as root user.

Additionally you can also add allowPrivilegeEscalation: true inside the securityContext field to allow Privilege Escalation.


...
    securityContext:
       privileged: true
       allowPrivilegeEscalation: true



Example-2: Create non-privileged Kubernetes Pod

I have added a HINT as based on the HEADING you would assume that in this example we will create a non-privileged pod. Actually we will but this pod will not be COMPLETELY WITHOUT privilege and it will still have some capabilities.

Here I have a YAML file to create test-pod-2:

~]# cat privileged-pod-2.yaml

Sample Output:

Advertisement
apiVersion: v1
kind: Pod
metadata:
  name: test-pod-2
  namespace: default
spec:
  containers:
  - name: centos
    image: centos
    command: ['sh', '-c', 'sleep 999']
    securityContext:
       privileged: false
       allowPrivilegeEscalation: false

If you notice, inside the container's securityContext I have explicitly disabled privileged and allowPrivilegeEscalation mode. So the assumption is, if I enable privileged then the container gets all the privilege, so similarly if I make privileged as false then all the privileges should be dropped?

Sorry, but that is not the case. By default the Kubernetes container will still have some Linux capabilities.

Let's create this Pod:

 ~]# kubectl create -f privileged-pod-2.yaml
pod/test-pod-2 created

Connect to this pod once it is in Running state:

~]# kubectl exec -it test-pod-2 -- bash

Verify the list of Linux capabilities assigned to this Pod:

[root@test-pod-2 /]# capsh --print
Current: = cap_chown,cap_dac_override,cap_fowner,cap_fsetid,cap_kill,cap_setgid,cap_setuid,cap_setpcap,cap_net_bind_service,cap_net_raw,cap_sys_chroot,cap_mknod,cap_audit_write,cap_setfcap+eip
Bounding set =cap_chown,cap_dac_override,cap_fowner,cap_fsetid,cap_kill,cap_setgid,cap_setuid,cap_setpcap,cap_net_bind_service,cap_net_raw,cap_sys_chroot,cap_mknod,cap_audit_write,cap_setfcap
Ambient set =
...

This is what I was referring to earlier, even with privilged: false and allowPrivilegeEscalation: false, the pod will still have some privileges.

Let's try to perform some task which requires privilege, such as performing su:

[root@test-pod-2 /]# su -
[root@test-pod-2 ~]#

It worked, which should have failed on a non-privileged pod.

Advertisement

Let's try to install some rpm:

[root@test-pod-2 ~]# yum -y install sudo -q
Failed to set locale, defaulting to C.UTF-8
warning: /var/cache/dnf/baseos-f6a80ba95cf937f2/packages/sudo-1.8.29-7.el8.x86_64.rpm: Header V3 RSA/SHA256 Signature, key ID 8483c65d: NOKEY
Importing GPG key 0x8483C65D:
 Userid     : "CentOS (CentOS Official Signing Key) <security@centos.org>"
 Fingerprint: 99DB 70FA E1D7 CE22 7FB6 4882 05B5 55B3 8483 C65D
 From       : /etc/pki/rpm-gpg/RPM-GPG-KEY-centosofficial

Installed:
  sudo-1.8.29-7.el8.x86_64

So, we are also able to install rpm on a non-privileged pod? Now you can be sure that this is definitely not a non-privileged pod.

Let's check the next example which actually creates a non-privileged container inside Kubernetes Pod.



Example-3: Create non-privileged Kubernetes Pod (DROP all CAPABILITIES)

In this example I will show you the proper way to create an actual non-privileged container inside the Kubernetes Pod. We will create a new YAML file and additionally we will drop all the Linux capabilities inside the container using the securityContext.

Here is my test-pod-3 sample YAML file:

 ~]# cat privileged-pod-3.yaml

Sample Output:


apiVersion: v1
kind: Pod
metadata:
  name: test-pod-3
  namespace: default
spec:
  containers:
  - name: centos
    image: centos
    command: ['sh', '-c', 'sleep 999']
    securityContext:
       privileged: false
       allowPrivilegeEscalation: false
       capabilities:
          drop:
            - ALL

Here, you can notice that I have additionally added capabilities section with drop: ALL to drop all the Linux Capabilities inside the container.

Let's create this pod:

[root@centos8-1 ~]# kubectl create -f privileged-pod-3.yaml
pod/test-pod-3 created

Connect to the pod once it is in Running state:

[root@centos8-1 ~]# kubectl exec -it test-pod-3 -- bash

Verify the list of capabilities assigned to this container:

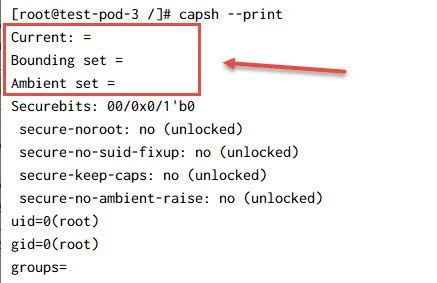

[root@test-pod-3 /]# capsh --print

Sample Output:
Kubernetes Privileged Pod Practical Examples

This time there are no Linux capabilities loaded on this container.

let us try to perform some tasks which would normally require some privilege such as switch user (su):

[root@test-pod-3 /]# su -
su: cannot set groups: Operation not permitted

Great so su is not allowed this time.

Let us try to install an rpm:

[root@test-pod-3 /]# yum -y install sudo -q
Failed to set locale, defaulting to C.UTF-8
....
Error unpacking rpm package sudo-1.8.29-7.el8.x86_64
Verifying : sudo-1.8.29-7.el8.x86_64 1/1

Failed:
sudo-1.8.29-7.el8.x86_64

Error: Transaction failed

The installation of rpm was also not allowed.

HEY but we are still logged in as root. I mean, even though the Linux capabilities are removed but as root user we can still damage our file system.

For example, what if I go ahead and delete files inside /etc:

[root@test-pod-3 /]# cd /etc/

[root@test-pod-3 etc]# ls -l
total 1120
-rw-r--r--.  1 root root     14 Sep 15 14:17 BUILDTIME
-rw-r--r--.  1 root root     94 May 11  2019 GREP_COLORS
drwxr-xr-x.  3 root root   4096 Sep 15 14:17 NetworkManager
drwxr-xr-x.  6 root root   4096 Sep 15 14:17 X11
-rw-r--r--.  1 root root     16 Sep 15 14:17 adjtime
-rw-r--r--.  1 root root   1529 May 15  2020 aliases
drwxr-xr-x.  2 root root   4096 Sep 15 14:17 alternatives
drwxr-xr-x.  2 root root   4096 Nov  3  2020 bash_completion.d
-rw-r--r--.  1 root root   3019 May 15  2020 bashrc
-rw-r--r--.  1 root root   1629 May 15  2020 csh.cshrc
....

I will go ahead and delete everything here:

[root@test-pod-3 etc]# rm -rf *
rm: cannot remove 'hostname': Device or resource busy
rm: cannot remove 'hosts': Device or resource busy
rm: cannot remove 'resolv.conf': Device or resource busy

[root@test-pod-3 etc]# ls -l
total 12
-rw-r--r--. 1 0 0  11 Sep 18 08:21 hostname
-rw-r--r--. 1 0 0 207 Sep 18 08:38 hosts
-rw-r--r--. 1 0 0 115 Sep 18 08:21 resolv.conf

As you can see, even on a non-privileged pod, a root user can do a lot of damage. So we MUST connect to a non-privileged pod as a non-root user.



Example-4: Kubernetes Non-Privileged Pod with Non Root User

In this example I will use non-root user for my Kubernetes pod so that the normal user will not have access to any root owned directory or files. Here is my sample YAML file to create test-pod-4:

~]# cat privileged-pod-4.yaml

Sample Output:

apiVersion: v1
kind: Pod
metadata:
  name: test-pod-4
  namespace: default
spec:
  containers:
  - name: centos
    image: centos
    command: ['sh', '-c', 'sleep 999']
    securityContext:
       privileged: false
       allowPrivilegeEscalation: false
       runAsUser: 1000
       capabilities:
          drop:
            - ALL

In this YAML file I have additionally added runAsUser field to start my pod as uid 1000 instead of root user.

Let's create this pod:

~]# kubectl create -f privileged-pod-4.yaml
pod/test-pod-4 created

Connect to this pod once it is in Running state:

[root@centos8-1 ~]# kubectl exec -it test-pod-4 -- bash
bash-4.4$ id
uid=1000 gid=0(root) groups=0(root)

As you can see, my pod has been started as 1000 uid. We still don't have any privilege on this container.

bash-4.4$ capsh --print
Current: =
Bounding set =
Ambient set =
...

Now since we are logged in as non-root, we won't be able to even navigate into many system directories or execute any binaries which requires root level permission:

bash-4.4$ /usr/sbin/useradd deepak
useradd: Permission denied.
useradd: cannot lock /etc/passwd; try again later.

Let us try to delete files inside /etc as we did in test-pod-3 earlier using root user:

bash-4.4$ cd /etc/

bash-4.4$ ls -l | wc -l
128

bash-4.4$ rm -rf *
rm: cannot remove 'BUILDTIME': Permission denied
rm: cannot remove 'GREP_COLORS': Permission denied
rm: cannot remove 'NetworkManager/dispatcher.d/11-dhclient': Permission denied
rm: cannot remove 'X11/xinit/xinitrc.d/50-systemd-user.sh': Permission denied
rm: cannot remove 'X11/fontpath.d': Permission denied
rm: cannot remove 'X11/xorg.conf.d/00-keyboard.conf': Permission denied
rm: cannot remove 'X11/applnk': Permission denied
rm: cannot remove 'adjtime': Permission denied
rm: cannot remove 'aliases': Permission denied
...

bash-4.4$ ls -l | wc -l
128

So, now our non-root user is not allowed to do any kind of modification in the system which includes deleting any root owned file or directory.



Example-5: Define specific Linux Capabilities for Kubernetes non-privileged Pod

In our previous examples we have either used a completely privileged pod or we have completely dropped all the capabilities and created non-privileged pod.

Now in this section we will create partially privileged pod. For example you have a requirement to modify the NICE value of any process which requires some privilege. But then just to have this capability, why should we allow all other capabilities?

So, we can explicitly define capabilities which must be enabled inside the pod. Here is a YAML file to create test-pod-5 where we will demonstrate this behaviour:

 ~]# cat privileged-pod-5.yaml

Sample output:

apiVersion: v1
kind: Pod
metadata:
  name: test-pod-5
  namespace: default
spec:
  containers:
  - name: centos
    image: centos
    command: ['sh', '-c', 'sleep 999']
    securityContext:
       privileged: false
       allowPrivilegeEscalation: false
       runAsUser: 1000
       capabilities:
          drop:
            - ALL
          add:
             - SYS_NICE

As you can check under capabilities section, I have explicitly allowed SYS_NICE capability for this pod.

IMPORTANT NOTE:
The order in which you drop and add capability is very important. Here we are first dropping all the capabilities and then explicitly allowing only SYS_NICE capability. You can add more than one Linux Capability adding a new line under - SYS_NICE in the above example

Let's create this pod:

~]# kubectl create -f privileged-pod-5.yaml
pod/test-pod-5 created

Connect to this pod once it is in Running state:

~]# kubectl exec -it test-pod-5 -- bash

Check the list of allowed capabilities:

bash-4.4$ capsh --print
Current: = cap_sys_nice+i
Bounding set =cap_sys_nice
Ambient set =
...

Now let us try to change the nice value of any process:

## List available process with their NICE value
bash-4.4$ ps ax -o pid,ni,cmd
    PID  NI CMD
      1   0 /usr/bin/coreutils --coreutils-prog-shebang=sleep /usr/bin/sleep 999
      7   0 bash
     13   0 ps ax -o pid,ni,cmd

## Change nice value of PID 7
bash-4.4$ renice -n 10 -p 7
7 (process ID) old priority 0, new priority 10

## Try to change the nice value again
bash-4.4$ renice -n 19 -p 7
7 (process ID) old priority 10, new priority 19

## Verify
bash-4.4$ ps ax -o pid,ni,cmd
    PID  NI CMD
      1   0 /usr/bin/coreutils --coreutils-prog-shebang=sleep /usr/bin/sleep 999
      7  19 bash
     16  19 ps ax -o pid,ni,cmd

So, as you can see due to SYS_NICE capability we are able to execute renice command.

When should you use allowPrivilegeEscalation?

Now we have covered different scenarios of Kubernetes privileged and non-privileged pod through out this article. But we didn't covered the actual use of allowPrivilegeEscalation.

If you have thoroughly followed all the examples in this tutorial, then you may have realised that just by adding Linux capabilities we were able to perform privileged task, so why do we need privileged: true or allowPrivilegeEscalation: true? I mean we could just add capabilities and things should work, right?

Technically YES but this may not be correct in all the cases. For example, let us consider the usecase of running SSHD inside a non-privileged container.

Now you can add all the capabilities required to run SSHD server inside a non-privileged container, but when multiple users try to SSH into your container then the SSH will be denied if allowPrivilegeEscalation is defined as false.

This is because when multiple non-root users try to do SSH, they internally try to elevate the permission by trying to create terminal such as /dev/tty1, alternatively there are multiple system call inside SSH which actually requires privilege escalation. So to answer the above question, just by adding capabilities you may not be able to solve every requirement.

Let us take one practical example using test-pod-6 via the following YAML file:

~]# cat privileged-pod-6.yaml

Sample Output:


apiVersion: v1
kind: Pod
metadata:
  name: test-pod-6
  namespace: default
spec:
  containers:
  - name: centos
    image: golinuxcloud/centos:latest
    command: ['sh', '-c', 'sleep 999']
    securityContext:
       privileged: false
       allowPrivilegeEscalation: false
       runAsUser: 1000
       capabilities:
          drop:
            - ALL
          add:
             - SYS_NICE
  imagePullSecrets:
  - name: regcred

The YAML file should look almost same as the one we used in Example-5 for test-pod-5. The difference is that I have installed sudo package inside the image and also created a user with 1000 uid so that we have a proper user. Although that is not relevant to this topic.

Let me create this pod:

~]# kubectl create -f privileged-pod-6.yaml
pod/test-pod-6 created

Connect to this pod once running:

[root@centos8-1 ~]# kubectl exec -it test-pod-6 -- bash
[deepak@test-pod-6 /]$

Now I have a proper username assigned to the uid 1000. Nothing related to privileged or non-privileged pod - just looks good 🙂

So coming back to the topic, I had added SYS_NICE capability so I should be able to change NICE value of any process as non-root user:

[deepak@test-pod-6 /]$ ps ax -o pid,ni,cmd
    PID  NI CMD
      1   0 /usr/bin/coreutils --coreutils-prog-shebang=sleep /usr/bin/sleep 999
      8   0 bash
     27   0 ps ax -o pid,ni,cmd

[deepak@test-pod-6 /]$ renice -n 19 -p 8
8 (process ID) old priority 0, new priority 19

[deepak@test-pod-6 /]$ ps ax -o pid,ni,cmd
    PID  NI CMD
      1   0 /usr/bin/coreutils --coreutils-prog-shebang=sleep /usr/bin/sleep 999
      8  19 bash
     29  19 ps ax -o pid,ni,cmd

As expected, user deepak is able to use renice command.

But can we execute the same command as sudo?

[deepak@test-pod-6 /]$ sudo renice -n 10 -p 8
sudo: effective uid is not 0, is /usr/bin/sudo on a file system with the 'nosuid' option set or an NFS file system without root privileges?

NO, the user is NOT allowed to run any commands as sudo due to the fact that allowPrivilegeEscalation is marked as False.

So, I hope this is clear. If you have a requirement to execute any process as SUDO or SU which requires privilege escalation then you must use allowPrivilegeEscalation: true or else you can just continue to add capabilities with both privileged and allowPrivilegeEscalation set as false.



Summary

In this tutorial we explored Kubernetes Privileged Pod and NON-Privileged Pod Examples. We covered different scenarios to create a privileged and non-privileged pod properly. When you are trying to add specific capabilities for individual process inside the container then this can be tricky process. I normally prefer using strace command to identify all the system calls made by the respective process and then use the strace output to get the list of capabilities which may be required by the process.

Alternatively you can start your pod with privileged and when the process is in running state then you can just query grep Cap /proc/<PID>/status which should give you a HEX value of the Capabilities used by that process. Later you can use capsh --decode=<HEX_VALUE> to get the list of capabilities in use.

I have tried to explain everything related to the topic but this is actually a very vast topic and covering all the possible scenarios may not be possible. If you face any issues then you can reach out to me using comment section and I will definitely try to help you.



What's Next

Kubernetes SecurityContext Capabilities Explained [Examples]



References

man page for Linux Capabilities



Didn't find what you were looking for? Perform a quick search across GoLinuxCloud

If my articles on GoLinuxCloud has helped you, kindly consider buying me a coffee as a token of appreciation.

Buy GoLinuxCloud a Coffee

For any other feedbacks or questions you can either use the comments section or contact me form.

Thank You for your support!!

Leave a Comment
