How to modify smbd process limit in Linux? [SOLVED]

In our previous articles we covered how to set limits in Linux (temporarily and permanently). In this tutorial we will keep our focus on Linux SMDB Process Limit only. But before we jump to this, let us understand some basics.



What is SMBD?

SMBD is a samba server daemon that provides file sharing and printing services from Linux machines to Windows clients. The server provides file space and printer services to clients using the SMB (or CIFS) protocol.

Advertisement



How to limit smbd processes?

From Protecting an unpatched Samba server

Samba is able to limit the number of concurrent connections when smbd is launched as a daemon (not from inetd). The 'max smbd processes' smb.conf option allows Administrators to define the maximum number of smbd processes running at any given point in time. Any further attempts from clients to connect to the server will be rejected.

Each client creates a connection to the Samba server. As the number of users increases, this connection also increases. The "max smbd processes" parameter is designed as a temporary measure to avoid throttling the service to clients if the server does not have enough resources to handle more than this number. max smbd process is a global parameter i.e it limits the number of running smbd processes and NOT the number of connections per share. Under normal operating conditions, each user will have an smbd associated with it to manage connections to all shares from a given host.

If there is no "max smbd processes" parameter in the /etc/samba/smb.conf file, there is no limitation by default.

To set a limit, it should be written as:

max smbd processes = 1000

In this way, the limit value is set to 1000. Transactions after this value are rejected by the server. To make the number of transactions unlimited, you can use , it is written as:

max smbd processes = 0

/etc/samba/smb.conf is created when the samba package is installed on the system. The configuration file and any files it contains are automatically reloaded every three minutes if they change.

Advertisement

The samba service can be restarted for the changes to take effect immediately.

On Debian based systems:

root@ubuntu22:~# systemctl restart smbd

On Redhat based systems:

[root@rocky9 ~]# systemctl restart smb



Example for max smbd processes limit

Now let's set the value of "max smbd processes" to "0" and examine the results.

[root@rocky9 ~]# nano /etc/samba/smb.conf
[global]
        workgroup = SAMBA
        security = user
        passdb backend = tdbsam
        printing = cups
        printcap name = cups
        load printers = yes
        cups options = raw

[foc-smb-folder]
        path = /srv/samba/shared
        browsable =yes
        writable = yes
        guest ok = yes
        read only = no

        ## Add this line
        max smbd processes = 0

The service is restarted:

[root@rocky9 ~]# systemctl restart smb

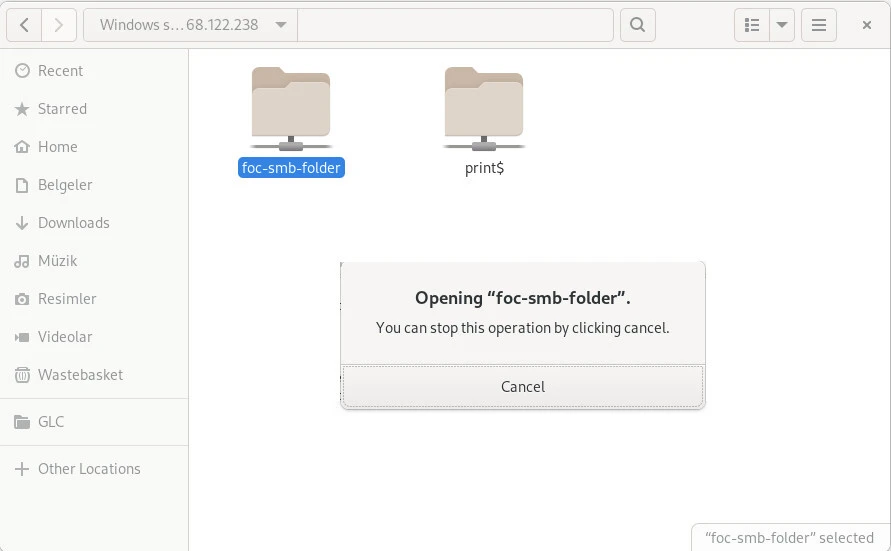

Now we try to access the /srv/samba/shared share:

smbd prosess limit

Samba will try to access the shared directory but fail. Let's look at the status of the service on the server:

[root@rocky9 ~]# systemctl status smb

● smb.service - Samba SMB Daemon
     Loaded: loaded (/usr/lib/systemd/system/smb.service; enabled; vendor preset: disabled)
     Active: active (running) since Sat 2022-11-05 11:17:31 +03; 29min ago
       Docs: man:smbd(8)
             man:samba(7)
             man:smb.conf(5)
   Main PID: 39785 (smbd)
     Status: "smbd: ready to serve connections..."
      Tasks: 5 (limit: 9110)
     Memory: 10.0M
        CPU: 146ms
     CGroup: /system.slice/smb.service
             ├─39785 /usr/sbin/smbd --foreground --no-process-group
             ├─39788 /usr/sbin/smbd --foreground --no-process-group
             ├─39789 /usr/sbin/smbd --foreground --no-process-group
             ├─39790 /usr/libexec/samba/samba-bgqd --ready-signal-fd=47 --parent-watch-fd=13 --debuglevel=0 -F
             └─39794 /usr/sbin/smbd --foreground --no-process-group

Nov 05 11:17:31 rocky9 smbd[39785]: [2022/11/05 11:17:31.796908,  0] ../../source3/smbd/server.c:1734(main)
Nov 05 11:17:31 rocky9 smbd[39785]:   smbd version 4.15.5 started.
Nov 05 11:17:31 rocky9 smbd[39785]:   Copyright Andrew Tridgell and the Samba Team 1992-2021
Nov 05 11:17:31 rocky9 smbd[39785]: [2022/11/05 11:17:31.797421,  0] ../../lib/param/loadparm.c:1814(lpcfg_do_service_parameter)
Nov 05 11:17:31 rocky9 smbd[39785]:   Global parameter max smbd processes found in service section!
Nov 05 11:17:31 rocky9 systemd[1]: Started Samba SMB Daemon.
Nov 05 11:17:46 rocky9 smbd[39794]: [2022/11/05 11:17:46.954888,  0] ../../lib/param/loadparm.c:1814(lpcfg_do_service_parameter)
Nov 05 11:17:46 rocky9 smbd[39794]:   Global parameter max smbd processes found in service section!
Nov 05 11:27:43 rocky9 smbd[39794]: [2022/11/05 11:27:43.662846,  0] ../../lib/param/loadparm.c:1814(lpcfg_do_service_parameter)
Nov 05 11:27:43 rocky9 smbd[39794]:   Global parameter max smbd processes found in service section!


"Global parameter max smbd operations found in service partition!" As you can see from the message, there is a connection limit.

Let's take a look at the samba logs:

[root@rocky9 ~]# tail -f /var/log/samba/log.smbd
  Global parameter max smbd processes found in service section!
[2022/11/05 11:17:31.796908,  0] ../../source3/smbd/server.c:1734(main)
  smbd version 4.15.5 started.
  Copyright Andrew Tridgell and the Samba Team 1992-2021
[2022/11/05 11:17:31.797421,  0] ../../lib/param/loadparm.c:1814(lpcfg_do_service_parameter)
  Global parameter max smbd processes found in service section!

The same warning appears in the logs.



Summary

Sometimes for security reasons, sometimes for different reasons, it may be necessary to limit the number of connections. You may receive an error regarding connection limit when making a samba connection or by an application using samba. In this article, we tried to help you with smbd process limits on Linux machines.



What’s Next

Samba Active Directory Setup [Step-by-Step]
15 steps to setup Samba Active Directory DC CentOS 8

Advertisement

References

www.samba.org - Limiting the number of concurrent connections
