OSPF Configuration Explained on Cisco Router


Written by - Deepak Prasad

OSPF Configuration - Introduction

OSPF is an Interior Gateway Protocol (IGP) developed by the OSPF working group of the Internet Engineering Task Force (IETF). OSPF is a non-proprietary interior gateway protocol (IGP) that overcomes the deficiencies of other distance vector routing protocols and distributes routing information within a single OSPF routing domain. OSPF introduced concepts of variable-length subnet mask (VLSM), which supports classless routing, summarization, authentication, and external route tagging, and IPv6 support in OSPFv3.

OSPF advertises link-state advertisements (LSAs) that contain the link state and link metric to create neighboring routers. Received LSAs are stored in a local database called the link-state database (LSDB) and advertise the link-state information to neighboring routers exactly as the original advertising router advertised it. This process floods the LSA throughout the OSPF routing domain just as the advertising router advertised it. All OSPF routers maintain a synchronized identical copy of the LSDB. The LSDB provides the topology of the network, in essence providing the router a complete map of the network. All OSPF routers run the Dijkstra Shortest Path First (SPF) algorithm to construct a loop-free topology of shortest paths.

OSPF provides scalability for the routing table by using multiple OSPF areas within the routing domain. OSPF uses a two-tier hierarchical architecture, where Area 0 is known as the backbone and all other areas must connect to Area 0. In other words, Area 0 provides transit connectivity between nonbackbone areas. Nonbackbone areas advertise routes into the backbone, and the backbone then advertises routes into other nonback areas.

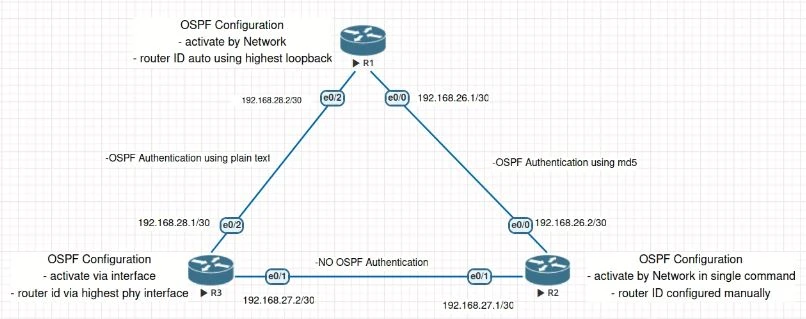

Network Topology

OSPF Configuration Explained on Cisco Router



Configure Router ID

The OSPF router ID (RID) is a 32-bit number that uniquely identifies an OSPF router. IOS nodes use the highest IP address of the any up loopback interfaces. If there are no up loopback interfaces, the highest IP address of any active up physical interfaces becomes the RID when the OSPF process initializes.



Auto assigned Router ID

Current Configuration

There is no any configuration that defining the Router ID for OSPF, but there is IP Address of Loopback interface.

router ospf 26
log-adjacency-changes
network 192.168.26.0 0.0.0.255 area 0
network 192.168.28.0 0.0.0.255 area 0
ROUTER1#show ip interface brief
Interface                  IP-Address      OK? Method Status                Protocol
Ethernet0/0                192.168.26.1    YES manual up                    up
Ethernet0/1                unassigned      YES unset  administratively down down
Ethernet0/2                192.168.28.2    YES manual up                    up
Ethernet0/3                unassigned      YES unset  administratively down down
Loopback0                  1.1.1.1         YES manual up                    up

ROUTER1#

Result

Because IP Address of Loopback is configured, than its using as Router ID

ROUTER1#show ip ospf
 Routing Process "ospf 26" with ID 1.1.1.1
 Start time: 00:12:07.772, Time elapsed: 01:13:24.280

Configuration

Because there is no any IP Address of loopback interface is UP, the Router ID automatically assigned by Highest IP Address.

router ospf 22
log-adjacency-changes

ROUTER3#show ip int br
Interface                  IP-Address      OK? Method Status                Protocol
Ethernet0/0                unassigned      YES unset  administratively down down
Ethernet0/1                192.168.27.2    YES manual up                    up
Ethernet0/2                192.168.28.1    YES manual up                    up
Ethernet0/3                unassigned      YES unset  administratively down down

ROUTER3#

 Result

Highest IP Address of physical interface is used as Router ID.

ROUTER3#show ip ospf
Routing Process "ospf 22" with ID 192.168.28.1
Start time: 00:18:05.908, Time elapsed: 01:11:09.684



Router ID Configured manually

Configuration

Based on configuration as below, we can see the Router ID is manually configured using 2.2.2.2

router ospf 22
 router-id 2.2.2.2
 log-adjacency-changes
 network 0.0.0.0 255.255.255.255 area 0

 Result

Same as cofniguration, Router ID that used same as configuration 2.2.2.2 eventhought IP Loopback is configured.

ROUTER2#show ip ospf
Routing Process "ospf 22" with ID 2.2.2.2
Start time: 00:33:31.916, Time elapsed: 00:53:28.504



Activate Routing OSPF

At CISCO IOS most of the configuration resides under the OSPF process, but some OSPF options go directly on the interface configuration submode. IOS routers can enable OSPF on an interface with a network statement or by associating an OSPF process under the interface. A common misconception is that the network statement advertises the networks into OSPF; in reality, though, the network statement is enabling OSPF on the interface. The interface is then advertised in OSPF through the LSA. The network statement uses a wildcard mask, which allows the configuration to be as specific or vague as necessary.



OSPF Configuration with Explicit Subnet

Configuration

  1. Entering configuration mode
  2. Entering routing ospf configuration
  3. Define OSPF Process ID
  4. Define subnet, wildcard mask, and area id
router ospf 26
log-adjacency-changes
network 192.168.26.0 0.0.0.255 area 0
network 192.168.28.0 0.0.0.255 area 0

Result

ROUTER1#show ip ospf interface brief
Interface    PID   Area            IP Address/Mask    Cost  State Nbrs F/C
Et0/2        26    0               192.168.28.2/30    10    BDR   1/1
Et0/0        26    0               192.168.26.1/30    10    BDR   1/1

ROUTER1#show ip ospf neighbor
Neighbor ID     Pri   State           Dead Time   Address         Interface
192.168.28.1      1   FULL/DR         00:00:32    192.168.28.1    Ethernet0/2
2.2.2.2           1   FULL/DR         00:00:34    192.168.26.2    Ethernet0/0



OSPF Configuration for All Interfaces

Configuration

  1. Entering configuration mode
  2. Entering routing ospf configuration
  3. Define OSPF Process ID
  4. Define subnet, wildcard mask, and area id
router ospf 22
router-id 2.2.2.2
log-adjacency-changes
network 0.0.0.0 255.255.255.255 area 0

Result

ROUTER2#sh ip ospf interface brief
Interface    PID   Area            IP Address/Mask    Cost  State Nbrs F/C
Et0/1        22    0               192.168.27.1/30    10    BDR   1/1
Et0/0        22    0               192.168.26.2/30    10    DR    1/1


ROUTER2#sh ip ospf neighbor
Neighbor ID     Pri   State           Dead Time   Address         Interface
192.168.28.1      1   FULL/DR         00:00:33    192.168.27.2    Ethernet0/1
1.1.1.1           1   FULL/BDR        00:00:39    192.168.26.1    Ethernet0/0

ROUTER2#



OSPF Configuration on IOS for Specific Interface

Configuration

  1. Entering configuration mode
  2. Entering interface configuration
  3. define ospf process id and area
router ospf 22
log-adjacency-changes


ROUTER3#show running-config interface ethernet 0/2
!
interface Ethernet0/2
ip address 192.168.28.1 255.255.255.252
ip ospf 22 area 0
end


ROUTER3#show running-config interface ethernet 0/1
!
interface Ethernet0/1
ip address 192.168.27.2 255.255.255.252
ip ospf 22 area 0
end



Forming OSPF Adjacency

In order to create adjacency between two Router, there are several parameters that need to be matched. the details as follows



Authentication type and credentials (if any)

OSPF supports two types authentication:

  1. Plain text: Provides little security, as anyone with access to the link can see the password with a network sniffer
  2. MD5 cryptographic hash: Uses a hash instead, so the password is never sent out the wire, and this technique is widely accepted as being th260 e more secure mode

Configuration

Authentication that are used by Router 2 and Router 1 is not same. Router 2 using md5 with key-index is 1, and Router 1 using plain text authentication key which is "cisco".

ROUTER2#sh running-config interface ethernet 0/0
interface Ethernet0/0
ip address 192.168.26.2 255.255.255.252
ip ospf authentication message-digest
ip ospf message-digest-key 1 md5 cisco
end
ROUTER1#show running-config interface ethernet 0/0
interface Ethernet0/0
ip address 192.168.26.1 255.255.255.252
ip ospf authentication-key cisco
end

Result

No adjacency toward ROUTER2 from ROUTER1, because the authentication is not match.

ROUTER1#show ip ospf neighbor
Neighbor ID     Pri   State           Dead Time   Address         Interface
192.168.28.1      1   FULL/DR         00:00:37    192.168.28.1    Ethernet0/2
ROUTER1#

To establish the link, we need to re-configure authentication key and authentication mode are same for both link

ROUTER2#sh running-config interface ethernet 0/0
interface Ethernet0/0
ip address 192.168.26.2 255.255.255.252
ip ospf authentication message-digest
ip ospf message-digest-key 1 md5 cisco
end
ROUTER1#show running-config interface ethernet 0/0
interface Ethernet0/0
ip address 192.168.26.1 255.255.255.252
ip ospf authentication message-digest
ip ospf message-digest-key 1 md5 cisco
end

Result

Adjacency toward ROUTER2 and ROUTER3 from ROUTER1 are established

ROUTER1#show ip ospf neighbor
Neighbor ID     Pri   State           Dead Time   Address         Interface
192.168.28.1      1   FULL/DR         00:00:35    192.168.28.1    Ethernet0/2
2.2.2.2           1   FULL/DR         00:00:31    192.168.26.2    Ethernet0/0
ROUTER1#



Area ID

OSPF areas are a logical grouping of routers, or more specifically a logical grouping of router interfaces. Area membership is set at the interface level and the area ID is included in the OSPF Hello packet. An interface can only belong to one area.

Configuration

ROUTER 1 using area 0, but ROUTER 3 using area 3, Area ID should be same for both link to establish OSPF Ajacacency.
ROUTER 1

router ospf 22
router-id 2.2.2.2
log-adjacency-changes
network 0.0.0.0 255.255.255.255 area 0

ROUTER3

interface Ethernet0/1
ip address 192.168.27.2 255.255.255.252
ip ospf 22 area 3
end

Result

Adjacency to Router3 is missing, because the area id is not match for both link.

Neighbor ID     Pri   State           Dead Time   Address         Interface
1.1.1.1           1   FULL/BDR        00:00:39    192.168.26.1    Ethernet0/0
ROUTER2#

and also there is log as below that indicate the mismatch area id

*Oct 26 17:17:41.551: %OSPF-4-ERRRCV: Received invalid packet: mismatch area ID, from backbone area must be virtual-link but not found from 192.168.27.1, Ethernet0/1

To establish the link, we need to re-configure area id is same for both link

router ospf 22
router-id 2.2.2.2
log-adjacency-changes
network 0.0.0.0 255.255.255.255 area 0
interface Ethernet0/1
ip address 192.168.27.2 255.255.255.252
ip ospf 22 area 0
end

Result

After Area ID is match for both links, adjacency to ROUTER3 is established

*Oct 26 17:21:26.079: %OSPF-5-ADJCHG: Process 22, Nbr 2.2.2.2 on Ethernet0/1 from LOADING to FULL, Loading Done

ROUTER2#show ip ospf neighbor
Neighbor ID     Pri   State           Dead Time   Address         Interface
192.168.28.1      1   FULL/BDR        00:00:35    192.168.27.2    Ethernet0/1
1.1.1.1           1   FULL/BDR        00:00:34    192.168.26.1    Ethernet0/0
ROUTER2#



OSPF hello and dead timers

OSPF Hello packets are responsible for discovering and maintaining neighbours. In most instances, the router sends Hello packets to the AllSPFRouters address (224.0.0.5). Dead Interval is time span for router to wait to hear a Hello from neighbour router before it declares that router is down. Dead Interval is four times the hello timer.

The default OSPF hello timer interval varies based on the OSPF network type. OSPF allows modification to the hello timer interval with values between 1 and 65,535 seconds. Changing the hello timer interval modifies the default dead interval, too. Hello and dead interval timers must match for OSPF Neighbors to become adjacent.

Configuration

Router 2 using hello timer is 33 seconds, but Router 3 using default timer which is 10 seconds.

ROUTER2#show running-config interface ethernet 0/1
interface Ethernet0/1
ip address 192.168.27.1 255.255.255.252
ip ospf hello-interval 33
end

ROUTER2#show ip ospf interface | i Timer| line
Ethernet0/1 is up, line protocol is up
Timer intervals configured, Hello 33, Dead 132, Wait 132, Retransmit 5
ROUTER3#show running-config interface ethernet 0/1
interface Ethernet0/1
 ip address 192.168.27.2 255.255.255.252
ip ospf 22 area 0
end

ROUTER3#show ip ospf interface | i Timer| line
Ethernet0/1 is up, line protocol is up
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5

Result

Because OSPF timer for both link is not matched, OSPF Ajacency will be not established. as we can see OSPF Adjacency to ROUTER3 is missing, and this log is appear

*Oct 26 17:35:19.547: %OSPF-5-ADJCHG: Process 22, Nbr 192.168.28.1 on Ethernet0/1 from FULL to DOWN, Neighbor Down: Dead timer expired
ROUTER2#show ip ospf neighbor
Neighbor ID     Pri   State           Dead Time   Address         Interface
1.1.1.1           1   FULL/BDR        00:00:33    192.168.26.1    Ethernet0/0

ROUTER2#



To establish the link, the hello time for both Router should be same. Please find below how to configure OSPF Hello timer :

  • enter configuration mode
  • enter interface that ip ospf hello timer that need to be changed
  • define hello timer
ROUTER2#show running-config interface ethernet 0/1
interface Ethernet0/1
ip address 192.168.27.1 255.255.255.252
ip ospf hello-interval 33
end

ROUTER2#show ip ospf interface | i Timer| line
Ethernet0/1 is up, line protocol is up
Timer intervals configured, Hello 33, Dead 132, Wait 132, Retransmit 5

ROUTER3#show running-config interface ethernet 0/1
interface Ethernet0/1
 ip address 192.168.27.2 255.255.255.252
 ip ospf hello-interval 33
 ip ospf 22 area 0
end

ROUTER3#show ip ospf interface | i Timer| line
Ethernet0/1 is up, line protocol is up
Timer intervals configured, Hello 33, Dead 132, Wait 132, Retransmit 5

Result

After Hello timer for both links are same, adjacency to ROUTER3 is established.

ROUTER2#show ip ospf neighbor
Neighbor ID     Pri   State           Dead Time   Address         Interface
192.168.28.1      1   FULL/DR         00:02:03    192.168.27.2    Ethernet0/1
1.1.1.1           1   FULL/BDR        00:00:34    192.168.26.1    Ethernet0/0

ROUTER2#



RIDs are unique

The OSPF router ID (RID) is a 32-bit number that uniquely identifies an OSPF router. In some OSPF output commands, neighbor ID refers to the RID because the terms are synonymous. The RID must be unique for each OSPF process in an OSPF domain, and must be unique between OSPF processes on a router.

Configuration

Router 2 and Router 3 have same Router ID. This condition should be avoid, because Router ID should be unique in same OSPF Domain.
ROUTER 2

router ospf 22
router-id 2.2.2.2
log-adjacency-changes
network 0.0.0.0 255.255.255.255 area 0

ROUTER 3

router ospf 22
router-id 2.2.2.2
log-adjacency-changes

Result

NO OSPF Adjacency to ROUTER3 from ROUTER2 because both Router using same Router ID. And there is log as mention duplicate Router ID.

ROUTER2#show ip ospf neighbor
Neighbor ID     Pri   State           Dead Time   Address         Interface
1.1.1.1           1   FULL/BDR        00:00:38    192.168.26.1    Ethernet0/0

ROUTER2#

*Oct 26 17:50:01.167: %OSPF-4-DUP_RTRID_NBR: OSPF detected duplicate router-id 2.2.2.2 from 192.168.27.2 on interface Ethernet0/1

To establish the link, we need to change the router ID become unique for each Router

router ospf 22
router-id 2.2.2.2
log-adjacency-changes
network 0.0.0.0 255.255.255.255 area 0

router ospf 22
router-id 3.3.3.3
log-adjacency-changes
NOTE:
When changing Router ID, OSPF Process must be restarted by execute this command “clear ip ospf proces

Result

After Router ID has been changed and all Router have unique Router ID, OSPF Adjacency to ROUTER3 from ROUTER2 is established

ROUTER2#show ip ospf neighbor
Neighbor ID     Pri   State           Dead Time   Address         Interface
3.3.3.3           1   FULL/BDR        00:02:04    192.168.27.2    Ethernet0/1
1.1.1.1           1   FULL/BDR        00:00:33    192.168.26.1    Ethernet0/0

ROUTER2#



MTU (Maximum Transmission Unit)

Configuration

Router 1 using MTU size is 1000, this condition create un-matched MTU Size.

ROUTER1
interface Ethernet0/0
ip address 192.168.26.1 255.255.255.252
ip mtu 100
ip ospf authentication message-digest
ip ospf authentication-key cisco
ip ospf message-digest-key 1 md5 cisco
end

ROUTER2
interface Ethernet0/0
ip address 192.168.26.2 255.255.255.252
ip ospf authentication message-digest
ip ospf message-digest-key 1 md5 cisco
end

Result

Because that un-match MTU, the status of adjacency to ROUTER2 is EXTART, this is the indication of MTU Missmatched.

ROUTER1#show ip ospf neighbor
Neighbor ID     Pri   State           Dead Time   Address         Interface
3.3.3.3           1   FULL/DR         00:00:32    192.168.28.1    Ethernet0/2
2.2.2.2           1   EXSTART/DR      00:00:39    192.168.26.2    Ethernet0/0

To establish the link, we need to change the MTU to have same size for each link

  1. enter configuration mode
  2. enter interface configuration mode
  3. change IP MTU size
ROUTER1
interface Ethernet0/0
ip address 192.168.26.1 255.255.255.252
ip mtu 100
ip ospf authentication message-digest
ip ospf authentication-key cisco
ip ospf message-digest-key 1 md5 cisco
end


ROUTER2
interface Ethernet0/0
ip address 192.168.26.2 255.255.255.252
ip mtu 100
ip ospf authentication message-digest
ip ospf message-digest-key 1 md5 cisco
end

Result

Adjacency to ROUTER2 is Established.

ROUTER1#show ip ospf neighbor
Neighbor ID     Pri   State           Dead Time   Address         Interface
3.3.3.3           1   FULL/DR         00:00:34    192.168.28.1    Ethernet0/2
2.2.2.2           1   FULL/DR         00:00:31    192.168.26.2    Ethernet0/0

ROUTER1#



Summary

Now, we have come to the end of the tutorial. We hope we have helped you to learn how configure OSPF. In order to forming adjacencies between router that using OSPF the parameters that should be matched are Unique Router ID, Authentication Key & Mode, Area ID, OSPF Hello and Dead timer, MTU Size. If you still have any confusion, please let us know in the comment section.



Further Reading

IP Routing: OSPF Configuration Guide



Deepak Prasad

He is the founder of GoLinuxCloud and brings over a decade of expertise in Linux, Python, Go, Laravel, DevOps, Kubernetes, Git, Shell scripting, OpenShift, AWS, Networking, and Security. With extensive experience, he excels in various domains, from development to DevOps, Networking, and Security, ensuring robust and efficient solutions for diverse projects. You can reach out to him on his LinkedIn profile or join on Facebook page.

Can't find what you're searching for? Let us assist you.

Enter your query below, and we'll provide instant results tailored to your needs.

If my articles on GoLinuxCloud has helped you, kindly consider buying me a coffee as a token of appreciation.

Buy GoLinuxCloud a Coffee

For any other feedbacks or questions you can send mail to admin@golinuxcloud.com

Thank You for your support!!

1 thought on “OSPF Configuration Explained on Cisco Router”

Leave a Comment

X
