5 ways you can create histogram using pandas DataFrame


Deepak Prasad

Python Pandas

Create histogram with pandas hist() function

By using hist() function, we can create a histogram through pandas. A histogram is a representation of the distribution of data. This function calls <span class="pre">matplotlib.pyplot.hist()</span>, on each series in the DataFrame, resulting in one histogram per column.



Syntax:

DataFrame.hist(column=None, by=None, xlabelsize=None, ylabelsize=None, figsize=None, layout=None, bins=n, color=None)

Parameters

  • data - It refers to the input pandas DataFrame
  • column - It refers to the input pandas DataFrame column, where we can get histogram on this column.
  • by - It will refers to the histogram to form the separate groups
  • xlabelsize - It refers to size of histogram on x - axis
  • ylabelsize -It refers to size of histogram on y - axis
  • figsize - It  represents the size of histogram
  • layout - It refers to rows/columns layout.
  • bins - It refers to the number of bins to the histogram needed
  • color - histogram color (default is blue)



Different methods to create and customize histogram in Pandas

  • Create Histogram from single column in a dataframe
  • Create Histogram from entire dataframe
  • Create Histogram with specific size
  • Create Histogram with number of bins
  • Create Histogram with specific color



Create pandas DataFrame with example data

DataFrame is a data structure used to store the data in two dimensional format. It is similar to table that stores the data in rows and columns. Rows represents the records/ tuples and columns refers to the attributes.

We can create the DataFrame by using pandas.DataFrame() method.

Syntax:

pandas.DataFrame(input_data,columns,index)

Parameters:

It will take mainly three parameters

  1. input_data is represents a list of data
  2. columns represent the columns names for the data
  3. index represent the row numbers/values

We can also create a DataFrame using dictionary by skipping columns and indices.

Example: Python Program to create a dataframe for market data from a dictionary of food items by specifying the column names.

# import pandas
import pandas

# create dataframe with college data
dataframe = pandas.DataFrame({'Name': {0: 'sravan', 1: 'bobby', 2: 'deepak',3:'prasad'},
				'Subjects': {0: 'PHP', 1: 'PHP', 2: 'dbms',3:'java'},
				'Marks': {0: 89, 1: 90, 2: 93,3:57}})

# display dataframe
print(dataframe)

Output:

     Name Subjects  Marks
0  sravan      PHP     89
1   bobby      PHP     90
2  deepak     dbms     93
3  prasad     java     57



Method 1 : Create Histogram from single column in a dataframe

Example 1: In this example, we are creating a histogram from  Age column with out specifying any parameters.

# import pandas
import pandas

# create dataframe with college data
dataframe = pandas.DataFrame({'Name': {0: 'sravan', 1: 'bobby', 2: 'deepak',3:'prasad'},
				'Subjects': {0: 'PHP', 1: 'PHP', 2: 'dbms',3:'java'},
				'Marks': {0: 89, 1: 90, 2: 93,3:57},
        'Age':{0:23,1:45,2:32,3:34}})

# create histogram
dataframe.hist('Age')

Output:

5 ways you can create histogram using pandas DataFrame



Example 2: In this example, we are creating a histogram from Marks column with out specifying any parameters.

# import pandas
import pandas

# create dataframe with college data
dataframe = pandas.DataFrame({'Name': {0: 'sravan', 1: 'bobby', 2: 'deepak',3:'prasad'},
				'Subjects': {0: 'PHP', 1: 'PHP', 2: 'dbms',3:'java'},
				'Marks': {0: 89, 1: 90, 2: 93,3:57},
        'Age':{0:23,1:45,2:32,3:34}})

# create histogram
dataframe.hist('Marks')

Output:

5 ways you can create histogram using pandas DataFrame



Method 2 : Create Histogram from entire dataframe

Example: In this example, we are creating a histogram from  the entire dataframe and not specifying any parameters.

# import pandas
import pandas

# create dataframe with college data
dataframe = pandas.DataFrame({'Name': {0: 'sravan', 1: 'bobby', 2: 'deepak',3:'prasad'},
				'Subjects': {0: 'PHP', 1: 'PHP', 2: 'dbms',3:'java'},
				'Marks': {0: 89, 1: 90, 2: 93,3:57},
        'Age':{0:23,1:45,2:32,3:34}})

# create histogram
dataframe.hist()

Output:

5 ways you can create histogram using pandas DataFrame



Method 3 : Create Histogram with specific size

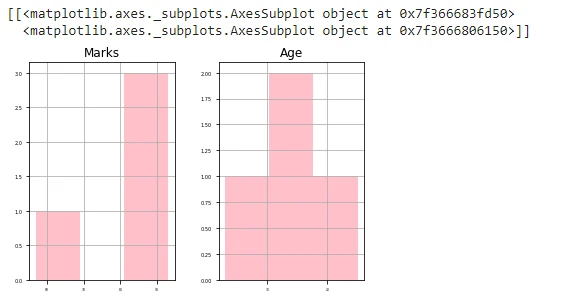

Example  : In this example, we are creating a histogram from  Age column with x and y labelsize parameters. we are setting 11 for x and 4 for ylabelsize.

# import pandas
import pandas

# create dataframe with college data
dataframe = pandas.DataFrame({'Name': {0: 'sravan', 1: 'bobby', 2: 'deepak',3:'prasad'},
				'Subjects': {0: 'PHP', 1: 'PHP', 2: 'dbms',3:'java'},
				'Marks': {0: 89, 1: 90, 2: 93,3:57},
        'Age':{0:23,1:45,2:32,3:34}})

# create histogram
dataframe.hist('Age',xlabelsize=11,ylabelsize=4)

Output:

5 ways you can create histogram using pandas DataFrame



Method 4 : Create Histogram with number of bins

Example 1: In this example, we are creating a histogram from  Age column with bins parameter, we are setting 2 as bin value , which refers to the number of bins.

# import pandas
import pandas

# create dataframe with college data
dataframe = pandas.DataFrame({'Name': {0: 'sravan', 1: 'bobby', 2: 'deepak',3:'prasad'},
				'Subjects': {0: 'PHP', 1: 'PHP', 2: 'dbms',3:'java'},
				'Marks': {0: 89, 1: 90, 2: 93,3:57},
        'Age':{0:23,1:45,2:32,3:34}})

# create histogram
dataframe.hist('Age',bins=2)

Output:

5 ways you can create histogram using pandas DataFrame

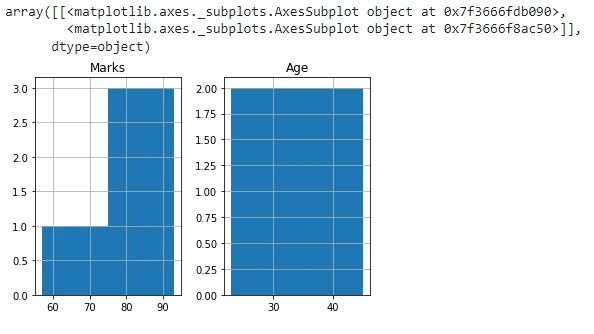

Example 2: In this example, we are creating a histogram from  entire dataframe with bins parameter, we are setting 2 as bin value , which refers to the number of bins.

# import pandas
import pandas

# create dataframe with college data
dataframe = pandas.DataFrame({'Name': {0: 'sravan', 1: 'bobby', 2: 'deepak',3:'prasad'},
				'Subjects': {0: 'PHP', 1: 'PHP', 2: 'dbms',3:'java'},
				'Marks': {0: 89, 1: 90, 2: 93,3:57},
        'Age':{0:23,1:45,2:32,3:34}})

# create histogram
dataframe.hist(bins=2)

Output:

5 ways you can create histogram using pandas DataFrame



Method 5 : Create Histogram with specific color

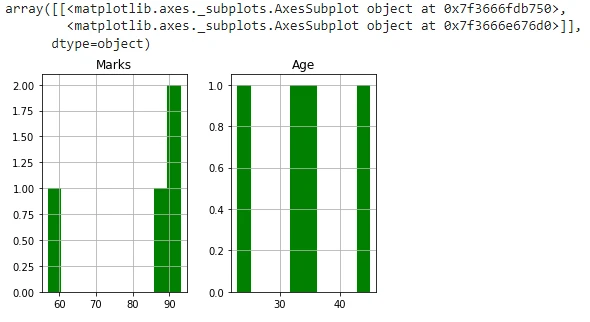

Example 1: In this example, we are creating a histogram from  the entire dataframe and adding green color to the created histogram

# import pandas
import pandas

# create dataframe with college data
dataframe = pandas.DataFrame({'Name': {0: 'sravan', 1: 'bobby', 2: 'deepak',3:'prasad'},
				'Subjects': {0: 'PHP', 1: 'PHP', 2: 'dbms',3:'java'},
				'Marks': {0: 89, 1: 90, 2: 93,3:57},
        'Age':{0:23,1:45,2:32,3:34}})

# create histogram
dataframe.hist(color="green")

Output:

5 ways you can create histogram using pandas DataFrame

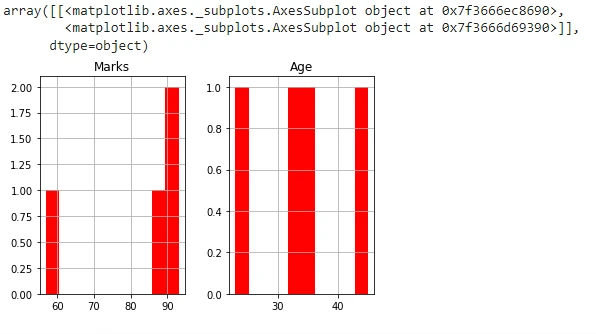

Example 2: In this example, we are creating a histogram from  the entire dataframe and adding red color to the created histogram

# import pandas
import pandas

# create dataframe with college data
dataframe = pandas.DataFrame({'Name': {0: 'sravan', 1: 'bobby', 2: 'deepak',3:'prasad'},
				'Subjects': {0: 'PHP', 1: 'PHP', 2: 'dbms',3:'java'},
				'Marks': {0: 89, 1: 90, 2: 93,3:57},
        'Age':{0:23,1:45,2:32,3:34}})

# create histogram
dataframe.hist(color="red")

Output:

5 ways you can create histogram using pandas DataFrame



Some more Examples

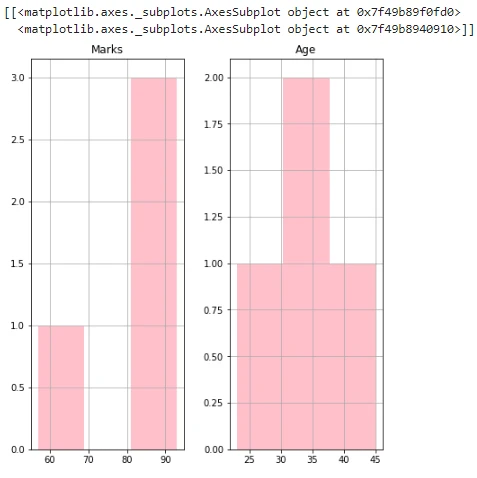

Example-1: In this example, we are creating histogram from the entire dataframe by specifying x and y labelsizes as 3 and 5 along with 5 bins and set the histogram color to pink.

# import pandas
import pandas

# create dataframe with college data
dataframe = pandas.DataFrame({'Name': {0: 'sravan', 1: 'bobby', 2: 'deepak',3:'prasad'},
				'Subjects': {0: 'PHP', 1: 'PHP', 2: 'dbms',3:'java'},
				'Marks': {0: 89, 1: 90, 2: 93,3:57},
        'Age':{0:23,1:45,2:32,3:34}})

# create histogram
print(dataframe.hist(color="pink",bins=3,xlabelsize=3,ylabelsize=5))


Output:

5 ways you can create histogram using pandas DataFrame



Example-2: In this example, we are creating histogram from the entire dataframe by specifying figsize as (7,8) along with 5 bins and set the histogram color to pink.

# import pandas
import pandas

# create dataframe with college data
dataframe = pandas.DataFrame({'Name': {0: 'sravan', 1: 'bobby', 2: 'deepak',3:'prasad'},
				'Subjects': {0: 'PHP', 1: 'PHP', 2: 'dbms',3:'java'},
				'Marks': {0: 89, 1: 90, 2: 93,3:57},
        'Age':{0:23,1:45,2:32,3:34}})

# create histogram
print(dataframe.hist(color="pink",bins=3,figsize=(7,8)))


Output:

5 ways you can create histogram using pandas DataFrame



Summary

In data visualization , Histogram plays an important role for visualizing the data, And the attraction comes from the histogram itself. In this topic, we discussed how to create a histogram in pandas . we seen all the parameters which are required for the creation of histogram.

To summarise, we learned to create histogram in Pandas with following parameters:

  • With specific size
  • With number of bins
  • Histogram with specific color
  • With figsize



Reference

Histogram in Pandas
