Terraform: EKS Cluster Provision on AWS [10 Steps]

Related Searches: terraform aws kubernetes cluster, aws terraform kubernetes, terraform eks tutorial, terraform kubernetes cluster aws, terraform kubernetes example, terraform eks module

Elastic Kubernetes Service, EKS, is a managed Kubernetes service on AWS. This service provides Cloud Native Computing functionalities on AWS such as scalable and flexible application deployments on AWS.

Advertisement

Terraform is a tool used to automate infrastructure deployments on cloud environments. This tool implements the Infrastructure as Code (IaC) principles and Functionalities. Terraform is free and open source. There is an enterprise version of Terraform which contains more advanced features.

This article shall cover how to deploy an EKS cluster on AWS using Terraform. There are many ways to deploy an EKS cluster on AWS such as using the web console, AWS CLI, and CloudFormation. Below are some of the reasons why you would consider using Terraform over the other options.

You can manage the whole lifecycle of the EKS cluster through Terraform. You can do version updates, scale your cluster and resources under one place, Terraform. This is done seamlessly without the need for one to inspect the API to identify the resources.
Terraform will easily integrate with your AWS services, i.e, if there are some existing dependencies such as VPCs, Terraform will use them seamlessly without creating other parallel resources.
There is a streamlined workflow, if you are already using Terraform in your cloud environment, you can easily add the Terraform modules and proceed with the deployment for both the cluster and applications.



Deploy EKS Cluster Using Terraform

For us to successfully deploy our EKS Cluster on AWS using Terraform, we need to have set our environment with the following:

  1. AWS account
  2. AWS user account with IAM permissions necessary for EKS deployment
  3. AWS CLI
  4. kubectl



Step-1: Prepare Environment for EKS Deployment with Terraform

Follow the steps below to prepare the environment for EKS deployment on AWS using Terraform.



1.1: Setup AWS Account

Sign up for an AWS account to get a free AWS package for 12 months. This package, however, doesn't provide EKS service for free. You will be charged for this service.

Advertisement

When you have the account, you will be required to create a user with IAM permissions that allows the user to create and manage the EKS cluster. Ideally, this would be a System Admin account.



1.2: Create AWS Policy

On AWS console, go to IAM > Policies > Create Policy. Choose the JSON option then add the details below:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "autoscaling:AttachInstances",
                "autoscaling:CreateAutoScalingGroup",
                "autoscaling:CreateLaunchConfiguration",
                "autoscaling:CreateOrUpdateTags",
                "autoscaling:DeleteAutoScalingGroup",
                "autoscaling:DeleteLaunchConfiguration",
                "autoscaling:DeleteTags",
                "autoscaling:Describe*",
                "autoscaling:DetachInstances",
                "autoscaling:SetDesiredCapacity",
                "autoscaling:UpdateAutoScalingGroup",
                "autoscaling:SuspendProcesses",
                "ec2:AllocateAddress",
                "ec2:AssignPrivateIpAddresses",
                "ec2:Associate*",
                "ec2:AttachInternetGateway",
                "ec2:AttachNetworkInterface",
                "ec2:AuthorizeSecurityGroupEgress",
                "ec2:AuthorizeSecurityGroupIngress",
                "ec2:CreateDefaultSubnet",
                "ec2:CreateDhcpOptions",
                "ec2:CreateEgressOnlyInternetGateway",
                "ec2:CreateInternetGateway",
                "ec2:CreateNatGateway",
                "ec2:CreateNetworkInterface",
                "ec2:CreateRoute",
                "ec2:CreateRouteTable",
                "ec2:CreateSecurityGroup",
                "ec2:CreateSubnet",
                "ec2:CreateTags",
                "ec2:CreateVolume",
                "ec2:CreateVpc",
                "ec2:CreateVpcEndpoint",
                "ec2:DeleteDhcpOptions",
                "ec2:DeleteEgressOnlyInternetGateway",
                "ec2:DeleteInternetGateway",
                "ec2:DeleteNatGateway",
                "ec2:DeleteNetworkInterface",
                "ec2:DeleteRoute",
                "ec2:DeleteRouteTable",
                "ec2:DeleteSecurityGroup",
                "ec2:DeleteSubnet",
                "ec2:DeleteTags",
                "ec2:DeleteVolume",
                "ec2:DeleteVpc",
                "ec2:DeleteVpnGateway",
                "ec2:Describe*",
                "ec2:DetachInternetGateway",
                "ec2:DetachNetworkInterface",
                "ec2:DetachVolume",
                "ec2:Disassociate*",
                "ec2:ModifySubnetAttribute",
                "ec2:ModifyVpcAttribute",
                "ec2:ModifyVpcEndpoint",
                "ec2:ReleaseAddress",
                "ec2:RevokeSecurityGroupEgress",
                "ec2:RevokeSecurityGroupIngress",
                "ec2:UpdateSecurityGroupRuleDescriptionsEgress",
                "ec2:UpdateSecurityGroupRuleDescriptionsIngress",
                "ec2:CreateLaunchTemplate",
                "ec2:CreateLaunchTemplateVersion",
                "ec2:DeleteLaunchTemplate",
                "ec2:DeleteLaunchTemplateVersions",
                "ec2:DescribeLaunchTemplates",
                "ec2:DescribeLaunchTemplateVersions",
                "ec2:GetLaunchTemplateData",
                "ec2:ModifyLaunchTemplate",
                "ec2:RunInstances",
                "eks:CreateCluster",
                "eks:DeleteCluster",
                "eks:DescribeCluster",
                "eks:ListClusters",
                "eks:UpdateClusterConfig",
                "eks:UpdateClusterVersion",
                "eks:DescribeUpdate",
                "eks:TagResource",
                "eks:UntagResource",
                "eks:ListTagsForResource",
                "eks:CreateFargateProfile",
                "eks:DeleteFargateProfile",
                "eks:DescribeFargateProfile",
                "eks:ListFargateProfiles",
                "eks:CreateNodegroup",
                "eks:DeleteNodegroup",
                "eks:DescribeNodegroup",
                "eks:ListNodegroups",
                "eks:UpdateNodegroupConfig",
                "eks:UpdateNodegroupVersion",
                "iam:AddRoleToInstanceProfile",
                "iam:AttachRolePolicy",
                "iam:CreateInstanceProfile",
                "iam:CreateOpenIDConnectProvider",
                "iam:CreateServiceLinkedRole",
                "iam:CreatePolicy",
                "iam:CreatePolicyVersion",
                "iam:CreateRole",
                "iam:DeleteInstanceProfile",
                "iam:DeleteOpenIDConnectProvider",
                "iam:DeletePolicy",
                "iam:DeletePolicyVersion",
                "iam:DeleteRole",
                "iam:DeleteRolePolicy",
                "iam:DeleteServiceLinkedRole",
                "iam:DetachRolePolicy",
                "iam:GetInstanceProfile",
                "iam:GetOpenIDConnectProvider",
                "iam:GetPolicy",
                "iam:GetPolicyVersion",
                "iam:GetRole",
                "iam:GetRolePolicy",
                "iam:List*",
                "iam:PassRole",
                "iam:PutRolePolicy",
                "iam:RemoveRoleFromInstanceProfile",
                "iam:TagOpenIDConnectProvider",
                "iam:TagRole",
                "iam:UntagRole",
                "iam:UpdateAssumeRolePolicy",
                "logs:CreateLogGroup",
                "logs:DescribeLogGroups",
                "logs:DeleteLogGroup",
                "logs:ListTagsLogGroup",
                "logs:PutRetentionPolicy",
                "kms:CreateAlias",
                "kms:CreateGrant",
                "kms:CreateKey",
                "kms:DeleteAlias",
                "kms:DescribeKey",
                "kms:GetKeyPolicy",
                "kms:GetKeyRotationStatus",
                "kms:ListAliases",
                "kms:ListResourceTags",
                "kms:ScheduleKeyDeletion"
            ],
            "Resource": "*"
        }
    ]
}

The above JSON grants the following permissions to the policy as described in the EKS Terraform module documentation.

  1. EC2 for elastic compute instance creation
  2. EKS - full access to EKS features and services
  3. CloudWatch for log analysis
  4. IAM and KMS full permissions.

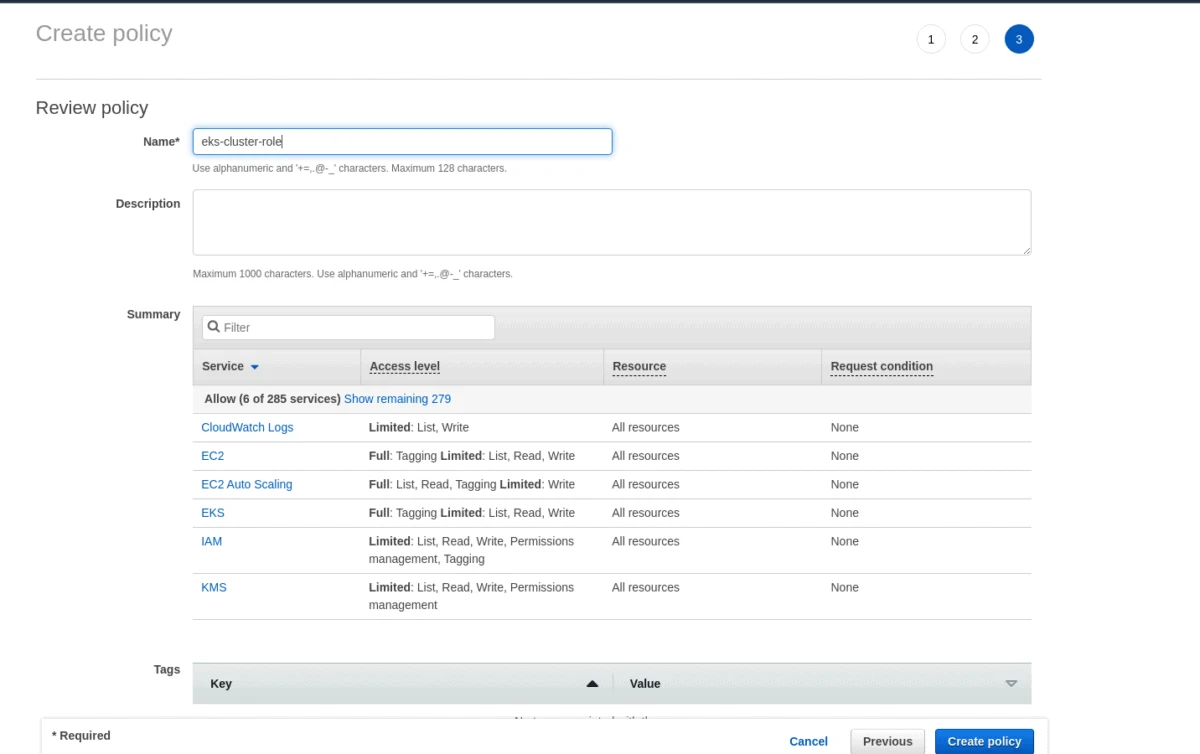

Click next and head over to the “Review policy” section where you assign the name to the policy.

Terraform: EKS Cluster Provision on AWS [Step-by-Step]



1.3: Create AWS User

Head over to IAM > Users > Add users.

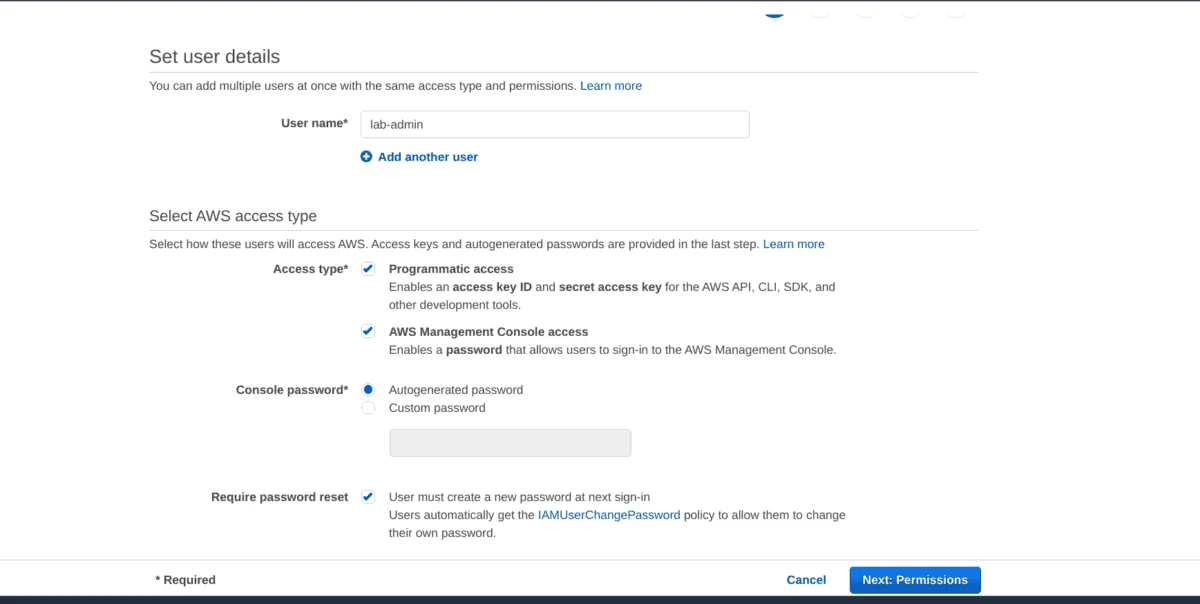

Choose a username then check the “Programmatic access” and “AWS Management Console access” options.

Terraform: EKS Cluster Provision on AWS [Step-by-Step]

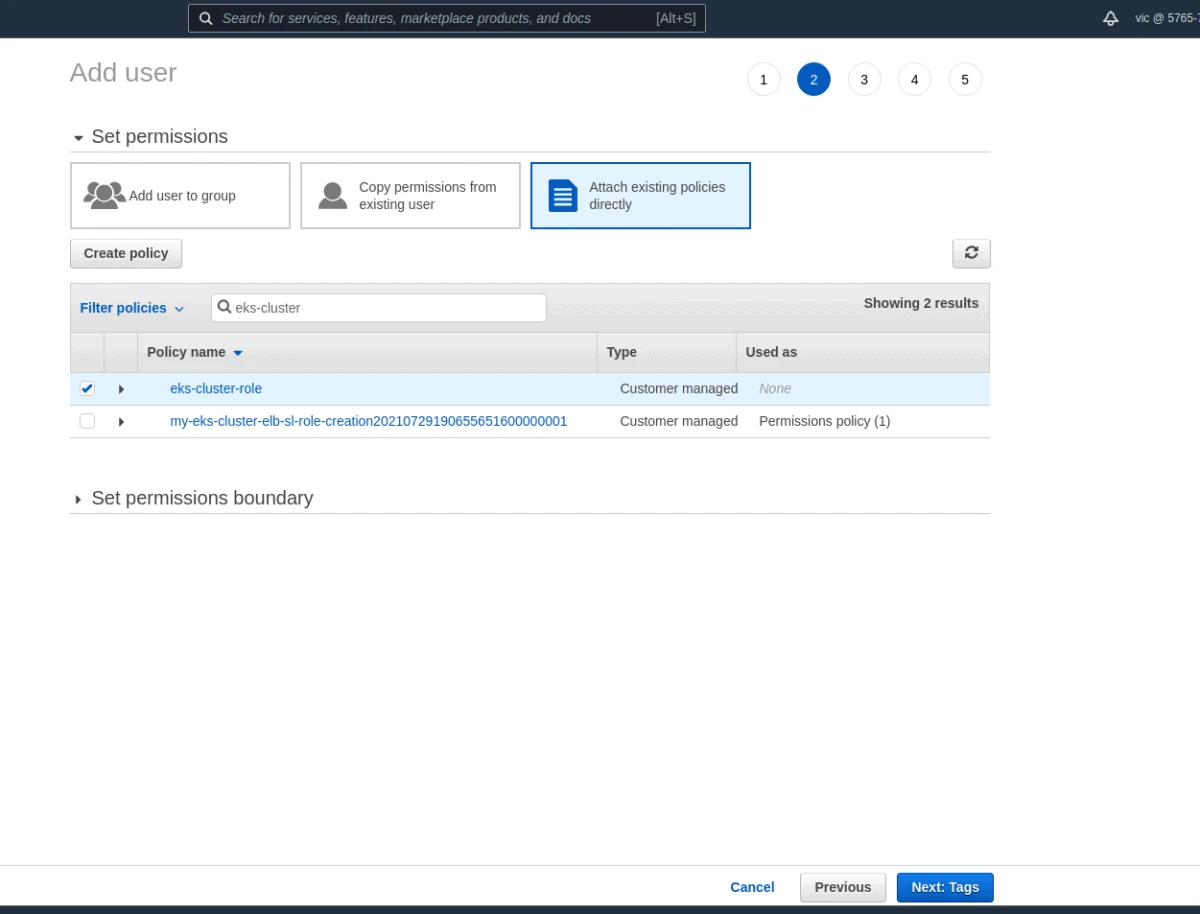

Click Next to attach permissions to the user. Select the “Attach existing policies directly” option then search for the policy we created in the step above.

Terraform: EKS Cluster Provision on AWS [Step-by-Step]

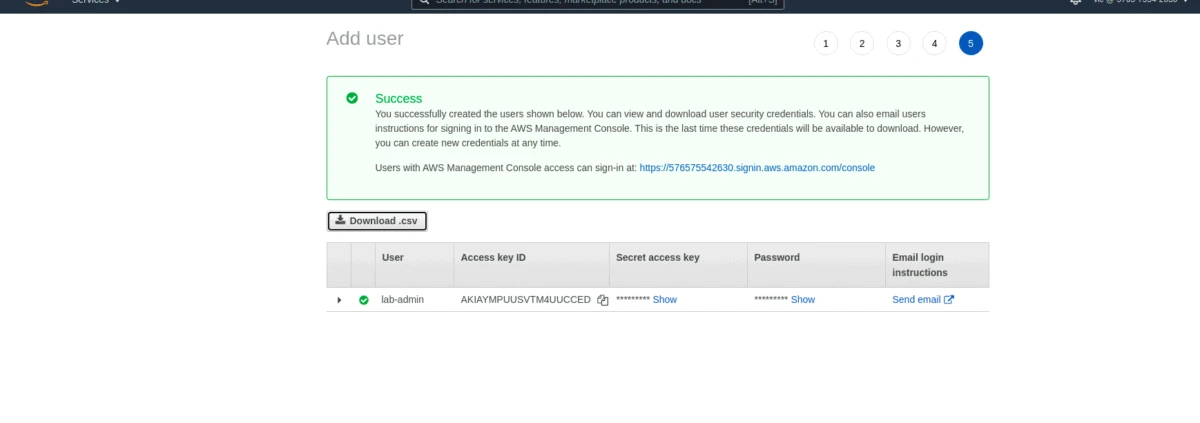

Proceed to the next page to review and finish the user creation steps. Download the .csv file that contains the  Access Key ID and the Secret Access Key. These two details are necessary for AWS CLI configuration, which is our next step.

Advertisement

Terraform: EKS Cluster Provision on AWS [Step-by-Step]



Step-2: Install AWS CLI

We need AWS CLI to manage our AWS environment from the command line. We shall cover how to install AWS CLI on a Linux environment. For the demonstration I have bring up Ubuntu 20.04 server as a VM using Oracle VirtualBox on which I will be using AWS CLI to connect to AWS Servers and perform the deployment.

Download the latest version of AWS CLI version 2.

$ curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"

Extract the downloaded package:

$ unzip awscliv2.zip

Install AWS CLI

$ sudo ./aws/install



Step-3: Configure AWS CLI

We need to configure AWS CLI so we can manage AWS on the command line. Run the commands below to set up AWS CLI. Provide the details we obtained from the AWS user creation step above.

The AWS Access Key ID and AWS Secret Access Key information is available in the .csv downloaded earlier. You also need to choose your preferred region for your deployments.

$ aws configure
AWS Access Key ID [None]: <your-AWS-USER-ACCESS-ID>
AWS Secret Access Key [None]: <YOUR-SECRET-KEY>
Default region name [None]: eu-west-1
Default output format [None]: json

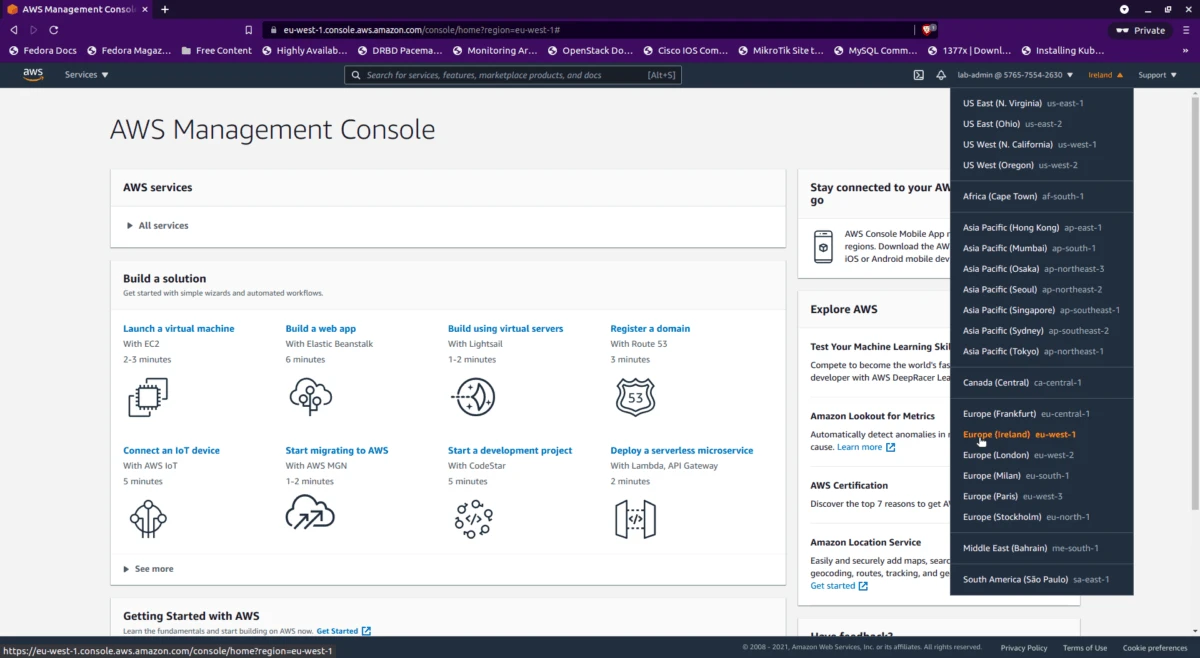

To obtain the default region code, login to the AWS web console, go to the second top-right drop-down and select the region you wish to deploy your cluster. The region code will also be shown besides the region name. This is as shown below:

Terraform: EKS Cluster Provision on AWS [Step-by-Step]

To verify if your credentials have been successfully set, run the command below:

Advertisement
$ aws sts get-caller-identity

You should get an output similar to this below:

{
    "UserId": "AIDAYMPUUSVTMRUXXXXX",
    "Account": "57657XXXXXX",
    "Arn": "arn:aws:iam::57657XXXXXX:user/lab-admin"
}



Step-4: Install Kubectl

Install kubectl that will be used to manage your Kubernetes cluster once the setup is done. This guide shall cover how to install kubectl on Linux.

Download the latest release of kubectl:

curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"

Check and confirm the version of the installed kubectl

$ kubectl version --client
Client Version: version.Info{Major:"1", Minor:"21", GitVersion:"v1.21.3", GitCommit:"ca643a4d1f7b

Installation guides for other Operating Systems are available on the Kubernetes website.



Step-5: Install Terraform

Before we can use Terraform, we need to install it. This guide will focus on Terraform installation on Linux platforms. Download the latest version of Terraform from the GitHub release page:

$ TER_VER=`curl -s https://api.github.com/repos/hashicorp/terraform/releases/latest | grep tag_name | cut -d: -f2 | tr -d \"\,\v | awk '{$1=$1};1'`

$ wget https://releases.hashicorp.com/terraform/${TER_VER}/terraform_${TER_VER}_linux_amd64.zip

Extract the downloaded file then move the binary file to /usr/local/bindirectory

$ unzip terraform_${TER_VER}_linux_amd64.zip
Archive:  terraform_xxx_linux_amd64.zip
 inflating: terraform

$ sudo mv terraform /usr/local/bin/

Check and confirm the version of Terraform you have just installed

$ teraform -v



Step-6: Setup Terraform Workspace

We now have all the necessary tools to set up our EKS Cluster on AWS. We now need to create the required file for Terraform to create our cluster.

The files needed are:

  1. eks-cluster.tf – holds the cluster resources such as the worker nodes.
  2. security-groups.tf – holds the information about the cluster subnets and VPC details
  3. versions.tf – holds the information about the needed provider versions.
  4. k8s.tf – holds the information about the Kubernetes provider
  5. vpc.tf – contains VPC resource information
  6. outputs.tf – contains the desired outputs when the deployment is finished.​



6.1: Setup Terraform Environment

Create a directory that shall be used as your working directory.

$ mkdir -p ~/terraform-deployments && cd ~/terraform-deployments



6.2: Create EKS Cluster configuration file

Create the eks-cluster.tffile and add the content below. My deployment has three worker nodes, you could choose to have more or less.

This file contains the following information:

  1. The terraform module used to setup EKS cluster
  2. The EKS cluster version
  3. Details about the worker nodes such as the volume type, the size of the instances and the number of nodes
  4. The subnets to be used for the EKS cluster
$ vim eks-cluster.tf

module "eks" {
  source          = "terraform-aws-modules/eks/aws"
  cluster_name    = local.cluster_name
  cluster_version = "1.20"
  subnets         = module.vpc.private_subnets

  tags = {
    Environment = "development"
    GithubRepo  = "terraform-aws-eks"
    GithubOrg   = "terraform-aws-modules"
  }


  vpc_id = module.vpc.vpc_id

  workers_group_defaults = {
    root_volume_type = "gp2"
  }

cluster_endpoint_private_access = "true"
  cluster_endpoint_public_access  = "true"

  write_kubeconfig      = true
  manage_aws_auth       = true

  worker_groups = [
    {
      name                          = "worker-group-1"
      instance_type                 = "t2.small"
      additional_userdata           = "echo foo bar"
      asg_desired_capacity          = 2
      additional_security_group_ids = [aws_security_group.worker_group_mgmt_one.id]
    },
    {
      name                          = "worker-group-2"
      instance_type                 = "t2.medium"
      additional_userdata           = "echo foo bar"
      additional_security_group_ids = [aws_security_group.worker_group_mgmt_two.id]
      asg_desired_capacity          = 1
    },
  ]
}

data "aws_eks_cluster" "cluster" {
  name = module.eks.cluster_id
}

data "aws_eks_cluster_auth" "cluster" {
  name = module.eks.cluster_id



6.3: Create VPC Configuration File

Create the vpc.tf file to provision the VPC and the subnets. In the below code, take note of the region, cluster name, and the VPC subnets. You should consider using your custom details depending on how you have set up your AWS environment.

In this file, we shall configure the following:

  1. The default region for our VPC
  2. The name of the EKS cluster
  3. The subnets for both private and public subnets.
$ vim vpc.tf
variable "region" {
  default     = "eu-west-1"
  description = "AWS region"
}

provider "aws" {
  region = "eu-west-1"
}

data "aws_availability_zones" "available" {}

locals {
  cluster_name = "my-eks-cluster"
}


module "vpc" {
  source  = "terraform-aws-modules/vpc/aws"
  version = "2.66.0"

  name                 = "my-eks-cluster-vpc"
  cidr                 = "10.0.0.0/16"
  azs                  = data.aws_availability_zones.available.names
  private_subnets      = ["10.0.11.0/24", "10.0.22.0/24", "10.0.33.0/24"]
  public_subnets       = ["10.0.44.0/24", "10.0.55.0/24", "10.0.66.0/24"]
  enable_nat_gateway   = true
  single_nat_gateway   = true
  enable_dns_hostnames = true

  tags = {
    "kubernetes.io/cluster/${local.cluster_name}" = "shared"
  }

  public_subnet_tags = {
    "kubernetes.io/cluster/${local.cluster_name}" = "shared"
    "kubernetes.io/role/elb"                      = "1"
  }

  private_subnet_tags = {
    "kubernetes.io/cluster/${local.cluster_name}" = "shared"
    "kubernetes.io/role/internal-elb"             = "1"
  }
}



6.4: Create AWS Security Groups

Create security groups using the security-groups.tf  configuration file. The security groups will contain the rules on how to access different subnets in the VPC. In this configuration, ingress traffic for SSH service is allowed on port 22 for the three subnets. This is for management of the worker nodes of our EKS cluster.

$ vim security-groups.tf
resource "aws_security_group" "worker_group_mgmt_one" {
  name_prefix = "worker_group_mgmt_one"
  vpc_id      = module.vpc.vpc_id

  ingress {
    from_port = 22
    to_port   = 22
    protocol  = "tcp"

    cidr_blocks = [
      "10.0.0.0/8",
    ]
  }
}

resource "aws_security_group" "worker_group_mgmt_two" {
  name_prefix = "worker_group_mgmt_two"
  vpc_id      = module.vpc.vpc_id

  ingress {
    from_port = 22
    to_port   = 22
    protocol  = "tcp"

    cidr_blocks = [
      "192.168.0.0/16",
    ]
  }
}

resource "aws_security_group" "all_worker_mgmt" {
  name_prefix = "all_worker_management"
  vpc_id      = module.vpc.vpc_id

  ingress {
    from_port = 22
    to_port   = 22
    protocol  = "tcp"

    cidr_blocks = [
      "10.0.0.0/8",
      "172.16.0.0/12",
      "192.168.0.0/16",
    ]
  }
}



6.5: Configure Terraform Providers

In the versions.tffile, we shall configure the required providers and their respective versions.

$ vim versions.tf

terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = ">= 3.20.0"
    }

    random = {
      source  = "hashicorp/random"
      version = "3.0.0"
    }

    local = {
      source  = "hashicorp/local"
      version = "2.0.0"
    }

    null = {
      source  = "hashicorp/null"
      version = "3.0.0"
    }

    template = {
      source  = "hashicorp/template"
      version = "2.2.0"
    }

    kubernetes = {
      source  = "hashicorp/kubernetes"
      version = ">= 2.0.1"
    }
  }

  required_version = "> 0.14"
}

Add k8s provider:

$ vim k8s.tf

provider "kubernetes" {
  host                   = data.aws_eks_cluster.cluster.endpoint
  token                  = data.aws_eks_cluster_auth.cluster.token
  cluster_ca_certificate = base64decode(data.aws_eks_cluster.cluster.certificate_authority.0.data)
}



6.6: Configure Terraform Outputs

Configure the required outputs after the deployment. These outputs include:

  1. The cluster ID
  2. The cluster endpoint
  3. Cluster name

These will be useful for the configuration and management of our EKS cluster once fully deployed.

$ vim outputs.tf

output "cluster_id" {
  description = "EKS cluster ID."
  value       = module.eks.cluster_id
}

output "cluster_endpoint" {
  description = "Endpoint for EKS control plane."
  value       = module.eks.cluster_endpoint
}

output "cluster_security_group_id" {
  description = "Security group ids attached to the cluster control plane."
  value       = module.eks.cluster_security_group_id
}

output "kubectl_config" {
  description = "kubectl config as generated by the module."
  value       = module.eks.kubeconfig
}

output "config_map_aws_auth" {
  description = "A kubernetes configuration to authenticate to this EKS cluster."
  value       = module.eks.config_map_aws_auth
}

output "region" {
  description = "AWS region"
  value       = var.region
}

output "cluster_name" {
  description = "Kubernetes Cluster Name"
  value       = local.cluster_name
}



Step-7: Initialize Terraform Workspace

Initialize Terraform workspace to download the required providers.

$ terraform init

The workspace initialization should take some moments before it’s done.

$ terraform init
Upgrading modules...
Downloading terraform-aws-modules/eks/aws 17.1.0 for eks...
- eks in .terraform/modules/eks
- eks.fargate in .terraform/modules/eks/modules/fargate
- eks.node_groups in .terraform/modules/eks/modules/node_groups
Downloading terraform-aws-modules/vpc/aws 2.66.0 for vpc...
- vpc in .terraform/modules/vpc

Initializing the backend...

Initializing provider plugins...
- Finding hashicorp/kubernetes versions matching ">= 1.11.1, >= 2.0.1"...
- Finding hashicorp/aws versions matching ">= 2.68.0, >= 3.20.0, >= 3.40.0, >= 3.43.0"...
- Finding hashicorp/random versions matching "3.0.0"...
- Finding hashicorp/local versions matching ">= 1.4.0, 2.0.0"...
- Finding hashicorp/null versions matching "3.0.0"...
- Finding hashicorp/template versions matching "2.2.0"...
- Finding terraform-aws-modules/http versions matching ">= 2.4.1"...
- Finding latest version of hashicorp/cloudinit...
- Installing hashicorp/template v2.2.0...
- Installed hashicorp/template v2.2.0 (signed by HashiCorp)
- Installing terraform-aws-modules/http v2.4.1...
- Installed terraform-aws-modules/http v2.4.1 (self-signed, key ID B2C1C0641B6B0EB7)
- Installing hashicorp/cloudinit v2.2.0...
- Installed hashicorp/cloudinit v2.2.0 (signed by HashiCorp)
- Installing hashicorp/kubernetes v2.3.2...
- Installed hashicorp/kubernetes v2.3.2 (signed by HashiCorp)
- Installing hashicorp/aws v3.51.0...
- Installed hashicorp/aws v3.51.0 (signed by HashiCorp)
- Installing hashicorp/random v3.0.0...
- Installed hashicorp/random v3.0.0 (signed by HashiCorp)
- Installing hashicorp/local v2.0.0...
- Installed hashicorp/local v2.0.0 (signed by HashiCorp)
- Installing hashicorp/null v3.0.0...
- Installed hashicorp/null v3.0.0 (signed by HashiCorp)

Partner and community providers are signed by their developers.
If you'd like to know more about provider signing, you can read about it here:
https://www.terraform.io/docs/cli/plugins/signing.html

Terraform has made some changes to the provider dependency selections recorded
in the .terraform.lock.hcl file. Review those changes and commit them to your
version control system if they represent changes you intended to make.

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.

You can now proceed with the deployment since the environment has been successfully initialized.

Run the terraform plan command to confirm the resources that will be provisioned when we run our script.

$ terraform plan
....
Plan: 50 to add, 0 to change, 0 to destroy.

Changes to Outputs:
  + cluster_endpoint          = (known after apply)
  + cluster_id                = (known after apply)
  + cluster_name              = "my-eks-cluster"
  + cluster_security_group_id = (known after apply)
  + config_map_aws_auth       = [
      + {
          + binary_data = null
          + data        = (known after apply)
          + id          = (known after apply)
          + metadata    = [
              + {
                  + annotations      = null
                  + generate_name    = null
                  + generation       = (known after apply)
                  + labels           = {
                      + "app.kubernetes.io/managed-by" = "Terraform"
                      + "terraform.io/module"          = "terraform-aws-modules.eks.aws"
                    }
                  + name             = "aws-auth"
                  + namespace        = "kube-system"
                  + resource_version = (known after apply)
                  + uid              = (known after apply)
                },
            ]
        },
    ]
  + kubectl_config            = (known after apply)
  + region                    = "eu-west-1"

We are now aware that terraform will make 50 changes to our environment, each change has been described in the output above.



Step-8: Terraform EKS Cluster Provisioning

We will proceed to provisioning the EKS cluster using Terraform with the command below:

$ terraform apply

You will be asked to confirm if Terraform will proceed with the deployment. Type ‘yes’.

$ terraform apply
.....
Plan: 50 to add, 0 to change, 0 to destroy.

Changes to Outputs:
  + cluster_endpoint          = (known after apply)
  + cluster_id                = (known after apply)
  + cluster_name              = "my-eks-cluster"
  + cluster_security_group_id = (known after apply)
  + config_map_aws_auth       = [
      + {
          + binary_data = null
          + data        = (known after apply)
          + id          = (known after apply)
          + metadata    = [
              + {
                  + annotations      = null
                  + generate_name    = null
                  + generation       = (known after apply)
                  + labels           = {
                      + "app.kubernetes.io/managed-by" = "Terraform"
                      + "terraform.io/module"          = "terraform-aws-modules.eks.aws"
                    }
                  + name             = "aws-auth"
                  + namespace        = "kube-system"
                  + resource_version = (known after apply)
                  + uid              = (known after apply)
                },
            ]
        },
    ]
  + kubectl_config            = (known after apply)
  + region                    = "eu-west-1"

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value: yes

This initializes the provisioning on AWS. The process takes some minutes to complete.

You will then get the output showing you that the provisioning was successful.

Apply complete! Resources: 50 added, 0 changed, 0 destroyed.

Outputs:

cluster_endpoint = "https://15B63349104862B5FA303A1F430XXXX.gr7.eu-west-1.eks.amazonaws.com"
cluster_id = "my-eks-cluster"
cluster_name = "my-eks-cluster"
cluster_security_group_id = "sg-00dbf022c27xxxdxx"
config_map_aws_auth = [
  {
    "binary_data" = tomap(null) /* of string */
    "data" = tomap({
      "mapAccounts" = <<-EOT
      []

      EOT
      "mapRoles" = <<-EOT
      - "groups":
        - "system:bootstrappers"
        - "system:nodes"
        "rolearn": "arn:aws:iam::57657xxxxx:role/my-eks-cluster2021072919190220210000000c"
        "username": "system:node:{{EC2PrivateDNSName}}"
      EOT
      "mapUsers" = <<-EOT
      []

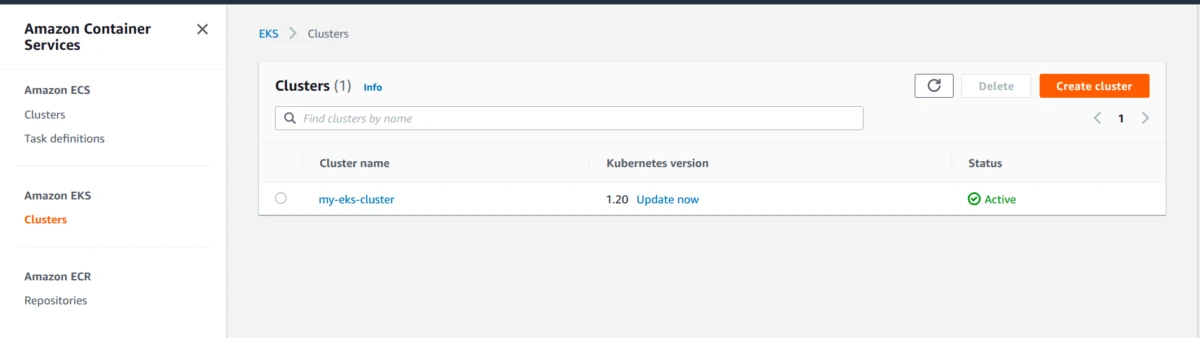

You can also login to AWS web console to confirm if the cluster really exists. Navigate to Elastic Kubernetes service > Amazon EKS > Clusters.

How to Deploy EKS Cluster on AWS using Terraform

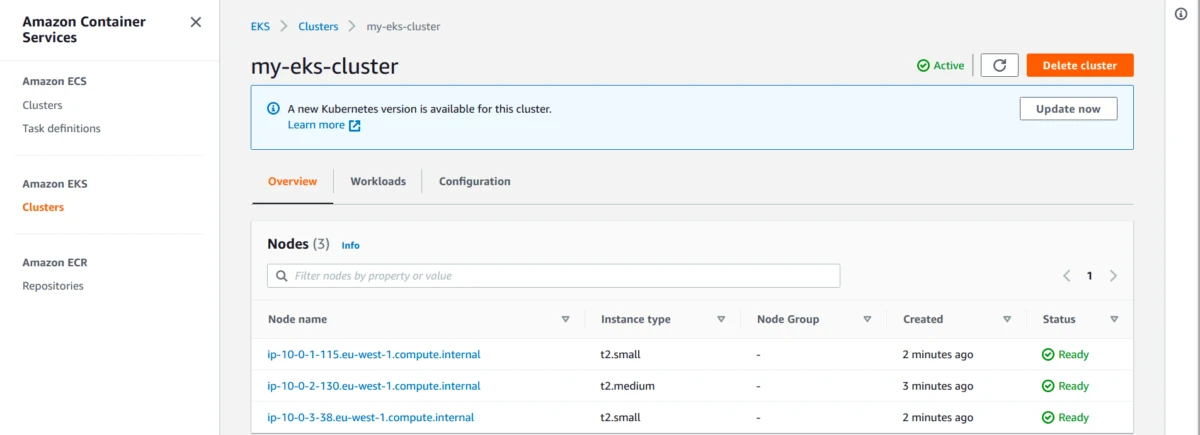

We can verify that the cluster with the name my-eks-cluster is now available. We can also check the available worker nodes in the cluster.

How to Deploy EKS Cluster on AWS using Terraform





Step-9: Export EKS kueconfig to manage Kubernetes Cluster

To manage our EKS cluster on CLI, we need for configure kubectl context by importing the EKS kubeconfig as below:

$ aws eks --region $(terraform output -raw region) update-kubeconfig --name $(terraform output -raw cluster_name)

The above command exports the eks kubeconfig and you can now manage your Kubernetes cluster using kubectl.

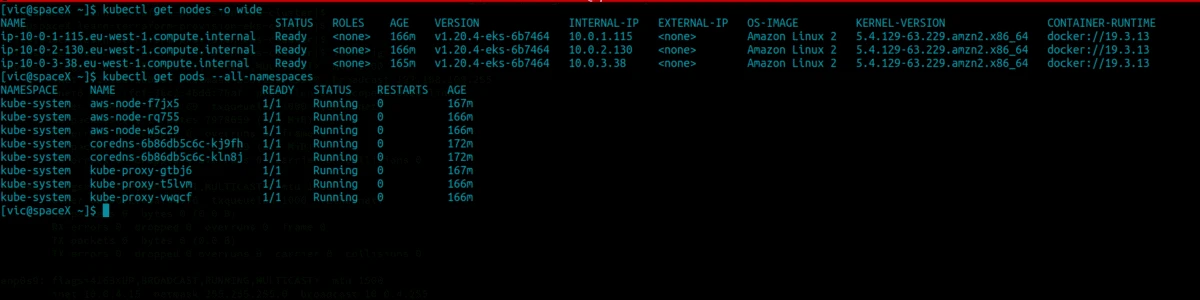

We can run some basic commands for Kubernetes to confirm this.

$ kubectl get nodes

$ kubectl get pods --all-namespaces

How to Deploy EKS Cluster on AWS using Terraform



Step-10: Destroy terraform

You can also destroy your stack using Terraform with the command below:

$ terraform destroy

This will ask you to confirm if you really want to completely destroy the stack as the process is irreversible.

....
Do you really want to destroy all resources?
  Terraform will destroy all your managed infrastructure, as shown above.
  There is no undo. Only 'yes' will be accepted to confirm.

  Enter a value: yes



Summary

That’s it! You now have your cluster configured and you can now start deploying your Cloud Native applications to the cloud using EKS. In my opinion, setting up an EKS cluster using Terraform is much easier and straightforward than using any other method. This has been demonstrated in the above steps.

Feel free to get in touch in case you experience any issues deploying EKS on AWS using Terraform.



References

Terraform AWS modules
Install and Set Up kubectl on Linux
Installing, updating, and uninstalling the AWS CLI version 2

Didn't find what you were looking for? Perform a quick search across GoLinuxCloud

If my articles on GoLinuxCloud has helped you, kindly consider buying me a coffee as a token of appreciation.

Buy GoLinuxCloud a Coffee

For any other feedbacks or questions you can either use the comments section or contact me form.

Thank You for your support!!

Leave a Comment
