Configure DNS over TLS with NetworkManager on RHEL 10

Red Hat Enterprise Linux 10.1 made encrypted system DNS generally available through NetworkManager. You can use the same configuration on compatible Enterprise Linux 10 systems that provide dnsconfd, dnsconfd-unbound, and NetworkManager with DoT URI support. Red Hat also refers to this feature as encrypted DNS or eDNS. This guide uses DNS over TLS because DoT is the encrypted DNS protocol currently implemented by RHEL.

You will configure three cooperating pieces: NetworkManager publishes global DNS settings, dnsconfd translates them for the local cache, and unbound sends upstream queries to Cloudflare (or another provider) on TCP port 853. This guide focuses on enabling DoT on an existing system. Installer, Kickstart, and custom-ISO configuration are separate workflows.

The commands below require root access or sudo.

Tested on: Rocky Linux 10.2 (Red Quartz); NetworkManager 1.56.0; dnsconfd 1.7.5.

How NetworkManager encrypts DNS traffic

On RHEL 10.1 and compatible Enterprise Linux 10 releases, the supported path looks like this:

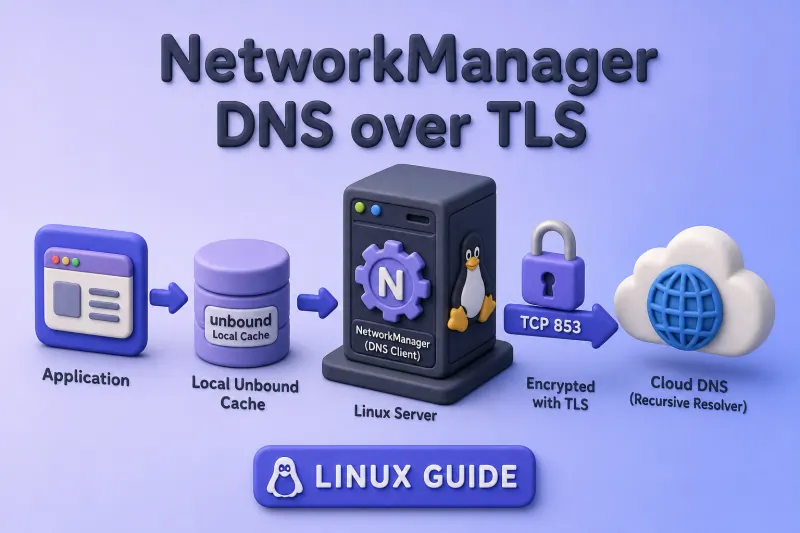

Application → local unbound cache → DNS over TLS → upstream resolver

NetworkManager owns the system DNS policy and pushes it to dnsconfd. dnsconfd configures unbound and rewrites /etc/resolv.conf so applications use the local cache on 127.0.0.1. unbound opens encrypted TCP connections to the resolver you choose. Plaintext UDP or TCP port 53 is not used on the external interface for those upstream queries when DoT is working.

Keep three limitations in mind:

• The hop from your application to 127.0.0.1 is normally not encrypted.
• DoT protects the resolver path; it does not hide destination IP addresses your applications contact afterward.
• DNSSEC and DoT solve different problems. DoT encrypts transport to the resolver; DNSSEC validates signed responses.

Check whether the system is ready

Start with distribution, NetworkManager, and package availability. RHEL 10.1 is the release that brought this stack to general availability. Package timing can differ across Enterprise Linux 10 rebuilds; confirm dnsconfd and dnsconfd-unbound are available before you proceed.

Check the OS release:

cat /etc/redhat-release

Sample output:

Rocky Linux release 10.2 (Red Quartz)

Confirm NetworkManager is new enough to publish DoT URIs:

NetworkManager --version

Sample output:

1.56.0-1.el10

Upstream DNS-over-TLS URI support was introduced in NetworkManager 1.52. Enterprise Linux distributions can backport features, so also confirm that the dnsconfd packages and global DoT configuration options are available.

Verify dnsconfd, dnsconfd-unbound, and the dracut helper are in AppStream:

dnf info dnsconfd dnsconfd-unbound dnsconfd-dracut

Sample output:

Name         : dnsconfd
Version      : 1.7.5
Release      : 1.el10
Repository   : appstream
Summary      : Local DNS cache configuration daemon

Name         : dnsconfd-unbound
Version      : 1.7.5
Release      : 1.el10
Repository   : appstream
Summary      : dnsconfd unbound module

Name         : dnsconfd-dracut
Version      : 1.7.5
Release      : 1.el10
Repository   : appstream
Summary      : dnsconfd dracut module

See which DNS servers NetworkManager receives from DHCP or static profiles:

nmcli -f GENERAL.DEVICE,IP4.DNS,IP6.DNS device show

Sample output:

GENERAL.DEVICE:                         enp0s3
IP4.DNS[1]:                             192.168.0.1
IP6.DNS[1]:                             fd17:625c:f037:2::3

Check whether /etc/resolv.conf is a symlink and who generated it:

ls -l /etc/resolv.conf

Sample output before dnsconfd (regular file managed by NetworkManager):

-rw-r--r--. 1 root root 98 Jul 20 08:00 /etc/resolv.conf

head -n 5 /etc/resolv.conf

Sample output:

# Generated by NetworkManager
search example.com
nameserver 192.168.0.1

A symlink displays -> and its target. A regular file does not. The header line shows whether NetworkManager, dnsconfd, or another tool wrote the file.

Before you enable dnsconfd, confirm nothing else is already bound to port 53 and whether systemd-resolved is active:

ss -H -lntup 'sport = :53'

No output is expected when no local DNS service is listening on port 53. If a listener appears, identify it before starting dnsconfd.

systemctl is-active systemd-resolved

Sample output on Rocky Linux 10.2:

inactive

If systemd-resolved is active on your host, disable and mask it before enabling dnsconfd so two managers do not fight over /etc/resolv.conf. Most RHEL-family installations show it as inactive.

Test outbound TCP port 853 before you change system DNS. A failure here means exclusive DoT will not work on that network:

openssl s_client \
  -connect 1.1.1.1:853 \
  -servername one.one.one.one \
  -verify_hostname one.one.one.one \
  -verify_return_error \
  -brief </dev/null

Sample output:

CONNECTION ESTABLISHED
Protocol version: TLSv1.3
Verification: OK

Verification: OK confirms both CA trust and hostname validation. This proves TCP port 853 and the TLS endpoint are reachable; it does not yet prove that system DNS queries use this connection. Cloudflare documents one.one.one.one, addresses 1.1.1.1 and 1.0.0.1, and TCP port 853 in its official DoT documentation. Guides that configure systemd-resolved on RHEL describe a different implementation and are a common source of confusion in search results.

Choose the DNS-over-TLS server and policy

NetworkManager encodes DoT servers with this URI form:

dns+tls://IP_ADDRESS[:PORT][#TLS_SERVER_NAME]

Although the #TLS_SERVER_NAME component is optional in NetworkManager's URI grammar, include it when the resolver publishes a TLS hostname so the endpoint identity can be validated. IPv6 literal addresses must be enclosed in square brackets.

The IP address avoids a bootstrap problem (you do not need plaintext DNS to find the resolver). The name after # is the TLS certificate hostname used for authentication.

This tutorial uses Cloudflare in the main configuration. Avoid mixing Cloudflare and Quad9 in the same server list because their filtering and privacy policies differ, which can produce inconsistent answers during failover.

exclusive matches the goal of encrypted DNS without a plaintext DHCP fallback for general lookups. Use prefer later if VPN or corporate split DNS must keep connection-provided resolvers for internal zones only.

Configure encrypted DNS with NetworkManager

Install dnsconfd and supporting tools

Install the daemon, early-boot module, and verification utilities:

dnf install dnsconfd dnsconfd-dracut bind-utils tcpdump grubby

On Rocky Linux 10.2, dnsconfd pulled in unbound, dnsconfd-unbound, and related packages automatically. If your rebuild lists only dnsconfd without unbound, install dnsconfd-unbound explicitly.

Create the NetworkManager DoT configuration

Create /etc/NetworkManager/conf.d/global-dot.conf:

[main]
dns=dnsconfd

[global-dns]
resolve-mode=exclusive

[global-dns-domain-*]
servers=dns+tls://1.1.1.1#one.one.one.one,dns+tls://1.0.0.1#one.one.one.one

• [main] dns=dnsconfd selects the dnsconfd backend instead of the default internal plugin.
• [global-dns] resolve-mode=exclusive prevents connection-provided DNS—including DHCP and VPN DNS—from being used for any query.
• [global-dns-domain-*] applies the listed servers as the default route for all domains.
• #one.one.one.one is the TLS authentication name Cloudflare presents in its certificate.

This is global NetworkManager configuration. You do not edit every Ethernet or Wi-Fi connection profile.

Activate the configuration

Enable dnsconfd, then reload NetworkManager so it pushes the new DNS policy:

systemctl enable --now dnsconfd

Sample output:

Created symlink '/etc/systemd/system/multi-user.target.wants/dnsconfd.service' → '/usr/lib/systemd/system/dnsconfd.service'.

systemctl reload NetworkManager

Reload returns no output when it succeeds.

Confirm the daemon and cache service:

systemctl status dnsconfd --no-pager

Sample output:

● dnsconfd.service - Dns local cache services configuration daemon
     Active: active (running)
   Main PID: 311715 (dnsconfd)

dnsconfd status

Sample output:

Running cache service:
unbound
Resolving mode: exclusive
Config present in service:
{
    ".": [
        "dns+tls://1.1.1.1#one.one.one.one",
        "dns+tls://1.0.0.1#one.one.one.one"
    ]
}
State of Dnsconfd:
RUNNING
Info about servers: [
    {
        "address": "1.1.1.1",
        "port": 853,
        "name": "one.one.one.one",
        "routing_domains": [
            "."
        ],
        "protocol": "dns+tls"
    }
]

The excerpt above is trimmed; other JSON fields can vary between versions. Connection-provided servers may still appear elsewhere in the status output. Their presence does not mean they are being used; exclusive prevents them from serving any query.

Check that applications now point at the local cache:

cat /etc/resolv.conf

Sample output:

# Generated by dnsconfd
options edns0 trust-ad
nameserver 127.0.0.1

Confirm unbound owns the loopback listener:

ss -lntup | grep '127.0.0.1:53'

Sample output:

udp   UNCONN 0 0 127.0.0.1:53 0.0.0.0:* users:(("unbound",pid=311742,fd=3))
tcp   LISTEN 0 256 127.0.0.1:53 0.0.0.0:* users:(("unbound",pid=311742,fd=4))

Verify that DNS queries are encrypted

Test normal name resolution

Resolution through the local cache proves the stack is usable:

getent hosts example.com

Sample output:

2606:4700:10::ac42:93f3 example.com
2606:4700:10::6814:179a example.com

The addresses and record count can change over time.

dig @127.0.0.1 +short example.com AAAA

Sample output:

2606:4700:10::ac42:93f3
2606:4700:10::6814:179a

A successful answer confirms that the local unbound listener can resolve the name. The following packet capture verifies that the upstream query uses DoT rather than plaintext port 53.

Check the active dnsconfd configuration

Refer to the dnsconfd status output from the activation step. Confirm "protocol": "dns+tls", "port": 853, "address": "1.1.1.1", and "name": "one.one.one.one" in the Info about servers section, along with resolve-mode: exclusive in the summary lines above the JSON.

Capture the actual DNS traffic

Find the interface used to reach the resolver:

ip route get 1.1.1.1

Sample output:

1.1.1.1 via 10.0.2.2 dev enp0s3 src 10.0.2.15 uid 0

Capture DNS-related traffic on that interface while you issue a fresh lookup:

timeout 20 tcpdump -ni enp0s3 '(port 53 or tcp port 853)'

In a second terminal, query a name that is unlikely to be cached:

dig +short test-$(date +%s).example.com

No dig output is normally expected because the generated name does not exist. The purpose is to force a fresh upstream lookup that you can observe in tcpdump.

Sample tcpdump output:

08:17:45.858528 IP 10.0.2.15.55480 > 1.1.1.1.853: Flags [S], seq 3297216750, win 64240, options [mss 1460], length 0
08:17:45.874813 IP 1.1.1.1.853 > 10.0.2.15.55480: Flags [S.], seq 116130817, ack 3297216751, win 65535, length 0
08:17:45.875605 IP 10.0.2.15.55480 > 1.1.1.1.853: Flags [P.], seq 1:1546, ack 1, win 64240, length 1545

You should see TCP sessions to port 853. Because -n disables service-name resolution, the output displays port 853 numerically, not as domain-s. You should not see outbound UDP or TCP port 53 on the external interface for those upstream queries. unbound can reuse an established TLS connection, so you may see encrypted payload packets without a new TCP SYN or TLS handshake. That is normal. Traffic on lo port 53 between an application and 127.0.0.1 is expected and is not a leak.

For a deeper capture workflow, see the tcpdump command guide.

Extend encrypted DNS into early boot

Runtime NetworkManager configuration protects DNS after the installed system boots. Initramfs code that performs DNS during early boot needs matching kernel arguments and the dnsconfd-dracut module.

Confirm the dracut module is present:

rpm -ql dnsconfd-dracut | head -3

Sample output:

/usr/lib/dracut/modules.d/99dnsconfd
/usr/lib/dracut/modules.d/99dnsconfd/module-setup.sh
/usr/lib/dracut/modules.d/99dnsconfd/unbound_non_empty.conf

Rebuild initramfs for every installed kernel, then add DoT parameters to every boot entry:

for kernel in $(rpm -q kernel --qf '%{VERSION}-%{RELEASE}.%{ARCH}\n'); do
  dracut -f --kver="$kernel"
done

grubby --update-kernel=ALL \
  --args="rd.net.dns=dns+tls://1.1.1.1#one.one.one.one rd.net.dns=dns+tls://1.0.0.1#one.one.one.one rd.net.dns-resolve-mode=exclusive rd.net.dns-backend=dnsconfd"

On IBM Z systems, run zipl after changing the kernel arguments.

Reboot, then confirm the running kernel received the arguments:

cat /proc/cmdline

Sample output:

BOOT_IMAGE=(hd0,gpt2)/vmlinuz-... ro resume=UUID=... rd.net.dns=dns+tls://1.1.1.1#one.one.one.one rd.net.dns=dns+tls://1.0.0.1#one.one.one.one rd.net.dns-resolve-mode=exclusive rd.net.dns-backend=dnsconfd

grubby --info=DEFAULT shows only the default boot entry and does not prove what the currently running kernel received. Repeat the dnsconfd status and tcpdump checks after reboot. Kickstart, custom ISO, and Anaconda-only encrypted DNS installation are separate topics.

Handle private DNS servers, VPNs, and split DNS

Private DoT server with an internal CA

Place a PEM CA bundle at:

/etc/pki/dns/extracted/pem/tls-ca-bundle.pem

The file must be a PEM CA bundle containing the issuing CA chain, not the DoT server's private key. The certificate SAN must match the name after # in the URI. Replace 192.0.2.53 below with your resolver's real address; it is a documentation-only example. If the bundle trusts multiple DoT endpoints, it must include the issuing CA for each one.

Restart dnsconfd after you update the bundle:

systemctl restart dnsconfd

The URI still needs the certificate DNS name:

dns+tls://192.0.2.53#dns.example.com

VPN or corporate DNS domains

exclusive ignores DNS servers pushed by a VPN connection. Internal zones may stop resolving.

Switch to resolve-mode=prefer in /etc/NetworkManager/conf.d/global-dot.conf when public queries should use DoT but specific domains must follow VPN or connection DNS. prefer only sends an internal name to the connection DNS server when that connection has a matching domain, such as ~corp.example.com. Check the VPN profile's DNS and DNS-search properties if internal names still fail. Connection DNS may still be plaintext unless that resolver also supports DoT.

Roaming systems and restricted networks

Hotel, guest, and corporate networks sometimes block TCP port 853. With exclusive, lookups fail rather than falling back to DHCP DNS. That is expected behaviour, not necessarily a broken dnsconfd install.

Troubleshoot common DNS-over-TLS failures

Confirm NetworkManager loaded the DoT configuration:

NetworkManager --print-config

Look for [main] dns=dnsconfd and the [global-dns] / [global-dns-domain-*] sections from global-dot.conf.

Use logs from the components involved. Look for certificate verification errors, port-binding failures, inability to reach port 853, or rejection of the DoT URI:

journalctl -u NetworkManager --no-pager -n 20

journalctl -u dnsconfd --no-pager -n 20

journalctl -u unbound --no-pager -n 20

After changing connection profiles, the restart NetworkManager guide walks through applying network changes on RHEL-family systems.

References

• RHEL 10.1 release notes: DNS over TLS
• RHEL 10: Securing system DNS traffic with encrypted DNS
• NetworkManager 1.52 DNS-over-TLS support
• NetworkManager.conf global DNS and DoT URI syntax
• Cloudflare DNS over TLS
• Quad9 DNS services
• RFC 7858: DNS over TLS

Summary

On RHEL 10.1 and compatible Enterprise Linux 10 systems, set dns=dnsconfd in NetworkManager, define global dns+tls:// servers, enable dnsconfd, and reload NetworkManager. Applications read 127.0.0.1 from /etc/resolv.conf while unbound sends upstream queries over TCP port 853. Confirm behaviour with dnsconfd status and tcpdump, then extend the same policy into early boot with dnsconfd-dracut and rd.net.dns* kernel arguments when initramfs DNS matters.
