Migrate an Existing LVM Root Filesystem to LUKS Online

Your Ubuntu server was installed without encryption, and you need root (and any swap logical volume on the same volume group) on LUKS without reinstalling. This online LVM migration:

• Adds a spare disk or partition
• Lays down LUKS2 on the spare
• pvmove extents from the unencrypted source PV onto the encrypted PV
• Drops the old PV
• Wires crypttab and the initramfs so early boot unlocks LUKS before LVM mounts root

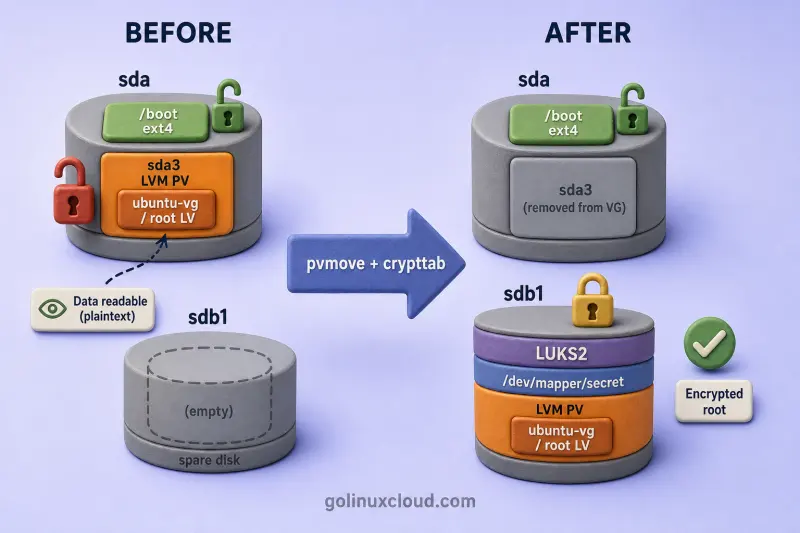

Before migration:

• Logical volumes stay in place — only the physical volume underneath moves from plaintext disk into LUKS
• /boot must remain on a separate, unencrypted partition so GRUB can load the kernel before unlock

The walkthrough below uses one reference layout (single source PV, separate /boot, spare disk for LUKS). Substitute your device names, VG name, and mapper name in every command.

At boot after migration, the stack looks like this:

/boot (unencrypted) → GRUB loads kernel + initramfs
initramfs unlocks LUKS on <spare-partition> → /dev/mapper/<name>
LVM activates <vg-name> on encrypted PV → root LV (/) [+ swap LV if present]

Reference example: source PV /dev/sda3, spare LUKS /dev/sdb1, mapper secret, VG ubuntu-vg.

LUKS wraps the physical volume, not individual files on /:

• Your ext4 root filesystem stays inside the same logical volume.
• Only the underlying PV moves from plaintext disk to an encrypted mapper.

The pvmove, cryptsetup, and LVM commands work the same on any distribution that uses LVM root; examples below use Ubuntu package names (apt, update-grub, update-initramfs).

Tested on: Ubuntu 26.04 LTS (Resolute Raccoon); kernel 7.0.0-27-generic; cryptsetup 2.8.4.

What you need on your system

Before luksFormat or pvmove, identify these on your host and write them down. Every command below uses the example names in the last column—replace them with yours.

Also confirm:

• Swap layout — root + swap LVs on the same source PV need one pvmove; a swap file on / needs no extra step; a swap partition outside the VG is outside this walkthrough.
• Other LVs in the same VG — pvmove moves all extents on the source PV, not only root. If /home, var, or data LVs sit on that PV, they move with it. LVs on other PVs in the same VG stay where they are.
• Multi-PV root — if lvs -o devices lists more than one PV for root, you need one pvmove per source PV and a spare large enough for the combined pv_used from every PV you will empty (see multi-PV section).

Inspect your layout

Run these checks on your host before you touch disks. Write down:

• Source PV — partition holding LVM extents (example sda3)
• /boot — separate unencrypted partition (example sda2)
• Spare partition — empty space for LUKS (example sdb1)
• LVs on the source PV — everything pvmove will move (root, swap, others)

List block devices and mount points:

sudo lsblk -o NAME,SIZE,TYPE,FSTYPE,MOUNTPOINT

Reference layout (single-PV Ubuntu install—your names and sizes will differ):

NAME                      SIZE TYPE FSTYPE      MOUNTPOINT
sda                         25G disk
├─sda2                      2G part ext4        /boot
└─sda3                     23G part LVM2_member
  ├─ubuntu--vg-ubuntu--lv    19G lvm  ext4        /
  └─ubuntu--vg-swap_1         4G lvm  swap        [SWAP]
sdb                        25G disk
└─sdb1                     25G part

In the reference layout:

• sda3 — source PV (LVM2_member); root mounts from ubuntu--vg-ubuntu--lv, not from sda3 directly
• sda2 — /boot
• sdb1 — empty spare for LUKS

df on / only reports filesystem use inside the root LV (~19 GiB here). pvmove copies every allocated extent on the source PV—including swap—so size the spare from pvs:

sudo pvs -o pv_name,vg_name,pv_size,pv_used,pv_free

PV        VG         PSize   Used    PFree
  /dev/sda3 ubuntu-vg  <23.00g <23.00g     0

On /dev/sda3 in the reference layout:

• pv_used ~23 GiB — migration size (not df on /)
• Root LV ~19 GiB — the rest is swap LV + LVM metadata
• PFree 0 — VG fills the PV; plan a spare ≥ PSize, not just root filesystem size

See which LVs share the source PV (all of them move in one pvmove):

sudo lvs -o lv_name,vg_name,lv_size,devices

LV        VG         LSize   Devices
  ubuntu-lv ubuntu-vg  <19.00g /dev/sda3(0)
  swap_1    ubuntu-vg   <4.00g /dev/sda3(4864)

The numbers in parentheses are extent offsets on the same PV—both lines are normal.

Confirm / is on an LV and /boot is a separate partition:

findmnt /
findmnt /boot
swapon --show

TARGET SOURCE                            FSTYPE OPTIONS
/      /dev/mapper/ubuntu--vg-ubuntu--lv ext4   rw,relatime
TARGET SOURCE    FSTYPE OPTIONS
/boot  /dev/sda2 ext4   rw,relatime
NAME      TYPE      SIZE USED PRIO
/dev/dm-1 partition   4G   0B   -1

When root spans more than one physical volume

Some installs spread one root LV across multiple source PVs. In that case:

1. Create LUKS on a separate spare partition (not on any disk that still holds source PV extents).
2. Open it with your mapper name.
3. Run one pvmove per source PV, then vgreduce/pvremove each emptied PV.

Example when source PVs are /dev/sda3 and /dev/sdb3 and spare LUKS is /dev/sdc1:

sudo pvmove /dev/sda3 /dev/mapper/secret
sudo pvmove /dev/sdb3 /dev/mapper/secret
sudo vgreduce ubuntu-vg /dev/sda3 && sudo pvremove /dev/sda3
sudo vgreduce ubuntu-vg /dev/sdb3 && sudo pvremove /dev/sdb3

lvs -o devices lists every PV that still holds extents:

sudo lvs -o lv_name,vg_name,lv_size,devices

LV        VG         LSize   Devices
  ubuntu-lv ubuntu-vg  58.41g /dev/sda3(0)
  ubuntu-lv ubuntu-vg  58.41g /dev/sdb3(0)

The same LV on two PV lines means two source PVs:

• Run pvmove once per PV you empty
• Boot wiring still uses one crypttab line with luks,initramfs for the single new LUKS partition (example /dev/sdc1)

Take two backups before luksFormat or pvmove:

1. Filesystem-level backup of / (and other mounted LVs you care about).
2. A LUKS header backup after you create the new encrypted container (step in Create LUKS2 on the spare partition)—header backup preserves metadata and slots; it does not replace a full root backup.

Prerequisites

You already mapped devices in What you need on your system. Before proceeding, confirm:

Install packages:

sudo apt update
sudo apt install -y cryptsetup lvm2 cryptsetup-initramfs

cryptsetup-initramfs hooks crypttab into the initramfs on Ubuntu and Debian—install it before the boot wiring step.

Every privileged command below assumes sudo command on a root-capable shell.

Confirm /boot is a separate, unencrypted mount—not inside the root LV you are moving:

findmnt /boot

TARGET SOURCE    FSTYPE OPTIONS
/boot  /dev/sda2 ext4   rw,relatime

The source should be a disk partition, not a path under /dev/mapper/ubuntu--vg-….

Reference layout for the commands below (replace every device and name with yours):

Create LUKS2 on the spare partition

Partition your spare disk if needed. On the spare partition only:

• luksFormat writes a new LUKS header
• Any existing data on that partition is destroyed — back up first

Format the spare partition as LUKS2, open the mapper, and back up the header before pvcreate:

sudo cryptsetup luksFormat --type luks2 /dev/sdb1
sudo cryptsetup open /dev/sdb1 secret
sudo cryptsetup luksHeaderBackup \
  --header-backup-file /root/sdb1-luks-header.bin \
  /dev/sdb1
sudo chmod 600 /root/sdb1-luks-header.bin

After luksFormat, open, and header backup:

• luksFormat — warns the spare partition will be overwritten; confirm when prompted
• cryptsetup open — silent on success; /dev/mapper/secret appears when the passphrase is accepted
• luksHeaderBackup — silent on success; confirm with ls -l on the backup file

ls -l /root/sdb1-luks-header.bin

-rw------- 1 root root 16777216 ... /root/sdb1-luks-header.bin

Store the header backup safely:

• Copy it offline (not only on the same disk)
• It protects against header damage
• It does not replace a full root filesystem backup

See LUKS header backup and restore for restore steps.

Only add --cipher or --key-size when a policy explicitly requires specific encryption parameters.

Create the encrypted physical volume on the mapper:

sudo pvcreate /dev/mapper/secret

Physical volume "/dev/mapper/secret" successfully created.

LVM now treats /dev/mapper/secret as the PV—encryption sits underneath.

Extend the volume group

Add the encrypted PV to your VG (example ubuntu-vg):

sudo vgextend ubuntu-vg /dev/mapper/secret

Volume group "ubuntu-vg" successfully extended

Both PVs should appear in the VG before you move extents:

sudo pvs

PV                 VG         Fmt  Attr PSize   PFree
  /dev/mapper/secret ubuntu-vg  lvm2 a--  <24.99g <24.99g
  /dev/sda3          ubuntu-vg  lvm2 a--  <23.00g      0

The encrypted PV needs enough PFree to absorb all of pv_used from /dev/sda3.

Move root and swap extents

Move all extents off the unencrypted PV onto the encrypted mapper.

While pvmove runs:

• Logical volumes stay mounted—root keeps serving, but I/O may be slower.
• Large volumes can take tens of minutes to hours.
• Do not reboot or detach disks mid-run.
• If pvmove stops mid-run, run sudo pvmove again without PV arguments to resume from the last checkpoint.

For a single source PV (example /dev/sda3):

sudo pvmove /dev/sda3 /dev/mapper/secret

When the move finishes:

/dev/sda3: Moved: 100.00%

sudo pvs

PV                 VG         Fmt  Attr PSize   PFree
  /dev/mapper/secret ubuntu-vg  lvm2 a--  <24.99g   1.99g
  /dev/sda3          ubuntu-vg  lvm2 a--  <23.00g <23.00g

/dev/sda3 should show all space as PFree; LVs now list /dev/mapper/secret in lvs -o devices.

Drop the emptied source PV from the VG:

sudo vgreduce ubuntu-vg /dev/sda3
sudo pvremove /dev/sda3

Removed "/dev/sda3" from volume group "ubuntu-vg"
  Labels on physical volume "/dev/sda3" successfully wiped.

Root and swap LVs now live on /dev/mapper/secret backed by the spare LUKS partition. Before reboot:

• Leave the mapper open — the running system still needs it
• Finish crypttab and initramfs wiring first

Configure crypttab and initramfs

Early boot must unlock the spare LUKS partition before LVM activates the VG and mounts /. On Ubuntu and Debian with initramfs-tools:

• Add the LUKS device to /etc/crypttab
• Include the initramfs option on that line
• Regenerate initramfs and run update-grub

Do not use rd.luks.uuid= as the primary path here—that belongs to dracut-based distributions (Fedora, RHEL).

Collect the LUKS UUID from your spare partition:

sudo cryptsetup luksUUID /dev/sdb1

4c9b0973-407f-44e4-a91b-446014832ce6

Put that LUKS UUID in crypttab—not the ext4 UUID inside the root LV.

Add a line to /etc/crypttab (use your mapper name and UUID):

secret UUID=4c9b0973-407f-44e4-a91b-446014832ce6 none luks,initramfs

Field notes:

• Mapper name — must match cryptsetup open during migration (example secret).
• UUID — LUKS UUID of the spare partition, not the ext4 UUID inside the root LV.
• initramfs option — unlocks this device before LVM activates the volume group.

For field-by-field crypttab rules, keyfiles, and nofail options, see auto mount LUKS at boot.

If you use a dracut-based distribution (Fedora, RHEL), use kernel parameters instead of crypttab as the primary path:

• rd.luks.uuid= — LUKS UUID of the spare partition
• rd.lvm.lv= — root LV path

That is not the Ubuntu/Debian path used in this guide.

Regenerate the initramfs and GRUB menu:

sudo update-initramfs -u -k all
sudo update-grub

update-initramfs rebuilds each installed kernel initrd with crypttab hooks; update-grub refreshes the boot menu:

• Use -k all when multiple kernels are installed so every initrd picks up crypttab changes

update-initramfs: Generating /boot/initrd.img-6.14.0-37-generic
...
Found linux image: /boot/vmlinuz-6.14.0-37-generic
Found initrd image: /boot/initrd.img-6.14.0-37-generic

Trimmed output from a typical run.

Verify before reboot

Before rebooting, confirm:

• LVs list only /dev/mapper/secret in lvs -o devices
• Only the encrypted PV remains in pvs
• crypttab line matches the LUKS UUID and includes luks,initramfs
• initrd contains cryptroot / crypttab paths

Keep a rescue image or live USB until the first encrypted boot succeeds.

Crypttab should match the LUKS UUID from the spare partition:

sudo grep '^secret' /etc/crypttab

secret UUID=4c9b0973-407f-44e4-a91b-446014832ce6 none luks,initramfs

Expected:

• Options field includes luks,initramfs
• UUID matches cryptsetup luksUUID on the spare partition

Root should still mount from the same LV path as before migration:

findmnt -no SOURCE /
grep -v '^#' /etc/fstab

/dev/mapper/ubuntu--vg-ubuntu--lv
UUID=9fe05bbb-e530-48ed-a8f7-461febc7329f / ext4 defaults 0 1
UUID=c254a326-948a-4ae2-993b-1659f4ddcf03 /boot ext4 defaults 0 1

Expected:

• Root still mounts from /dev/mapper/ubuntu--vg-ubuntu--lv
• fstab root line uses the root LV UUID or mapper path—not the old source PV

Every LV should list only the encrypted mapper:

sudo lvs -o lv_name,vg_name,devices ubuntu-vg
sudo pvs

LV        VG         Devices
  ubuntu-lv ubuntu-vg  /dev/mapper/secret(0)
  swap_1    ubuntu-vg  /dev/mapper/secret(4864)

  PV                 VG         Fmt  Attr PSize   PFree
  /dev/mapper/secret ubuntu-vg  lvm2 a--  <24.99g   1.99g

Confirm cryptsetup hooks are in the initrd for your running kernel:

lsinitramfs /boot/initrd.img-$(uname -r) | grep -E 'cryptroot|crypttab|cryptsetup'

cryptroot
cryptroot/crypttab
scripts/local-top/cryptroot
usr/bin/cryptsetup
usr/lib/cryptsetup

Missing cryptroot or crypttab paths usually means:

• update-initramfs did not run after editing /etc/crypttab
• Wrong kernel initrd checked — use uname -r in the path

Reboot and confirm unlock

Reboot only after you have console or serial access. At boot you should see:

1. Initramfs prompts for the LUKS passphrase you set on the spare partition.
2. Spare partition unlocks as your mapper (example /dev/mapper/secret).
3. Your VG activates and the existing root LV mounts.

After login, root should still be on the root LV, with LVs backed only by the encrypted PV:

findmnt -no SOURCE /
sudo lvs -o lv_name,vg_name,devices ubuntu-vg
sudo pvs

/dev/mapper/ubuntu--vg-ubuntu--lv

  LV        VG         Devices
  ubuntu-lv ubuntu-vg  /dev/mapper/secret(0)
  swap_1    ubuntu-vg  /dev/mapper/secret(4864)

  PV                 VG         Fmt  Attr PSize   PFree
  /dev/mapper/secret ubuntu-vg  lvm2 a--  <24.99g   1.99g

The old source PV should no longer appear in pvs.

If your layout includes a swap LV on the same volume group and you use hibernation:

• Verify /etc/initramfs-tools/conf.d/resume (or the resume configuration for your distribution).
• The swap LV UUID usually does not change after pvmove, but confirm before relying on resume.

Wipe the old plaintext PV after successful boot

pvremove only drops LVM metadata—it does not erase plaintext on the old source PV. After a successful encrypted boot:

• Wipe the old source PV partition (example /dev/sda3) so root data is not left in plaintext
• Leave /boot and the LUKS partition untouched

Confirm the source PV is gone from LVM and root lives on the LUKS disk before you erase plaintext:

sudo pvs
sudo lvs -o lv_name,vg_name,devices ubuntu-vg
lsblk -o NAME,SIZE,TYPE,FSTYPE,MOUNTPOINT

PV                 VG         Fmt  Attr PSize   PFree
  /dev/mapper/secret ubuntu-vg  lvm2 a--  <24.99g   1.99g

  LV        VG         Devices
  ubuntu-lv ubuntu-vg  /dev/mapper/secret(0)
  swap_1    ubuntu-vg  /dev/mapper/secret(4864)

NAME                      SIZE TYPE FSTYPE      MOUNTPOINT
sda                        25G disk
├─sda2                      2G part ext4        /boot
└─sda3                     23G part
sdb                        25G disk
└─sdb1                     25G part crypto_LUKS
  └─secret                 25G crypt LVM2_member
    ├─ubuntu--vg-ubuntu--lv  19G lvm  ext4        /
    └─ubuntu--vg-swap_1       4G lvm  swap        [SWAP]

Before wiping, confirm:

• /dev/sda3 absent from pvs
• Every LV lists /dev/mapper/secret only
• /boot still on sda2; root on LUKS disk sdb1

Zero-fill (most disks — target only the old source PV partition):

• Re-check the device is the emptied source PV—not /boot, not the LUKS partition, not the whole disk
• wipefs clears signatures; dd overwrites the plaintext area (slow on large partitions)

sudo wipefs -a /dev/sda3
sudo dd if=/dev/zero of=/dev/sda3 bs=16M status=progress conv=fsync

Discard on SSDs that support TRIM:

• Success is silent (exit code 0)
• Some virtual disks reject discard—use zero-fill instead
• Do not wipe the whole boot disk; leave /boot (example sda2) untouched

sudo blkdiscard /dev/sda3

After migration: unattended unlock

Keep at least one unlock path until unattended boot is proven:

• Passphrase or recovery slot stays available
• Test unattended unlock on console and through a full reboot cycle before removing it

Troubleshooting

pvmove fails with insufficient free extents

The encrypted PV is too small for the extents still on the source PV. Work through:

1. Confirm demand: sudo pvs -o pv_name,pv_used,pv_free and sudo lvs -o lv_name,seg_pe_ranges,devices
2. Grow the underlying partition if needed
3. Keep the LUKS mapper open, resize the mapping, then resize the LVM PV

sudo cryptsetup resize secret
sudo pvresize /dev/mapper/secret

cryptsetup resize grows the LUKS payload to the partition edge; pvresize tells LVM the PV is larger. Then:

• Confirm PFree on the encrypted PV is enough for remaining extents
• Retry pvmove

Boot drops to emergency shell

Common causes:

• LUKS UUID mismatch in /etc/crypttab.
• Missing initramfs option on the crypttab line.
• update-initramfs -u -k all skipped after editing crypttab.

Fix the crypttab line, then regenerate initramfs and reboot:

• Match UUID with cryptsetup luksUUID on the spare partition
• Run sudo update-initramfs -u -k all

From a live environment, substitute your LUKS partition, VG name, root LV path, and /boot device:

sudo cryptsetup open /dev/sdb1 secret
sudo vgchange -ay ubuntu-vg
sudo mount /dev/mapper/ubuntu--vg-ubuntu--lv /mnt
sudo mount /dev/sda2 /mnt/boot

From a live environment:

• cryptsetup open the spare LUKS partition
• vgchange -ay activates the VG after unlock
• Mount root LV, then /boot for chroot-style repair

System boots unencrypted old disk

• Firmware may still boot the wrong disk—check BIOS boot order.
• GRUB may point at the old PV—re-run update-grub.

Endless passphrase prompt at boot

Usually one of:

• LUKS UUID in crypttab does not match blkid on your spare partition.
• Mapper name does not match what initramfs expects.
• initramfs missing from the crypttab options field.

Compare sudo blkid on the spare partition with /etc/crypttab and re-run update-initramfs -u -k all.

References

• pvmove(8)
• vgreduce(8)
• cryptsetup(8)
• crypttab(5) — Ubuntu
• cryptsetup initramfs support — Debian
• update-initramfs(8) — Ubuntu

Summary

1. Map your layout (lsblk, pvs, lvs); confirm a spare disk or partition large enough for pv_used on the source PV.
2. Confirm separate /boot; back up root and the LUKS header.
3. Lay down LUKS2 on spare space; pvmove onto your mapper; remove the source PV.
4. Add /etc/crypttab with luks,initramfs; run update-initramfs -u -k all; reboot.
5. Wipe the old source PV after the first successful encrypted boot.

This migrates an existing LVM root filesystem to LUKS—it is not installer-time full-disk encryption.
