Learn SQL LEFT OUTER JOIN & Avoid Common Mistakes


Falguni Thakker

SQL

Introduction

Structured Query Language (SQL) is a universally used language in database management, playing a pivotal role in manipulating and querying data from relational databases. One of the essential operations in SQL is joining tables, and there are various joins available to perform this, each serving a unique purpose. In this tutorial, we will focus on one specific type of join, the SQL LEFT OUTER JOIN. This join is fundamental in retrieving data that may not have matching records in the joined tables. It allows for a comprehensive result set, providing insights into data that other joins might overlook.

As we unravel the concepts of SQL LEFT OUTER JOIN, this tutorial will guide you through its syntax and a conceptual understanding, ensuring a strong foundation. Comparisons with other types of joins will highlight its unique characteristics and usability, emphasizing when and why the LEFT OUTER JOIN should be your join of choice.

We will navigate through various use cases, illustrating with practical and real-world examples to furnish a pragmatic understanding. From managing NULL values, which are a significant aspect of the LEFT OUTER JOIN, to combining it with other SQL operations, each section is crafted to enhance your knowledge and application of this join.

Join us, as we dive deep into the comprehensive exploration of the SQL LEFT OUTER JOIN, ensuring that by the end, you have a robust, nuanced understanding of this powerful SQL operation.



Deep Dive into SQL LEFT OUTER JOIN

In database terms, imagine you have two tables of data, and you want to combine columns from both tables. A LEFT OUTER JOIN is a method that allows you to do this. Specifically, it retrieves all records from the 'left' table and the matching records from the 'right' table. If there are no corresponding matches in the 'right' table, the result is NULL.

1. Detailed Definition

An SQL LEFT OUTER JOIN is a type of join that retrieves all the rows from the left table in conjunction with the matching rows from the right table. If no match is found, the result-set will contain NULL values. It enables the retrieval of data from two tables, ensuring that no data from the left table is left out even when there’s no matching data in the right table.

2. Syntax

The basic syntax of a LEFT OUTER JOIN can be written as:

SELECT column_name(s)
FROM table1
LEFT OUTER JOIN table2
ON table1.column_name = table2.column_name;

Here, table1 is the left table, and table2 is the right table. The JOIN condition is specified after the ON keyword, determining how the two tables should be matched.

3. Conceptual Understanding

To grasp the concept better, consider two tables: Orders and Customers. You want to find out all orders along with customer details, but even if a customer hasn't placed an order, you still want to list them.

When a LEFT OUTER JOIN is executed:

  • It takes all rows from the Orders table.
  • It then attempts to find matching customer details in the Customers table based on a common column such as CustomerID.
  • If a match is found, it displays the combined row of Orders and Customers.
  • If no match is found, it still displays the row from the Orders table, but with NULL values for Customer columns.

4. When to Use

Use a LEFT OUTER JOIN when:

  • You want to fetch all records from the left table, irrespective of whether they have matching records in the right table.
  • You want a comprehensive dataset that includes unmatched data, ensuring that no information from the left table is excluded from the result set.
  • It’s essential to identify unmatched records, as these could be areas requiring further investigation or data correction.



SQL LEFT OUTER JOIN vs INNER JOIN vs RIGHT OUTER JOIN vs FULL OUTER JOIN

Criteria LEFT OUTER JOIN INNER JOIN RIGHT OUTER JOIN FULL OUTER JOIN
Left Table Displayed Displayed Optional Displayed
Right Table Optional Displayed Displayed Displayed
Match Required No Yes No No
Unmatched Rows in Left Table Displayed with NULLs Ignored Ignored Displayed with NULLs
Unmatched Rows in Right Table Ignored Ignored Displayed with NULLs Displayed with NULLs
  • Displayed: The records will appear in the result set.
  • Optional: The records may or may not appear in the result set, based on whether a matching record is found.
  • Ignored: The records will not appear in the result set.
  • Displayed with NULLs: The records will appear in the result set, but with NULL values where no match is found.

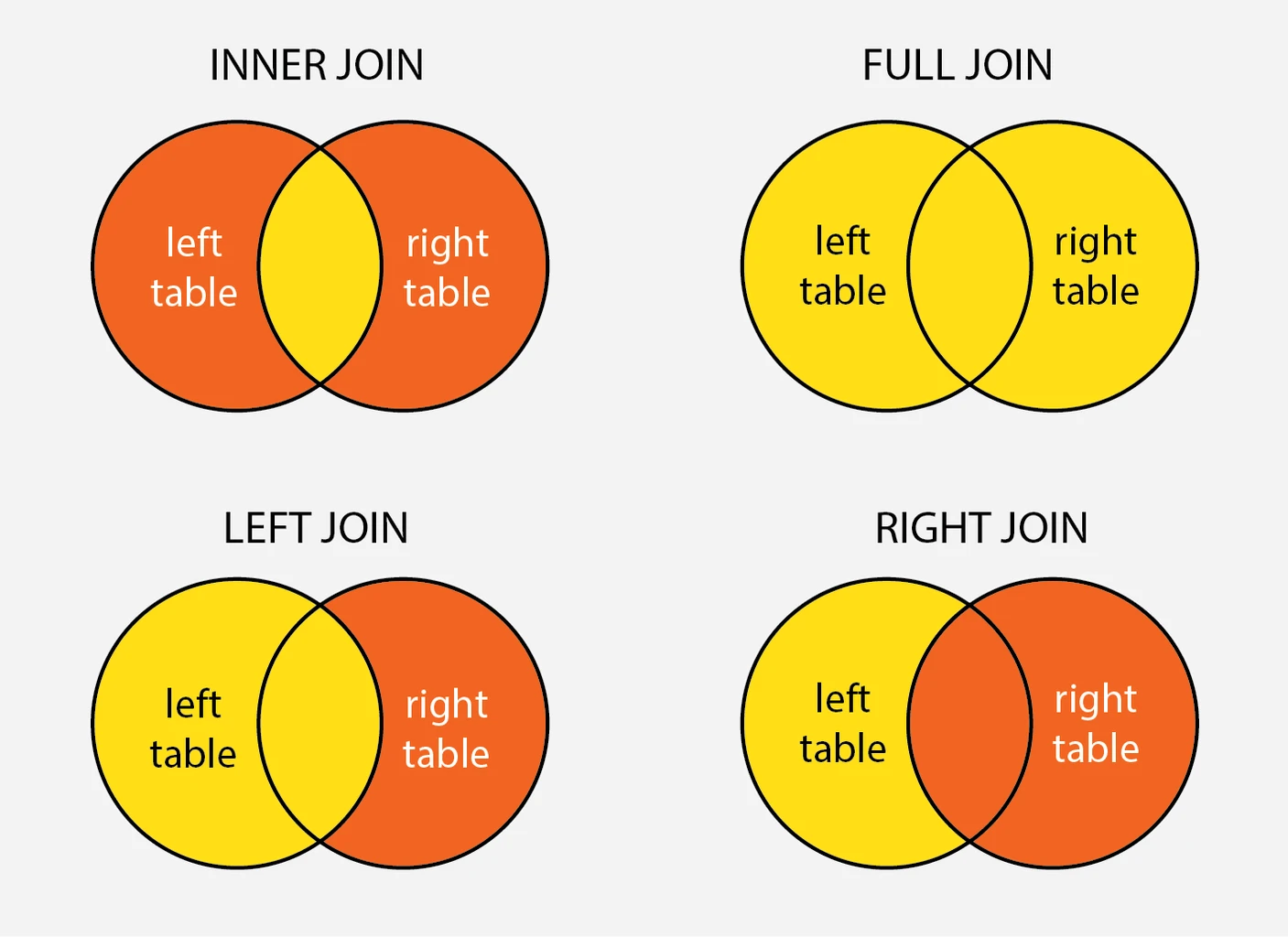

Here is an image showcasing different types of SQL JOINS:

SQL LEFT OUTER JOIN Explained with Examples



Lab Environment (Sample Tables for Examples)

Let us create some sample tables which we will use throughout our examples:

-- Creating the Employees table
CREATE TABLE Employees (
    EmployeeID INT PRIMARY KEY,
    EmployeeName VARCHAR(255) NOT NULL,
    DepartmentID INT
);

-- Inserting data into the Employees table
INSERT INTO Employees (EmployeeID, EmployeeName, DepartmentID) VALUES
(1, 'John Doe', 101),
(2, 'Jane Smith', 102),
(3, 'Emily Johnson', 103),
(4, 'Michael Brown', NULL);

-- Creating the Departments table
CREATE TABLE Departments (
    DepartmentID INT PRIMARY KEY,
    DepartmentName VARCHAR(255) NOT NULL
);

-- Inserting data into the Departments table
INSERT INTO Departments (DepartmentID, DepartmentName) VALUES
(101, 'Human Resources'),
(102, 'Marketing'),
(103, 'IT'),
(104, 'Finance');



Some Practical Examples

Navigating through actual examples is a pivotal approach to mastering the SQL LEFT OUTER JOIN. In this section, we will explore a variety of examples ranging from simple illustrations to more complex, real-world scenarios, enhancing your practical understanding of how the SQL LEFT OUTER JOIN operates and can be utilized effectively.

Let’s begin with straightforward examples to build a foundational understanding of the SQL LEFT OUTER JOIN.

Example 1: Fetching Employees and Their Departments

SELECT Employees.EmployeeName, Departments.DepartmentName
FROM Employees
LEFT OUTER JOIN Departments ON Employees.DepartmentID = Departments.DepartmentID;

This query uses an SQL LEFT OUTER JOIN to fetch all employees along with their department names. Employees without a department are also displayed with a NULL in the DepartmentName column.

Example 2: Fetching Departments without Any Employees

SELECT Departments.DepartmentName, COUNT(Employees.EmployeeID) as EmployeeCount
FROM Departments
LEFT OUTER JOIN Employees ON Departments.DepartmentID = Employees.DepartmentID
GROUP BY Departments.DepartmentName
HAVING COUNT(Employees.EmployeeID) = 0;

This query displays departments that currently have no employees assigned, highlighting the power of the LEFT OUTER JOIN in identifying gaps in data associations.

Example 3: Listing Employees and Their Departments

In a business scenario, it’s often necessary to list employees and associate them with their respective departments. Using the SQL LEFT OUTER JOIN allows us to retrieve this information comprehensively, including employees who are currently not assigned to any department.

Consider the Employees and Departments tables that you have. Here’s how you could form a query to list all employees along with their respective departments:

-- Listing Employees and Their Departments
SELECT
    Employees.EmployeeID,
    Employees.EmployeeName,
    Departments.DepartmentName
FROM
    Employees
LEFT OUTER JOIN
    Departments ON Employees.DepartmentID = Departments.DepartmentID;

Executing this query will provide a result set that includes:

  • EmployeeID and EmployeeName from the Employees table.
  • DepartmentName from the Departments table.

Employees not assigned to any department will also be included in the results, with a NULL value for DepartmentName. This way, the SQL LEFT OUTER JOIN ensures that no employee data is left out of the query results, providing a full overview of employee department associations.



Handling NULLs in SQL LEFT OUTER JOIN

Understanding and managing NULL values is a crucial aspect when working with SQL LEFT OUTER JOIN. NULLs often appear in the result set when there is no matching record in the joined table. Let’s delve deeper into handling NULL values through examples using our predefined Employees and Departments tables.

Understanding the Result

Executing an SQL LEFT OUTER JOIN between the Employees and Departments tables might yield NULL values if an employee is not associated with any department.

SELECT
    Employees.EmployeeID,
    Employees.EmployeeName,
    Departments.DepartmentName
FROM
    Employees
LEFT OUTER JOIN
    Departments ON Employees.DepartmentID = Departments.DepartmentID;

This SQL query retrieves all employees, and their associated department names. If an employee is not assigned to any department, the DepartmentName will display as NULL.

Managing NULL Values

Managing these NULL values can make the result set more readable or user-friendly. For instance, you might want to replace NULL values with a default text such as 'Not Assigned'.

SELECT
    Employees.EmployeeID,
    Employees.EmployeeName,
    ISNULL(Departments.DepartmentName, 'Not Assigned') as DepartmentName
FROM
    Employees
LEFT OUTER JOIN
    Departments ON Employees.DepartmentID = Departments.DepartmentID;

In this modified query, the ISNULL function is used to replace any NULL values in the DepartmentName column with the text 'Not Assigned', making the output more understandable.



Combining LEFT OUTER JOIN with Other SQL Operations

The power of SQL LEFT OUTER JOIN is amplified when combined with other SQL operations such as the WHERE, GROUP BY, and ORDER BY clauses. This amalgamation allows for more sophisticated and precise queries. Let’s explore this by using our existing Employees and Departments tables.



Using with WHERE Clause

Filtering the results of an SQL LEFT OUTER JOIN using the WHERE clause can help in obtaining a more refined dataset.

SELECT
    Employees.EmployeeName,
    Departments.DepartmentName
FROM
    Employees
LEFT OUTER JOIN
    Departments ON Employees.DepartmentID = Departments.DepartmentID
WHERE
    Departments.DepartmentName IS NULL;

This query uses the SQL LEFT OUTER JOIN to find employees who are not assigned to any department, as it filters out records where DepartmentName is NULL.



Using with GROUP BY

Grouping the results of an SQL LEFT OUTER JOIN can assist in organizing the data for better analysis and insights.

SELECT
    Departments.DepartmentName,
    COUNT(Employees.EmployeeID) as EmployeeCount
FROM
    Departments
LEFT OUTER JOIN
    Employees ON Departments.DepartmentID = Employees.DepartmentID
GROUP BY
    Departments.DepartmentName;

This SQL query performs a LEFT OUTER JOIN and groups the results by department name, showing the number of employees in each department.



Using with ORDER BY

Sorting the results from an SQL LEFT OUTER JOIN can make the output more readable and easier to interpret.

SELECT
    Employees.EmployeeName,
    Departments.DepartmentName
FROM
    Employees
LEFT OUTER JOIN
    Departments ON Employees.DepartmentID = Departments.DepartmentID
ORDER BY
    Departments.DepartmentName;

This SQL LEFT OUTER JOIN query retrieves employees and their respective departments, ordering the results alphabetically by department name.



Advanced Concepts in SQL LEFT OUTER JOIN

Diving deeper into SQL LEFT OUTER JOIN allows us to explore advanced concepts, such as its implementation in subqueries and executing multiple LEFT OUTER JOINs in a single query. These advanced techniques further enhance the flexibility and power of SQL queries. We’ll demonstrate these concepts using the Employees and Departments tables.



Using LEFT OUTER JOIN in Subqueries

Subqueries with SQL LEFT OUTER JOIN can be used for more complex data retrieval, where the results of one query can be used in another.

SELECT
    EmployeeName,
    (SELECT DepartmentName
     FROM Departments
     WHERE Departments.DepartmentID = Employees.DepartmentID) as DepartmentName
FROM
    Employees;

In this example, an SQL LEFT OUTER JOIN isn’t explicitly used, but the subquery performs a similar operation, fetching the DepartmentName for each employee, resulting in NULLs where there are no corresponding departments.



Multiple LEFT OUTER JOINs in a Query

To demonstrate this we will create one more Table Projects

-- Creating the Projects table
CREATE TABLE Projects (
    ProjectID INT PRIMARY KEY,
    ProjectName VARCHAR(255) NOT NULL,
    DepartmentID INT
);

-- Inserting data into the Projects table
INSERT INTO Projects (ProjectID, ProjectName, DepartmentID) VALUES
(1, 'Project X', 101),
(2, 'Project Y', 102),
(3, 'Project Z', 103),
(4, 'Project A', 104);

You can combine multiple LEFT OUTER JOINs in a single SQL query to retrieve data from multiple tables. Let’s consider a hypothetical Projects table that contains the department each project is associated with.

SELECT
    Employees.EmployeeName,
    Departments.DepartmentName,
    Projects.ProjectName
FROM
    Employees
LEFT OUTER JOIN
    Departments ON Employees.DepartmentID = Departments.DepartmentID
LEFT OUTER JOIN
    Projects ON Departments.DepartmentID = Projects.DepartmentID;

This query demonstrates an SQL LEFT OUTER JOIN used multiple times to retrieve employee names, their departments, and any projects associated with their departments. It allows for a comprehensive view, even when some relations might not be present in all tables, thanks to the LEFT OUTER JOIN capability to handle NULLs gracefully.



Interview Questions and Answers

What is a LEFT OUTER JOIN in SQL?

A LEFT OUTER JOIN in SQL is a type of join that returns all records from the left table and the matched records from the right table. If there are no matching records in the right table, the result set will contain NULL values. It allows you to retrieve data from two or more tables while preserving the unmatched rows from the left table.

Can you explain a scenario where a LEFT OUTER JOIN is beneficial?

A LEFT OUTER JOIN is particularly beneficial when you want to retrieve data from two tables without losing any records from the left table, even if there's no matching record in the right table. For instance, if you have a Employees table containing employee details and a Departments table containing department names, and you want to list all employees along with their department names, including those not assigned to any department, a LEFT OUTER JOIN would be appropriate. This way, you won’t miss any employees in the output, ensuring that employees without departments are also included, showing NULL in the department column.

How does the LEFT OUTER JOIN handle NULL values?

LEFT OUTER JOIN handles NULL values by filling in NULL in the columns of the result set where there is no matching record in the right table. For example, if we have a LEFT OUTER JOIN between Employees and Departments tables on the DepartmentID, and if some employees do not have a corresponding department, the DepartmentName in the output will show as NULL, indicating the absence of a matching department for those employees.

What is the difference between an INNER JOIN and a LEFT OUTER JOIN?

An INNER JOIN returns records that have matching values in both tables involved in the join, excluding records that don’t have corresponding matches in either table. On the other hand, a LEFT OUTER JOIN returns all records from the left table, and the matched records from the right table, filling in with NULLs where there’s no match. In essence, an INNER JOIN shows only the common records between two tables, while a LEFT OUTER JOIN retains all records from the left table, regardless of whether there’s a matching record in the right table or not.

How do you manage or replace NULL values in the result of a LEFT OUTER JOIN?

You can manage or replace NULL values in the result of a LEFT OUTER JOIN using functions like ISNULL() (in SQL Server) or COALESCE() (in most SQL databases). These functions help in replacing the NULL values with a specified value. For instance, when joining Employees and Departments, if some employees don’t belong to any department, you could use ISNULL(Departments.DepartmentName, 'Not Assigned') to replace the NULL values in the DepartmentName column with the text 'Not Assigned'.

Can you perform multiple LEFT OUTER JOINS in a single query, and what are the considerations?

Yes, you can perform multiple LEFT OUTER JOINS in a single query. When doing so, it’s essential to carefully manage the order of the joins and the conditions to ensure that the logic of the query remains correct. You should also consider the performance implications, as multiple joins can make the query more complex and potentially slow down the execution, depending on the database and the amount of data being processed.



Summarizing Key Takeaways

  • Understanding of LEFT OUTER JOIN: LEFT OUTER JOIN is instrumental in combining rows from both participating tables even if there are no matching rows in the right table, keeping all records from the left table.
  • Handling NULLs: LEFT OUTER JOIN manages the absence of matching records by introducing NULL values where matches are not found, ensuring that the dataset remains comprehensive.
  • Flexibility in Queries: Incorporating LEFT OUTER JOIN into queries offers flexibility and robustness, allowing for the retrieval of inclusive datasets and accommodating for disparities in table relationships.
  • Advanced Usage: Using LEFT OUTER JOIN in subqueries and multiple LEFT OUTER JOINs in a single query enables complex data retrieval and manipulation, providing a powerful tool for more advanced SQL operations.
  • Comparison with Other Joins: Understanding the differences and suitable use-cases for LEFT OUTER JOIN in comparison to INNER JOIN, RIGHT OUTER JOIN, and FULL OUTER JOIN is crucial for effective database querying and design.

Here are some resources which can be used to learn more:
