5 easy steps to resize root LVM partition in RHEL/CentOS 7/8 Linux

In this article I will share the step by step guide to resize root LVM partition on RHEL/CentOS 7/8 Linux with examples. The basic requirement to increase or decrease partition size is that the respective partition must not be mounted. Now you cannot unmount root partition so online resize is not possible. You must boot into rescue mode to resize root LVM partition.

NOTE:

If you wish to resize non LVM root partition then you must follow below article
2 easy methods to resize (extend or shrink) non LVM primary partition in Linux with examples
WARNING:

Even though I have tested and verified these steps in my environment, you should avoid shrinking or reducing LVM size of such primary partition such as "/" in production environment. As these are not officially supported by any vendor such as Red Hat, SuSE etc and it can also destroy your system.



Lab Environment

I have verified the steps from this article to (extend and shrink) resize root LVM partition (ext4) on RHEL/CentOS 7 and 8 Linux environment.
The screenshots are captured from CentOS 8 node running on Oracle VirtualBox installed on a Linux server.

I have a very simple environment with minimal partitions.

[root@centos-8 ~]# df -h
Filesystem             Size  Used Avail Use% Mounted on
devtmpfs               2.4G     0  2.4G   0% /dev
tmpfs                  2.4G     0  2.4G   0% /dev/shm
tmpfs                  2.4G  8.6M  2.4G   1% /run
tmpfs                  2.4G     0  2.4G   0% /sys/fs/cgroup
/dev/mapper/rhel-root   14G  1.8G   11G  15% /
/dev/sda1              488M  130M  323M  29% /boot
tmpfs                  479M     0  479M   0% /run/user/0

Below are the available logical volumes. As you see I have not created too many logical volumes.

[root@centos-8 ~]# lvs
  LV   VG   Attr       LSize   Pool Origin Data%  Meta%  Move Log Cpy%Sync Convert
  root rhel -wi-ao----  13.56g
  swap rhel -wi-ao---- 956.00m



Step 1: Backup your data (Optional but recommended)

Since you plan to shrink root LVM partition it is important that you backup your data before starting with the process. As if anything goes wrong you will end up with an unusable system.



Step 2: Boot into rescue mode

You cannot shrink root LVM partition online without reboot. Also you will need your RHEL/CentOS 7/8 ISO DVD depending on your environment to boot into rescue mode. Here I am using CentOS 8 so I will use the vanilla DVD of CentOS 8 to go to rescue mode.

NOTE:

You can also boot into rescue.target or emergency.target without rescue image but that won't help you shrink root LVM partition as the / partition will be in mounted state and to shrink a partition it is important that the respective partition is not mounted.

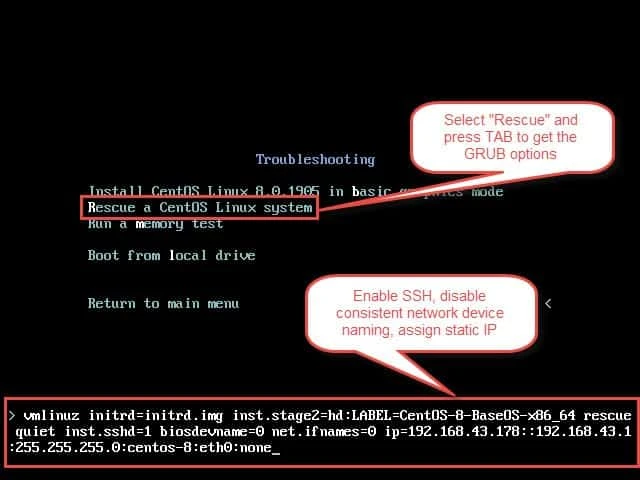

Once you boot your Linux node with rescue DVD you can enable SSH and configure network in rescue mode. In this example I have disabled consistent network device naming and assigned a static IP address but you can also use DHCP by using ip=dhcp

For more information on the used syntax you can checkĀ Network boot options

5 easy steps to resize root LVM partition in RHEL/CentOS 7/8

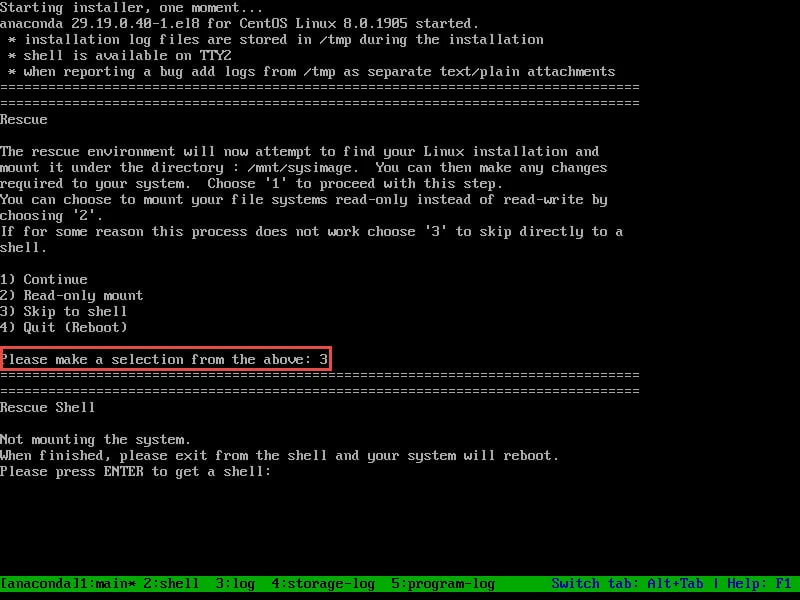

In the next screen, select "3" to skip to shell. Make sure the file system is not mounted. If you select 1 or 2 then the root partition will get mounted on /mnt/sysimage which will not allow you to resize root LVM partition.

5 easy steps to resize root LVM partition in RHEL/CentOS 7/8

Since I have enabled SSH and configured network for my rescue mode, I have connected using Putty. Currently the system is mounted with LIVE DVD as you can see so our LVM root partition is not in mounted state so we can decrease or increase root partition size.

[anaconda root@centos-8 ~]# df -h
Filesystem           Size  Used Avail Use% Mounted on
devtmpfs             2.4G     0  2.4G   0% /dev
tmpfs                2.5G   12K  2.5G   1% /dev/shm
tmpfs                2.5G   17M  2.5G   1% /run
tmpfs                2.5G     0  2.5G   0% /sys/fs/cgroup
/dev/sr0             6.7G  6.7G     0 100% /run/install/repo
/dev/mapper/live-rw  2.9G  1.8G  1.2G  61% /
tmpfs                2.5G  724K  2.5G   1% /tmp



Step 3: Activate Logical Volume

Next we must activate our logical volume before we can shrink root LVM filesystem.

[anaconda root@centos-8 ~]# vgchange -ay
  2 logical volume(s) in volume group "rhel" now active

To list the available logical volumes and volume groups:

[anaconda root@centos-8 ~]# lvs
  LV   VG   Attr       LSize   Pool Origin Data%  Meta%  Move Log Cpy%Sync Convert
  root rhel -wi-------  13.56g
  swap rhel -wi------- 956.00m

[anaconda root@centos-8 ~]# vgs
  VG   #PV #LV #SN Attr   VSize   VFree
  rhel   1   2   0 wz--n- <14.50g    0



Step 4: Perform File system Check

Next run a file system check to make sure the file system is proper and not corrupted. Without a file system check you cannot shrink root LVM partition or any other partition.

[anaconda root@centos-8 ~]# e2fsck -f /dev/mapper/rhel-root
e2fsck 1.44.3 (10-July-2018)
Pass 1: Checking inodes, blocks, and sizes
Pass 2: Checking directory structure
Pass 3: Checking directory connectivity
Pass 4: Checking reference counts
Pass 5: Checking group summary information
/dev/mapper/rhel-root: 49755/522240 files (0.2% non-contiguous), 502880/2097152 blocks

So our file system check has passed.



Step 5: Resize root LVM partition

Once you boot in rescue mode, you can resize root LVM partition or any other partition which you cannot un-mount runtime in default.target such as boot partition. In the below examples we will decrease root LVM partition size and also increase root LVM partition size.



Reduce or Shrink root LVM partition size in Linux

Next use resize2fs to resize root LVM partition. Currently my "/" file system is 13.5 GB which I want to decrease root partition size to 7GB

[anaconda root@centos-8 ~]# resize2fs /dev/mapper/rhel-root 7G
resize2fs 1.44.3 (10-July-2018)
Resizing the filesystem on /dev/mapper/rhel-root to 1835008 (4k) blocks.
The filesystem on /dev/mapper/rhel-root is now 1835008 (4k) blocks long.

Next use lvreduce with the same size (7G) as used in above command to decrease root partition size.

[anaconda root@centos-8 ~]# lvreduce -L 7G /dev/mapper/rhel-root
  WARNING: Reducing active logical volume to 7.00 GiB.
  THIS MAY DESTROY YOUR DATA (filesystem etc.)
Do you really want to reduce rhel/root? [y/n]: y
  Size of logical volume rhel/root changed from 13.56 GiB (3472 extents) to 7.00 GiB (1792 extents).
  Logical volume rhel/root successfully resized.

So the resize root LVM partition was successful. You can mount the root file system on /mnt/sysimage to verify the size

[anaconda root@centos-8 ~]# mount /dev/mapper/rhel-root /mnt/sysimage/

As you see my root partition is now 7GB

[anaconda root@centos-8 ~]# df -h
Filesystem             Size  Used Avail Use% Mounted on
devtmpfs               2.4G     0  2.4G   0% /dev
tmpfs                  2.5G   12K  2.5G   1% /dev/shm
tmpfs                  2.5G   17M  2.5G   1% /run
tmpfs                  2.5G     0  2.5G   0% /sys/fs/cgroup
/dev/sr0               6.7G  6.7G     0 100% /run/install/repo
/dev/mapper/live-rw    2.9G  1.8G  1.2G  61% /
tmpfs                  2.5G  724K  2.5G   1% /tmp
/dev/mapper/rhel-root  6.9G  1.8G  4.8G  27% /mnt/sysimage



Increase root partition size in Linux

Now to extend root partition size I will use the same node. Here we will increase root partition size by 1GB from 7G to 8G.

[anaconda root@centos-8 ~]# lvextend -L +1G /dev/mapper/rhel-root
  Size of logical volume rhel/root changed from 7.00 GiB (1792 extents) to 8.00 GiB (2048 extents).
  Logical volume rhel/root successfully resized.

lvextend command was successful, next we will execute resize2fs to increase root partition size

[anaconda root@centos-8 ~]# resize2fs /dev/mapper/rhel-root
resize2fs 1.44.3 (10-July-2018)
Resizing the filesystem on /dev/mapper/rhel-root to 2097152 (4k) blocks.
The filesystem on /dev/mapper/rhel-root is now 2097152 (4k) blocks long.

Post resize2fs you can verify the changes for which you must mount the root partition. Since we are in rescue mode we will mount it on /mnt/sysimage

[anaconda root@centos-8 ~]# mount /dev/mapper/rhel-root /mnt/sysimage/

Next using df command we see we were successfully able to increase root partition size

[anaconda root@centos-8 ~]# df -h /mnt/sysimage/
Filesystem             Size  Used Avail Use% Mounted on
/dev/mapper/rhel-root  7.9G  1.8G  5.7G  24% /mnt/sysimage



Verify the new size of root partition

Now above command will only mount the root partition. Next we will mount all other partitions to properly verify our changes before we boot into default.target

[anaconda root@centos-8 ~]# mount -o bind /dev /mnt/sysimage/dev
[anaconda root@centos-8 ~]# mount -o bind /usr /mnt/sysimage/usr
[anaconda root@centos-8 ~]# mount -o bind /sys /mnt/sysimage/sys
[anaconda root@centos-8 ~]# mount -t proc /proc /mnt/sysimage/proc
[anaconda root@centos-8 ~]# mount -o bind /dev/shm /mnt/sysimage/dev/shm

Since we have already mounted root partition, next we will mount boot partition. Now if you have any other partitions on your system then you can mount them as well.

[anaconda root@centos-8 ~]# mount /dev/sda1 /mnt/sysimage/boot

Next use chroot to change file system to /mnt/sysimage.

[anaconda root@centos-8 ~]# chroot /mnt/sysimage/

Verify if everything is working as expected before you reboot the node to default.target

[anaconda root@centos-8 /]# df -h
Filesystem             Size  Used Avail Use% Mounted on
/dev/mapper/rhel-root  7.9G  1.8G  5.7G  24% /
/dev/sda1              488M  130M  323M  29% /boot
devtmpfs               2.4G     0  2.4G   0% /dev
/dev/mapper/live-rw    2.9G  1.8G  1.2G  61% /usr
tmpfs                  2.5G   12K  2.5G   1% /dev/shm



Lastly I hope the steps from the article to resize root LVM partition on RHEL/CentOS 7/8 Linux was helpful. So, let me know your suggestions and feedback using the comment section.
