How to fetch images from Node.js server [100% Working]

This tutorial teaches you how to fetch images from Node.js server using a vanilla Node.js server and an Express.js server. By the end of the tutorial, you will find it comfortable to fetch images from a Node.js server using a method of your choice. What is more?

Find out below.

Advertisement



Let’s walk through the basics first

A typical web development project is divided into frontend and backend. Frontend often entails static files: HTML, CSS, and JavaScript.

HTML provides structure to the web page; CSS provides presentation, while JavaScript adds interactivity. An HTML file can contain CSS, JavaScript, images, JSON, and SVG files.

The browser, also called the client, decodes the file type depending on its MIME type:

  • .html: text/html,
  • .css: text/css,
  • .js: text/javascript,
  • .json: application/json,
  • .png: image/png,
  • .jpg: image/jpg, and
  • .jpeg: image/jpeg.

As the name suggests, a web server (backend) serves the client with resources. The browser then interprets and relays the resource to the user.

It is a convention to store static files in the public folder. For example, we can store the images folder and HTML files in the public folder, as shown in the examples section.

The following sections teach you how to fetch images from Node.js server through the URL. It assumes you want to load the index.html page with an img element on visiting the home page. And exclusively fetch the image through a URL.

Advertisement

Let's set up a lab environment to do exactly that.

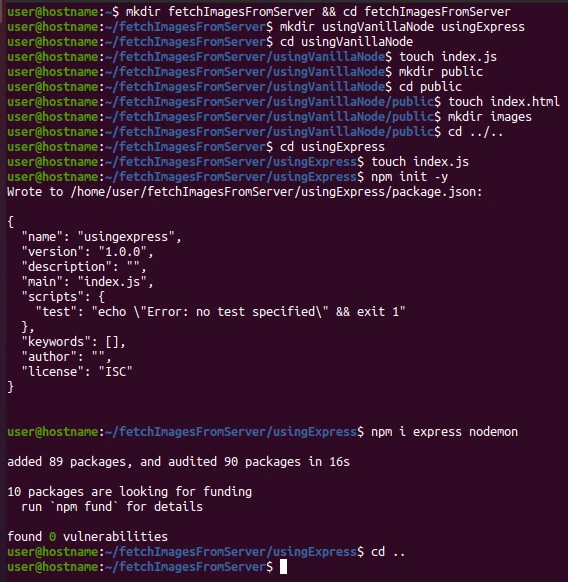

Setup lab environment

Launch the terminal and create the project directory with two subdirectories.

mkdir fetchImagesFromServer && cd fetchImagesFromServer
mkdir usingVanillaNode usingExpress

cd into usingVanillaNode subdirectory and create the script file and a public directory.

cd usingVanillaNode
touch index.js
mkdir public

Inside the public directory, create index.html file and images folder.

cd public
touch index.html
mkdir images

Then, save this image from pexels.com as image1.jpg into the images directory.

We will use the same public folder in usingExpress subdirectory. So, let's set up the Express.js subproject and copy the public directory into it.

Advertisement

cd into usingExpress subdirectory and create index.js (script file), then initialize an npm package. Next, install express (server) and nodemon (watches the server). Finally, return to the main directory.

cd ../..
cd usingExpress
touch index.js
npm init -y
npm i express nodemon
cd ..

How to fetch images from Node.js server [100% Working]

Now, let's dive into practical examples of how to fetch images from Node.js server.



Example-1: How to fetch images from node.js server built with http module

cd into the usingVanillaNode directory and update the index.html and index.js files with the following content.

Public folder

index.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Load jpg</title>
</head>
<body>
    <h2>How to load images from Node.js server</h2>
    <div>
        <img src="/images/image1.jpg" width="300" alt="Image">
    </div>
</body>
</html>

index.js

Advertisement
const fs = require('fs')
const path = require('path')
const { createServer } = require('http')

createServer((req, res) => {

    // create a dynamic file path
    let filePath = path.join(__dirname, 'public', req.url === '/' ? 'index.html' : req.url)

    // default content type
    let contentType = 'text/html'

    // extract the extension from the filepath
    let mimeType = path.extname(filePath)

    // load various image types
    switch (mimeType) {
        case '.png': contentType = 'image/png'; break;
        case '.jpg': contentType = 'image/jpg'; break;
        case '.jpeg': contentType = 'image/jpeg'; break;
    }

    // read the target file and send to the client.
    fs.readFile(filePath, (error, data) => {
        // stop the execution and send nothing if the requested file path does not exist.
        if (error) return

        // otherwise, fetch and show the target image
        res.writeHead(200, { 'Content-Type': contentType })
        res.end(data, 'utf8')

    })

})
.listen(3000)

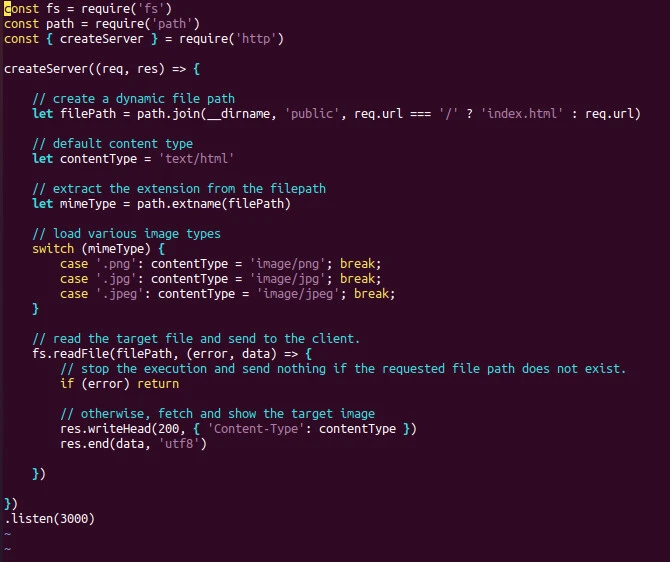

How to fetch images from Node.js server



The file path filePath displays the home page index.html or fetches the target image through the URL. Since content type changes according to the given image extension, we make the file path dynamic enough to load PNG, JPG and JPEG image types.

We then read the matching file and send the data to the frontend. Although we could specify the encoding option when reading the file, it would be best to do so when sending the data to the client because the images may not load if we do not send the encoding format with the data res.end(data, 'utf8').

Save the files and return to the terminal, then start the server.

node index.js

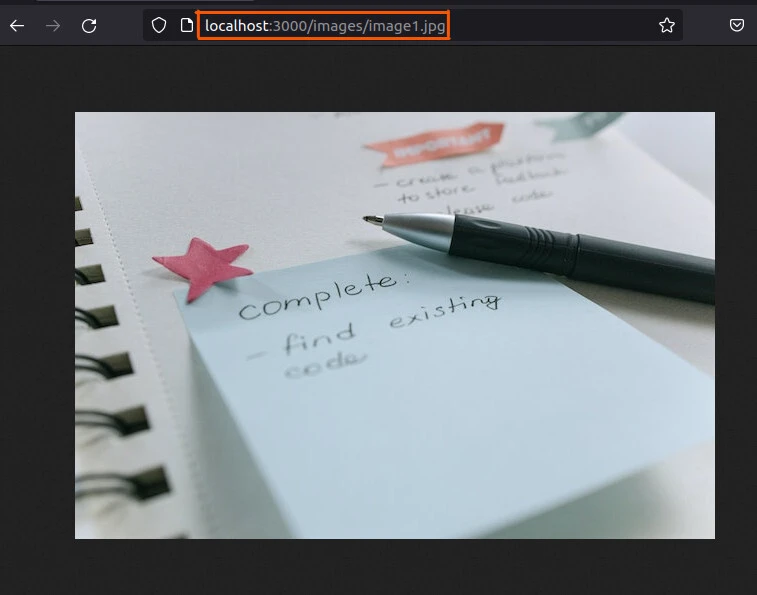

Now visit the browser and fetch the stored image by searching localhost:3000/images/image1.jpg. And voila, the saved image appears!

How to fetch images from Node.js server [100% Working]

Although we fetched the image without installing a third-party module, we had to do massive work to load a simple file. That is why learning how to fetch images from Node.js server built with Express plays a critical role.



Example-2: How to fetch images from node.js server built with the express framework

In just four lines of code, we can fetch an image from a Node.js server!

Advertisement
import express from 'express'
const app = express()

app.use(express.static('public'))

app.listen(3000)

This time around, we do not do the heavy work of configuring the URL to load static files of various image types. The express.static() method does that for us. We tell the express server the directory from which to read the static files.

Next, we start the server.

npm start

And visit the URL to fetch the target image:/images/image1.jpg.

Let's do that practically.

The File structure

Stop the server (running vanilla Node.js web server) by simultaneously pressing ctrl+c keys and cd into usingExpress subproject.

Advertisement

Write the above code in index.js file.

Node.js read images from server using express web framework

Next, open the package.json file and configure the application to use the ECMAScript modules and nodemon.

{
  "name": "usingexpress",
  "version": "1.0.0",
  "description": "",
  "main": "index.js",
  "type": "module",
  "scripts": {
    "start": "nodemon index"
  },
  "keywords": [],
  "author": "",
  "license": "ISC",
  "dependencies": {
    "express": "^4.18.1",
    "nodemon": "^2.0.19"
  }
}

With the exact contents of the public folder as that of part~1, let's start the server.

cp -r ~/fetchImagesFromServer/usingVanillaNode/public/ ./
npm start

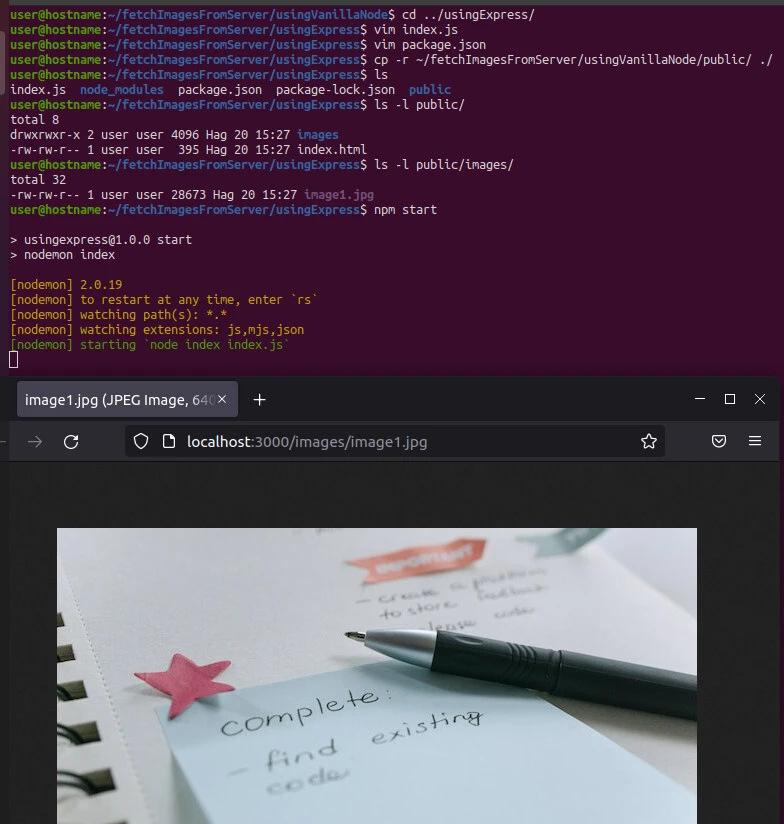

And move to the browser to fetch image1.jpg through the URL: localhost:3000/images/image1.jpg

How to fetch images from Node.js server [100% Working]



Summary

The Express framework's static() method simplifies fetching images from a URL. Besides, it would help to learn how to fetch images from Node.js server without using a framework.



Further Reading

How to fetch images from node.js server's folder in URL?
