Simple Kubernetes Helm Charts Tutorial with Examples

In this Kubernetes tutorial we will explore all about helm charts. These days there is tremendous pressure on developers to make their application lightweight and scalable. Most importantly the applications must be highly available. With Kubernetes we can almost achieve this but then it comes with it's own sets of challenges. To manage large applications with multiple deployment pods, services, ingress, storage etc can be overwhelming. This is where Helm steps in to manage the life cycle of Kubernetes applications.



1. Overview on Helm

  • Helm is an open source tool also referred as "Kubernetes Package Manager"
  • You may be some other package managers such as YUM, DNF, APT etc which are used to simplify the process of managing rpms in bulk such as install, remove, revert, update etc.
  • Now these package managers operates on RPM package while Helm works with charts.
  • A Helm chart can be thought of as a Kubernetes package. Charts contain the declarative Kubernetes resource files required to deploy an application. Similar to an RPM, it can also declare one or more dependencies that the application needs in order to run.
  • Similar to DNF/YUM which rely on repository to download the RPM packages, Helm relies on repositories to provide widespread access to charts
  • Helm v3 is based on a client-only architecture. It connects to the Kubernetes API the same way as kubectl does, by using a kubeconfig file containing the Kubernetes cluster connection settings.



2. Download and Install Helm

Helm provides a single command-line client that is capable of performing all of the main Helm tasks. The helm client is written in a programming language called Go. Unlike Python, JavaScript, or Ruby, Go is a compiled language. Once a Go program is compiled, you do not need any of the Go tools to run or otherwise work with the binary.

Advertisement

You can download the helm binary package from Helm release page based on your distribution. Since we are using Linux, so we will download Linux amd64 package.

On Linux, the download will be in a gzipped tar archive (.tar.gz) that can be extracted with the tar -zxf command.

[root@controller ~]# tar -xzvf helm-v3.5.2-linux-amd64.tar.gz
linux-amd64/
linux-amd64/helm
linux-amd64/LICENSE
linux-amd64/README.md

We will place the linux-amd64/helm binary inside /usr/local/bin so that we don't have to provide the path of the binary every time we use helm command. Alternatively we could have also added linux-amd64/helm to our PATH variable but the previous option is easier without modifying system variables.

[root@controller ~]# cp linux-amd64/helm /usr/local/bin/

Check the helm version

[root@controller ~]# helm version
version.BuildInfo{Version:"v3.5.2", GitCommit:"167aac70832d3a384f65f9745335e9fb40169dc2", GitTreeState:"dirty", GoVersion:"go1.15.7"}

To get the short version we can use --short flag in the above command:

Kubernetes Helm Charts Tutorial with Examples



3. Helm commands cheatsheet

You can get all available Helm CLI commands with helm –h. Let's list the most used ones, along with their descriptions:

Advertisement
CommandDescription
helm repo addAdds a Helm chart repository to the local cache list, after which we can reference it to pull charts from the repository
helm repo updateGets the latest information about chart repositories; the information is stored locally.
helm search repoSearches for charts in the given repositories.
helm pullDownloads a given chart from the chart repository.
helm upgrade -iIf there is no release then install it, otherwise upgrade the release.
helm lsLists releases in the current namespace. If the -A flag is provided, it will list all the namespaces.
helm historyPrints historical revisions for a given release.
helm rollbackRolls back a release to a previous revision.
helm templateRenders chart templates locally and displays the output.
helm createCreates a chart
helm lintValidates a chart
helm pluginInstalls, lists, updates, and uninstalls Helm plugins.



4. Adding a chart repository

A Helm chart repository is simply a set of files, reachable over the network, that conforms to the Helm specification for indexing packages. There are thousands of helm chart repositories on the internet. The easiest way to find the popular repositories is to use your web browser to navigate to the Artifact Hub. There you will find thousands of Helm charts, each hosted on an appropriate repository.

For demonstration we will install the popular Drupal CMS. This makes a good example chart because it creates different types of Kubernetes resources such as Deployments, Services, Ingress and ConfigMaps.



4.1 Adding a repo

Adding a Helm chart is done with the helm repo add command:

[root@controller ~]# helm repo add bitnami https://charts.bitnami.com/bitnami
"bitnami" has been added to your repositories

The helm repo add command will add a repository named bitnami that points to the URL https://charts.bitnami.com/bitnami. Once we have added a repository, its index will be locally cached until we next update it.



4.2 Searching a Chart repository

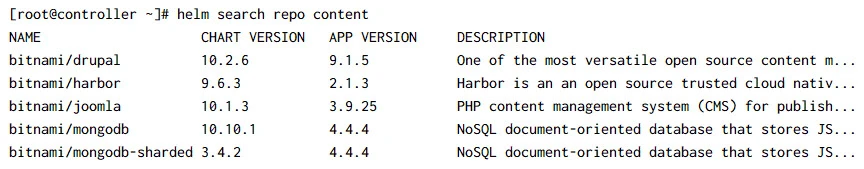

We can run a query inside the repo to look out for any specific chart.

[root@controller ~]# helm search repo drupal
NAME            CHART VERSION   APP VERSION     DESCRIPTION
bitnami/drupal  10.2.6          9.1.5           One of the most versatile open source content m...

We did a simple search for the term drupal. Helm will search not just the package names, but also other fields like labels and descriptions.

Kubernetes Helm Charts Tutorial with Examples

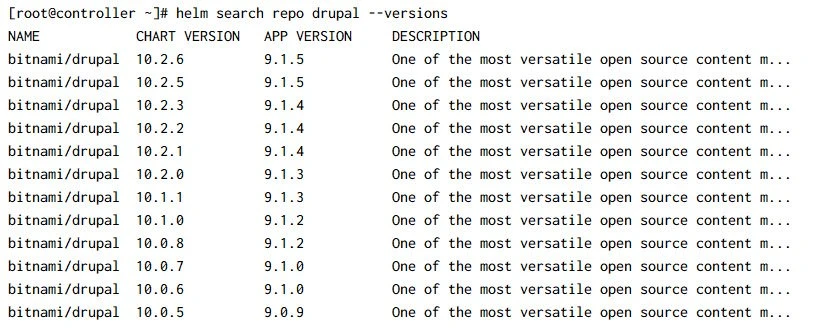

While Drupal is the first result, note that there are a variety of other charts that contain the word content somewhere in the descriptive text.

By default, Helm tries to install the latest stable release of a chart, but you can override this behavior and install a specific verison of a chart. Thus it is often useful to see not just the summary info for a chart, but exactly which versions exist for a chart:

Advertisement

Kubernetes Helm Charts Tutorial with Examples



4.3 Installing a Package (Chart)

At very minimum, installing a chart in Helm requires just two pieces of information: the name of the installation and the chart you want to install. The general syntax to install a chart is:

helm install <RELEASE NAME> <CHART NAME>

To install the drupal chart we will use:

[root@controller ~]# helm install mysite bitnami/drupal
NAME: mysite
LAST DEPLOYED: Wed Mar 10 03:36:29 2021
NAMESPACE: default
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
*******************************************************************
*** PLEASE BE PATIENT: Drupal may take a few minutes to install ***
*******************************************************************

1. Get the Drupal URL:

  NOTE: It may take a few minutes for the LoadBalancer IP to be available.
        Watch the status with: 'kubectl get svc --namespace default -w mysite-drupal'

  export SERVICE_IP=$(kubectl get svc --namespace default mysite-drupal --template "{{ range (index .status.loadBalancer.ingress 0) }}{{.}}{{ end }}")
  echo "Drupal URL: http://$SERVICE_IP/"

2. Get your Drupal login credentials by running:

  echo Username: user
  echo Password: $(kubectl get secret --namespace default mysite-drupal -o jsonpath="{.data.drupal-password}" | base64 --decode)



4.4 Listing installed charts

The helm list command is a simple tool to help you see installations and learn about those installations:

[root@controller ~]# helm list
NAME    NAMESPACE       REVISION        UPDATED                                 STATUS          CHART           APP VERSION
mysite  default         1               2021-03-10 03:36:29.001757599 +0530 IST deployed        drupal-10.2.6   9.1.5

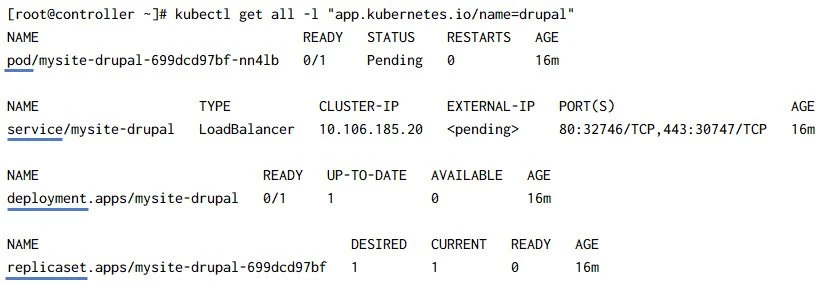

To list all the resources deployed by this chart we can use kubectl get all -l "app.kubernetes.io/name=drupal":

Kubernetes Helm Charts Tutorial with Examples



5. Create your first helm chart

A Helm chart is an individual package that can be installed into your Kubernetes cluster. It is a collection of template files that describe Kubernetes resources. During chart development, you will often just work with a chart that is stored on your local filesystem. It uses templating to create Kubernetes manifests.



5.1 Create a new chart

I will create all my charts under

[root@controller ~]# mkdir -p /k8s/helm-examples

Create a chart called mychart:

[root@controller helm-examples]# helm create mychart
Creating mychart

This command will create the entire directory structure with all the files required to deploy nginx.

Advertisement
NOTE:

Nginx is a good starting point to showcase the parts of a chart and for basic stateless services. However, if you regularly create charts that do not follow the Nginx model, a different starting point would be more helpful. For this purpose, Helm has a feature called starter packs, which helm create can utilize to provide a different starting point to generate a chart from.
[root@controller helm-examples]# tree  mychart/
mychart/
├── charts
├── Chart.yaml
├── templates
│   ├── deployment.yaml
│   ├── _helpers.tpl
│   ├── hpa.yaml
│   ├── ingress.yaml
│   ├── NOTES.txt
│   ├── serviceaccount.yaml
│   ├── service.yaml
│   └── tests
│       └── test-connection.yaml
└── values.yaml



5.2 Understanding helm chart's structure

As you can see in the above snippet, the deployment.yaml file, Horizontal Pod Autoscaler (HPA), ingress, service, and service account resource templates have been created, all of which provide a good base to start from.

The preceding command also created the test-connection.yaml file so we can run a test with helm test against the installed nginx chart.
Here,

  • Chart.yaml: The Chart.yaml file contains metadata and some functionality controls for the chart.
  • charts: The folder where dependent sub-charts get stored.
  • templates: Templates used to generate Kubernetes manifests are stored in the templates directory.
  • NOTES.txt: This file is a special template. When a chart is installed, the NOTES.txt template is rendered and displayed rather than being installed into a cluster.
  • tests: Templates can include tests that are not installed as part of the install or upgrade commands. This chart includes a test that is used by the helm test command.
  • values.yaml: Default values passed to the templates when Helm is rendering the manifests are in the values.yaml file. When you instantiate a chart, these values can be overridden.



5.3 Modifying the chart's templates

We will make some minor modifications to the default chart templates and values.

Under mychart/values.yaml we will modify pullPolicy to Always. The default value i.e. IfNotPresent means the pod will avoid pulling an image if it already exists. This we change to Always to pull the image every time a pod is deployed.

FROM:

image:
  repository: nginx
  pullPolicy: IfNotPresent
  # Overrides the image tag whose default is the chart appVersion.
  tag: ""

TO:

image:
  repository: nginx
  pullPolicy: Always
  # Overrides the image tag whose default is the chart appVersion.
  tag: ""



Under mychart/values.yaml we will use NodePort service to access the nginx server instead of ClusterIP from external network.

FROM:

service:
  type: ClusterIP
  port: 80

TO:

service:
  type: NodePort
  port: 80



Under mychart/values.yaml we will use he latest available nginx image instead of the default app version i.e. 1.16 collected from Charts.yaml

FROM:

      containers:
        - name: {{ .Chart.Name }}
          securityContext:
            {{- toYaml .Values.securityContext | nindent 12 }}
          image: "{{ .Values.image.repository }}:{{ .Values.image.tag | default .Chart.AppVersion }}"
          imagePullPolicy: {{ .Values.image.pullPolicy }}

TO:

      containers:
        - name: {{ .Chart.Name }}
          securityContext:
            {{- toYaml .Values.securityContext | nindent 12 }}
          image: "{{ .Values.image.repository }}"
          imagePullPolicy: {{ .Values.image.pullPolicy }}



5.4 Linting the helm chart

We can utilise helm's linting feature to check the chart for possible issues and errors. For that, we can use the helm lint <CHART NAME> command, which will check the Helm chart content by running a series of tests to verify the chart integrity.

Let's lint the mychart we have created:

[root@controller helm-examples]# helm lint mychart
==> Linting mychart
[INFO] Chart.yaml: icon is recommended

1 chart(s) linted, 0 chart(s) failed

As you can see in the preceding screenshot, our chart has no issues and can be installed safely. The [INFO] message is just the warning that the chart's icon is missing, which can be safely ignored.



5.5 Installing the helm chart

It is always recommended to test your application before install and upgrade using --dry-run with helm command. With this, Helm will validate the templates against the Kubernetes cluster. The general syntax to install a chart is:

helm install <RELEASE NAME> <CHART NAME>

Here, <CHART NAME> is the local folder, so note that you can install the chart from remote Helm repositories and also from local folders, both with the same command. Bust we will first execute this command with --dry-run argument:

[root@controller helm-examples]# helm install --dry-run nginx mychart/
NAME: nginx
LAST DEPLOYED: Wed Mar 10 00:50:04 2021
NAMESPACE: default
STATUS: pending-install
REVISION: 1
HOOKS:
---
# Source: mychart/templates/tests/test-connection.yaml
apiVersion: v1
kind: Pod
metadata:
  name: "nginx-mychart-test-connection"
  labels:
    helm.sh/chart: mychart-0.1.0
    app.kubernetes.io/name: mychart
    app.kubernetes.io/instance: nginx
    app.kubernetes.io/version: "1.16.0"
    app.kubernetes.io/managed-by: Helm
  annotations:
    "helm.sh/hook": test
spec:
  containers:
    - name: wget
      image: busybox
      command: ['wget']
      args: ['nginx-mychart:80']
  restartPolicy: Never
MANIFEST:
---
# Source: mychart/templates/serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: nginx-mychart
  labels:
    helm.sh/chart: mychart-0.1.0
    app.kubernetes.io/name: mychart
    app.kubernetes.io/instance: nginx
    app.kubernetes.io/version: "1.16.0"
    app.kubernetes.io/managed-by: Helm
---
# Source: mychart/templates/service.yaml
apiVersion: v1
kind: Service
metadata:
  name: nginx-mychart
  labels:
    helm.sh/chart: mychart-0.1.0
    app.kubernetes.io/name: mychart
    app.kubernetes.io/instance: nginx
    app.kubernetes.io/version: "1.16.0"
    app.kubernetes.io/managed-by: Helm
spec:
  type: NodePort
  ports:
    - port: 80
      targetPort: http
      protocol: TCP
      name: http
  selector:
    app.kubernetes.io/name: mychart
    app.kubernetes.io/instance: nginx
---
# Source: mychart/templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-mychart
  labels:
    helm.sh/chart: mychart-0.1.0
    app.kubernetes.io/name: mychart
    app.kubernetes.io/instance: nginx
    app.kubernetes.io/version: "1.16.0"
    app.kubernetes.io/managed-by: Helm
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: mychart
      app.kubernetes.io/instance: nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/name: mychart
        app.kubernetes.io/instance: nginx
    spec:
      serviceAccountName: nginx-mychart
      securityContext:
        {}
      containers:
        - name: mychart
          securityContext:
            {}
          image: "nginx"
          imagePullPolicy: Always
          ports:
            - name: http
              containerPort: 80
              protocol: TCP
          livenessProbe:
            httpGet:
              path: /
              port: http
          readinessProbe:
            httpGet:
              path: /
              port: http
          resources:
            {}

NOTES:
1. Get the application URL by running these commands:
  export NODE_PORT=$(kubectl get --namespace default -o jsonpath="{.spec.ports[0].nodePort}" services nginx-mychart)
  export NODE_IP=$(kubectl get nodes --namespace default -o jsonpath="{.items[0].status.addresses[0].address}")
  echo http://$NODE_IP:$NODE_PORT

So the --dry-run was successfully able to trigger the deploy hence it is safe to install the chart. Next we will actually install the chart without using --dry-run. We will name our chart as nginx:

Kubernetes Helm Charts Tutorial with Examples



5.6 List all the resources deployed by chart

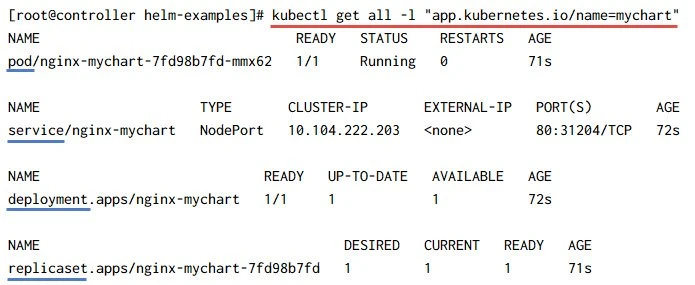

Now we can check the --dry-run output to get the list of resources which will be deployed by our chart, but we can also use the following command. It expects the Release Name of the chart. This command helped us to show the resources deployed by the chart.

Kubernetes Helm Charts Tutorial with Examples



5.7 Accessing the nginx server

Since we had defined a Service with NodePort so we can use the same to access the nginx server using external network. You can read Kubernetes Services for more details on different types of services and examples.

List the available services:

[root@controller helm-examples]# kubectl get svc
NAME            TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE
kubernetes      ClusterIP   10.96.0.1        <none>        443/TCP        37h
nginx-mychart   NodePort    10.104.222.203   <none>        80:31204/TCP   4m11s

Check the worker node on which our deployment pod is running on:

[root@controller helm-examples]# kubectl get pods -o wide
NAME                            READY   STATUS    RESTARTS   AGE     IP          NODE                   NOMINATED NODE   READINESS GATES
nginx-mychart-7fd98b7fd-mmx62   1/1     Running   0          5m31s   10.44.0.1   worker-1.example.com   <none>           <none>

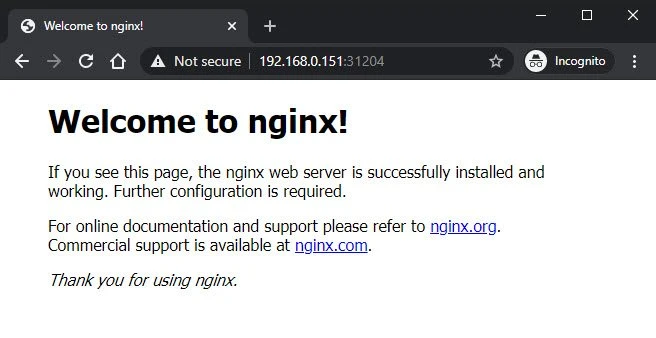

So we can use the worker-1.example IP with 31204 port from PORT(S) section of kubernetes service output to access the nginx server from nginx-mychart-7fd98b7fd-mmx62:

Kubernetes Helm Charts Tutorial with Examples

6. Debugging Helm Chart Templates

It can be really tricky to debug a helm chart template to identify the cause of failure. Following are some of the commands which can come handy in debugging helm chart templates:

  • helm lint is your go-to tool for verifying that your chart follows best practices
  • helm install --dry-run --debug or helm template --debug: We've seen this trick already. It's a great way to have the server render your templates, then return the resulting manifest file.
  • helm get manifest: This is a good way to see what templates are installed on the server.

Here is a sample output for helm get manifest which populates all the variables used in the templates and you can make sure that all the values are properly populated for each resource.

[root@controller ~]# helm get manifest nginx
---
# Source: mychart/templates/serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: nginx-mychart
  labels:
    helm.sh/chart: mychart-0.1.0
    app.kubernetes.io/name: mychart
    app.kubernetes.io/instance: nginx
    app.kubernetes.io/version: "1.16.0"
    app.kubernetes.io/managed-by: Helm
---
# Source: mychart/templates/service.yaml
apiVersion: v1
kind: Service
metadata:
  name: nginx-mychart
  labels:
    helm.sh/chart: mychart-0.1.0
    app.kubernetes.io/name: mychart
    app.kubernetes.io/instance: nginx
    app.kubernetes.io/version: "1.16.0"
    app.kubernetes.io/managed-by: Helm
spec:
  type: NodePort
  ports:
    - port: 80
      targetPort: http
      protocol: TCP
      name: http
  selector:
    app.kubernetes.io/name: mychart
    app.kubernetes.io/instance: nginx
---
# Source: mychart/templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-mychart
  labels:
    helm.sh/chart: mychart-0.1.0
    app.kubernetes.io/name: mychart
    app.kubernetes.io/instance: nginx
    app.kubernetes.io/version: "1.16.0"
    app.kubernetes.io/managed-by: Helm
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: mychart
      app.kubernetes.io/instance: nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/name: mychart
        app.kubernetes.io/instance: nginx
    spec:
      serviceAccountName: nginx-mychart
      securityContext:
        {}
      containers:
        - name: mychart
          securityContext:
            {}
          image: "nginx"
          imagePullPolicy: Always
          ports:
            - name: http
              containerPort: 80
              protocol: TCP
          livenessProbe:
            httpGet:
              path: /
              port: http
          readinessProbe:
            httpGet:
              path: /
              port: http
          resources:
            {}



7. Deleting/Un-installing a chart

To remove a Helm installation, use the helm uninstall command. This command does not need a chart name or any configuration files. It simply needs the name of the installation

[root@controller ~]# helm uninstall mysite
release "mysite" uninstalled



Summary

Creating a simple chart for your application is straightforward when you use the helm create command. Even when your applications are more complicated, the structure of charts is able to accommodate them, and the helm create command can help you. We already performed some minor modifications in this article, but you can further modify it and see the custom application running in your cluster. You can use this same flow to create your own charts.

Didn't find what you were looking for? Perform a quick search across GoLinuxCloud

If my articles on GoLinuxCloud has helped you, kindly consider buying me a coffee as a token of appreciation.

Buy GoLinuxCloud a Coffee

For any other feedbacks or questions you can either use the comments section or contact me form.

Thank You for your support!!

3 thoughts on “Simple Kubernetes Helm Charts Tutorial with Examples”

  1. Hello,

    Your post is really helpful for beginners like me, however I wanted to know if we can get the output like below during installation:

    helm install --name jenkins stable/jenkins --namespace jenkins
    NAME:   jenkins
    LAST DEPLOYED: Tue May 28 11:12:39 2019
    NAMESPACE: jenkins
    STATUS: DEPLOYED

    RESOURCES:
    ==> v1/ConfigMap
    NAME           DATA  AGE
    jenkins        5     0s
    jenkins-tests  1     0s

    ==> v1/Deployment
    NAME     READY  UP-TO-DATE  AVAILABLE  AGE
    jenkins  0/1    1           0          0s

    ==> v1/PersistentVolumeClaim
    NAME     STATUS   VOLUME    CAPACITY  ACCESS MODES  STORAGECLASS  AGE
    jenkins  Pending  standard  0s

    ==> v1/Pod(related)
    NAME                      READY  STATUS   RESTARTS  AGE
    jenkins-7565554b8f-cvhbd  0/1    Pending  0         0s

    ==> v1/Role
    NAME                     AGE
    jenkins-schedule-agents  0s

    ==> v1/RoleBinding
    NAME                     AGE
    jenkins-schedule-agents  0s

    ==> v1/Secret
    NAME     TYPE    DATA  AGE
    jenkins  Opaque  2     0s

    ==> v1/Service
    NAME           TYPE          CLUSTER-IP    EXTERNAL-IP  PORT(S)         AGE
    jenkins        LoadBalancer  10.96.90.0        8080:32015/TCP  0s
    jenkins-agent  ClusterIP     10.103.85.49         50000/TCP       0s

    ==> v1/ServiceAccount
    NAME     SECRETS  AGE
    jenkins  1        0s


    NOTES:
    1. Get your 'admin' user password by running:
      printf $(kubectl get secret --namespace jenkins jenkins -o jsonpath="{.data.jenkins-admin-password}" | base64 --decode);echo
    2. Get the Jenkins URL to visit by running these commands in the same shell:
      NOTE: It may take a few minutes for the LoadBalancer IP to be available.
            You can watch the status of by running 'kubectl get svc --namespace jenkins -w jenkins'
      export SERVICE_IP=$(kubectl get svc --namespace jenkins jenkins --template "{{ range (index .status.loadBalancer.ingress 0) }}{{ . }}{{ end }}")
      echo http://$SERVICE_IP:8080/login

    3. Login with the password from step 1 and the username: admin


    For more information on running Jenkins on Kubernetes, visit:
    https://cloud.google.com/solutions/jenkins-on-container-engine

    $ kubectl get pods --namespace jenkins
    NAME                       READY     STATUS    RESTARTS   AGE
    jenkins-7565554b8f-cvhbd   1/1       Running   0          9m
    Reply
    • This looks interesting, give me some time and I will check this.

      It seems to be verbose output for all types of resources getting created.
      The NOTE part has already been covered in this article.

      Reply
      • I looked into this and turns out, this feature was available with earlier versions of helm v2 but has been removed due to some issues as discussed here Helm3 : helm status does not show k8s resource names that were deployed as part of release

        To get similar behaviour you may use below command after deploying the helm chart:

        helm get manifest my-testserver | kubectl get -f -
        NAME                           SECRETS   AGE
        serviceaccount/test-mariadb      1         10d
        serviceaccount/test-mariadb-le   1         10d

        NAME                                           CREATED AT
        role.rbac.authorization.k8s.io/test-mariadb-le   2021-09-29T03:57:20Z
        role.rbac.authorization.k8s.io/test-mariadb      2021-09-29T03:57:20Z

        NAME                                                  ROLE                 AGE
        rolebinding.rbac.authorization.k8s.io/test-mariadb-le   Role/test-mariadb-le   10d
        rolebinding.rbac.authorization.k8s.io/test-mariadb      Role/test-mariadb      10d
        Reply

Leave a Comment
