OpenSSL create certificate chain [Root & Intermediate CA]


Deepak Prasad

OpenSSL

Openssl create certificate chain requires Root CA and Intermediate certificate, In this article I will share Step-by-Step Guide to create root and intermediate certificates and then use these certificates to create certificate CA bundle in Linux. I hope you have an overview of all the terminologies used with OpenSSL.



Root vs Intermediate Certificate

  • A certificate chain or certificate CA bundle is a sequence of certificates, where each certificate in the chain is signed by the subsequent certificate.
  • The Root CA is the top level of certificate chain while intermediate CAs or Sub CAs are Certificate Authorities that issue off an intermediate root.
  • Typically, the root CA does not sign server or client certificates directly.
  • The root CA is only ever used to create one or more intermediate CAs, which are trusted by the root CA to sign certificates on their behalf. This is best practice.
  • It allows the root key to be kept offline and unused as much as possible, as any compromise of the root key is disastrous.
  • An intermediate certificate authority (CA) is an entity that can sign certificates on behalf of the root CA.
  • The root CA signs the intermediate certificate, forming a chain of trust.
  • The purpose of using an intermediate CA is primarily for security.
  • The root key can be kept offline and used as infrequently as possible.
  • If the intermediate key is compromised, the root CA can revoke the intermediate certificate and create a new intermediate cryptographic pair.

OpenSSL create certificate chain with Root & Intermediate CA



Pre-requisites: Install OpenSSL

On RHEL/CentOS 7/8 you can use yum or dnf respectively while on Ubuntu use apt-get to install openssl rpm

NOTE:
On RHEL system you must have an active subscription to RHN or you can configure a local offline repository using which "yum" package manager can install the provided rpm and it's dependencies.
yum -y install openssl



OpenSSL encrypted data with salted password (Optional)

When we create private key for Root CA certificate, we have an option to either use encryption for private key or create key without any encryption. As if we choose to create private key with encryption such as 3DES, AES then you will have to provide a passphrase every time you try to access the private key.

I have already written another article with the steps for openssl encd data with salted password to encrypt the password file.

In this article we we will use RSA key which will not encrypt the private key, but you can decide to use AES or 3DES as your preferred algorithm.



Step 1: Create OpenSSL Root CA directory structure

We can also create CA bundle with all the certificates without creating any directory structure and using some manual tweaks but let us follow the long procedure to better understanding. In RHEL/CentOS 7/8 the default location for all the certificates are under /etc/pki/tls. But for this article we will create a new directory structure /root/myCA/ to store our certificates.

Create a directory structure to store the CA files, certificates, and private keys:

mkdir -p ~/myCA/rootCA/{certs,crl,newcerts,private,csr}
mkdir -p ~/myCA/intermediateCA/{certs,crl,newcerts,private,csr}

Each directory in your Certificate Authority (CA) folder structure serves a specific purpose:

  • certs: This directory contains the certificates generated and signed by the CA. For the root CA, this includes the root CA certificate itself. For the intermediate CA, this includes the intermediate CA certificate and any server or client certificates signed by the intermediate CA.
  • crl: The Certificate Revocation List (CRL) directory contains the CRLs generated by the CA. A CRL is a list of certificates that have been revoked by the CA before their expiration date.
  • newcerts: This directory stores a copy of each certificate signed by the CA, with the certificate's serial number as the file name. It helps maintain a backup of all issued certificates.
  • private: This directory contains the private keys for the CA, including the root CA and intermediate CA private keys. These keys are used to sign certificates and CRLs. The private keys should be kept secure and not shared.
IMPORTANT NOTE:
The majority of the files that the CA uses are visible to anyone on the system or at least to anyone who makes any use of the certificates issued by our CA. The one notable exception is the CA certificate’s private key. The private key should never be disclosed to anyone not authorized to issue a certificate or CRL from our CA. The private key should be stored in hardware, or at least on a machine that is never put on a network

A serial file is used to keep track of the last serial number that was used to issue a certificate. It’s important that no two certificates ever be issued with the same serial number from the same CA. OpenSSL is somewhat quirky about how it handles this file. It expects the value to be in hex, and it must contain at least two digits. By setting the initial value to 1000, we ensure that the serial numbers start from 1000 and increment for each subsequent certificate issued.

echo 1000 > ~/myCA/rootCA/serial
echo 1000 > ~/myCA/intermediateCA/serial

A crlnumber is a configuration directive specifying the file that contains the current CRL number. The CRL number is a unique integer that is incremented each time a new Certificate Revocation List (CRL) is generated. This helps in tracking the latest CRL issued by the CA and ensuring that CRLs are issued in a proper sequence. We have given a random digit in our crlnumber file which will be used to keep track of all certs which are revocated.

echo 0100 > ~/myCA/rootCA/crlnumber
echo 0100 > ~/myCA/intermediateCA/crlnumber

Next we will create index.txt file which is a database of sorts that keeps track of the certificates that have been issued by the CA. Each line in the index.txt file represents a certificate and contains information such as the certificate's status (e.g., valid, revoked), the certificate's expiration date, the certificate's serial number, and the certificate subject's distinguished name (DN).

Since no certificates have been issued at this point and OpenSSL requires that the file exist, we’ll simply create an empty file.

touch ~/myCA/rootCA/index.txt
touch ~/myCA/intermediateCA/index.txt

Check the list of contents under /root/myCA

├── intermediateCA
│   ├── certs
│   ├── crl
│   ├── csr
│   ├── crlnumber
│   ├── index.txt
│   ├── newcerts
│   ├── private
│   └── serial
└── rootCA
    ├── certs
    ├── crl
    ├── csr
    ├── crlnumber
    ├── index.txt
    ├── newcerts
    ├── private
    └── serial

10 directories, 6 files



Step 2: Configure openssl.cnf for Root and Intermediate CA Certificate

We will create 2 separate openssl.cnf file (each for root and intermediate CA).

Here is our openssl_root.cnf file:

[ ca ]                                                   # The default CA section
default_ca = CA_default                                  # The default CA name

[ CA_default ]                                           # Default settings for the CA
dir               = /root/myCA/rootCA                    # CA directory
certs             = $dir/certs                           # Certificates directory
crl_dir           = $dir/crl                             # CRL directory
new_certs_dir     = $dir/newcerts                        # New certificates directory
database          = $dir/index.txt                       # Certificate index file
serial            = $dir/serial                          # Serial number file
RANDFILE          = $dir/private/.rand                   # Random number file
private_key       = $dir/private/ca.key.pem              # Root CA private key
certificate       = $dir/certs/ca.cert.pem               # Root CA certificate
crl               = $dir/crl/ca.crl.pem                  # Root CA CRL
crlnumber         = $dir/crlnumber                       # Root CA CRL number
crl_extensions    = crl_ext                              # CRL extensions
default_crl_days  = 30                                   # Default CRL validity days
default_md        = sha256                               # Default message digest
preserve          = no                                   # Preserve existing extensions
email_in_dn       = no                                   # Exclude email from the DN
name_opt          = ca_default                           # Formatting options for names
cert_opt          = ca_default                           # Certificate output options
policy            = policy_strict                        # Certificate policy
unique_subject    = no                                   # Allow multiple certs with the same DN

[ policy_strict ]                                        # Policy for stricter validation
countryName             = match                          # Must match the issuer's country
stateOrProvinceName     = match                          # Must match the issuer's state
organizationName        = match                          # Must match the issuer's organization
organizationalUnitName  = optional                       # Organizational unit is optional
commonName              = supplied                       # Must provide a common name
emailAddress            = optional                       # Email address is optional

[ req ]                                                  # Request settings
default_bits        = 2048                               # Default key size
distinguished_name  = req_distinguished_name             # Default DN template
string_mask         = utf8only                           # UTF-8 encoding
default_md          = sha256                             # Default message digest
prompt              = no                                 # Non-interactive mode

[ req_distinguished_name ]                               # Template for the DN in the CSR
countryName                     = Country Name (2 letter code)
stateOrProvinceName             = State or Province Name (full name)
localityName                    = Locality Name (city)
0.organizationName              = Organization Name (company)
organizationalUnitName          = Organizational Unit Name (section)
commonName                      = Common Name (your domain)
emailAddress                    = Email Address

[ v3_ca ]                                           # Root CA certificate extensions
subjectKeyIdentifier = hash                         # Subject key identifier
authorityKeyIdentifier = keyid:always,issuer        # Authority key identifier
basicConstraints = critical, CA:true                # Basic constraints for a CA
keyUsage = critical, keyCertSign, cRLSign           # Key usage for a CA

[ crl_ext ]                                         # CRL extensions
authorityKeyIdentifier = keyid:always,issuer        # Authority key identifier

[ v3_intermediate_ca ]
subjectKeyIdentifier = hash
authorityKeyIdentifier = keyid:always,issuer
basicConstraints = critical, CA:true, pathlen:0
keyUsage = critical, digitalSignature, cRLSign, keyCertSign



Here is our openssl_intermediate.cnf file:

[ ca ]                           # The default CA section
default_ca = CA_default          # The default CA name

[ CA_default ]                                           # Default settings for the intermediate CA
dir               = /root/myCA/intermediateCA            # Intermediate CA directory
certs             = $dir/certs                           # Certificates directory
crl_dir           = $dir/crl                             # CRL directory
new_certs_dir     = $dir/newcerts                        # New certificates directory
database          = $dir/index.txt                       # Certificate index file
serial            = $dir/serial                          # Serial number file
RANDFILE          = $dir/private/.rand                   # Random number file
private_key       = $dir/private/intermediate.key.pem    # Intermediate CA private key
certificate       = $dir/certs/intermediate.cert.pem     # Intermediate CA certificate
crl               = $dir/crl/intermediate.crl.pem        # Intermediate CA CRL
crlnumber         = $dir/crlnumber                       # Intermediate CA CRL number
crl_extensions    = crl_ext                              # CRL extensions
default_crl_days  = 30                                   # Default CRL validity days
default_md        = sha256                               # Default message digest
preserve          = no                                   # Preserve existing extensions
email_in_dn       = no                                   # Exclude email from the DN
name_opt          = ca_default                           # Formatting options for names
cert_opt          = ca_default                           # Certificate output options
policy            = policy_loose                         # Certificate policy

[ policy_loose ]                                         # Policy for less strict validation
countryName             = optional                       # Country is optional
stateOrProvinceName     = optional                       # State or province is optional
localityName            = optional                       # Locality is optional
organizationName        = optional                       # Organization is optional
organizationalUnitName  = optional                       # Organizational unit is optional
commonName              = supplied                       # Must provide a common name
emailAddress            = optional                       # Email address is optional

[ req ]                                                  # Request settings
default_bits        = 2048                               # Default key size
distinguished_name  = req_distinguished_name             # Default DN template
string_mask         = utf8only                           # UTF-8 encoding
default_md          = sha256                             # Default message digest
x509_extensions     = v3_intermediate_ca                 # Extensions for intermediate CA certificate

[ req_distinguished_name ]                               # Template for the DN in the CSR
countryName                     = Country Name (2 letter code)
stateOrProvinceName             = State or Province Name
localityName                    = Locality Name
0.organizationName              = Organization Name
organizationalUnitName          = Organizational Unit Name
commonName                      = Common Name
emailAddress                    = Email Address

[ v3_intermediate_ca ]                                      # Intermediate CA certificate extensions
subjectKeyIdentifier = hash                                 # Subject key identifier
authorityKeyIdentifier = keyid:always,issuer                # Authority key identifier
basicConstraints = critical, CA:true, pathlen:0             # Basic constraints for a CA
keyUsage = critical, digitalSignature, cRLSign, keyCertSign # Key usage for a CA

[ crl_ext ]                                                 # CRL extensions
authorityKeyIdentifier=keyid:always                         # Authority key identifier

[ server_cert ]                                             # Server certificate extensions
basicConstraints = CA:FALSE                                 # Not a CA certificate
nsCertType = server                                         # Server certificate type
keyUsage = critical, digitalSignature, keyEncipherment      # Key usage for a server cert
extendedKeyUsage = serverAuth                               # Extended key usage for server authentication purposes (e.g., TLS/SSL servers).
authorityKeyIdentifier = keyid,issuer                       # Authority key identifier linking the certificate to the issuer's public key.
NOTE:
If you are planning to add more intermediate CA certificate then I would recommend to give either a higher value for pathlen or just remove it in the following section. As pathlen restricts creating any further intermediate CA in the chain. You may also create another section v3_intermediate_ca_n and there you can add pathlen: 0 to make sure that is the last intermediate certificate in your chain.



Step 3: Generate the root CA key pair and certificate

Create an RSA key pair for the root CA without a password:

openssl genrsa -out ~/myCA/rootCA/private/ca.key.pem 4096
chmod 400 ~/myCA/rootCA/private/ca.key.pem
IMPORTANT NOTE:
If this key is compromised, the integrity of your CA is compromised, which essentially means that any certificates issued, whether they were issued before the key was compromised or after, can no longer be trusted.

We will use openssl command to view the content of private key:

openssl rsa -noout -text -in ~/myCA/rootCA/private/ca.key.pem

Create the root CA certificate:

  • OpenSSL create certificate chain requires Root and Intermediate Certificate. In this step you'll take the place of VeriSign, Thawte, etc.
  • Use the Root CA key cakey.pem to create a Root CA certificate cacert.pem
  • Give the root certificate a long expiry date. Once the root certificate expires, all certificates signed by the CA become invalid.
  • Whenever you use the openssl req tool, you must specify a configuration file to use with the -config option, otherwise OpenSSL will default to /etc/pki/tls/openssl.cnf
  • We will use v3_ca extensions to create CA certificate
IMPORTANT NOTE:
The Common Name (CN) of the CA and the Server certificates must NOT match or else a naming collision will occur and you'll get errors later on.

Use below command to create Root Certificate Authority Certificate cacert.pem. I have specified the Subj inline to the same command, you can update the command based on your environment.

openssl req -config openssl_root.cnf -key ~/myCA/rootCA/private/ca.key.pem -new -x509 -days 7300 -sha256 -extensions v3_ca -out ~/myCA/rootCA/certs/ca.cert.pem -subj "/C=US/ST=California/L=San Francisco/O=Example Corp/OU=IT Department/CN=Root CA"

The CA certificate can be world readable so that it can be used to sign the cert by anyone.

chmod 444 ~/myCA/rootCA/certs/ca.cert.pem

Execute the below command for openssl verify root CA certificate

openssl x509 -noout -text -in ~/myCA/rootCA/certs/ca.cert.pem

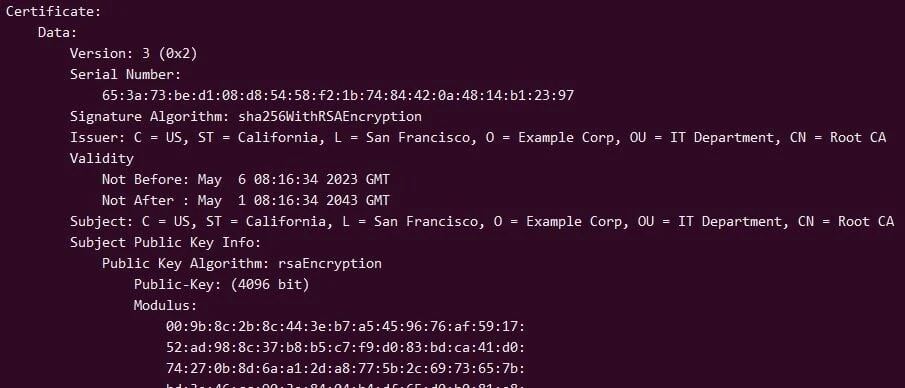

Sample Output:

OpenSSL create certificate chain [Root & Intermediate CA]

The output shows:

  • the Signature Algorithm used
  • the dates of certificate Validity
  • the Public-Key bit length
  • the Issuer, which is the entity that signed the certificate
  • the Subject, which refers to the certificate itself
NOTE:
The Issuer and Subject are identical as the certificate is self-signed.

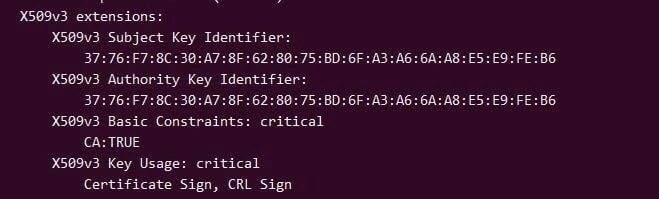

The output also shows the X509v3 extensions. We applied the v3_ca extension, so the options from [ v3_ca ] should be reflected in the output.

OpenSSL create certificate chain [Root & Intermediate CA]



Step 4: Generate the intermediate CA key pair and certificate

Create an RSA key pair for the intermediate CA without a password and secure the file by removing permissions to groups and others:

openssl genrsa -out ~/myCA/intermediateCA/private/intermediate.key.pem 4096
chmod 400 ~/myCA/intermediateCA/private/intermediate.key.pem

Create the intermediate CA certificate signing request (CSR). If you are not familiar with the content to be provided with CSR then you should read Things to consider when creating CSR with OpenSSL

openssl req -config openssl_intermediate.cnf -key ~/myCA/intermediateCA/private/intermediate.key.pem -new -sha256 -out ~/myCA/intermediateCA/certs/intermediate.csr.pem -subj "/C=US/ST=California/L=San Francisco/O=Example Corp/OU=IT Department/CN=Intermediate CA"

Sign the intermediate CSR with the root CA key:

openssl ca -config openssl_root.cnf -extensions v3_intermediate_ca -days 3650 -notext -md sha256 -in ~/myCA/intermediateCA/certs/intermediate.csr.pem -out ~/myCA/intermediateCA/certs/intermediate.cert.pem

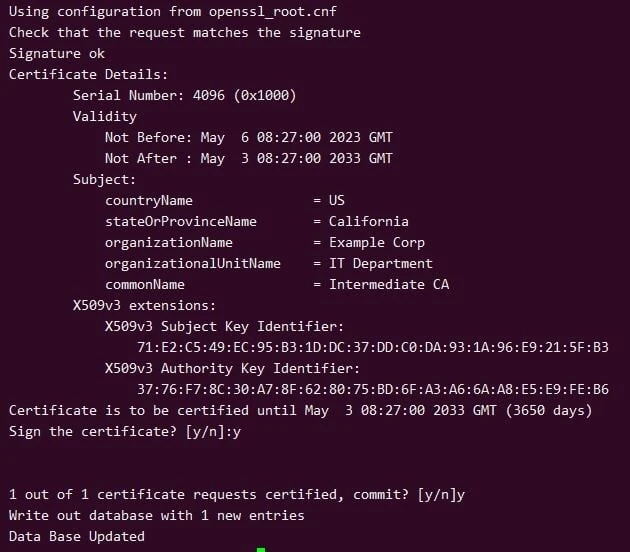

Sample Output:

OpenSSL create certificate chain [Root & Intermediate CA]

Assign 444 permission to the CRT to make it readable by everyone:

chmod 444 ~/myCA/intermediateCA/certs/intermediate.cert.pem

The index.txt file is where the OpenSSL ca tool stores the certificate database. Do not delete or edit this file by hand. It should now contain a line that refers to the intermediate certificate.

# cat ~/myCA/rootCA/index.txt
V 330503082700Z 1000 unknown /C=US/ST=California/O=Example Corp/OU=IT Department/CN=Intermediate CA

Here,

  • V: This field indicates the status of the certificate. In this case, V means "Valid." Other possible values are R for "Revoked" and E for "Expired."
  • 330503082700Z: This field represents the expiration date of the certificate in the format YYMMDDHHMMSSZ. In this example, the certificate will expire on 30th May 2033 at 08:27:00 UTC.
  • 1000: This field is the certificate serial number in hexadecimal format.
  • unknown: This field shows the revocation reason if the certificate has been revoked. For valid certificates, this field usually contains the value "unknown" or is left empty.
  • /C=US/ST=California/O=Example Corp/OU=IT Department/CN=Intermediate CA: This field contains the subject's distinguished name (DN) in the certificate, which consists of various components such as country (C), state or province (ST), organization (O), organizational unit (OU), and common name (CN). In this example, the DN components are as follows:
      • C: US
      • ST: California



    • O: Example Corp
    • OU: IT Department
    • CN: Intermediate CA

Verify the Intermediate CA Certificate content

openssl x509 -noout -text -in ~/myCA/intermediateCA/certs/intermediate.cert.pem

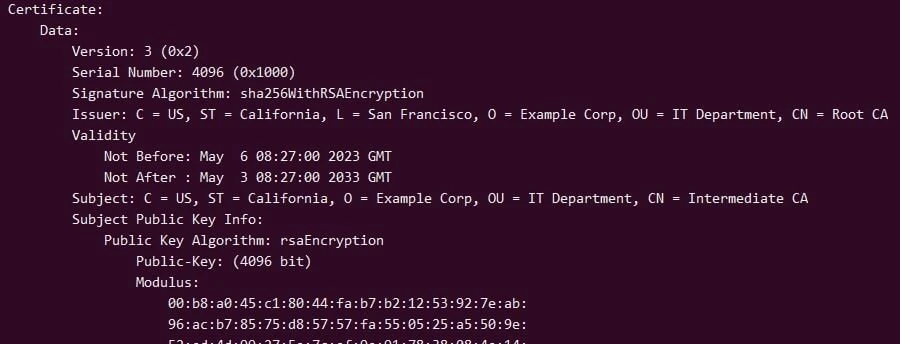

Sample Output:

OpenSSL create certificate chain [Root & Intermediate CA]

Next openssl verify intermediate certificate against the root certificate. An OK indicates that the chain of trust is intact.

openssl verify -CAfile ~/myCA/rootCA/certs/ca.cert.pem ~/myCA/intermediateCA/certs/intermediate.cert.pem

Output:

/root/myCA/intermediateCA/certs/intermediate.cert.pem: OK



Step 5: Generate OpenSSL Create Certificate Chain (Certificate Bundle)

To openssl create certificate chain (certificate bundle), concatenate the intermediate and root certificates together.

In the below example I have combined my Root and Intermediate CA certificates to openssl create certificate chain in Linux. We will use this file later to verify certificates signed by the intermediate CA.

cat ~/myCA/intermediateCA/certs/intermediate.cert.pem ~/myCA/rootCA/certs/ca.cert.pem > ~/myCA/intermediateCA/certs/ca-chain.cert.pem

After openssl create certificate chain, to verify certificate chain use below command:

openssl verify -CAfile ~/myCA/intermediateCA/certs/ca-chain.cert.pem ~/myCA/intermediateCA/certs/intermediate.cert.pem

Output:

/root/myCA/intermediateCA/certs/intermediate.cert.pem: OK



Step 6: Generate and sign server certificate using Intermediate CA

Create a private key for the server:

openssl genpkey -algorithm RSA -out ~/myCA/intermediateCA/private/www.example.com.key.pem
chmod 400 ~/myCA/intermediateCA/private/www.example.com.key.pem

Create a certificate signing request (CSR) for the server:

openssl req -config ~/myCA/openssl_intermediate.cnf -key ~/myCA/intermediateCA/private/www.example.com.key.pem -new -sha256 -out ~/myCA/intermediateCA/csr/www.example.com.csr.pem

You'll be asked a series of questions about the certificate. For the Common Name question, you should enter the domain name of the server (e.g., www.example.com).

OR

You can automate the certificate signing request (CSR) creation by supplying default answers to the questions asked by the openssl req command.

These defaults can be specified in the openssl.cnf (or openssl_intermediate.cnf in this case) file, under the [ req_distinguished_name ] section.

[ req_distinguished_name ]
countryName_default = US
stateOrProvinceName_default = California
localityName_default = San Francisco
0.organizationName_default = Example Corp
organizationalUnitName_default = IT Department
commonName_default = www.example.com
emailAddress_default = admin@example.com

By including these lines in your openssl_intermediate.cnf file, openssl req will use these as the default values for the corresponding fields, allowing the command to be run non-interactively.

Then, you can use the -batch option with openssl req command to automatically use these defaults without prompting for them:

openssl req -config ~/myCA/openssl_intermediate.cnf -key ~/myCA/intermediateCA/private/www.example.com.key.pem -new -sha256 -out ~/myCA/intermediateCA/csr/www.example.com.csr.pem -batch

Sign the server CSR with the intermediate CA:

openssl ca -config ~/myCA/openssl_intermediate.cnf -extensions server_cert -days 375 -notext -md sha256 -in ~/myCA/intermediateCA/csr/www.example.com.csr.pem -out ~/myCA/intermediateCA/certs/www.example.com.cert.pem

Sample Output:

Using configuration from /root/myCA/openssl_intermediate.cnf
Check that the request matches the signature
Signature ok
Certificate Details:
        Serial Number: 4096 (0x1000)
        Validity
            Not Before: Jun 12 05:32:08 2023 GMT
            Not After : Jun 21 05:32:08 2024 GMT
        Subject:
            countryName               = US
            stateOrProvinceName       = California
            localityName              = San Francisco
            organizationName          = Example Corp
            organizationalUnitName    = IT Department
            commonName                = www.example.com
        X509v3 extensions:
            X509v3 Basic Constraints:
                CA:FALSE
            Netscape Cert Type:
                SSL Server
            X509v3 Key Usage: critical
                Digital Signature, Key Encipherment
            X509v3 Extended Key Usage:
                TLS Web Server Authentication
            X509v3 Authority Key Identifier:
                A1:99:57:5D:B1:10:A2:24:C8:FE:09:D4:48:24:B7:0F:2B:C5:D2:2B
Certificate is to be certified until Jun 21 05:32:08 2024 GMT (375 days)
Sign the certificate? [y/n]:y


1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated

Verify the server certificate:

openssl x509 -noout -text -in ~/myCA/intermediateCA/certs/www.example.com.cert.pem

Sample Output:

Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number: 4096 (0x1000)
        Signature Algorithm: sha256WithRSAEncryption
        Issuer: C = US, ST = California, O = Example Corp, OU = IT Department, CN = Intermediate CA
        Validity
            Not Before: Jun 12 05:32:08 2023 GMT
            Not After : Jun 21 05:32:08 2024 GMT
        Subject: C = US, ST = California, L = San Francisco, O = Example Corp, OU = IT Department, CN = www.example.com
        Subject Public Key Info:
            Public Key Algorithm: rsaEncryption
                Public-Key: (2048 bit)
                Modulus:
                    00:8f:1b:b4:59:15:07:5b:ba:89:97:cc:98:bf:53:
                    18:e9:e7:3a:a1:cd:e3:74:75:cd:1e:6d:02:7b:4f:
                    66:89:32:d0:ea:35:19:bc:d4:66:6a:71:e1:a2:66:
                    a4:01:24:85:0a:c6:c8:17:3a:e8:63:12:bd:ef:78:
                    cf:f4:e6:3c:67:1c:41:d5:12:d9:d7:3b:fb:3a:80:
                    7a:35:f6:0d:ee:33:c4:4a:3a:91:a9:e4:33:e0:63:
                    97:97:0e:06:ca:71:34:16:bc:29:93:83:cf:01:bf:
                    da:29:b5:e2:48:01:3a:96:b6:1a:3b:9f:70:80:67:
                    bd:7f:14:e4:bf:25:f7:0f:b2:1a:03:37:7f:f1:93:
                    7f:3d:08:6f:1e:ed:d7:13:50:f9:a3:e6:17:5e:7f:
                    8f:c4:8e:0e:a5:ce:d0:23:0d:bc:6a:85:d2:e5:28:
                    bf:0a:84:53:93:a0:6d:d6:07:25:36:6b:df:c9:ba:
                    dd:16:52:6a:7f:11:fd:5f:1d:ca:e0:50:87:19:00:
                    c7:fc:ff:45:b4:7e:2f:7a:ca:26:62:44:9a:76:57:
                    fe:6c:df:36:9c:3e:c8:a8:3c:62:34:c8:13:f9:48:
                    64:2b:a9:ed:fd:2f:0e:52:5c:7f:93:92:ed:d5:d5:
                    2b:88:b1:c4:b6:35:d7:74:00:0f:ef:b9:9b:3b:80:
                    98:c9
                Exponent: 65537 (0x10001)
        X509v3 extensions:
            X509v3 Basic Constraints:
                CA:FALSE
            Netscape Cert Type:
                SSL Server
            X509v3 Key Usage: critical
                Digital Signature, Key Encipherment
            X509v3 Extended Key Usage:
                TLS Web Server Authentication
            X509v3 Authority Key Identifier:
                A1:99:57:5D:B1:10:A2:24:C8:FE:09:D4:48:24:B7:0F:2B:C5:D2:2B
            X509v3 Subject Key Identifier:
                E3:6B:0E:75:91:EF:B6:06:AE:A3:18:AC:66:AD:F1:4C:90:85:F3:BE
    Signature Algorithm: sha256WithRSAEncryption
    Signature Value:
        52:12:13:4f:44:69:44:94:21:c6:b3:6c:79:bb:59:c0:96:09:
        98:4d:da:b5:74:f7:e9:b1:0b:a1:c0:ba:8a:17:20:97:40:5b:
        48:c7:1a:fb:ee:23:bc:f2:b2:cb:24:82:6c:6a:83:d2:68:a5:
        86:19:80:4b:fc:52:c2:22:6b:b3:80:50:da:c5:a2:dd:25:9a:
        7c:08:84:c6:67:b1:36:30:91:63:8a:85:84:28:4f:92:a2:d6:
        39:a6:6e:ff:ff:80:1b:4d:e7:26:8e:d5:04:55:b2:01:47:c5:
        88:d2:14:9f:e9:26:6e:be:c9:d1:94:f9:04:c7:c9:bf:08:eb:
        67:4f:3e:25:6d:1a:fa:37:c1:6f:e0:ea:88:87:11:0f:73:b7:
        a3:25:2a:7d:16:84:12:e6:42:b8:81:34:da:ba:66:44:dc:a6:
        9f:f2:6f:8a:ae:34:20:d5:d4:b6:0d:b2:b5:a2:22:53:8e:3e:
        39:ad:d3:35:a1:68:91:bb:f6:8e:80:31:cf:02:ae:4d:2c:d6:
        0c:c0:26:12:6d:0f:89:a6:d0:c1:48:91:4a:c4:e7:00:1d:0b:
        e6:c5:c5:a5:19:e1:b9:93:03:22:42:59:57:31:4c:ac:37:53:
        cd:16:19:7a:67:d8:7c:c0:b0:7f:0a:1e:29:c2:53:16:b6:ff:
        2b:40:8c:6c:ab:5e:a8:26:a8:0f:af:a2:6d:49:13:5b:ca:69:
        64:92:6b:1b:aa:3d:fa:07:90:92:38:ad:97:b4:22:11:26:87:
        61:7c:15:26:71:74:39:ef:93:b5:7b:74:47:67:e9:b4:53:8e:
        b4:a8:a4:da:a4:dd:68:79:5e:57:33:19:46:e7:f4:41:e3:20:
        dc:45:45:fe:4a:90:d9:e2:c1:0b:6d:3a:43:e0:1d:f5:a2:d2:
        d2:d9:68:c9:b4:b4:7f:62:85:8e:89:20:88:23:ab:f9:43:af:
        3f:0f:55:15:32:ff:03:bf:83:b0:ac:9c:3a:d2:56:06:f5:a7:
        ae:ab:45:0f:68:84:86:11:23:6f:7a:1f:0f:5a:0f:1a:84:e1:
        71:21:56:b6:61:98:8e:cc:f5:28:c3:70:8b:dc:9c:f8:61:d1:
        01:4e:e8:e2:18:33:82:c0:b0:cd:ee:6d:c6:94:96:78:fb:92:
        fc:14:a6:80:85:28:43:bf:62:08:a0:94:16:20:1a:2b:7d:c0:
        66:54:de:9b:ca:95:85:a7:dc:d6:a4:ea:ab:3e:0c:7a:e4:79:
        6e:34:17:7e:a4:9d:75:63:bf:08:66:dd:6a:79:33:fe:38:68:
        64:24:e8:0e:db:cc:92:13:44:de:0c:2f:64:5a:38:69:ee:98:
        33:78:af:ab:04:4d:83:15



Bonus Tip: Signing and Revoking a certificate using Intermediate CA

You can read more about certificate revocation at Revoke certificate and generate CRL OpenSSL

Revoking a certificate is the process of invalidating a previously issued SSL/TLS certificate before its expiration date. A certificate may need to be revoked for various reasons, such as:

  1. The private key associated with the certificate has been compromised.
  2. The certificate was issued fraudulently.
  3. The information in the certificate has changed, and it no longer accurately represents the subject.

Here I have generated some certificates under /certs folder and signed it using my intermediate CA.

# cat ~/myCA/intermediateCA/index.txt
V	240515083923Z		1000	unknown	/C=US/ST=California/L=San Francisco/O=Example Corp/OU=IT Department/CN=example.com

# cat ~/myCA/intermediateCA/serial
1001

# ls -l /certs/
total 12
-rw-r--r-- 1 root root 1769 May  6 14:09 server.cert.pem
-rw-r--r-- 1 root root 1037 May  6 14:08 server.csr.pem
-rw------- 1 root root 1704 May  6 14:07 server.key.pem

To revoke a certificate using OpenSSL, follow these steps:

Locate the certificate you want to revoke. You will need the certificate file (usually in PEM format, with the extension .crt, .cer, or .pem) or its serial number.

Revoke the certificate using the openssl ca command with the -revoke option. If you are revoking an end-entity (server or client) certificate signed by the intermediate CA, you will use the intermediate CA configuration file. For example:

openssl ca -config ~/myCA/openssl_intermediate.cnf -revoke /certs/server.cert.pem

Output:

Using configuration from /root/myCA/openssl_intermediate.cnf
Revoking Certificate 1000.
Data Base Updated
NOTE:
If you are revoking an intermediate CA certificate signed by the root CA, you will use the root CA configuration file. For example:
openssl ca -config openssl_root.cnf -revoke /path/to/intermediate_certificate.pem

After revoking the certificate, update the Certificate Revocation List (CRL) to include the newly revoked certificate. The CRL is a list of revoked certificates that clients can check to determine if a certificate is still valid.

Generate an updated CRL using the openssl ca command with the -gencrl option:

openssl ca -config ~/myCA/openssl_intermediate.cnf -gencrl -out ~/myCA/intermediateCA/crl/intermediate.crl.pem

Output:

Using configuration from /root/myCA/openssl_intermediate.cnf

The line with 1000 in the index.txt file represents a revoked certificate with the serial number 1000. The fields indicate the certificate's status (R for revoked), revocation date, expiration date, serial number, and subject information.

# cat ~/myCA/intermediateCA/index.txt
R 240515083923Z 230506084237Z 1000 unknown /C=US/ST=California/L=San Francisco/O=Example Corp/OU=IT Department/CN=example.com

The crlnumber file content 0101 represents the current CRL number, which is incremented each time a new Certificate Revocation List is generated.

# cat intermediateCA/crlnumber
0101

To get the list of revoked certificates from intermediate CA, we can use below command:

openssl crl -in ~/myCA/intermediateCA/crl/intermediate.crl.pem -text -noout

Output:

OpenSSL create certificate chain [Root & Intermediate CA]



Conclusion

In this guide, we walked through the process of creating a certificate chain using OpenSSL. The certificate chain is an essential component of Public Key Infrastructure (PKI), which allows secure communication between clients and servers over the internet. We covered the following topics:

  • Setting up a directory structure for the Root and Intermediate Certificate Authorities (CAs).
  • Creating configuration files (openssl.cnf) for the Root and Intermediate CAs.
  • Generating a Root CA private key and self-signed certificate.
  • Generating an Intermediate CA private key and Certificate Signing Request (CSR).
  • Signing the Intermediate CA's CSR with the Root CA, resulting in the Intermediate CA certificate.
  • Creating a Certificate Authority Bundle, which includes the Root and Intermediate CA certificates.
  • Generating a server private key and CSR.
  • Signing the server's CSR with the Intermediate CA, resulting in the server certificate.
  • Revoking a server certificate, updating the Certificate Revocation List (CRL), and managing the CRL numbers.

By following these steps, you can establish a secure and trustworthy certificate chain for your web services, allowing clients to verify the authenticity of your server and communicate securely.



References

I have used below external references for this tutorial guide
OpenSSL create certificate chain with root and intermediate certificate
Network Security with OpenSSL



Related Searches: Openssl create certificate chain, root ca certificate, intermediate ca certificate, verify certificate chain, create ca bundle, verify ca certificate, openssl verify certificate, openssl view certificate, openssl get certificate info

Views: 2,178

Deepak Prasad

He is the founder of GoLinuxCloud and brings over a decade of expertise in Linux, Python, Go, Laravel, DevOps, Kubernetes, Git, Shell scripting, OpenShift, AWS, Networking, and Security. With extensive experience, he excels in various domains, from development to DevOps, Networking, and Security, ensuring robust and efficient solutions for diverse projects. You can reach out to him on his LinkedIn profile or join on Facebook page.

Can't find what you're searching for? Let us assist you.

Enter your query below, and we'll provide instant results tailored to your needs.

If my articles on GoLinuxCloud has helped you, kindly consider buying me a coffee as a token of appreciation.

Buy GoLinuxCloud a Coffee

For any other feedbacks or questions you can send mail to admin@golinuxcloud.com

Thank You for your support!!

64 thoughts on “OpenSSL create certificate chain [Root & Intermediate CA]”

  1. Thank you very much for working on that.
    In fact, you did exactly what I ended up doing after many attempts of making it work. Which was to change the the way to run the verify command.
    At first I thought you could add all certificates after -CAfile parameter and then openssl would verify the last CA on the chain in order.

    openssl verify -CAfile  rootCA.pem intermediateCA1.pem intermediateCA2.pem

    But, as you did:

    [root@server intermediate_1]# cat intermediate/certs/intermediate.cacert.pem certs/cacert.pem > intermediate/certs/ca-chain-bundle.cert.pem
    [root@server intermediate_1]# cd ..
    [root@server tls]# openssl verify -CAfile  certs/ca-chain-bundle.cert.pem intermediate_1/certs/intermediate_1.cacert.pem
    intermediate_1/certs/intermediate_1.cacert.pem: OK

    I created one bundle with rootCA.pem and intermediateCA1.pem and then verified against intermediateCA2.pem and that returned OK.

    openssl -verify -CAfile CAbundle-rootca-intermediateCA1.pem intermediateCA2.pem

    The same pattern worked when I created the certificate to be used on my server. I’ve run something like:

    cat intermediateCA2.pem intermediateCA1.pem rootCA.pem > chainCA.pem
    openssl -verify -CAfile chainCA.pem server.pem

    Then I configured my server with the server certificate and my client with the bundle and everythink worked like a charm.

    Thanks you so much for your help,

    P.S.: I will try to create a script to automate this process and if you want I can share it here. But I strongly recommend people to follow the manual steps. If I had a script, I would not know what I’ve learned by doing everything manually.

    Reply
  2. Congratz for the article. Very useful.

    However, I would like to know how can I create a chain with 2 intermediate certificates. It is not clear to me what have to be changed on the intermediate CA creation to create the second intermediate CA.
    What I want to achieve is something like this:
    root CA –> Intermediate CA 1 –> Intermediate CA 2

    I took the steps from 7 to 12 to try to create the second intermediate CA. But I guess I ended up creating something like this:
    root CA –> Intermediate CA 1
    root CA –> Intermediate CA 2

    Can you please help me on that?

    Reply
    • In my example I have used the primary root CA to sign the IM CA1 so in your case you can create further sub directory inside IM CA1 and then use IM CA1 to sign your IM CA2 to make it root CA -> IM CA1 -> IM CA2

      Reply
      • Yeah, that was one of my attempts to accomplish that, but when I run openssl verify using the 3 CAs I am getting an error.

        [root@poargs-ws16 intermediate]# openssl verify -CAfile /root/tls/certs/cacert.pem certs/intermediate.cacert.pem intermediate2/certs/intermediate2.cacert.pem
        /root/tls/intermediate/certs/intermediate.cacert.pem: OK
        C = BR, ST = XX, L = XX, O = XX, OU = XX, CN = Intermediate CA II, emailAddress = XX
        error 20 at 0 depth lookup: unable to get local issuer certificate
        error /root/tls/intermediate/intermediate2/certs/intermediate2.cacert.pem: verification failed

        Searching on internet I’ve found I could use the flag -untrusted on openssl. And using that, I get a successful check. Is that the correct way to verify a chain of certificates?

        [root@poargs-ws16 intermediate]# openssl verify -CAfile /root/tls/certs/cacert.pem -untrusted certs/intermediate.cacert.pem intermediate2/certs/intermediate2.cacert.pem
        /root/tls/intermediate/intermediate2/certs/intermediate2.cacert.pem: OK

        Also, if I run the verify on the bundle, it returns me a failure as well:

        [root@poargs-ws16 intermediate]# openssl verify -CAfile /root/tls/certs/cacert.pem /root/tls/certs/ca-chain-bundle.cert.pem
        C = BR, ST = XX, L = XX, O = XX, OU = XX, CN = Intermediate CA II, emailAddress = XX
        error 20 at 0 depth lookup: unable to get local issuer certificate
        error /root/tls/certs/ca-chain-bundle.cert.pem: verification failed

        I will retry the procedures to see if I get anything different, but if you could please advise I would be glad.

        Thanks again.

        Reply
        • Your observations are interesting, I would have assumed that it will work. I remember creating multi level ca bundle and the verification had worked. Let me do some test runs myself and then may be I can guide better. If you are able to crack this before me then please do share here.

          Reply
        • I think I found the problem. I am setting pathlen:0 under v3_intermediate_ca which means that no non-self-issued intermediate CA certificates may follow in a valid certification path. So either we can give a higher value for this or just remove it and create another section for second intermedtiate CA

          [ v3_intermediate_ca_2 ]
          subjectKeyIdentifier = hash
          authorityKeyIdentifier = keyid:always,issuer
          basicConstraints = critical, CA:true, pathlen:0
          keyUsage = critical, digitalSignature, cRLSign, keyCertSign

          With this change I was able to create two level of intermediate CA certificate:

          [root@server tls]# cat index.txt
          V       280709181246Z           01      unknown /C=IN/ST=Karnataka/O=GoLinuxCloud/CN=ca-server Intermediate CA I/emailAddress=admin@golinuxcloud.com
          V       251013181639Z           02      unknown /C=IN/ST=Karnataka/O=GoLinuxCloud/CN=ca-server Intermediate CA II/emailAddress=admin@golinuxcloud.com

          The verification was also success:

          [root@server tls]# openssl verify -CAfile certs/cacert.pem intermediate_1/intermediate_2/certs/intermediate_2.cacert.pem intermediate_1/certs/intermediate_1.cacert.pem
          intermediate_1/intermediate_2/certs/intermediate_2.cacert.pem: OK
          intermediate_1/certs/intermediate_1.cacert.pem: OK

          Also from the ca-bundle:

          [root@server tls]# cat intermediate_1/intermediate_2/certs/intermediate_2.cacert.pem  intermediate_1/certs/intermediate_1.cacert.pem certs/cacert.pem > certs/ca-chain-bundle.cert.pem
          [root@server tls]# openssl verify -CAfile certs/cacert.pem certs/ca-chain-bundle.cert.pem
          certs/ca-chain-bundle.cert.pem: OK

          My directory structure (if it helps)

          [root@server tls]# tree .
          .
          ├── certs
          │   ├── 01.pem
          │   ├── 02.pem
          │   ├── cacert.pem
          │   └── ca-chain-bundle.cert.pem
          ├── index.txt
          ├── index.txt.attr
          ├── index.txt.attr.old
          ├── index.txt.old
          ├── intermediate_1
          │   ├── certs
          │   │   └── intermediate_1.cacert.pem
          │   ├── crlnumber
          │   ├── csr
          │   │   └── intermediate_1.csr.pem
          │   ├── index.txt
          │   ├── intermediate_2
          │   │   ├── certs
          │   │   │   └── intermediate_2.cacert.pem
          │   │   ├── csr
          │   │   │   └── intermediate_2.csr.pem
          │   │   ├── index.txt
          │   │   ├── openssl.cnf
          │   │   ├── private
          │   │   │   └── intermediate_2.cakey.pem
          │   │   └── serial
          │   ├── openssl.cnf
          │   ├── private
          │   │   └── intermediate_1.cakey.pem
          │   └── serial
          ├── openssl.cnf
          ├── private
          │   └── cakey.pem
          ├── serial
          └── serial.old

          10 directories, 25 files
          Reply
          • I don’t know if I did it right, but I am still having issues with intermediate 2.

            [root@poargs-ws16 certificates]# openssl verify -CAfile certs/cacert.pem ica1/certs/ica1.cacert.pem ica1/ica2/certs/ica2.cacert.pem
            ica1/certs/ica1.cacert.pem: OK
            C = BR, ST = XX, L = XX, O = XX, OU = XX, CN = ICA II, emailAddress = XX
            error 20 at 0 depth lookup: unable to get local issuer certificate
            error ica1/ica2/certs/ica2.cacert.pem: verification failed

            What I did was to change v3_intermediate_ca and remove the pathlen:0 as basic constraint. The sections is like this:

            [ v3_intermediate_ca ]
            subjectKeyIdentifier = hash
            authorityKeyIdentifier = keyid:always,issuer
            basicConstraints = critical, CA:true
            keyUsage = critical, digitalSignature, cRLSign, keyCertSign

            How did you o it? Did you increase pathlen to 2 or something like that?

            Reply
            • Sorry for the confusion, I made a mistake in my last trial. I used the root CA to sign both the intermediate certificate which is why the following command was successful

              [root@server tls]# openssl verify -CAfile certs/cacert.pem intermediate_1/intermediate_2/certs/intermediate_2.cacert.pem intermediate_1/certs/intermediate_1.cacert.pem
              intermediate_1/intermediate_2/certs/intermediate_2.cacert.pem: OK
              intermediate_1/certs/intermediate_1.cacert.pem: OK

              This is wrong because root CA is not supposed to sign level 2 CA. I have corrected it and re-verified and it worked. I have mailed you the detailed steps with all the output. Let me know if you are still facing any issues.

              Reply
              • Just to add one more thing, the expiry of each intermediate certificate should be less than it’s parent CA certificate

                Reply
  3. STEP 11.
    USING COMMAND LINE

    C:\Users\Lenovo\root\tls>openssl ca -config openssl.cnf -extensions v3_intermediate_ca -days 3650 -notext -batch -in intermediate/csr/intermediate.csr.pem -out intermediate/certs/intermediate.cacert.pem
    -----------------------------------------------------------------
    ERROR
    Using configuration from openssl.cnf
    Can't open /root/tls/private/cakey.pem for reading, No such file or directory
    7760:error:02001003:system library:fopen:No such process:crypto\bio\bss_file.c:69:fopen('/root/tls/private/cakey.pem','r')
    7760:error:2006D080:BIO routines:BIO_new_file:no such file:crypto\bio\bss_file.c:76:
    unable to load CA private key

    can you help

    Reply
        • You are using the provided openssl.cnf which uses /root/tls/private to store the private key. Check private_key variable in the openssl.cnf file.
          I can only assume that you have not created the private key as explained in Step 5 or you have created it in a different location or with a different name.

          Reply
          • Hello
            Even am getting the same error at step 11.The only different thing I did is while creating encrypted password file as the pbkdf2 was not supported “openssl enc -aes256 -md sha512 -salt -in mypass -out mypass.enc “.
            It works smoothly till step 11.Kindly Help.

            Reply
            • For the above failure, the error message is quite clear

              Can't open /root/tls/private/cakey.pem for reading, No such file or directory

              Have you copied the openssl.cnf as I have explained in step 8. If yes please share the exact error message what you see.
              As per my setup you should be inside /root/tls or you can provide the absolute path of openssl.cnf created for intermediate certificate.

              Reply
  4. Hi, so once I have the root ca and the intermediate ca, how do i create a client certificate using the intermediate ca in way which the intermediate ca will actually log the creation of the client certificate in the intermediate/index.txt file?

    I have followed the instructions here https://www.golinuxcloud.com/openssl-create-client-server-certificate/ and I can get a working client certificate but the intermediate ca has not logged the fact that it was signed in the index.txt file?

    Am i right in thinking tls/openssl.cnf is for root ca, intermediate/openssl.cnf is for the intermediate ca, and I now need to create a new openssl.cnf for ultimate client certificates made using the intermediate ca? Is this right? or do I just use the intermediate/openssl.cnf?

    Thanks for your help.

    Reply
    • In the above example I was using openssl.cnf from the root ca so the index.txt of the root CA was updated, you can use intermediate/openssl.cnf in step 11 so index.txt of the intermediate certificate would be updated but that wouldn’t make sense here as we were signing the intermediate certificate.

      I have used a different command to sign the certificates in the client-server certificate article which you shared, to update the index.txt every time you sign a certificate using intermediate certificate you can use

      openssl ca -config <path to your openssl.cnf> [-extensions <if any>] -days 3650 -notext -batch -in <your CSR> -out <CERTIFICATE_to_BE_CREATED>

      For example, here I have signed two server certificates:

      ~]# cat index.txt
      V       280512060848Z           01      unknown /C=IN/ST=KARNATAKA/O=GoLinuxCloud/OU=R&D/CN=server-3
      V       280512061340Z           02      unknown /C=IN/ST=KARNATAKA/O=GoLinuxCloud/OU=R&D/CN=server-5
      Reply
    • Do you mean you want to add certificates to existing bundle -in which case you have to add the new CA cert the same order as it was added earlier
      For creating new CA chain bundle you can follow the same steps as I have mentioned here.

      Reply
      • hi – thanks for the reply.

        no, i meant create a server certificate that uses the chain in a wildcard certificate i bought from a commercial CA. it isn’t really possible of course. i asked before i really understood the concepts involved.

        Reply
  5. Thanks for providing this. I have an implementation question however as we have run into variations on where the intermediary certificates should be vs the root CA certificates. There is a school of thought that the web server certificate should include the intermediary CA chain with it, and present it to clients, and the client’s trust store (CA Bundle) should only contain the root CA. It becomes problematic to have to overload a complex private CA heirarchy across all client nodes truststores (CA bundles) as opposed to only providing the root CA.

    Is anyone else seeing this used as a practice?

    Reply
  6. I found the bug, it was my fault. Sorry
    Nice instructions, but there is a small mistake:
    OpenSSL verify Certificate Chain
    After openssl create certificate chain, to verify certificate chain use below command:
    [root@centos8-1 tls]# openssl verify -CAfile certs/cacert.pem intermediate/certs/intermediate.cacert.pem
    Not like this, but like this:
    [root@centos8-1 tls]# openssl verify -CAfile certs/cacert.pem intermediate/certs/ca-chain-bundle.cert.pem

    Reply
    • Thank you for highlighting this. You are right, the provided text and commands didn’t matched so I have updated the command snippet. We were actually supposed to verify the certificate chain instead of intermediate cert

      Reply
  7. openssl ca -config openssl.cnf -extensions v3_intermediate_ca -days 2650 -notext -batch -passin file:mypass.enc -in intermediate/csr/intermediate.csr.pem -out intermediate/certs/intermediate.cacert.pem

    My Version:
    andre@Heimserver:~/Zertifikat Baustelle/root/tls$ openssl ca -config apache_intermediate_ca.cnf -extensions v3_intermediate_ca -days 3650 -notext -batch -passin file:andrepass.enc -in intermediate/csr/apache_intermediate.csr.pem -out intermediate/certs/apache_intermediate_ca.crt
    Using configuration from apache_intermediate_ca.cnf
    Could not open file or uri /root/tls/private/andre-root-ca-key.pem for loading CA private key
    40C711AC187F0000:error::system library:file_open:Permission denied:crypto/store/loader_file.c:919:calling stat(/root/tls/private/andre-root-ca-key.pem)
    Unable to load CA private key

    Thanks for the great instructions and the wasted lifetime

    Reply

Leave a Comment

GoLinuxCloud Logo


We try to offer easy-to-follow guides and tips on various topics such as Linux, Cloud Computing, Programming Languages, Ethical Hacking and much more.

Programming Languages

JavaScript

Python

Golang

Node.js

Java

Laravel
