vgcreate command examples in Linux [Cheat Sheet]

Introduction to vgcreate command

vgcreate command in Linux creates a new volume group using block devices. Physical volumes (PVs) are combined into volume groups (VGs). This creates a pool of disk space out of which logical volumes can be allocated. In the volume group, the disk space available for allocation is divided into units of a fixed size called extents. An extent is the smallest unit of space that can be allocated. The extents are referred to as physical extents in the physical volume. When physical volumes are used to create a volume group, its disk space is divided into 4MB extents, by default.



Are you new to LVM and still learning how it works?

We have written detailed articles covering different areas of managing logical volumes, which you can follow using the below links:

Advertisement

Manage Logical Volume in Linux - One STOP Solution
Understand LVM Architecture
Create LVM during installation RHEL/CentOS 7/8
How to use LVM Snapshot for Backup and Restore
Create Mirrored Logical Volume
Create Striped Logical Volume



How to install vgcreate

vgcreate command is available in the lvm2 package in Linux. You can use the following command to install the lvm2 package according to your Linux distribution.

To install lvm2 on CentOS, Fedora, and RHEL

$ sudo yum install lvm2

To install lvm2 on Ubuntu and Debian

$ sudo apt install lvm2



Different examples to use vgcreate command

You will need the root privileges to use the vgcreate command. The syntax for vgcreate command is:

$ sudo vgcreate [option] VG_new PV



1. Create a volume group using one or more physical volumes

The vgcreate command creates a new volume group by name and adds at least one physical volume to it.

Advertisement

The following command creates a volume group named vol_grp that contains a physical volume /dev/sda1.

$ sudo vgcreate vol_grp /dev/sda1

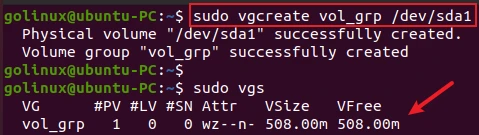

Sample Output:

The vgs command is used to view the list of volume groups.

vgcreate command to create volume group from physical volumes

If the device was not previously initialized as a physical volume (PV) with pvcreate, vgcreate will initialize them, making them PV.

golinux@ubuntu-PC:~$ sudo pvs
  PV         VG      Fmt  Attr PSize   PFree
  /dev/sda1  vol_grp lvm2 a--  508.00m 508.00m

You can specify multiple physical volumes to create a new volume group from them.

golinux@ubuntu-PC:~$ sudo vgcreate vol_grp2 /dev/sda2 /dev/sda5 /dev/sda7
  Volume group "vol_grp2" successfully created



2. Set the physical extent size on physical volumes of this volume group

You can specify the extent size with the -s or --physicalextentsize option if the default extent size is not suitable. The default is 4 MiB and it must be at least 1 KiB and a power of 2.

The following command creates a new volume group ext_vg with the physical extent size of 8MiB that contains the physical volume /dev/sda1.

$ sudo vgcreate -s 8M ext_vg /dev/sda1

OR

Advertisement
$ sudo vgcreate --physicalextentsize 8M vol_grp /dev/sda1

Sample Output:

golinux@ubuntu-PC:~$ sudo vgcreate -s 8M ext_vg /dev/sda1
  Volume group "ext_vg" successfully created



3. Set the maximum number of physical volumes

You can use -p or --maxphysicalvolumes option to set the maximum number of physical volumes that can belong to this volume group.

$ sudo vgcreate -p NUM VG_new PV

OR

$ sudo vgcreate --maxphysicalvolumes NUM VG_new PV



4. Set the maximum number of logical volumes

You can use -l or --maxlogicalvolumes to set the maximum number of logical volumes allowed in this volume group.

The following command creates a new volume group lv_grp and sets 1 as the maximum number of logical volumes allowed in that volume group.

$ sudo vgcreate -l 1 lv_grp /dev/sda1

OR

$ sudo vgcreate --maxlogicalvolumes 1 lv_grp /dev/sda1

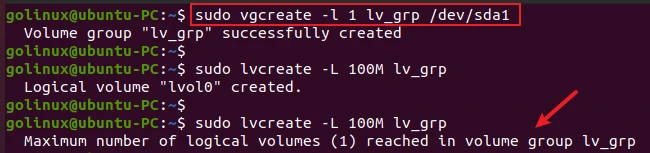

Sample Output:

As you can see, it shows an error when we tried to create the second logical volume on the volume group lv_grp.

vgcreate command to set maximum number of logical volumes allowed



5. vgcreate command to specify the allocation policy

When a command needs to allocate Physical Extents (PEs) from the volume group, the allocation policy is followed. By default, a volume group allocates physical extents according to common-sense rules such as not placing parallel stripes on the same physical volume. It is the normal allocation policy.

You can use the --alloc option to specify an allocation policy of contiguous, cling, anywhere, or inherit.

$ sudo vgcreate --alloc contiguous|cling|cling_by_tags|normal|anywhere|inherit VG_new PV

Sample Output:

golinux@ubuntu-PC:~$ sudo vgcreate --alloc contiguous new_vg /dev/sda1
  Volume group "new_vg" successfully created

The allocation policies can be changed by using the vgchange command. For more information about allocation, see lvm.



6. Set the desired number of metadata copies in the volume group.

You can use the --vgmetadatacopies to set the desired number of metadata copies in the volume group. It is useful for volume groups containing large numbers of physical volumes with metadata as it can minimize metadata read and write overhead. The default value is unmanaged.

$ sudo vgcreate --vgmetadatacopies all|unmanaged|Number VG_new PV

Sample Output:

golinux@ubuntu-PC:~$ sudo vgcreate --vgmetadatacopies 50 vg06 /dev/sda1
  Volume group "vg06" successfully created



Conclusion

In this article, we showed you how to use vgcreate command to create a new volume group in the Linux system. If you have any queries, please let us know in the comment section below.
