Configure Client Certificate Authentication in 389 Directory Server

Client certificate authentication lets LDAP clients prove their identity with a TLS client certificate instead of transmitting a directory password. Directory Server validates the certificate against a trusted client CA, maps the certificate subject to one LDAP entry through certmap.conf, and completes authentication with SASL EXTERNAL.

In this guide, we'll trust the client CA, configure certificate mapping, test optional and mandatory client certificates, enable userCertificate verification, and verify SASL EXTERNAL over LDAPS and STARTTLS. Server certificate deployment belongs in TLS, STARTTLS, and LDAPS. Secure-bind enforcement belongs in require secure LDAP connections.

Before you start:

• TLS, STARTTLS, and LDAPS — working LDAPS, STARTTLS, and server CA trust
• Certificate management — CA import, trust flags, and NSS concepts
• Manage users and groups — test user uid=user1
• dsconf commands — online security configuration

Tested on: Rocky Linux 10.2; 389 Directory Server 3.2.0.

All tests run on instance ldap1 on ldap1.example.com. A second instance is not required because client certificate authentication is configured per instance through that instance's NSS database and certmap.conf.

How client certificate authentication works

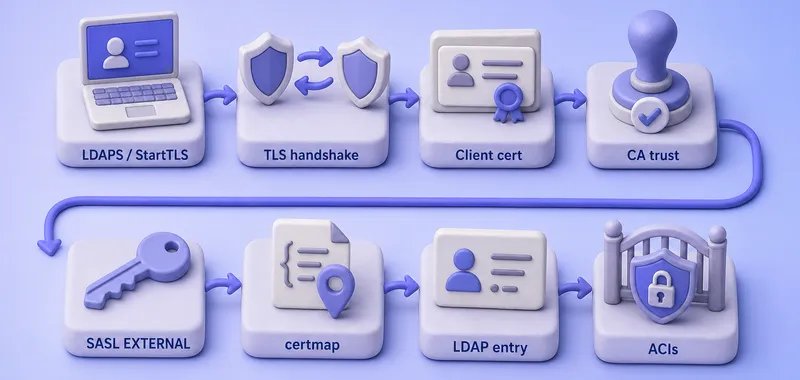

When a client connects with LDAPS or negotiates StartTLS, the TLS handshake establishes certificate identity before SASL EXTERNAL runs.

The diagram is a sequence, not a protocol specification. In optional client-cert mode the handshake can complete without a client certificate; in required mode the client must present one. certmap.conf must resolve to exactly one LDAP entry, or SASL EXTERNAL fails even when the certificate chain is valid.

Authentication and authorization are separate steps:

• The certificate and certmap.conf identify the LDAP user entry.
• ACIs determine what the mapped identity may access after authentication succeeds.

Understand server certificates and client certificates

The same CA can issue both certificate types, but separate CAs or certificate profiles are common in production.

Prepare the test environment

Before you configure client authentication, confirm that:

• LDAPS works with server CA trust
• Required STARTTLS works with -ZZ
• The client certificate has a matching private key
• The certificate is within its validity period
• The client CA file is available for import
• Certificate subject values correspond to attributes stored on the LDAP user entry

Record the current client-authentication configuration

Before you change client authentication, back up certmap.conf and record the current server settings:

cp -a /etc/dirsrv/slapd-ldap1/certmap.conf /etc/dirsrv/slapd-ldap1/certmap.conf.before-client-auth

I'll read the TLS security settings next so I know the starting nssslclientauth mode before I enable client certificates:

dsconf ldap1 security get

I'll also record the certificate-mapping and bind-policy attributes that this guide changes later:

dsconf ldap1 config get nsslapd-certmap-basedn nsslapd-force-sasl-external nsslapd-require-secure-binds

Record nssslclientauth and the three configuration attributes before changing them. The rollback procedure later restores these recorded values rather than assuming that allowed, off, or an empty base DN was the original state.

Inspect the client certificate

Review the certificate fields that certmap.conf will use before you import the client CA with OpenSSL:

openssl x509 -in /root/clientca/user1-client.crt -noout -subject -issuer -serial -dates -ext subjectAltName -ext extendedKeyUsage

Sample output:

subject=CN=user1, [email protected], O=Example, C=AU
issuer=CN=Example Client CA,O=Example,C=AU
serial=22FD4690965F68B657D80D0F2149EA344C4547EF
notBefore=Jul 16 03:49:25 2026 GMT
notAfter=Jul 16 03:49:25 2027 GMT
X509v3 Extended Key Usage:
    TLS Web Client Authentication

Confirm the subject DN, issuer DN, validity period, and Client Authentication extended key usage. The values used in FilterComps must match the LDAP entry attributes exactly. A certificate CN=user1 does not match an LDAP cn: User One value. Use a unique attribute such as mail when common names differ.

Import and trust the client CA

List client CAs already trusted by the instance:

dsctl ldap1 tls list-client-ca

I'll import the client issuing CA:

dsconf ldap1 security ca-certificate add --file /root/clientca/client-ca.crt --name "Example Client CA"

Sample output:

Successfully added CA certificate

Set trust flags so Directory Server trusts the CA for TLS client authentication:

dsconf ldap1 security ca-certificate set-trust-flags "Example Client CA" --flags "CT,,"

Sample output:

Successfully edited certificate trust flags

Verify the client CA is trusted for client-certificate authentication:

dsctl ldap1 tls list-client-ca

Sample output excerpt:

Example Client CA

Review every CA returned by dsctl ldap1 tls list-client-ca. Certificates from issuers without an explicit certmap block inherit the default mapping, including default:VerifyCert on.

Two trust flags matter when you import a client CA:

• C — trusts the CA for TLS
• T — additionally trusts the CA for client-certificate authentication

Import only the client CAs you intend to accept. Do not import every public root CA.

Add the LDAP attribute used for certificate mapping

The lab client certificate carries [email protected] in its subject. I'll add the matching mail value to uid=user1 before configuring certmap.conf:

cat > /tmp/add-user1-certificate-mail.ldif <<'EOF'
dn: uid=user1,ou=people,dc=example,dc=com
changetype: modify
add: mail
mail: [email protected]
EOF

Apply the change over LDAPS:

LDAPTLS_CACERT=/tmp/389ds-selfsigned-ca.pem ldapmodify -x -H ldaps://ldap1.example.com:636 -D "cn=Directory Manager" -y /root/dm.pw -f /tmp/add-user1-certificate-mail.ldif

Sample output:

modifying entry "uid=user1,ou=people,dc=example,dc=com"

Verify that the mapping filter returns exactly one entry:

LDAPTLS_CACERT=/tmp/389ds-selfsigned-ca.pem ldapsearch -LLL -x -H ldaps://ldap1.example.com:636 -D "cn=Directory Manager" -y /root/dm.pw -b "ou=people,dc=example,dc=com" "([email protected])" dn

Sample output:

dn: uid=user1,ou=people,dc=example,dc=com

Continue only when the filter returns exactly one DN. Zero matches cause certificate mapping to fail, while multiple matches make the certificate identity ambiguous.

Restrict certificate searches to the user container before you edit certmap.conf:

dsconf ldap1 config replace nsslapd-certmap-basedn=ou=people,dc=example,dc=com

Sample output:

Successfully replaced value(s) for 'nsslapd-certmap-basedn': 'ou=people,dc=example,dc=com'

Understand certmap.conf

Directory Server reads certificate mapping rules from:

/etc/dirsrv/slapd-ldap1/certmap.conf

General format:

certmap ALIAS ISSUER_DN
ALIAS:PARAMETER VALUE

You can define a default mapping, issuer-specific mappings, and different subject-to-entry rules for separate certificate profiles.

Understand the certificate mapping parameters

Certificate email addresses commonly appear in the subject as emailAddress or E. When mail appears in FilterComps, Directory Server maps the certificate email value to the LDAP mail attribute.

Configure a basic subject-to-user mapping

Save the following mapping for the lab client CA:

certmap default default
default:DNComps
default:FilterComps mail
default:VerifyCert on

certmap example CN=Example Client CA,O=Example,C=AU
example:DNComps
example:FilterComps mail
example:VerifyCert off

The default mapping applies to client-trusted issuers that do not match a specific issuer block. default:VerifyCert on requires exact certificate matching for those issuers. The lab's example block explicitly sets example:VerifyCert off, so the initial test uses subject mapping only. Store the DER certificate now to prepare for enabling example:VerifyCert on later.

An empty DNComps line tells Directory Server not to use the certificate subject as the search base. With nsslapd-certmap-basedn already set, the server searches only the intended user subtree.

For this certificate subject:

CN=user1,[email protected]

Directory Server generates a filter equivalent to:

([email protected])

The filter must return exactly one LDAP entry. Prefer a unique attribute combination such as mail rather than a non-unique cn alone.

Enable optional client certificate authentication before the first restart:

dsconf ldap1 security set --tls-client-auth=allowed

Restart the instance after editing certmap.conf and enabling client authentication so the secure listener reloads the mapping file:

dsctl ldap1 restart

Sample output:

Instance "ldap1" has been restarted

Confirm the certificate search base

Verify the search base you set before editing certmap.conf:

dsconf ldap1 config get nsslapd-certmap-basedn

Sample output:

nsslapd-certmap-basedn: ou=people,dc=example,dc=com

Use the narrowest base DN that contains every certificate-authenticated account. This avoids searching unrelated subtrees when the certificate subject cannot form a valid base DN.

Configure issuer-specific mappings

Use separate certmap blocks when different CAs issue certificates with different subject formats:

certmap employees CN=Employee Client CA,O=Example
employees:DNComps
employees:FilterComps mail,employeeNumber

certmap contractors CN=Contractor Client CA,O=Example
contractors:DNComps
contractors:FilterComps mail,cn

Issuer-specific mappings inherit unspecified settings from the default mapping. Use the exact issuer DN from the client certificate:

openssl x509 -in /root/clientca/user1-client.crt -noout -issuer

Sample output:

issuer=CN=Example Client CA,O=Example,C=AU

Restart the instance after changing certmap.conf, then retest each issuer-specific mapping.

Verify an administrative recovery path

Before you add userCertificate over LDAPI, confirm that local administrative access works on this instance. LDAPI listening, autobind, identity mapping, and authorization are separate server settings:

ldapwhoami -Y EXTERNAL -H ldapi://%2frun%2fslapd-ldap1.socket

Sample output:

SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
dn: cn=Directory Manager

Confirm access to cn=config:

ldapsearch -LLL -Y EXTERNAL -H ldapi://%2frun%2fslapd-ldap1.socket -b cn=config -s base cn

Sample output:

dn: cn=config
cn: config

This LDAPI connection becomes the documented recovery path before you require client certificates or enable forced SASL EXTERNAL later.

Store the client certificate in LDAP

Because the lab issuer currently has example:VerifyCert off, the first SASL EXTERNAL test does not require userCertificate. This guide stores the DER certificate in advance so exact matching can be enabled safely in the next step.

Convert the client certificate to DER format:

openssl x509 -in /root/clientca/user1-client.crt -out /root/clientca/user1-client.der -outform DER

Save the following as /tmp/add-user-certificate.ldif:

dn: uid=user1,ou=people,dc=example,dc=com
changetype: modify
add: userCertificate
userCertificate:< file:///root/clientca/user1-client.der

Apply the change over LDAPI so Directory Manager credentials are not affected by a mapped client certificate on the same connection:

ldapmodify -Y EXTERNAL -H ldapi://%2frun%2fslapd-ldap1.socket -f /tmp/add-user-certificate.ldif

Sample output:

modifying entry "uid=user1,ou=people,dc=example,dc=com"

Directory Server compares presented certificates with the binary userCertificate value using DER format when VerifyCert on is active.

Test SASL EXTERNAL over LDAPS

Point the OpenLDAP client at the server CA, client certificate, and private key:

export LDAPTLS_CACERT=/tmp/389ds-selfsigned-ca.pem

I'll point the client at the user certificate file so Directory Server can request it during the TLS handshake:

export LDAPTLS_CERT=/root/clientca/user1-client.crt

The matching private key must be exported too, or the client cannot complete the mutual TLS exchange:

export LDAPTLS_KEY=/root/clientca/user1-client.key

Authenticate with SASL EXTERNAL while example:VerifyCert off remains in certmap.conf:

ldapwhoami -H ldaps://ldap1.example.com:636 -Y EXTERNAL

Sample output:

SASL/EXTERNAL authentication started
SASL username: c=AU,o=Example,[email protected],cn=user1
SASL SSF: 0
dn: uid=user1,ou=people,dc=example,dc=com

SASL SSF: 0 means the EXTERNAL mechanism did not negotiate an additional SASL integrity or encryption layer. The transport is still protected by LDAPS. SASL EXTERNAL uses the identity established by the external TLS layer rather than creating a second security layer.

The mapped LDAP DN confirms that certmap.conf matched exactly one entry.

Search as the mapped user:

ldapsearch -LLL -H ldaps://ldap1.example.com:636 -Y EXTERNAL -b "uid=user1,ou=people,dc=example,dc=com" -s base mail cn uid

Sample output:

dn: uid=user1,ou=people,dc=example,dc=com
mail: [email protected]
cn: User One
uid: user1

Test SASL EXTERNAL over STARTTLS

After the StartTLS request, the client presents its certificate during the TLS handshake. SASL EXTERNAL then uses the certificate identity established by that handshake. See the LDAPS explanation above for the meaning of SASL SSF: 0.

ldapwhoami -H ldap://ldap1.example.com:389 -ZZ -Y EXTERNAL

Sample output:

SASL/EXTERNAL authentication started
SASL username: c=AU,o=Example,[email protected],cn=user1
SASL SSF: 0
dn: uid=user1,ou=people,dc=example,dc=com

Test both LDAPS and STARTTLS when your environment supports both connection methods.

Enable exact certificate matching for the lab issuer

After subject mapping succeeds, require an exact certificate match for certificates issued by Example Client CA:

example:VerifyCert on

Restart the instance so Directory Server reloads the updated certmap.conf mapping rule:

dsctl ldap1 restart

Sample output:

Instance "ldap1" has been restarted

Retest SASL EXTERNAL over LDAPS:

ldapwhoami -H ldaps://ldap1.example.com:636 -Y EXTERNAL

Sample output:

SASL/EXTERNAL authentication started
SASL username: c=AU,o=Example,[email protected],cn=user1
SASL SSF: 0
dn: uid=user1,ou=people,dc=example,dc=com

Test authorization after authentication

After ldapwhoami succeeds, confirm that normal ACIs still apply. A successful certificate bind does not grant administrative access by itself.

Search a permitted attribute:

ldapsearch -LLL -H ldaps://ldap1.example.com:636 -Y EXTERNAL -b "uid=user1,ou=people,dc=example,dc=com" -s base mail

Sample output:

dn: uid=user1,ou=people,dc=example,dc=com
mail: [email protected]

Attempt an operation the mapped user should not perform and confirm Directory Server returns an appropriate LDAP result such as error 50 when ACIs deny the action.

A certificate mapped to uid=user1 does not gain administrative privileges merely because forced EXTERNAL is enabled later.

Require client certificates

After every certificate-authenticated client and application has been tested, require client certificates on TLS connections:

dsconf ldap1 security set --tls-client-auth=required

Restart the instance so the secure listener begins requiring a client certificate during the TLS handshake:

dsctl ldap1 restart

With --tls-client-auth=required, every TLS client must present a certificate issued by a trusted client CA. This requirement is enforced during the TLS handshake. However, unless nsslapd-force-sasl-external=on is enabled, a client that successfully presented a certificate can still submit another supported bind method afterward. nsslapd-require-secure-binds=on blocks unencrypted simple binds; it does not block password binds over LDAPS or STARTTLS.

Directory Server supports allowed for optional client certificates and required when every applicable TLS client must present one.

Block unencrypted password binds

When port 389 remains available, enable secure-bind enforcement so a client cannot avoid TLS and submit a simple password bind over plain LDAP:

dsconf ldap1 config replace nsslapd-require-secure-binds=on

This setting rejects unencrypted authenticated simple binds. It does not prevent a client from using a password bind after establishing LDAPS or STARTTLS. Keep the complete secure-bind and SSF discussion in require secure LDAP connections.

Restart the instance after changing secure-bind policy:

dsctl ldap1 restart

Force the certificate-derived identity

Enable forced SASL EXTERNAL only after every administrative recovery path has been tested:

dsconf ldap1 config replace nsslapd-force-sasl-external=on

With this setting, Directory Server ignores other bind methods and uses the certificate-derived identity. Test all applications first because password, anonymous, or other bind credentials submitted on the certificate-bearing TLS connection are ignored.

Restart the instance after enabling forced EXTERNAL:

dsctl ldap1 restart

Decide whether to use VerifyCert

Use VerifyCert on when:

• Every authorized client certificate is individually recorded in LDAP
• Immediate per-certificate revocation through directory data is required
• Strict certificate-to-entry binding is mandatory

Subject mapping alone may be more practical when:

• Certificates renew frequently
• The issuing CA is tightly controlled
• Revocation is handled through the PKI
• Updating userCertificate on every renewal would be costly

When a client presents a certificate, Directory Server validates its chain and issuer trust during the TLS handshake. VerifyCert on adds the exact LDAP-entry certificate comparison.

Handle certificate renewal

When VerifyCert is off, a renewed certificate can continue to map through the same subject attributes if the issuer and mapped values remain valid.

When VerifyCert is on:

1. Add or replace the DER certificate in userCertificate
2. Test the renewed certificate with SASL EXTERNAL
3. Remove the obsolete certificate value
4. Confirm the old certificate can no longer authenticate where required

Link to certificate management for CA and server certificate lifecycle operations.

Review access and error logs

Inspect the instance logs after certificate authentication tests:

grep -iE 'EXTERNAL|certmap|client cert' /var/log/dirsrv/slapd-ldap1/access | tail -6

Sample output:

[16/Jul/2026:09:20:12 +0530] conn=4 op=0 BIND dn="" method=sasl version=3 mech=EXTERNAL
[16/Jul/2026:09:20:18 +0530] conn=1 op=0 BIND dn="" method=sasl version=3 mech=EXTERNAL

Also review /var/log/dirsrv/slapd-ldap1/errors and /var/log/dirsrv/slapd-ldap1/security for certificate validation failures, mapping filter problems, untrusted issuers, and exact certificate verification errors.

Troubleshoot client certificate authentication

When the error log shows a search such as (&(MAIL=...)(CN=...)) err 32, the mapping used the certificate subject as the base DN instead of the intended subtree. Add an empty DNComps line and set nsslapd-certmap-basedn.

Roll back safely

Clear client-certificate environment variables from the shell:

unset LDAPTLS_CERT LDAPTLS_KEY

Restore the client-authentication mode recorded before the change:

dsconf ldap1 security set --tls-client-auth=<recorded-value>

Restore the recorded forced EXTERNAL and secure-bind values:

dsconf ldap1 config replace nsslapd-force-sasl-external=<recorded-value>

I'll restore the secure-bind setting from the same baseline snapshot:

dsconf ldap1 config replace nsslapd-require-secure-binds=<recorded-value>

When nsslapd-certmap-basedn was originally absent, clear it:

dsconf ldap1 config delete nsslapd-certmap-basedn

If dsconf returns error 53, clear the attribute with an empty replace instead:

dsconf ldap1 config replace nsslapd-certmap-basedn=

When it originally had a value, restore the recorded DN instead of clearing it:

dsconf ldap1 config replace nsslapd-certmap-basedn="ou=original,dc=example,dc=com"

Restore the backed-up mapping file:

cp -a /etc/dirsrv/slapd-ldap1/certmap.conf.before-client-auth /etc/dirsrv/slapd-ldap1/certmap.conf

Remove only the lab mail and userCertificate values added by this exercise. Do not delete pre-existing attribute values. Keep /root/clientca/user1-client.der until rollback is complete because the LDIF uses that exact DER value to identify the certificate to remove:

cat > /tmp/remove-user1-client-auth.ldif <<'EOF'
dn: uid=user1,ou=people,dc=example,dc=com
changetype: modify
delete: mail
mail: [email protected]
-
delete: userCertificate
userCertificate:< file:///root/clientca/user1-client.der
EOF

Apply the rollback modify over LDAPI so the mapped certificate cannot interfere with the connection:

ldapmodify -Y EXTERNAL -H ldapi://%2frun%2fslapd-ldap1.socket -f /tmp/remove-user1-client-auth.ldif

Delete Example Client CA only when no remaining user, application, replication agreement, or other certificate workflow depends on that CA:

dsconf ldap1 security ca-certificate del "Example Client CA"

Restart the instance and retest password authentication over TLS, SASL EXTERNAL, LDAPS, and STARTTLS:

dsctl ldap1 restart

What's Next

• SASL GSSAPI and Kerberos — alternative strong authentication mechanisms
• Certificate management — renew server and client CA material
• Require secure LDAP connections — minimum SSF alongside client certificates

References

• Red Hat Directory Server 13 — Securing RHDS
• Red Hat Directory Server 13 — Core server configuration attributes
• 389 Directory Server — Howto: CertMapping
• certmap.conf(5)

Summary

1. Back up certmap.conf and record nssslclientauth, nsslapd-certmap-basedn, nsslapd-force-sasl-external, and nsslapd-require-secure-binds.
2. Import and trust the client issuing CA; review every CA returned by dsctl ldap1 tls list-client-ca.
3. Add LDAP attributes that match certificate subject values and verify the mapping filter returns exactly one entry.
4. Set nsslapd-certmap-basedn, configure certmap.conf with default:VerifyCert on and issuer-specific rules, and enable optional client authentication.
5. Verify LDAPI administrative access, then store the DER certificate in userCertificate before changing the lab issuer to example:VerifyCert on; the initial test with example:VerifyCert off uses subject mapping only.
6. Test SASL EXTERNAL over LDAPS and STARTTLS, then enable example:VerifyCert on and retest.
7. Require client certificates, then enable secure binds, then enable forced EXTERNAL last.
8. Confirm that normal ACIs still enforce authorization after authentication.
