Controller-Runtime Architecture: Manager, Cache, Informer, Workqueue Explained

If you have ever opened a Kubebuilder or Operator-SDK project, you have stared at something like mgr.GetClient(), ctrl.NewControllerManagedBy(mgr), or builder.WithEventFilter(...) and wondered what is actually happening under the hood. The answer is one library: controller-runtime — the Go SDK that almost every modern Kubernetes Operator builds on.

This guide walks the full architecture top-down, names every component, and traces a single API server event from the apiserver all the way to your Reconcile() function so you know exactly which knob to turn when something misbehaves.

If you have read the earlier Foundations chapters — especially the reconcile loop explained — this article tells you what the machinery around the reconcile loop looks like.

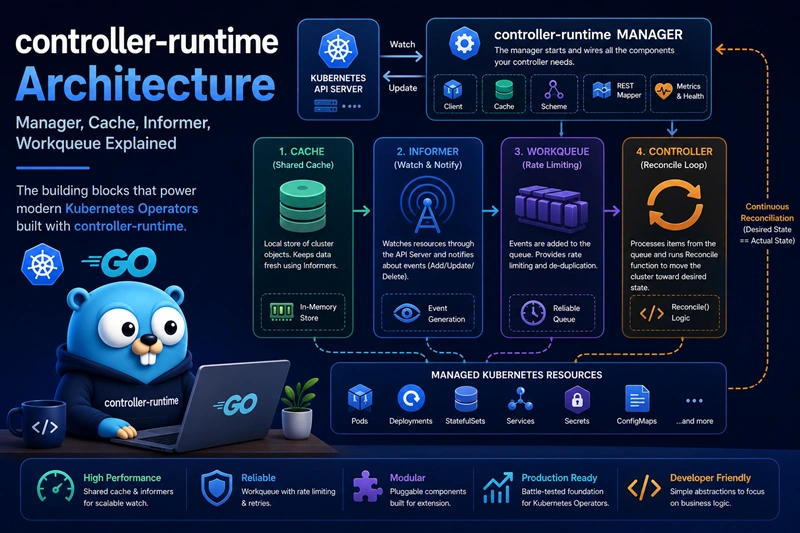

The controller-runtime architecture: a Manager owns the shared Cache and one SharedInformer per GVK; events flow through Source -> EventHandler -> Predicate into a per-controller Workqueue, which feeds the Reconciler.

A quick analogy: think of it as a post office

Before we name a single Go type, picture a small-town post office. Every piece on the controller-runtime architecture diagram has a real-world twin:

If you can hold that picture in your head, every name in this article will click as you meet it. The Manager turns everything on, the Cache holds the local copy, the Informer keeps it fresh, the Predicate filters noise, the Workqueue de-duplicates, and your Reconciler actually does the work.

The 60-second answer

controller-runtime is a Go library, maintained under the kubernetes-sigs GitHub organisation, that gives every Operator the same six building blocks:

1. Manager - owns the lifecycle of everything else (cache, controllers, webhooks, leader election, metrics, health probes).
2. Cache - a read-only, eventually-consistent in-memory replica of every object you watch, populated by SharedInformers.
3. Client - a sigs.k8s.io/controller-runtime/pkg/client.Client that reads from the cache and writes directly to the API server.
4. Controller - one per primary resource type; owns a workqueue and runs Reconcile().
5. Builder DSL - the fluent For(...).Owns(...).Watches(...).Complete(r) API that wires sources, event handlers, and predicates without boilerplate.
6. Source / EventHandler / Predicate - the three-piece pipeline that turns watch deltas into reconcile keys on the workqueue.

If you have read the reconcile loop explained, you already know what Reconcile() does. This article explains the machinery that makes Reconcile() happen in the first place.

Why controller-runtime exists (vs raw client-go)

You can write a Kubernetes controller using raw client-go - the sample-controller repo proves it. The catch is that a production-quality controller needs:

• A SharedInformerFactory so multiple controllers do not each spin up their own watch.
• A workqueue with rate limiting and exponential backoff.
• Leader election so you can run multiple replicas safely.
• A metrics endpoint, a health probe endpoint, and a graceful shutdown path.
• Owner-reference lookups so a Pod change can requeue its owning custom resource.
• Webhook serving plumbing.

Wiring those by hand against client-go is roughly 500 lines of boilerplate per controller. controller-runtime collapses all of it into one Manager and a Builder DSL, with defaults that match how Kubernetes itself runs its own controllers. Both Kubebuilder and the Operator SDK generate code that uses controller-runtime; the two frameworks are mostly scaffolding plus a few extras (RBAC markers, OLM bundles) sitting on top of the same library.

The Manager - lifecycle owner of everything

The Manager is the first object every Operator constructs and the last one to shut down. It owns:

Constructing a Manager looks the same in every Operator:

mgr, err := ctrl.NewManager(ctrl.GetConfigOrDie(), ctrl.Options{
    Scheme:                 scheme,
    LeaderElection:         true,
    LeaderElectionID:       "my-operator-leader",
    HealthProbeBindAddress: ":8081",
    Metrics:                metricsserver.Options{BindAddress: ":8080"},
})
if err != nil {
    setupLog.Error(err, "unable to start manager")
    os.Exit(1)
}

if err = (&MyReconciler{
    Client: mgr.GetClient(),
    Scheme: mgr.GetScheme(),
}).SetupWithManager(mgr); err != nil {
    setupLog.Error(err, "unable to create controller")
    os.Exit(1)
}

if err := mgr.Start(ctrl.SetupSignalHandler()); err != nil {
    setupLog.Error(err, "problem running manager")
    os.Exit(1)
}

Two things to remember:

1. mgr.GetClient() is not safe to use until mgr.Start(ctx) runs. Before the cache is started the client has no informers to read from. If you need to do a one-shot read at startup, use a direct API client (client.New(...)) or call mgr.GetAPIReader().
2. One Manager process = one cache. Two Managers in the same binary would mean two informer trees - usually a bug.

The Cache - read once, share everywhere

Every read your controller does (r.Get(ctx, key, &obj), r.List(ctx, &list)) goes through the controller-runtime cache by default. The cache is a thin wrapper over client-go's SharedInformer machinery:

                ┌───────────────────────────┐
                │      Kubernetes API       │
                │  (watch /apis/...?watch=1)│
                └─────────────▲─────────────┘
                              │ HTTP/2 long-lived stream
                              │
                  ┌───────────┴────────────┐
                  │   SharedInformer       │
                  │  ┌──────────────────┐  │
                  │  │   Reflector      │  │  ← does the actual List+Watch
                  │  │   DeltaFIFO      │  │  ← buffered deltas
                  │  │   Indexer/Store  │  │  ← thread-safe local cache
                  │  └──────────────────┘  │
                  └─────────▲──────────────┘
                            │  reads return cached objects
        ┌───────────────────┴────────────────────┐
        │             client.Client              │
        │     (mgr.GetClient() returns this)     │
        └────────────────────────────────────────┘

The important properties of the cache:

• Eventually consistent. A kubectl apply may not be visible to your controller for tens of milliseconds. Always treat r.Get(...) as "may be slightly stale" and write your Reconcile() to be idempotent.
• One informer per GVK, shared by every controller. Add a fourth controller that watches Pods and you are not opening a fourth watch against the apiserver.
• Reads are O(1). The cache exposes an Indexer keyed by namespace/name, so Get and List are in-memory map lookups - they never round-trip to etcd.
• Writes go straight to the API server, not through the cache. After a write your code may briefly read a stale value through the cache until the watch propagates.

You can ask the cache for a fresh, uncached read with the APIReader:

err := mgr.GetAPIReader().Get(ctx, key, &cm)

Use that sparingly - typically only at startup or when you genuinely cannot tolerate cache lag, because it shifts load from your in-memory store to the apiserver.

Tuning the cache

Cache.Options (passed via ctrl.Options{Cache: cache.Options{...}}) gives you three knobs that matter in production:

• DefaultNamespaces - if your Operator is namespaced, restricting the cache to specific namespaces dramatically reduces memory.
• ByObject - per-GVK filters: namespace allow-list, label-selector, field-selector. Useful to make a cluster-scoped Operator only watch the pods it cares about.
• SyncPeriod - the periodic resync that re-delivers every cached object as a synthetic "Update" event. Defaults to 10 hours; lower it only if you genuinely cannot trust your watches.

SharedInformerFactory and the watch pipeline

Under the cache, the actual machinery is the same SharedInformerFactory client-go ships. For each watched GVK, controller-runtime creates one SharedInformer that contains three pieces from client-go's tools/cache package:

1. Reflector - opens an HTTP/2 long-lived watch against the apiserver, feeding every observed WatchEvent (ADDED / MODIFIED / DELETED / BOOKMARK) into the DeltaFIFO.
2. DeltaFIFO - a thread-safe queue of deltas keyed by namespace/name. Compactions collapse rapid-fire updates into the latest delta for that key.
3. Indexer / Store - the thread-safe in-memory map that the cache exposes to your client.

When the Reflector receives an event, it does three things in one tick:

• Updates the Indexer (so subsequent r.Get(...) returns the new object).
• Calls every registered ResourceEventHandler (the controller-runtime EventHandler is one of these).
• Repeats every SyncPeriod even if nothing changed, so a missed watch event is corrected within at most one resync interval.

This is why level-triggered control loops are robust: even if the watch connection drops and a few events are lost, the next resync hands every controller a fresh Update delta for every object and reconciliation converges.

The Workqueue and rate limiter

Between the Reflector's event delivery and your Reconcile() function sits a workqueue - the same k8s.io/client-go/util/workqueue implementation Kubernetes core controllers use. It does three jobs:

You almost never interact with the workqueue directly - controller-runtime hides it behind the Reconciler interface. The interaction points you do control:

• Result{Requeue: true} puts the current key back through the rate limiter.
• Result{RequeueAfter: 30*time.Second} schedules a re-reconcile bypassing the rate limiter.
• MaxConcurrentReconciles (in controller.Options) sets how many different keys can reconcile in parallel. Default 1; raise it to 4-8 for I/O-bound reconcilers, leave it at 1 if your Reconcile() touches shared state.

For the full Reconcile contract - including the three Result return paths and the anti-patterns that cause hot loops - see the reconcile loop explained.

The Builder DSL - For, Owns, Watches

This is the part you see in every controller's SetupWithManager:

func (r *MyReconciler) SetupWithManager(mgr ctrl.Manager) error {
    return ctrl.NewControllerManagedBy(mgr).
        For(&appsv1alpha1.MyKind{}).                 // primary
        Owns(&appsv1.Deployment{}).                  // child
        Owns(&corev1.Service{}).                     // child
        Watches(
            &corev1.ConfigMap{},                     // unrelated input
            handler.EnqueueRequestsFromMapFunc(r.mapCMtoMyKind),
        ).
        WithEventFilter(predicate.GenerationChangedPredicate{}).
        WithOptions(controller.Options{MaxConcurrentReconciles: 4}).
        Complete(r)
}

The three verbs map directly to three workqueue-enqueue strategies:

The cleanest mental model: **For is "this is my type", Owns is "I created that, wake me when it changes", Watches is "wake me when that changes, and I will figure out which of my objects to reconcile".`

Source / EventHandler / Predicate - the filtering pipeline

For every Owns and Watches call, the Builder constructs three things:

1. Source - the producer of watch events (almost always source.Kind(mgr.GetCache(), &SomeKind{}), which reads from the shared cache).
2. EventHandler - the mapper that turns one event into zero or more Request{namespace/name} items pushed to the workqueue.
   • handler.EnqueueRequestForObject - the default for For.
   • handler.EnqueueRequestForOwner - the default for Owns.
   • handler.EnqueueRequestsFromMapFunc(fn) - the workhorse for Watches.
3. Predicate - a filter applied before the handler runs. Return false and the event is dropped.

The two built-in predicates you will reach for constantly:

• predicate.GenerationChangedPredicate{} - only fires when metadata.generation changes, i.e. when .spec (or metadata annotations in some cases) was actually modified. This is the single biggest hot-loop cure for Operators that update .status every reconcile.
• predicate.ResourceVersionChangedPredicate{} - fires on every server-side update including .status and metadata.managedFields. Use only when you genuinely need every change.

You can also write your own:

labelPred := predicate.Funcs{
    UpdateFunc: func(e event.UpdateEvent) bool {
        return e.ObjectNew.GetLabels()["tier"] == "production"
    },
    CreateFunc: func(e event.CreateEvent) bool { return true },
    DeleteFunc: func(e event.DeleteEvent) bool { return true },
}

For the catalog of built-in predicates and the gotchas (missed delete events, predicate ordering, the predicate.And / predicate.Or combinators), see the companion article Watches, events, and predicates in Kubernetes operators.

Tracing one event end-to-end

Putting the pieces together, here is what happens when a user runs kubectl edit mykind sample:

1. kubectl PATCH                  -> kube-apiserver
2. apiserver writes etcd, returns success
3. apiserver pushes a WatchEvent on every active watch for MyKind
4. controller-runtime Reflector receives the event over its HTTP/2 stream
5. Reflector updates the Indexer (the cache) and emits to its handlers
6. Source.Kind(cache, &MyKind{}) delivers the event to the EventHandler
7. EnqueueRequestForObject pushes Request{ns/name} to the workqueue
8. Predicate (GenerationChangedPredicate) decides whether to keep it
9. Workqueue deduplicates, applies rate limiter, hands the key to a worker
10. worker calls reconciler.Reconcile(ctx, Request{ns/name})
11. Reconcile() does r.Get(ctx, ...) - reads from the *same* cache
12. Reconcile() decides on actions, calls r.Update / r.Status().Update / r.Create
13. Writes go directly to the apiserver (not through the cache)
14. Those writes generate fresh WatchEvents -> step 4 again

When something goes wrong in production, the failure usually maps to one of these steps. A few common diagnoses:

• "My reconciler runs constantly" -> step 8 is missing a GenerationChangedPredicate; status writes are triggering watches.
• "My reconciler misses events" -> step 8 has a predicate returning false on Delete events; check the four UpdateFunc/CreateFunc/DeleteFunc/GenericFunc branches explicitly.
• "Reconciles are slow under load" -> step 9 has MaxConcurrentReconciles=1 on an I/O-bound workload; raise it.
• "Cache memory is huge" -> step 5 is indexing every Pod in the cluster; add a Cache.ByObject label selector.

When to drop down to client-go

Inside an Operator, almost never. The exceptions:

• One-shot reads before the cache is started. Use client.New(mgr.GetConfig(), client.Options{}) or mgr.GetAPIReader().
• Custom watches that need full DeltaFIFO control - e.g. for a custom scheduler that re-orders events. controller-runtime hides DeltaFIFO from you.
• CLI / kubectl plugins. No Manager, no cache - direct typed clients are the right tool.
• A second cache scoped to different credentials, e.g. a cross-cluster Operator that needs one Manager-managed cache plus N independent ones. See multicluster-runtime for prior art.

For everything else inside a normal Operator, mgr.GetClient() and the Builder DSL give you the same primitives with safer defaults and a tenth of the boilerplate.

What's next?

You now know how every controller-runtime piece fits together. Natural next steps in this course:

• Watches, events, and predicates in Kubernetes operators — the deep dive on Source / EventHandler / Predicate, the three event types, and the pitfalls that cause missed reconciles.
• The Kubernetes reconcile loop explained — the level-triggered control loop, the three Result return paths, and the anti-patterns that cause hot loops.
• Custom Resource Definitions explained — the schema half of the Operator pattern that the cache and informers are watching.
• Future deep dives: Operator leader election, operator metrics with Prometheus, and operator graceful shutdown all build on the Manager primitives covered here.
• Ready to scaffold one? See install Operator-SDK on Linux, then walk through your first Operator project layout to see Manager, Builder, and Reconciler wired up in generated code.
