Mutating and Validating Admission Webhooks in Operators

CRD validation gets you regex, range, and "required field" checks for free. Once a Kubernetes Operator needs a default value that depends on another field, a cross-field invariant ("when ha: true, replicas must be ≥ 3"), or a check against current cluster state ("the referenced namespace must exist"), the CRD schema cannot do it. The operator pattern's answer is admission webhooks: HTTPS endpoints the API server calls during every create/update/delete, before the object hits etcd.

This article covers the webhook lifecycle, the difference between mutating and validating webhooks, how kubebuilder scaffolds them, the Webhook*Configuration fields that matter, when to prefer ValidatingAdmissionPolicy (the built-in CEL alternative that became GA in Kubernetes 1.30), and patterns that keep webhooks from blowing up your control plane.

Two admission webhook types are covered here — mutating and validating. There is also a third type, the conversion webhook, which translates between CRD versions and is covered separately in CRD version upgrades and conversion webhooks.

TL;DR — webhooks in one screen

Generate the scaffolding:

kubebuilder create webhook --group cache --version v1alpha1 --kind Memcached --defaulting --programmatic-validation

That produces api/v1alpha1/memcached_webhook.go with these methods:

func (r *Memcached) Default() {
    if r.Spec.Size == 0 {
        r.Spec.Size = 1
    }
}

func (r *Memcached) ValidateCreate() (admission.Warnings, error) {
    return nil, r.validate()
}
func (r *Memcached) ValidateUpdate(old runtime.Object) (admission.Warnings, error) {
    return nil, r.validate()
}
func (r *Memcached) ValidateDelete() (admission.Warnings, error) {
    return nil, nil
}

func (r *Memcached) validate() error {
    if r.Spec.Size < 0 || r.Spec.Size > 100 {
        return fmt.Errorf("size must be between 0 and 100")
    }
    return nil
}

…plus marker comments in main.go registering the webhook with the manager. After make manifests && make deploy, both webhooks are live. The rest of this article unpacks what happens behind that scaffolding.

Why webhooks if CRDs already validate?

Anyone who has built a CRD has run into the question: my OpenAPI schema already validates field types, ranges, regex, and required fields — so what is left for a webhook to do?

The honest answer is: most field-level validation should stay in the CRD schema. Webhooks exist for the cases the schema cannot reach.

Three concrete things only a webhook can do:

1. Read other Kubernetes objects during admission ("the referenced ConfigMap must exist and have a default-profile key"). The CRD schema is purely structural; it knows nothing about the rest of the cluster.
2. Set defaults that depend on context. "If the user did not specify a storageClass, use the cluster's default storage class." The schema can set static defaults; only a mutating webhook can set context-aware ones.
3. Express business logic in Go when CEL would be unreadable. Three-level nested conditionals, error messages built from multiple fields, or behaviour that calls a library — all painful in CEL, all natural in Go.

For everything else, schema + CEL is faster, cheaper, and never has an outage. We come back to the CEL vs webhook trade-off in detail below.

Prerequisites

• A scaffolded operator built with the Operator SDK install guide and an understanding of the reconcile loop.
• The RBAC primer for operators — webhooks add a ServiceAccount permission for the TLS certs Secret.
• A TLS certificate provisioner. cert-manager is the standard choice; it watches the WebhookConfiguration, generates a certificate, and injects the caBundle automatically.

Where Webhooks Fit in the API Server Pipeline

A webhook is simply an HTTPS server that the Kubernetes API server calls during admission, before an object is persisted to etcd.

• Mutating webhooks can modify the incoming object (defaults, labels, annotations, sidecar injection, finalizers).
• Validating webhooks can only allow or reject the request based on business rules.

You can think of them as the admission equivalents of a formatter and a linter:

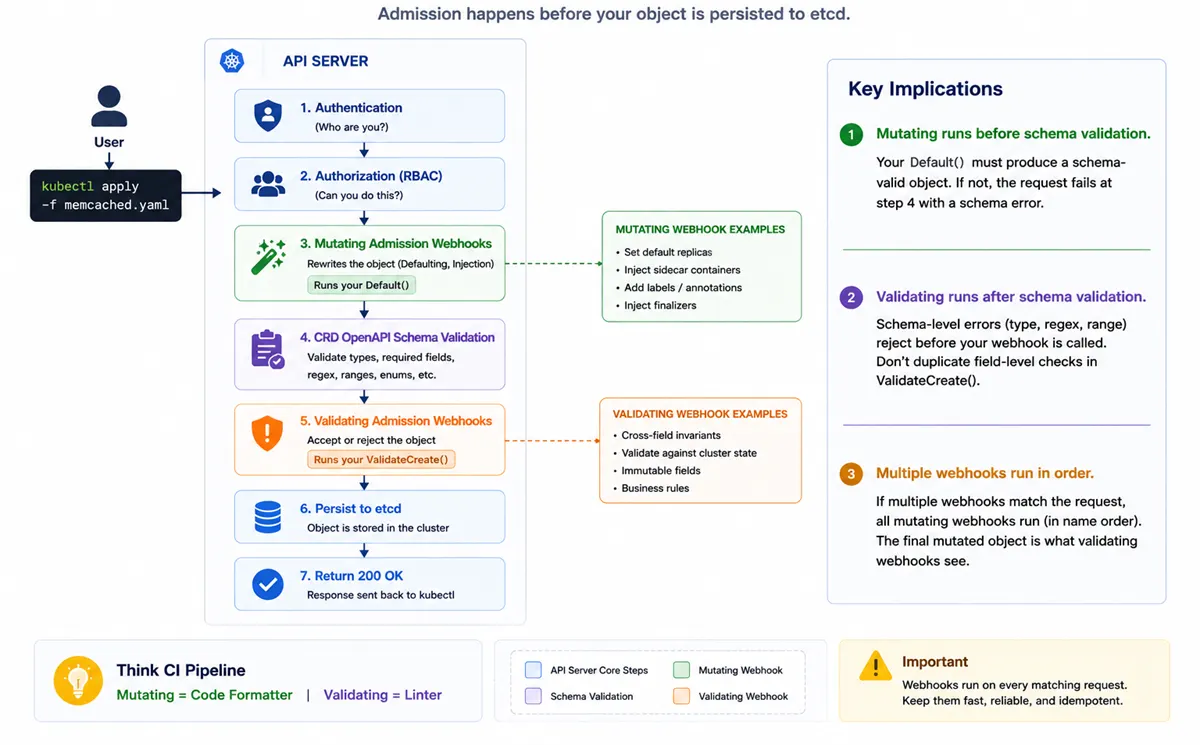

The API server processes admission requests in a strict order:

A few important points:

• Mutating webhooks run before schema validation, so any defaults they add must still satisfy the CRD schema.
• Validating webhooks run after schema validation, making them ideal for cross-field rules, immutability checks, and cluster-state validation.
• If multiple mutating webhooks match the request, they run sequentially and each webhook sees the changes made by the previous one.

Mutating webhooks: defaulting and injection

Use cases:

• Default values for unset fields. .spec.replicas: 1 if the user didn't specify.
• Cross-field defaults. .spec.storageClass: <cluster-default> if the user picks the basic profile.
• Field injection. Adding annotations the operator needs internally (e.g. a UUID for tracing).

The webhook returns a JSON Patch (RFC 6902) that describes the mutations. controller-runtime hides this from you with the Defaulter interface — you just modify the Go object:

func (r *Memcached) Default() {
    if r.Spec.Size == 0 {
        r.Spec.Size = 3                // default replica count
    }
    if r.Spec.StorageClass == "" {
        r.Spec.StorageClass = "default"
    }
    if r.Annotations == nil {
        r.Annotations = map[string]string{}
    }
    if _, ok := r.Annotations["cache.example.com/created-at"]; !ok {
        r.Annotations["cache.example.com/created-at"] = time.Now().UTC().Format(time.RFC3339)
    }
}

Behind the scenes, controller-runtime compares the original and mutated objects and synthesises a JSON Patch. The API server applies the patch and the next pipeline stage sees the mutated object.

Sidecar injection — the canonical mutating webhook

The most famous admission webhook in the Kubernetes ecosystem is not a validator at all — it is the mutating webhook that injects sidecar containers into Pods on admission. Istio's envoy proxy, Linkerd's linkerd-proxy, the Datadog agent, AWS App Mesh, and dozens of other service-mesh and observability tools all do the same thing: register a mutating webhook that watches Pod Create events and patches an extra container into .spec.containers before the Pod is persisted to etcd.

A minimal sketch (raw admission.Handler form, since you're operating on a built-in Pod, not your own CRD):

func (h *podInjector) Handle(ctx context.Context, req admission.Request) admission.Response {
    pod := &corev1.Pod{}
    if err := h.decoder.Decode(req, pod); err != nil {
        return admission.Errored(http.StatusBadRequest, err)
    }

    if pod.Labels["cache.example.com/inject-sidecar"] != "true" {
        return admission.Allowed("not opted in")
    }

    pod.Spec.Containers = append(pod.Spec.Containers, corev1.Container{
        Name:  "cache-exporter",
        Image: "cache.example.com/exporter:v1.2.3",
        Ports: []corev1.ContainerPort{{ContainerPort: 9100}},
    })

    marshalled, _ := json.Marshal(pod)
    return admission.PatchResponseFromRaw(req.Object.Raw, marshalled)
}

Three things this pattern depends on:

• Opt-in via label or annotation. Pair with an objectSelector on the MutatingWebhookConfiguration (see the selectors subsection below) so the API server never even calls your webhook for pods that will not be injected.
• failurePolicy: Ignore is usually the right choice. A broken sidecar injector should not block every Pod create in the cluster.
• reinvocationPolicy: IfNeeded if a later mutating webhook might add fields to your injected sidecar (e.g. a downstream defaulter that fills in resource limits).

Most operator authors will not write a sidecar injector themselves — service meshes and observability platforms already provide them. The pattern is worth knowing because it shows up in every cluster, and because it is the cleanest example of a mutating webhook operating on a built-in Kubernetes kind (Pod) rather than on the operator's own CRD.

Rules for mutating webhooks

1. Idempotent. The same input must produce the same output. If two mutating webhooks both default the same field with different logic, you have a non-deterministic system.
2. No side effects. Don't write to external systems from the webhook. The API server may call you multiple times for the same request.
3. Order-independent. Your mutation should make sense regardless of which other webhooks already mutated the object.
4. Schema-valid output. Whatever you produce must pass the CRD OpenAPI schema in stage 4.

Validating webhooks: invariants and cluster checks

Use cases:

• Cross-field invariants. if r.Spec.HA && r.Spec.Replicas < 3 { return error }.
• Immutable fields. if old.Spec.StorageClass != new.Spec.StorageClass { return error("immutable") }.
• Cluster-state checks. "The referenced ConfigMap must exist".
• Deletion guards. Reject delete if the CR has dependents.

Implementation:

func (r *Memcached) ValidateCreate() (admission.Warnings, error) {
    return nil, r.validate(nil)
}

func (r *Memcached) ValidateUpdate(old runtime.Object) (admission.Warnings, error) {
    oldMem := old.(*Memcached)
    if oldMem.Spec.StorageClass != r.Spec.StorageClass {
        return nil, fmt.Errorf("spec.storageClass is immutable")
    }
    return nil, r.validate(oldMem)
}

func (r *Memcached) ValidateDelete() (admission.Warnings, error) {
    // allow delete; a finalizer is the right place to gate cleanup,
    // not a validating webhook. See /kubernetes-finalizers-explained/.
    return nil, nil
}

func (r *Memcached) validate(old *Memcached) error {
    if r.Spec.HA && r.Spec.Size < 3 {
        return fmt.Errorf("when ha is true, size must be >= 3")
    }
    if r.Spec.Size > 100 {
        return fmt.Errorf("size cannot exceed 100")
    }
    return nil
}

Warnings — non-blocking guidance

The first return value is admission.Warnings — strings the API server attaches to the response. Use them for non-blocking deprecation notices:

func (r *Memcached) ValidateCreate() (admission.Warnings, error) {
    var warnings admission.Warnings
    if r.Spec.LegacyMode {
        warnings = append(warnings, "spec.legacyMode is deprecated; use spec.mode instead")
    }
    return warnings, r.validate(nil)
}

kubectl prints warnings without failing the command. Great for guiding users away from soft-deprecated fields.

The generated WebhookConfiguration YAML

make manifests produces both ValidatingWebhookConfiguration and MutatingWebhookConfiguration in config/webhook/manifests.yaml. A realistic example:

apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  name: validating-webhook-configuration
webhooks:
- name: vmemcached.kb.io
  clientConfig:
    service:
      name: memcached-operator-webhook-service
      namespace: memcached-operator-system
      path: /validate-cache-example-com-v1alpha1-memcached
    caBundle: Cg==                                   # filled in by cert-manager
  rules:
  - operations: [CREATE, UPDATE]
    apiGroups: [cache.example.com]
    apiVersions: [v1alpha1]
    resources: [memcacheds]
    scope: Namespaced
  failurePolicy: Fail
  sideEffects: None
  admissionReviewVersions: [v1]
  timeoutSeconds: 10

Field-by-field:

Scoping with objectSelector, namespaceSelector, matchPolicy, reinvocationPolicy

The default WebhookConfiguration matches every object that satisfies the rules block. In a real cluster you almost always want to narrow that down — a stuck webhook should not be able to break system namespaces.

webhooks:
- name: vmemcached.kb.io
  # ... clientConfig, rules, etc ...

  namespaceSelector:
    matchExpressions:
    - key: kubernetes.io/metadata.name
      operator: NotIn
      values: [kube-system, kube-public, cert-manager]

  objectSelector:
    matchLabels:
      cache.example.com/managed: "true"

  matchPolicy: Equivalent
  reinvocationPolicy: IfNeeded

Validating webhooks have no reinvocationPolicy — they are always called exactly once, after the final mutated object is known.

failurePolicy: Fail vs Ignore

This is the most important configuration choice.

failurePolicy: Fail

The API server rejects the call if the webhook is unreachable, times out, or returns a 5xx. Use for:

• Validating webhooks (always — if you can't validate, you must reject; otherwise invalid state lands in etcd).
• Mutating webhooks that perform critical defaults (without which the resulting object would be wrong).

The risk: an operator pod outage stops every Create/Update on the managed kind. For one operator with HA replicas, this is fine. For an operator that's down completely, no one can apply new CRs until it's back.

failurePolicy: Ignore

The API server lets the call through as if the webhook didn't exist. Use for:

• Mutating webhooks that only set nice-to-have defaults. If the operator is down, the user just doesn't get the default — the operator will set it on reconcile.

Don't ever use Ignore for validating webhooks unless you have a genuinely independent enforcement mechanism (OPA Gatekeeper, K-Rail, admission checks in the API itself).

Best of both worlds

Two webhook configurations:

• Validating, failurePolicy: Fail — invariants you absolutely need.
• Mutating, failurePolicy: Ignore — defaults that are recoverable.

That way an operator outage doesn't block Create/Update — users just get un-defaulted objects, which the operator will reconcile to correctness when it's back.

sideEffects and dry-run

The sideEffects field is required in v1. Values:

For 99% of operator webhooks the answer is None. Your Default() just returns a patch; your ValidateCreate() just returns allow/deny. Neither writes to etcd, calls external APIs, or sends emails.

If you do have side effects (e.g. recording a deprecated-field warning in an external system), use NoneOnDryRun and check the request's DryRun flag:

func (h *handler) Handle(ctx context.Context, req admission.Request) admission.Response {
    if !*req.DryRun {
        h.recordUsage(req)  // skip on dry-run
    }
    return admission.Allowed("")
}

For full handler-level control, write a admission.Handler implementation directly instead of the Defaulter/Validator interfaces.

Webhooks vs CEL validation (and ValidatingAdmissionPolicy)

Kubernetes has spent the last several releases moving validation logic out of webhooks and into the API server itself, using Common Expression Language (CEL). There are now three places validation can live, and webhooks are no longer the default choice for many cases.

1. CRD x-kubernetes-validations (CEL inside the schema)

Available since Kubernetes 1.25 (GA in 1.29). The validation rule lives directly inside the CRD OpenAPI schema, runs in the API server, and needs no external code:

openAPIV3Schema:
  type: object
  properties:
    spec:
      type: object
      properties:
        size:    { type: integer }
        ha:      { type: boolean }
      x-kubernetes-validations:
      - rule: "!self.ha || self.size >= 3"
        message: "size must be >= 3 when ha is true"
      - rule: "self.size <= 100"
        message: "size cannot exceed 100"

When to use it: any cross-field rule that can be expressed in CEL — and that is most of them. No webhook server, no TLS, no failurePolicy, no timeout. You ship the rule inside the CRD.

2. ValidatingAdmissionPolicy (cluster-wide CEL, GA in 1.30)

Decouples policy from any single CRD. A ValidatingAdmissionPolicy is authored once and bound to many resource kinds via ValidatingAdmissionPolicyBinding. Runs inside the API server, same as CEL-in-schema:

apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingAdmissionPolicy
metadata:
  name: memcached-size-rules
spec:
  matchConstraints:
    resourceRules:
    - apiGroups:   [cache.example.com]
      apiVersions: [v1alpha1]
      resources:   [memcacheds]
  validations:
  - expression: "!object.spec.ha || object.spec.size >= 3"
    message: "size must be >= 3 when ha is true"

ValidatingAdmissionPolicy was a beta feature in 1.28–1.29 and reached GA in Kubernetes 1.30. For new validation work, prefer it over a validating webhook unless you genuinely need Go.

3. Validating webhook (the original mechanism)

Keep using webhooks when your validation logic:

• needs to read other Kubernetes objects during admission (referenced ConfigMap, Secret, or CR must exist),
• calls external systems (license check, internal policy API),
• requires complex Go code that would be unreadable in CEL, or
• needs mutation, not just yes/no (use a mutating webhook — CEL has no equivalent yet).

Decision matrix

The direction of travel: anything that can be expressed in CEL is moving off webhooks into the API server. Operators in 2026 should keep webhooks for mutation and for validation that needs Go — and ship everything else as x-kubernetes-validations or a ValidatingAdmissionPolicy. The result is fewer moving parts: no webhook server to keep highly available, no cert to rotate, no failurePolicy to agonise over.

Mutating admission policies? A built-in CEL-based mutating equivalent (MutatingAdmissionPolicy) was alpha in 1.30 and beta in 1.32. Treat it as up-and-coming; for now, mutating logic still ships as a mutating webhook in production operators.

Local development workflow

Webhooks need TLS, which makes make run (run-out-of-cluster) harder than vanilla operators.

Use envtest

For integration tests, envtest can start a real apiserver with your webhook registered:

testEnv := &envtest.Environment{
    CRDDirectoryPaths: []string{filepath.Join("..", "config", "crd", "bases")},
    WebhookInstallOptions: envtest.WebhookInstallOptions{
        Paths: []string{filepath.Join("..", "config", "webhook")},
    },
}
cfg, err := testEnv.Start()

The webhook is registered against the test apiserver; the cert is generated automatically. envtest is part of sigs.k8s.io/controller-runtime/pkg/envtest and is the same harness kubebuilder scaffolds for you under internal/controller/suite_test.go.

Dry-run against a real cluster

The fastest way to manually test a deployed webhook:

kubectl apply -f bad-memcached.yaml --dry-run=server

The API server calls your webhook with dryRun: true. You see the admission response without actually creating the resource.

Patterns and anti-patterns

Good: cross-field validation

if r.Spec.HA && r.Spec.Size < 3 {
    return fmt.Errorf("HA mode requires size >= 3")
}

CRD schema cannot express this kind of cross-field rule. Webhooks are perfect.

Good: immutable fields

if old.Spec.StorageClass != new.Spec.StorageClass {
    return fmt.Errorf("storageClass is immutable")
}

Prevents disruptive changes that would require destroying and recreating workloads.

Bad: re-checking field-level rules

// BAD - duplicate of CRD schema
if r.Spec.Size < 0 {
    return fmt.Errorf("size must be >= 0")
}

If your CRD schema has minimum: 0, that check already failed at stage 4 before your webhook ran. Don't duplicate.

Bad: external API calls in the validator

// BAD - blocks the API server during admission
resp, _ := http.Get("https://config-service/...")

Webhooks have a hard timeout (10s). An external API call that takes 5s is borderline; a slow one rejects every admission. Use cached state (read from the informer cache if it's already populated; the webhook server has access to the controller-runtime client).

Bad: stateful mutation

// BAD - non-deterministic if called twice
r.Spec.UUID = uuid.NewString()

If the API server retries (e.g. on conflict), your webhook is called twice with different UUIDs. The behaviour is order-dependent. Fix: use a deterministic UUID derived from the object's metadata, or generate the UUID in the reconciler and not the webhook.

Monitoring webhooks

The metrics worth watching:

• controller_runtime_webhook_requests_total{code=...} — total webhook calls broken down by status. Errors here mean the API server is seeing your webhook fail.
• controller_runtime_webhook_latency_seconds_bucket — time spent in your webhook. p99 over 1 s should ring an alarm; over the configured timeoutSeconds is critical.
• controller_runtime_webhook_requests_in_flight — concurrent requests being handled. Spikes suggest a cluster operation that doesn't tolerate the webhook (a kubectl apply -f all.yaml).

For Prometheus wiring see operator metrics with Prometheus.

Common pitfalls

1. Forgetting to register the webhook in main.go

kubebuilder create webhook adds the SetupWebhookWithManager call but only if main.go has the right block. If you have a custom main.go, you must add it manually. Symptom: webhook never gets called. Fix: check main.go has (&cachev1alpha1.Memcached{}).SetupWebhookWithManager(mgr).

2. Webhook server cert not loaded

The webhook server fails to start because the cert files don't exist or are unreadable. Symptom: readyz fails with webhook-server check. Fix: ensure cert-manager (or your cert provisioner) created the Secret and mounted it at /tmp/k8s-webhook-server/serving-certs/, which is the path controller-runtime's webhook server expects by default.

3. failurePolicy: Fail on a non-HA operator

Operator pod restarts (rolling deploy). For 5 seconds the webhook is unavailable. The API server rejects every kubectl apply for the managed kind. Users see "connection refused" errors. Fix: deploy two replicas with leader election, so the webhook server is always up.

4. Defaulter that depends on cluster state

Default() calls r.Get(ctx, namespaceKey, &ns) to look up the namespace's default profile. The webhook server doesn't have a client in scope; or worse, it does but the call blocks past timeout. Fix: defaults should depend only on the object's own fields. State-dependent decisions belong in the reconciler.

5. sideEffects: Unknown

Pre-v1 default. In v1 (since 1.16) it's invalid and the API server rejects the configuration. Fix: declare sideEffects: None (almost always correct).

Summary

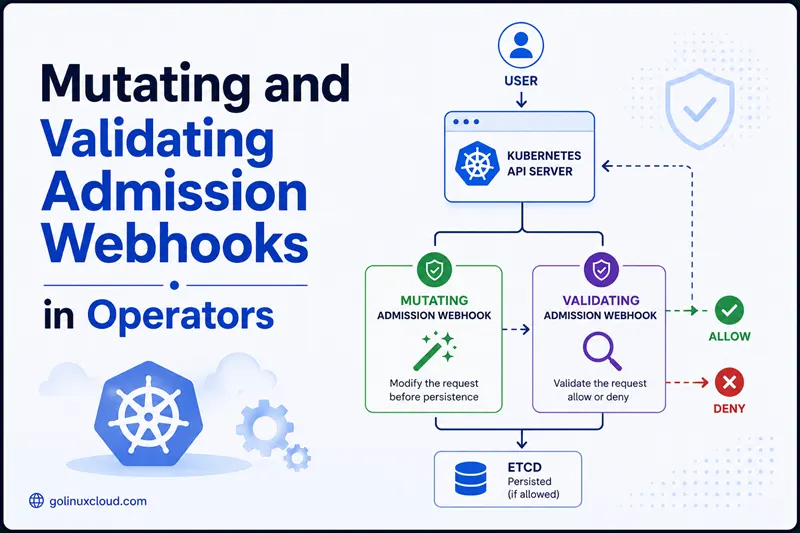

Admission webhooks are the operator pattern's way to enforce rules that CRD schemas cannot express: cross-field validation, immutable fields, intelligent defaults. kubebuilder scaffolds the boilerplate with kubebuilder create webhook; you fill in Default(), ValidateCreate(), and ValidateUpdate(). The configuration knobs that matter are failurePolicy (Fail for validation, often Ignore for defaulting), timeoutSeconds (5–10), and sideEffects (None for almost every operator).

Done well, webhooks make your operator's API safer and easier to use. Done poorly — long timeouts, side effects, failurePolicy: Fail on a single-replica operator — they can take down API admission for the entire managed kind. The next article covers the TLS plumbing that webhooks require.

Further reading

• Custom Resource Definitions explained — the schema layer that runs between mutating and validating webhooks, including CEL x-kubernetes-validations for in-schema validation.
• CRD version upgrades and conversion webhooks — the third type of admission webhook (conversion), which converts between served and storage versions of a CRD.
• Kubernetes finalizers explained — what ValidateDelete() usually defers to, and why most operators leave the delete validator empty.
• Server-Side Apply in operators — how SSA's fieldManager model interacts with mutating webhooks that default fields.
• Operator RBAC: minimum permissions — the extra permissions a webhook adds to the operator's RBAC.
• Operator health and readiness probes — why the webhook-readiness check gates rolling deploys.
• Operator leader election explained — the HA story that keeps failurePolicy: Fail viable.
• External: admission webhook reference, ValidatingAdmissionPolicy reference, kubebuilder webhook guide, controller-runtime webhook package, cert-manager.
