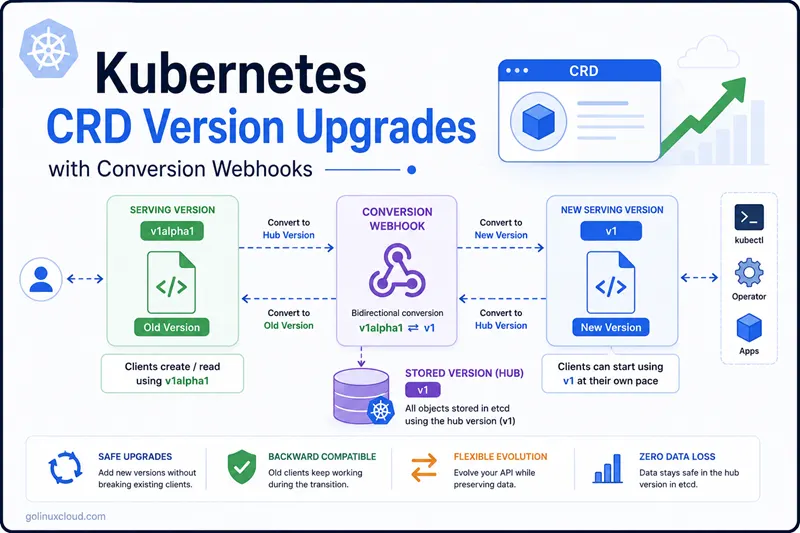

Kubernetes CRD Version Upgrades with Conversion Webhooks (2026)

A Kubernetes CRD upgrade is much easier to reason about when you treat it as an API migration, not as a YAML rename. Evolving a multi-version CRD safely means combining three things: a clear served and storage version contract, a conversion webhook that translates between them using the hub-and-spoke pattern, and a CRD migration step that rewrites existing objects in the new storage version.

This article uses a self-created DemoApp operator. The old API version, v1alpha1, has flat fields:

yaml

spec:
  image: nginx:1.27
  replicas: 2
  port: 8080

The new API version, v1, nests the same data:

yaml

spec:
  workload:
    image: nginx:1.27
    replicas: 2
  service:
    port: 8080
  paused: false

That is a real schema change. The same logical fields still exist, but their wire format is different. Kubernetes cannot safely convert those versions with conversion.strategy: None, so the CRD needs a conversion webhook.

The trimmed command output shown here comes from a tested DemoApp validation run. The longer command log is stored separately at content/posts/devops/kubernetes-operators/crd-version-upgrades-conversion-webhook/demoapp-crd-version-upgrade-validation.md.

How CRD Versioning Works

Unlike Deployments or ConfigMaps, a CRD can expose multiple API versions at the same time.

This allows existing clients to continue using an older API version while new clients adopt a newer schema. A multi-version CRD achieves this by separating three concerns: which served versions are exposed to users, which storage version is persisted in etcd, and how objects are converted between them.

A CRD upgrade therefore involves three independent contracts. Keeping them separate avoids one of the most common misconceptions about CRD upgrades: updating the CRD YAML does not automatically migrate existing objects. A real CRD migration only happens when each stored object is rewritten in the new storage version.

Contract	Purpose
`served`	Controls which API versions clients can read and write.
`storage`	Controls the single version persisted in etcd.
`conversion`	Controls how Kubernetes translates between served versions.

Exactly one version must have storage: true. Even if a CRD serves multiple versions simultaneously, Kubernetes always stores objects in a single canonical version inside etcd:

yaml

spec:
  versions:
  - name: v1
    served: true
    storage: true
  - name: v1alpha1
    served: true
    storage: false

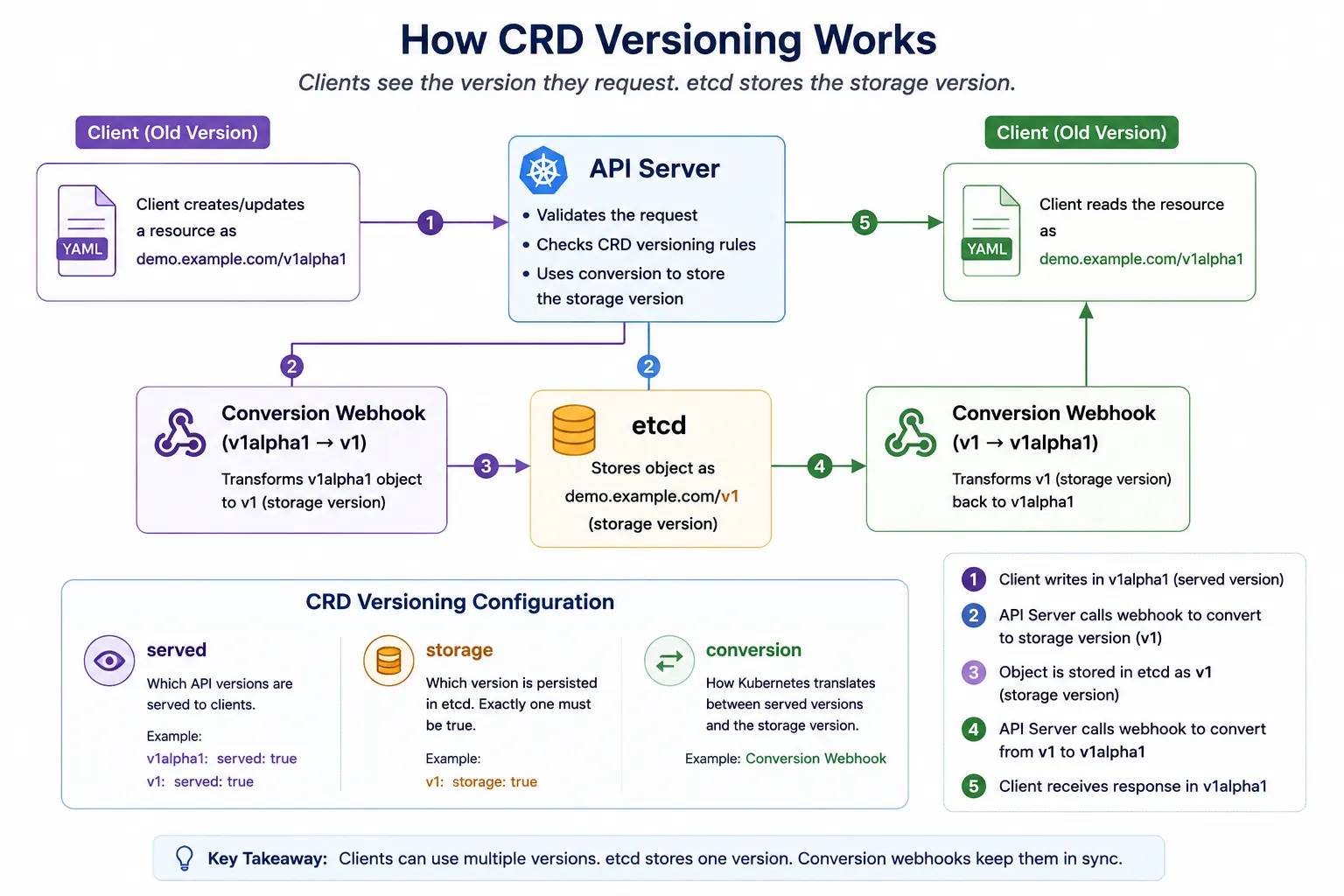

The following diagram shows what happens when a client interacts with a CRD that serves both v1alpha1 and v1, while v1 is the storage version:

As shown in the diagram:

A client creates or updates a resource using the older v1alpha1 API.
The API server accepts the request and invokes the conversion webhook.
The webhook converts the object to the storage version (v1).
Kubernetes stores the converted object in etcd as v1.
Later, another client requests the resource as v1alpha1.
The API server invokes the conversion webhook again.
The stored v1 object is converted back to v1alpha1 before being returned.

The important point is that clients always see the version they requested, while etcd always stores the version selected by the CRD.

In other words:

served controls what clients can use.
storage controls what etcd stores.
conversion bridges the gap between them.

Think of served as the API presented to users, storage as the canonical format stored in etcd, and conversion as the translator that allows multiple API versions to coexist.

When You Need a Conversion Webhook

A multi-version CRD supports two valid values for conversion.strategy. Picking the right one before you start writing code avoids a lot of rework later:

Strategy	When to use	Behavior
`None`	All served versions share the exact same wire shape and only add optional fields that can be safely pruned or defaulted.	Kubernetes returns the stored object unchanged, just relabeled with the requested API version. No conversion code runs.
`Webhook`	Any served version has renamed, nested, split, merged, or otherwise differently shaped fields.	Kubernetes calls the configured conversion webhook on every read or write that crosses versions, so the object is reshaped on the fly.

The DemoApp CRD in this article changes shape between v1alpha1 and v1 — flat fields become nested under workload and service, and a brand new paused field appears in v1. That is a real schema change, so the CRD upgrade in this guide uses the Webhook strategy.

The controller binary does not automatically switch versions when the CRD changes. It watches whichever Go type is compiled into the manager. In this walkthrough, the controller is updated to watch api/v1.DemoApp, while the API server continues serving older v1alpha1 clients through the conversion webhook.

Prerequisites

Go 1.24 or newer.
operator-sdk, kubectl, kind, Docker, and openssl.
A Kubernetes cluster where you can create CRDs, Services, Deployments, Secrets, and patch CRD caBundle.

The examples were verified with these tool versions:

bash

$ operator-sdk version
operator-sdk version: "v1.42.2", ... kubernetes version: "1.33.1"

$ go version
go version go1.24.4 linux/amd64

$ kind version
kind v0.31.0 go1.25.5 linux/amd64

Step 1 - Scaffold the DemoApp Operator

The project starts as a normal Operator SDK scaffold. The important detail is --project-name demoapp: when scaffolding inside a dot-prefixed or temporary directory, passing an explicit DNS-safe project name avoids invalid Kubernetes object names.

bash

mkdir -p ~/validation/demoapp
cd ~/validation/demoapp

operator-sdk init --plugins=go/v4 --domain example.com --repo github.com/example/demoapp --owner "Demo Team" --project-name demoapp

Expected output:

text

Writing kustomize manifests for you to edit...
Writing scaffold for you to edit...
Get controller runtime:
$ go get sigs.k8s.io/[email protected]
Update dependencies:
$ go mod tidy
Next: define a resource with:
$ operator-sdk create api

Create the older version first because it generates the controller scaffold. Both API versions represent the same resource, so only one controller should exist.

bash

operator-sdk create api --group demo --version v1alpha1 --kind DemoApp --resource --controller

operator-sdk create api --group demo --version v1 --kind DemoApp --resource --controller=false

Then create the conversion webhook. Here v1 is the hub and v1alpha1 is the spoke, so all conversion logic is written between those two versions:

bash

operator-sdk create webhook --group demo --version v1 --kind DemoApp --conversion --spoke v1alpha1

Expected output:

text

internal/webhook/v1/demoapp_webhook.go
internal/webhook/v1/demoapp_webhook_test.go
api/v1/demoapp_conversion.go
Scaffolding for spoke version: v1alpha1
Creating spoke conversion file at: api/v1alpha1/demoapp_conversion.go
Webhook server has been set up for you.

Step 2 - Define Both Schemas

This example intentionally changes the API shape, not just the version name. The old version uses flat fields that are easy for early users to write:

go

// api/v1alpha1/demoapp_types.go
type DemoAppSpec struct {
	Image    string `json:"image"`
	Replicas int32  `json:"replicas"`
	Port     int32  `json:"port,omitempty"`
}

type DemoAppStatus struct {
	AvailableReplicas int32 `json:"availableReplicas,omitempty"`
}

The new version groups the same data into a more extensible structure. workload now contains pod-level settings, service contains network exposure settings, and paused is a new field that did not exist in v1alpha1:

go

// api/v1/demoapp_types.go
type DemoAppSpec struct {
	Workload WorkloadSpec `json:"workload"`
	Service  ServiceSpec  `json:"service,omitempty"`
	Paused   bool         `json:"paused,omitempty"`
}

type WorkloadSpec struct {
	Image    string `json:"image"`
	Replicas int32  `json:"replicas"`
}

type ServiceSpec struct {
	Port int32 `json:"port,omitempty"`
}

type DemoAppStatus struct {
	AvailableReplicas int32 `json:"availableReplicas,omitempty"`
}

The generated v1 type should already have the storage and hub markers. These markers tell controller-gen that v1 is the persisted CRD version and the hub type for conversion:

go

// +kubebuilder:storageversion
// +kubebuilder:conversion:hub
// +kubebuilder:subresource:status
type DemoApp struct {
	metav1.TypeMeta   `json:",inline"`
	metav1.ObjectMeta `json:"metadata,omitempty"`

	Spec   DemoAppSpec   `json:"spec,omitempty"`
	Status DemoAppStatus `json:"status,omitempty"`
}

Step 3 - Implement the Conversion

Kubebuilder uses hub-and-spoke conversion for a multi-version CRD. One version is the hub (usually the storage version), and every other served version converts to and from that hub. This avoids writing direct converters for every possible version pair as the API grows.

Without hub-and-spoke conversion, three API versions would require six pairwise converters:

v1alpha1 ↔ v1beta1
v1alpha1 ↔ v1
v1beta1 ↔ v1

As more versions are added, the number of conversion paths grows rapidly. Hub-and-spoke keeps every version converting only to and from the hub.

The hub only needs a marker method:

go

// api/v1/demoapp_conversion.go
func (*DemoApp) Hub() {}

The spoke version implements ConvertTo and ConvertFrom. In this example, the converter maps spec.image to spec.workload.image, spec.replicas to spec.workload.replicas, and spec.port to spec.service.port:

go

// api/v1alpha1/demoapp_conversion.go
package v1alpha1

import (
	"sigs.k8s.io/controller-runtime/pkg/conversion"

	demov1 "github.com/example/demoapp/api/v1"
)

// ConvertTo converts this DemoApp (v1alpha1) to the Hub version (v1).
func (src *DemoApp) ConvertTo(dstRaw conversion.Hub) error {
	dst := dstRaw.(*demov1.DemoApp)

	dst.ObjectMeta = src.ObjectMeta
	dst.Spec.Workload.Image = src.Spec.Image
	dst.Spec.Workload.Replicas = src.Spec.Replicas
	dst.Spec.Service.Port = src.Spec.Port
	if dst.Spec.Service.Port == 0 {
		dst.Spec.Service.Port = 8080
	}
	dst.Status.AvailableReplicas = src.Status.AvailableReplicas

	return nil
}

// ConvertFrom converts the Hub version (v1) to this DemoApp (v1alpha1).
func (dst *DemoApp) ConvertFrom(srcRaw conversion.Hub) error {
	src := srcRaw.(*demov1.DemoApp)

	dst.ObjectMeta = src.ObjectMeta
	dst.Spec.Image = src.Spec.Workload.Image
	dst.Spec.Replicas = src.Spec.Workload.Replicas
	dst.Spec.Port = src.Spec.Service.Port
	dst.Status.AvailableReplicas = src.Status.AvailableReplicas

	return nil
}

The paused field exists only in v1, so it is intentionally dropped when a client reads the object as v1alpha1. That is a lossy conversion. Real production APIs should explicitly document every lossy conversion because older clients cannot preserve fields they do not understand. Otherwise users may unknowingly lose data when reading and writing through an older API version.

Step 4 - Update the Controller to Use v1

The generated controller initially watches v1alpha1 because that was the first API version created. After introducing v1, change the controller to watch the hub/storage version. This keeps the reconciler code aligned with the current API shape:

go

// internal/controller/demoapp_controller.go
import demov1 "github.com/example/demoapp/api/v1"

func (r *DemoAppReconciler) SetupWithManager(mgr ctrl.Manager) error {
	return ctrl.NewControllerManagedBy(mgr).
		For(&demov1.DemoApp{}).
		Named("demoapp").
		Complete(r)
}

This does not break v1alpha1 clients. They can still submit and read old-version objects while the controller works with the v1 Go type internally. The API server performs the translation before objects reach the controller cache.

Step 5 - Add Unit Tests

Conversion bugs usually appear as data loss: a field is forgotten, a default is applied incorrectly, or a new field cannot be represented in the old version. Unit tests should cover the exact field mappings and any expected defaults.

Start with old-to-new conversion:

go

// api/v1alpha1/demoapp_conversion_test.go
func TestConvertToHub(t *testing.T) {
	src := &DemoApp{
		ObjectMeta: metav1.ObjectMeta{Name: "demoapp-sample", Namespace: "default"},
		Spec: DemoAppSpec{
			Image:    "nginx:1.27",
			Replicas: 3,
			Port:     9090,
		},
		Status: DemoAppStatus{AvailableReplicas: 2},
	}

	dst := &demov1.DemoApp{}
	if err := src.ConvertTo(dst); err != nil {
		t.Fatalf("ConvertTo returned error: %v", err)
	}

	if dst.Spec.Workload.Image != "nginx:1.27" {
		t.Fatalf("image mismatch: got %q", dst.Spec.Workload.Image)
	}
	if dst.Spec.Workload.Replicas != 3 {
		t.Fatalf("replicas mismatch: got %d", dst.Spec.Workload.Replicas)
	}
	if dst.Spec.Service.Port != 9090 {
		t.Fatalf("port mismatch: got %d", dst.Spec.Service.Port)
	}
}

Also test defaults and reverse conversion. The default test proves that older objects without spec.port become valid v1 objects, while the reverse test proves that new-version data remains readable by old clients:

go

func TestConvertToHubDefaultsPort(t *testing.T) {
	src := &DemoApp{Spec: DemoAppSpec{Image: "nginx:1.27", Replicas: 1}}

	dst := &demov1.DemoApp{}
	if err := src.ConvertTo(dst); err != nil {
		t.Fatalf("ConvertTo returned error: %v", err)
	}

	if dst.Spec.Service.Port != 8080 {
		t.Fatalf("default port mismatch: got %d", dst.Spec.Service.Port)
	}
}

func TestConvertFromHub(t *testing.T) {
	src := &demov1.DemoApp{
		ObjectMeta: metav1.ObjectMeta{Name: "demoapp-sample", Namespace: "default"},
		Spec: demov1.DemoAppSpec{
			Workload: demov1.WorkloadSpec{Image: "nginx:1.28", Replicas: 4},
			Service:  demov1.ServiceSpec{Port: 8081},
			Paused:   true,
		},
		Status: demov1.DemoAppStatus{AvailableReplicas: 4},
	}

	dst := &DemoApp{}
	if err := dst.ConvertFrom(src); err != nil {
		t.Fatalf("ConvertFrom returned error: %v", err)
	}

	if dst.Spec.Image != "nginx:1.28" || dst.Spec.Replicas != 4 || dst.Spec.Port != 8081 {
		t.Fatalf("unexpected converted spec: %#v", dst.Spec)
	}
}

Run the conversion unit tests:

bash

go test ./api/...

Expected output from the tested run:

text

?   	github.com/example/demoapp/api/v1	[no test files]
ok  	github.com/example/demoapp/api/v1alpha1	0.018s

The broader go test ./... command was also checked during validation. The conversion and webhook packages passed. The scaffolded controller envtest required local Kubebuilder control-plane binaries, and the generated e2e suite tried to build an image from Docker Hub, which can fail in restricted or rate-limited environments. Keep those tests in CI once the required envtest binaries and image registry access are available; the full output is captured in the separate validation log.

Step 6 - Generate the CRD Manifest

After changing Go API types and conversion markers, regenerate both code and manifests. make generate refreshes generated Go helpers such as deep-copy methods. make manifests refreshes CRDs, RBAC, and webhook configuration:

bash

make generate
make manifests

Expected output from the tested run:

text

bin/controller-gen object:headerFile="hack/boilerplate.go.txt" paths="./..."
bin/controller-gen rbac:roleName=manager-role crd webhook paths="./..." output:crd:artifacts:config=config/crd/bases

The generated CRD should contain both served versions and strategy: Webhook. The Service name and namespace shown here are the rendered Kustomize values, after the demoapp- name prefix and demoapp-system namespace are applied:

yaml

spec:
  group: demo.example.com
  conversion:
    strategy: Webhook
    webhook:
      clientConfig:
        service:
          name: demoapp-webhook-service
          namespace: demoapp-system
          path: /convert
      conversionReviewVersions:
      - v1
  versions:
  - name: v1
    served: true
    storage: true
  - name: v1alpha1
    served: true
    storage: false

The generated schemas should show the shape change. This is an important review step because it confirms that Kubernetes will validate each version according to its own wire format:

yaml

# v1
spec:
  properties:
    workload:
      properties:
        image:
          type: string
        replicas:
          format: int32
          type: integer
    service:
      properties:
        port:
          format: int32
          type: integer

yaml

# v1alpha1
spec:
  properties:
    image:
      type: string
    replicas:
      format: int32
      type: integer
    port:
      format: int32
      type: integer

Step 7 - Run the Webhook

The conversion webhook runs inside the same manager binary as the controller. Kubernetes reaches it through an HTTPS Service, and controller-runtime registers the /convert handler when the manager starts.

Operator SDK wires the manager like this:

go

webhookServer := webhook.NewServer(webhook.Options{
	TLSOpts: webhookTLSOpts,
})

mgr, err := ctrl.NewManager(ctrl.GetConfigOrDie(), ctrl.Options{
	Scheme:        scheme,
	WebhookServer: webhookServer,
})

if os.Getenv("ENABLE_WEBHOOKS") != "false" {
	if err := webhookv1.SetupDemoAppWebhookWithManager(mgr); err != nil {
		setupLog.Error(err, "unable to create webhook", "webhook", "DemoApp")
		os.Exit(1)
	}
}

The webhook server must present a certificate trusted by the Kubernetes API server. The scaffolded deployment patch mounts the TLS Secret into the manager pod and passes the certificate directory through --webhook-cert-path:

yaml

- op: add
  path: /spec/template/spec/containers/0/args/-
  value: --webhook-cert-path=/tmp/k8s-webhook-server/serving-certs

- op: add
  path: /spec/template/spec/containers/0/volumeMounts/-
  value:
    mountPath: /tmp/k8s-webhook-server/serving-certs
    name: webhook-certs
    readOnly: true

- op: add
  path: /spec/template/spec/volumes/-
  value:
    name: webhook-certs
    secret:
      secretName: webhook-server-cert

For a demo environment, a self-signed serving certificate is enough. The certificate must include Subject Alternative Names for the rendered webhook Service DNS names. If the SAN does not match the Service name in the CRD, the API server rejects the TLS connection:

bash

cat > webhook-openssl.cnf <<'EOF'
[ req ]
distinguished_name = req_distinguished_name
x509_extensions = req_ext
prompt = no

[ req_distinguished_name ]
CN = demoapp-webhook-service.demoapp-system.svc

[ req_ext ]
subjectAltName = @alt_names

[ alt_names ]
DNS.1 = demoapp-webhook-service.demoapp-system.svc
DNS.2 = demoapp-webhook-service.demoapp-system.svc.cluster.local
EOF

openssl req -x509 -newkey rsa:2048 -nodes \
  -keyout tls.key \
  -out tls.crt \
  -days 365 \
  -config webhook-openssl.cnf \
  -extensions req_ext

kubectl create namespace demoapp-system
kubectl -n demoapp-system create secret tls webhook-server-cert \
  --cert=tls.crt \
  --key=tls.key

The API server validates the webhook certificate using spec.conversion.webhook.clientConfig.caBundle. Patch the CRD with the base64-encoded public certificate:

bash

kubectl patch crd demoapps.demo.example.com --type=merge \
  -p "{\"spec\":{\"conversion\":{\"webhook\":{\"clientConfig\":{\"caBundle\":\"$(base64 -w0 < tls.crt)\"}}}}}"

Deploy the manager after the Secret exists, then wait for the deployment to become available:

bash

make deploy IMG=demoapp-crd-upgrade:validation
kubectl -n demoapp-system rollout status deployment/demoapp-controller-manager --timeout=120s

Expected output from the tested run:

text

customresourcedefinition.apiextensions.k8s.io/demoapps.demo.example.com created
service/demoapp-webhook-service created
deployment.apps/demoapp-controller-manager created
deployment "demoapp-controller-manager" successfully rolled out

The webhook logs should show that controller-runtime registered and started the conversion endpoint:

text

Initializing webhook certificate watcher using provided certificates
Registering webhook {"path": "/convert"}
Conversion webhook enabled {"GVK": "demo.example.com/v1, Kind=DemoApp"}
Starting webhook server
Serving webhook server {"host": "", "port": 9443}

The normal production shape is the Service-based clientConfig shown in the CRD. During the local kind validation for this article, Service DNS from the API server to the webhook timed out, while direct TLS to a host-network endpoint succeeded. That environment-specific workaround is documented in the validation log; regular clusters should keep the Service-based webhook configuration.

Step 8 - Validate Conversion in the Cluster

The cluster test should prove both conversion directions through the Kubernetes API server. A unit test proves the Go functions work, but it does not prove that the CRD, caBundle, Service, Secret, and webhook server are wired correctly.

Start by applying an old-version object:

yaml

# config/samples/demo_v1alpha1_demoapp.yaml
apiVersion: demo.example.com/v1alpha1
kind: DemoApp
metadata:
  name: demoapp-sample
spec:
  image: nginx:1.27
  replicas: 2
  port: 8080

bash

kubectl apply -f config/samples/demo_v1alpha1_demoapp.yaml

Expected output from the tested run:

text

demoapp.demo.example.com/demoapp-sample created

Read it back as v1. This forces v1alpha1 -> v1 conversion because the object was submitted in the old shape but the client is asking for the new shape:

bash

kubectl get demoapp.v1.demo.example.com demoapp-sample \
  -o jsonpath='{.apiVersion}{"\n"}{.spec.workload.image}{"\n"}{.spec.workload.replicas}{"\n"}{.spec.service.port}{"\n"}'

Expected output from the tested run:

text

demo.example.com/v1
nginx:1.27
2
8080

Read the same object as v1alpha1 to confirm old clients still see the flat schema:

bash

kubectl get demoapp.v1alpha1.demo.example.com demoapp-sample \
  -o jsonpath='{.apiVersion}{"\n"}{.spec.image}{"\n"}{.spec.replicas}{"\n"}{.spec.port}{"\n"}'

Expected output from the tested run:

text

demo.example.com/v1alpha1
nginx:1.27
2
8080

Now patch it through the v1 API. This updates the storage-version shape and sets paused, a field that old clients cannot represent:

bash

kubectl patch demoapp.v1.demo.example.com demoapp-sample \
  --type=merge \
  -p '{"spec":{"workload":{"image":"nginx:1.28","replicas":3},"service":{"port":9090},"paused":true}}'

Expected output from the tested run:

text

demoapp.demo.example.com/demoapp-sample patched

Read it through v1alpha1. This forces v1 -> v1alpha1 conversion and confirms that the fields shared by both versions are still visible in the old shape:

bash

kubectl get demoapp.v1alpha1.demo.example.com demoapp-sample \
  -o jsonpath='{.apiVersion}{"\n"}{.spec.image}{"\n"}{.spec.replicas}{"\n"}{.spec.port}{"\n"}'

Expected output from the tested run:

text

demo.example.com/v1alpha1
nginx:1.28
3
9090

The paused field does not appear in v1alpha1 because that version has no equivalent field. That is the expected lossy part of this conversion, and it is why lossy fields should be documented before promoting a new API.

Finally, check the versions Kubernetes has stored in etcd for this CRD:

bash

kubectl get crd demoapps.demo.example.com -o jsonpath='{.status.storedVersions}{"\n"}'

Expected output from the tested run:

text

["v1"]

Step 9 - Roll Out Safely and Run the CRD Migration

A CRD upgrade is not complete the moment you flip storage: true on the new version. Existing rows in etcd are still written in the old storage version until a CRD migration rewrites them. Use this order in production:

Add the new version as served: true, storage: false.
Deploy the conversion webhook while the old storage version still works.
Verify old-to-new and new-to-old conversion with unit tests and cluster tests.
Switch storage: true to the new version.
Migrate stored objects so etcd rows are rewritten in the new storage version.
Keep the old version served: true through your deprecation window.
Set the old version to served: false.
Remove the old version only after status.storedVersions no longer contains it.

If status.storedVersions still contains the old version, do not remove that old version from spec.versions.

For real CRD migrations in production, use kube-storage-version-migrator. It walks every existing custom resource and rewrites it in the new storage version so etcd no longer contains stale rows from the old version:

bash

kubectl apply -k github.com/kubernetes-sigs/kube-storage-version-migrator/manifests

kubectl apply -f - <<'EOF'
apiVersion: migration.k8s.io/v1alpha1
kind: StorageVersionMigration
metadata:
  name: demoapps-v1
spec:
  resource:
    group: demo.example.com
    resource: demoapps
EOF

After every object has been rewritten, patch the CRD status:

bash

kubectl patch crd demoapps.demo.example.com --subresource=status --type=merge -p '{"status":{"storedVersions":["v1"]}}'

Common Pitfalls

Leaving conversion logic as TODOs.

The generated files compile with TODO conversion methods. That does not mean the API is safe. Add real tests before you deploy the CRD.

Forgetting caBundle.

The API server validates the webhook serving certificate using the CRD caBundle. If it is empty or mismatched, conversion fails.

Wrong certificate SAN.

The certificate must contain the exact Service DNS name from the rendered CRD, for example demoapp-webhook-service.demoapp-system.svc.

Testing only one direction.

Creating old and reading new is not enough. Patch or create through the new version and read through the old version too.

Hiding lossy fields.

If a v1 field has no v1alpha1 equivalent, say so. In this article spec.paused is dropped when a client reads v1alpha1.

Removing old versions too early.

Changing storage: true does not rewrite existing objects by itself. Migrate stored objects and verify status.storedVersions before removing an old version.

Frequently Asked Questions

1. What is a CRD conversion webhook?

A conversion webhook is an HTTPS endpoint that the Kubernetes API server calls whenever a custom resource must be translated from one served version to another. The API server sends a ConversionReview request and the webhook returns the same object reshaped for the requested API version.

2. When do I need a conversion webhook?

Use a conversion webhook when two served CRD versions have different wire shapes: renamed fields, nested fields, split fields, merged fields, or type changes. If versions only add optional fields that can be pruned or defaulted safely, conversion.strategy: None may be enough.

3. What is the storage version?

The storage version is the one CRD version that Kubernetes persists in etcd. Exactly one entry under spec.versions must have storage: true. Other served versions are converted to and from that storage version as needed.

4. Can I use self-signed certificates for a demo conversion webhook?

Yes. For a demo cluster, generate a self-signed serving certificate with SANs for the webhook Service DNS name, mount it into the manager pod, and patch the CRD caBundle with the base64-encoded certificate.

5. What is the difference between a served version and a storage version?

A served version is any CRD version that clients can read or write through the Kubernetes API server. The storage version is the single version Kubernetes persists in etcd. A multi-version CRD can expose many served versions at once, but exactly one of them must be marked storage: true. Conversion webhooks bridge served versions and the storage version.

6. How do I migrate existing CRD objects to a new storage version?

Switching storage: true does not rewrite existing rows in etcd. To complete a CRD migration, run kube-storage-version-migrator with a StorageVersionMigration resource, then confirm that status.storedVersions on the CRD only lists the new storage version before removing the old version from spec.versions.

Summary

The reliable CRD upgrade pattern for a multi-version CRD is:

Keep both the old and new served versions exposed together.
Pick exactly one storage version.
Translate every other served version through that storage version using hub-and-spoke conversion.
Unit test both conversion directions.
Run the webhook with a trusted TLS certificate and a matching caBundle.
Verify real API reads and writes through every served version.
Run a real CRD migration with kube-storage-version-migrator before retiring the old version.

That is how you evolve a multi-version CRD without stranding existing custom resources — clean served and storage version contracts, hub-and-spoke conversion through a single webhook, and a real CRD migration step before you remove the old version.
