Configure Apache LDAP Authentication with 389 Directory Server

Apache HTTP Server can authenticate website visitors directly against 389 Directory Server with mod_authnz_ldap. The browser sends HTTP Basic credentials, Apache searches the directory for the matching uid, verifies the password with a user bind, and then evaluates a separate authorization rule such as Require valid-user or Require ldap-group.

This guide protects one Apache URL on a Rocky Linux 10 application host. For complete user and group lifecycle work, see manage users and groups. For server TLS and CA export, see TLS, STARTTLS, and LDAPS. For search-account ACIs, see ACI examples.

Tested on: Rocky Linux 10.2; 389 Directory Server 3.2.0; Apache HTTP Server 2.4.63 with mod_ldap; SELinux Enforcing.

How Apache LDAP authentication works

When a browser requests a protected URL, Apache first verifies who the user is, then checks whether that authenticated user is allowed to open the protected page.

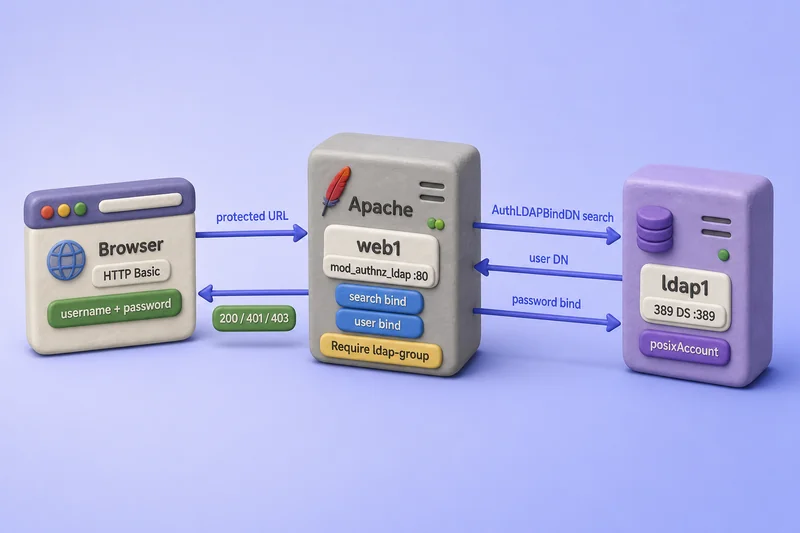

The diagram shows the logical path, not packet timing. Apache connects directly to 389 DS; SSSD is not involved in this integration.

• Apache binds with the configured search account, or anonymously when the directory permits it, and searches for the username entered in the browser.
• Apache locates the user entry under the configured base DN using the login attribute from AuthLDAPURL, normally uid.
• Apache binds as the discovered user DN with the submitted password to verify credentials.
• Apache evaluates the applicable Require directive.
• When both checks pass, Apache serves the page. A failed password check returns 401; a failed authorization rule returns 401 by default or 403 when AuthzSendForbiddenOnFailure On is configured.

LDAP authentication does not automatically authorize every authenticated user. Authorization is controlled separately through Require valid-user, ldap-user, ldap-group, ldap-attribute, or ldap-filter.

HTTP Basic authentication sends credentials on every request. Serve the protected website over HTTPS in production, and encrypt the separate LDAP connection between Apache and 389 Directory Server.

Prepare the two-VM Apache LDAP lab

The lab uses two Rocky Linux 10 VMs. Run directory commands on VM1 (ldap1.example.com) and Apache commands on VM2 (web1.example.com).

Confirm DNS or /etc/hosts on VM2 resolves ldap1.example.com, copy the directory CA from VM1, and keep clocks synchronized with chrony on both systems. This article assumes 389 Directory Server is already installed and configured on VM1 and an HTTPS virtual host is available on VM2. The required Apache and LDAP packages are installed later in the guide.

Prepare the LDAP users, group, and search account

VM1 (ldap1.example.com): Apache maps the browser username to the uid attribute. Create only the minimum lab objects here; use the users-and-groups guide for full account workflows and the ACI examples guide for production search-account permissions.

This lab assumes ou=People and ou=Groups already exist from the users-and-groups guide. The dsidm service command also requires ou=Services, so create that container when it is not already present:

dsidm -y /root/dm.pw ldap1 ou list

Sample output (trimmed):

People
Groups

When Services is missing, create it:

dsidm -y /root/dm.pw ldap1 ou create --ou Services

Sample output:

Successfully created Services

Create the test users with dsidm:

dsidm -y /root/dm.pw ldap1 user create --uid apacheuser1 --cn "Apache User1" --displayName "Apache User1" --uidNumber 15201 --gidNumber 15200 --homeDirectory /home/apacheuser1

Sample output:

Successfully created apacheuser1

dsidm -y /root/dm.pw ldap1 user create --uid apacheguest --cn "Apache Guest" --displayName "Apache Guest" --uidNumber 15202 --gidNumber 15202 --homeDirectory /home/apacheguest

Sample output:

Successfully created apacheguest

Create the read-only search account under ou=Services:

dsidm -y /root/dm.pw ldap1 service create --cn apache-reader --description "Apache LDAP search account"

Sample output:

Successfully created apache-reader

Set passwords for the lab accounts:

dsidm -y /root/dm.pw ldap1 account reset_password "uid=apacheuser1,ou=people,dc=example,dc=com" 'ApacheUser1!'

Sample output:

reset password for uid=apacheuser1,ou=people,dc=example,dc=com

dsidm -y /root/dm.pw ldap1 account reset_password "uid=apacheguest,ou=people,dc=example,dc=com" 'ApacheGuest!'

Sample output:

reset password for uid=apacheguest,ou=people,dc=example,dc=com

dsidm -y /root/dm.pw ldap1 account reset_password "cn=apache-reader,ou=Services,dc=example,dc=com" 'ApacheReader!'

Sample output:

reset password for cn=apache-reader,ou=Services,dc=example,dc=com

Create the authorization group as groupOfNames with a complete member DN:

ldapmodify -x -H ldap://ldap1.example.com:389 -D "cn=Directory Manager" -y /root/dm.pw <<'EOF'
dn: cn=apache-web-users,ou=Groups,dc=example,dc=com
changetype: add
objectClass: top
objectClass: groupOfNames
cn: apache-web-users
member: uid=apacheuser1,ou=people,dc=example,dc=com
EOF

Sample output:

adding new entry "cn=apache-web-users,ou=Groups,dc=example,dc=com"

Grant the search account read access to the attributes Apache needs. The reader must be able to read objectClass when your AuthLDAPURL filter uses (objectClass=posixAccount):

ldapmodify -x -H ldap://ldap1.example.com:389 -D "cn=Directory Manager" -y /root/dm.pw <<'EOF'
dn: ou=people,dc=example,dc=com
changetype: modify
add: aci
aci: (targetattr="uid || cn || objectClass")(version 3.0; acl "Apache reader search people"; allow (read,search,compare) userdn="ldap:///cn=apache-reader,ou=Services,dc=example,dc=com";)
EOF

Sample output:

modifying entry "ou=people,dc=example,dc=com"

ldapmodify -x -H ldap://ldap1.example.com:389 -D "cn=Directory Manager" -y /root/dm.pw <<'EOF'
dn: ou=Groups,dc=example,dc=com
changetype: modify
add: aci
aci: (targetattr="cn || member")(version 3.0; acl "Apache reader search groups"; allow (read,search,compare) userdn="ldap:///cn=apache-reader,ou=Services,dc=example,dc=com";)
EOF

Sample output:

modifying entry "ou=Groups,dc=example,dc=com"

The user DN still appears in LDAP search results without listing dn in targetattr. Values in targetattr must be real schema attributes such as uid, cn, member, and objectClass.

Do not use Directory Manager as the Apache bind account in production. The search account needs read, search, and compare rights on the required user and group attributes, but it does not need write access or permission to read userPassword. Apache performs a directory search during authentication and uses comparisons for several authorization providers.

Verify LDAP connectivity from the Apache server

VM2 (web1.example.com): Confirm LDAP settings from the shell before you edit Apache. Use the same hostname, base DN, bind DN, CA file, and StartTLS mode that AuthLDAPURL will use. The ldapsearch command documents -b, -D, -ZZ, and filter syntax for these checks.

Export the CA path for the client tools:

export LDAPTLS_CACERT=/etc/openldap/certs/ldap1-ca.crt

Test the search-account bind and user lookup:

ldapsearch -LLL -o ldif-wrap=no -x -ZZ -H ldap://ldap1.example.com:389 -D "cn=apache-reader,ou=Services,dc=example,dc=com" -W -b "ou=people,dc=example,dc=com" "(uid=apacheuser1)" uid

Sample output:

dn: uid=apacheuser1,ou=people,dc=example,dc=com
uid: apacheuser1

Verify the authorization group and member values:

ldapsearch -LLL -o ldif-wrap=no -x -ZZ -H ldap://ldap1.example.com:389 -D "cn=apache-reader,ou=Services,dc=example,dc=com" -W -b "ou=Groups,dc=example,dc=com" "(cn=apache-web-users)" cn member

Sample output:

dn: cn=apache-web-users,ou=Groups,dc=example,dc=com
cn: apache-web-users
member: uid=apacheuser1,ou=people,dc=example,dc=com

Confirm the user password with a direct bind:

ldapwhoami -x -ZZ -H ldap://ldap1.example.com:389 -D "uid=apacheuser1,ou=people,dc=example,dc=com" -W

Sample output:

dn: uid=apacheuser1,ou=people,dc=example,dc=com

An incorrect password should fail with ldap_bind: Invalid credentials (49). When ldapsearch succeeds from VM2 but Apache later fails, the problem is usually Apache configuration, SELinux, or TLS trust rather than the directory data itself.

Install and verify the Apache LDAP modules

VM2 (web1.example.com): Install Apache HTTP Server, the LDAP modules, and the LDAP client utilities. Package installs on RHEL-family hosts use sudo and dnf:

sudo dnf install -y httpd mod_ldap openldap-clients

Enable and start the web server with systemctl:

sudo systemctl enable --now httpd

Confirm the required modules are loaded rather than assuming they are active:

httpd -M | grep -E 'auth_basic|authz_user|ldap'

Sample output:

auth_basic_module (shared)
 authz_user_module (shared)
 ldap_module (shared)
 authnz_ldap_module (shared)

On SELinux Enforcing systems, allow Apache to open outbound LDAP connections. Prefer the LDAP-specific boolean over broad network permissions. If connections still fail, confirm firewalld allows LDAP from the Apache host to VM1.

sudo setsebool -P httpd_can_connect_ldap on

Verify the boolean:

getsebool httpd_can_connect_ldap

Sample output:

httpd_can_connect_ldap --> on

Create a protected test directory before you add authentication:

sudo install -d -m 0755 /var/www/html/secure

echo 'LDAP authentication succeeded.' | sudo tee /var/www/html/secure/index.html

Place LDAP settings in /etc/httpd/conf.d/389ds-ldap-auth.conf rather than .htaccess. Server-level configuration is easier to audit and keeps the bind password out of content directories.

Configure basic LDAP authentication

VM2 (web1.example.com): Copy the directory CA to a path Apache can read:

sudo cp /etc/openldap/certs/ldap1-ca.crt /etc/httpd/conf/ldap1-ca.crt

sudo chmod 0644 /etc/httpd/conf/ldap1-ca.crt

Create /etc/httpd/conf.d/389ds-ldap-auth.conf with the minimum working authentication block. Place LDAPTrustedGlobalCert in server configuration context, outside <Directory>:

LDAPTrustedGlobalCert CA_BASE64 /etc/httpd/conf/ldap1-ca.crt
LDAPVerifyServerCert On

<Directory "/var/www/html/secure">
    AuthType Basic
    AuthName "389 Directory Server Login"
    AuthBasicProvider ldap

    AuthLDAPURL "ldap://ldap1.example.com/ou=people,dc=example,dc=com?uid?sub?(objectClass=posixAccount)" STARTTLS
    AuthLDAPBindDN "cn=apache-reader,ou=Services,dc=example,dc=com"
    AuthLDAPBindPassword "ApacheReader!"

    Require valid-user
</Directory>

Restrict ownership because the file contains the service bind password. Ownership changes use the chown command:

sudo chown root:root /etc/httpd/conf.d/389ds-ldap-auth.conf

sudo chmod 0600 /etc/httpd/conf.d/389ds-ldap-auth.conf

Understand the AuthLDAPURL syntax

The LDAP URL ends after the search filter:

ldap://host:port/base-dn?login-attribute?scope?filter

Append STARTTLS after the quoted URL to upgrade a port 389 connection to TLS. Apache documents the full directive form as:

AuthLDAPURL url [NONE|SSL|TLS|STARTTLS]

Use a narrow user search base when possible. The filter must match attributes your search account can read.

Validate syntax before reloading:

sudo apachectl configtest

Sample output:

Syntax OK

Reload Apache:

sudo systemctl reload httpd

Test an unauthenticated request over HTTPS. The workstation running curl must trust the Apache HTTPS certificate; when the site uses a private web CA, pass --cacert /path/to/web-ca.crt instead of switching back to HTTP — see OpenSSL for inspecting or staging web-server certificates. HTTPS login tests use the curl command with -sI and -u:

curl --noproxy '*' -sI https://web1.example.com/secure/

Sample output:

HTTP/1.1 401 Unauthorized
WWW-Authenticate: Basic realm="389 Directory Server Login"

Test a valid LDAP user without placing the password on the command line:

curl --noproxy '*' -sI -u apacheuser1 https://web1.example.com/secure/

curl prompts for the password interactively.

Sample output:

HTTP/1.1 200 OK

A wrong password returns 401 again.

Restrict access using LDAP users and groups

Require valid-user confirms that the account exists and the password is correct. It does not limit which LDAP users may access the page.

Allow specific LDAP users

Replace Require valid-user with a named user list:

Require ldap-user apacheuser1

This matches the login attribute returned by AuthLDAPURL, not the full user DN.

Validate and reload before testing:

sudo apachectl configtest

sudo systemctl reload httpd

A user not listed in the directive should fail even with a valid password:

curl --noproxy '*' -s -o /dev/null -w '%{http_code}\n' -u apacheguest https://web1.example.com/secure/

Sample output:

401

Allow members of an LDAP group

Replace Require valid-user with the complete group-authorization block below. This lab checks direct membership only, so AuthLDAPMaxSubGroupDepth 0 disables subgroup traversal. Apache otherwise defaults to a subgroup depth of 10 and can evaluate nested groupOfNames or groupOfUniqueNames entries unless you set the depth to zero or directory permissions block the extra searches.

LDAPTrustedGlobalCert CA_BASE64 /etc/httpd/conf/ldap1-ca.crt
LDAPVerifyServerCert On

<Directory "/var/www/html/secure">
    AuthType Basic
    AuthName "389 Directory Server Login"
    AuthBasicProvider ldap

    AuthLDAPURL "ldap://ldap1.example.com/ou=people,dc=example,dc=com?uid?sub?(objectClass=posixAccount)" STARTTLS
    AuthLDAPBindDN "cn=apache-reader,ou=Services,dc=example,dc=com"
    AuthLDAPBindPassword "ApacheReader!"

    AuthLDAPGroupAttribute member
    AuthLDAPGroupAttributeIsDN on
    AuthLDAPMaxSubGroupDepth 0
    AuthzSendForbiddenOnFailure On

    Require ldap-group cn=apache-web-users,ou=Groups,dc=example,dc=com
</Directory>

member stores the complete user DN. AuthLDAPGroupAttributeIsDN on tells Apache to compare the authenticated user's DN against that attribute. A matching POSIX gidNumber on the user entry does not satisfy Require ldap-group.

When you intentionally use nested groups, remove AuthLDAPMaxSubGroupDepth 0 and ensure the Apache bind account can read subgroup member or uniqueMember values and the objectClass attributes Apache needs for traversal.

By default, Apache returns 401 Unauthorized after a successful password bind when authorization fails. AuthzSendForbiddenOnFailure On changes that behavior so a valid password with failed group membership returns 403 Forbidden, which makes authentication and authorization easier to distinguish during testing.

Validate syntax and reload before retesting:

sudo apachectl configtest

sudo systemctl reload httpd

Allowed group member:

curl --noproxy '*' -s -o /dev/null -w '%{http_code}\n' -u apacheuser1 https://web1.example.com/secure/

Sample output:

200

Authenticated user outside the group:

curl --noproxy '*' -s -o /dev/null -w '%{http_code}\n' -u apacheguest https://web1.example.com/secure/

Sample output with AuthzSendForbiddenOnFailure On:

403

The second result proves authentication succeeded while group authorization rejected the user.

Authorize using an attribute or LDAP filter

A group is not always necessary. When the user entry already contains an application flag or role attribute, Apache can authorize that value directly with ldap-attribute or evaluate a broader condition with ldap-filter.

This optional memberOf rule requires two prerequisites: the MemberOf plug-in must populate memberOf, and the Apache search account must have search and read access to that attribute. The earlier lab ACI does not include memberOf because direct ldap-group authorization does not need it.

Extend the People ACI when you want to test ldap-filter against memberOf:

ldapmodify -x -H ldap://ldap1.example.com:389 -D "cn=Directory Manager" -y /root/dm.pw <<'EOF'
dn: ou=people,dc=example,dc=com
changetype: modify
delete: aci
aci: (targetattr="uid || cn || objectClass")(version 3.0; acl "Apache reader search people"; allow (read,search,compare) userdn="ldap:///cn=apache-reader,ou=Services,dc=example,dc=com";)
-
add: aci
aci: (targetattr="uid || cn || objectClass || memberOf")(version 3.0; acl "Apache reader search people"; allow (read,search,compare) userdn="ldap:///cn=apache-reader,ou=Services,dc=example,dc=com";)
EOF

Sample output:

modifying entry "ou=people,dc=example,dc=com"

Then Apache can authorize users who carry a specific memberOf value:

Require ldap-filter "(memberOf=cn=apache-web-users,ou=Groups,dc=example,dc=com)"

Require ldap-attribute expects an attribute=value pair, for example Require ldap-attribute employeeType=web-enabled. Use that form only when the attribute exists on the test user, is not already enforced by your AuthLDAPURL filter, and the Apache bind account has compare access to it.

Use ldap-filter and ldap-attribute sparingly. They are useful when roles or account flags already live on the user entry; see roles versus groups for server-side role design.

Secure the Apache-to-LDAP connection

Two connections need protection:

Browser  -- HTTPS -->  Apache  -- LDAP TLS -->  389 Directory Server

Encrypting only the website does not encrypt LDAP traffic between Apache and 389 DS. Complete Apache HTTPS setup belongs in a separate article; this lab assumes HTTPS is already available for the protected URL.

Option 1: LDAP with StartTLS

Upgrade a plain LDAP connection on port 389:

AuthLDAPURL "ldap://ldap1.example.com/ou=people,dc=example,dc=com?uid?sub?(objectClass=posixAccount)" STARTTLS

Keep LDAPTrustedGlobalCert and LDAPVerifyServerCert On at server scope. On Rocky Linux 10.2, Apache accepted the PEM CA file with CA_BASE64. Certificate export and renewal stay in the 389 DS TLS guide.

Verify StartTLS independently before testing Apache:

ldapsearch -LLL -o ldif-wrap=no -x -ZZ -H ldap://ldap1.example.com:389 -D "cn=apache-reader,ou=Services,dc=example,dc=com" -W -b "ou=people,dc=example,dc=com" "(uid=apacheuser1)" uid

Option 2: LDAPS

LDAPS negotiates TLS immediately on port 636:

AuthLDAPURL "ldaps://ldap1.example.com:636/ou=people,dc=example,dc=com?uid?sub?(objectClass=posixAccount)"

Do not append STARTTLS to an ldaps:// URL. Use either StartTLS or LDAPS consistently for each connection.

Do not disable certificate validation as a permanent fix. Correct the CA path, hostname, and certificate trust instead.

Test authentication and authorization

Use a small matrix to separate authentication from authorization:

A 401 response usually means the user search or password bind failed. With AuthzSendForbiddenOnFailure On, a 403 response after a valid password means Require ldap-group or another authorization rule rejected the authenticated identity.

Test in the browser and with curl -u username over HTTPS. Run apachectl configtest and reload httpd after each meaningful configuration change.

mod_ldap caches successful LDAP search, bind, and group-comparison results. The default TTL for both the main LDAP cache and operation cache is 600 seconds, so a password change, account lockout, or newly added group membership may not appear immediately in repeated Apache tests. During the lab, wait for the configured cache TTL or run sudo systemctl restart httpd when you need a clean retest after changing a password, account state, or group membership. Use reload after ordinary configuration edits; reserve restart for clearing in-memory LDAP test state.

Troubleshoot Apache LDAP authentication

Review Apache logs after a failed login:

sudo tail -20 /var/log/httpd/error_log

A failed user search often appears as AH01618: user <uid> not found. TLS or bind failures may appear as LDAP connection errors in the same log.

On VM1, review 389 DS access logs to distinguish failed searches from failed user binds:

sudo tail -30 /var/log/dirsrv/slapd-ldap1/access

Look for the search performed by cn=apache-reader, followed by the user bind. A successful user bind confirms authentication; a later Apache authorization failure points to the applicable Require rule instead. Log lines vary by server configuration, so a fabricated full sample is not necessary here.

Account lockout and password policy on the directory server still apply to the user bind Apache performs. When a locked account fails authentication, fix the account state on 389 DS rather than in Apache; see account lockout for failed-bind behavior.

References

• Apache mod_authnz_ldap — LDAP authentication and authorization directives
• Apache mod_ldap — LDAP connection, TLS, and cache settings
• Apache mod_authz_core — AuthzSendForbiddenOnFailure
• 389 Project: Apache LDAP guide — upstream integration notes
• SELinux policy reference for httpd — httpd_can_connect_ldap boolean

Summary

You configured Apache HTTP Server to authenticate users directly against 389 Directory Server:

1. Created test users, a groupOfNames authorization group, and a read-only apache-reader search account.
2. Verified LDAP connectivity from VM2 with ldapsearch and ldapwhoami before editing Apache.
3. Installed and confirmed mod_ldap, mod_authnz_ldap, mod_auth_basic, and mod_authz_user.
4. Configured AuthLDAPURL to search uid under ou=people with StartTLS.
5. Started with Require valid-user, then restricted access with Require ldap-group.
6. Encrypted Apache-to-directory traffic with StartTLS or LDAPS and trusted the issuing CA.

For the surrounding course, continue with the ACI examples, MemberOf, and SSSD LDAP authentication guides when you need operating-system login instead of web-server login.
